AN54.65-P-0030SC Retrofit Reversing Camera

AN54.65-P-0030SC Retrofit Reversing Camera
- MODEL 216.3## (except 216.374 /377 /379) 1#
- except CODE (494) USA version
- except CODE (498) Japan version

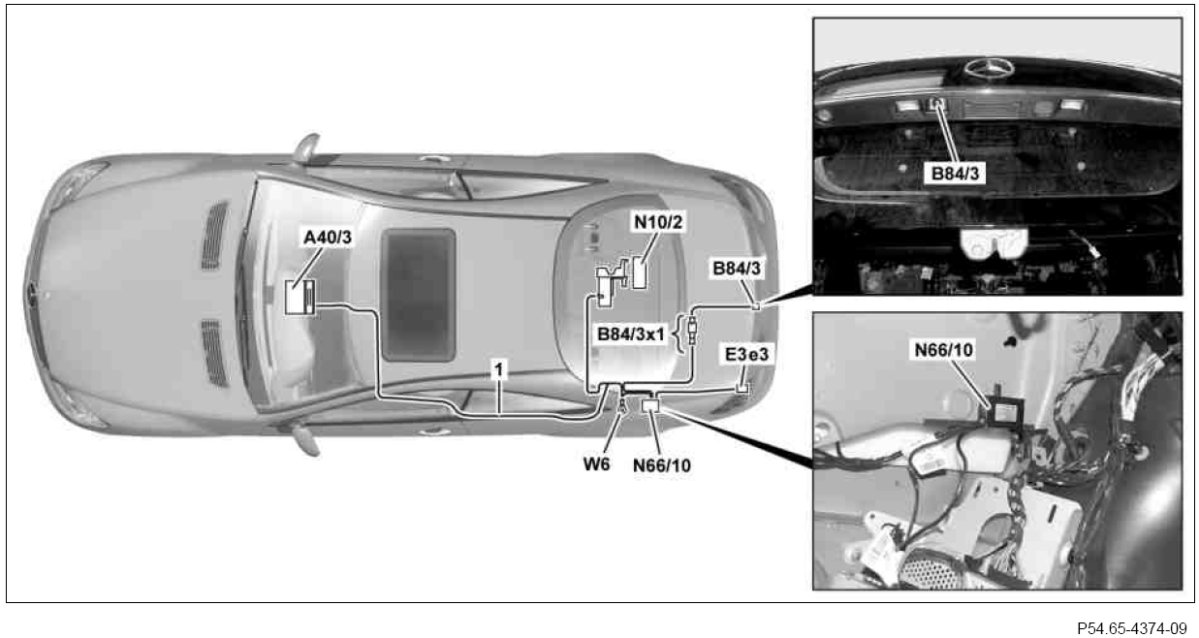

1 Backup camera wiring harness
A40/3 COMAND controller unit
B84/3 Backup camera
B84/3x1 Backup camera connector
E3e3 Left backup lamp
N10/2 Rear SAM control unit with fuse and relay module
N66/10 Backup camera voltage supply module
W6 Ground (left wheelhouse in luggage compartment)















220 589 02 99 00, Wiring harness repair kit
