AN54.65-P-0030-02SC Retrofit Camera

AN54.65-P-0030-02SC Retrofit Camera
- MODEL 216.3## 1#






1 Remove license plate.

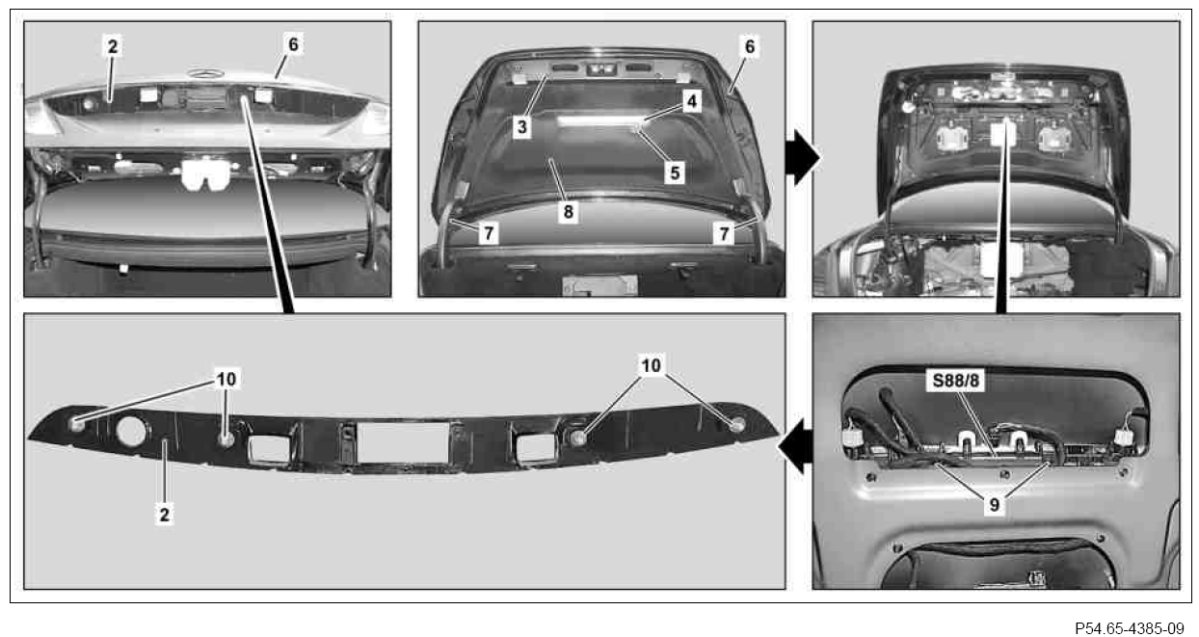

2 Take out hazard warning triangle (4) and remove holder (5).
3 Remove paneling (3)
4 Remove left and right hinge bracket trim piece (7).
5 Remove trim of trunk lid (8).
6 Remove screws (9) from trunk lid external operation switch on trunk lid (S88/8).
7 Unclip clips (10) for covering (2) starting at right and remove covering (2) from trunk lid (6).
The cover (2) is no longer required.

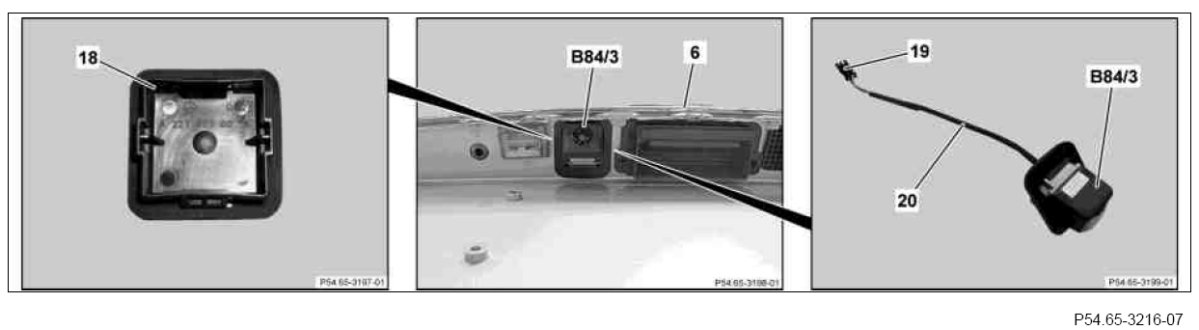

8 Remove plug (18) from trunk lid (6).
The plug (18) is no longer required.

9 Guide black 4-pin connector (19) and line (20) of reversing camera (B84/3) from outside into cutout in trunk lid (6) and clip reversing camera (B84/3) into trunk lid (6) as shown in picture.
Later, connect the black 4-pin connector (19) in the trunk lid (6) to the reversing camera wiring harness.
