AR82.70-P-0010SC Remove/Install E-Net Compensator



AR82.70-P-0010SC Remove/Install E-Net Compensator
- with CODE (386) Preinstallation for telephone "Handy", UPCI system
- with CODE (388) Telephone "Handy", UPCI system

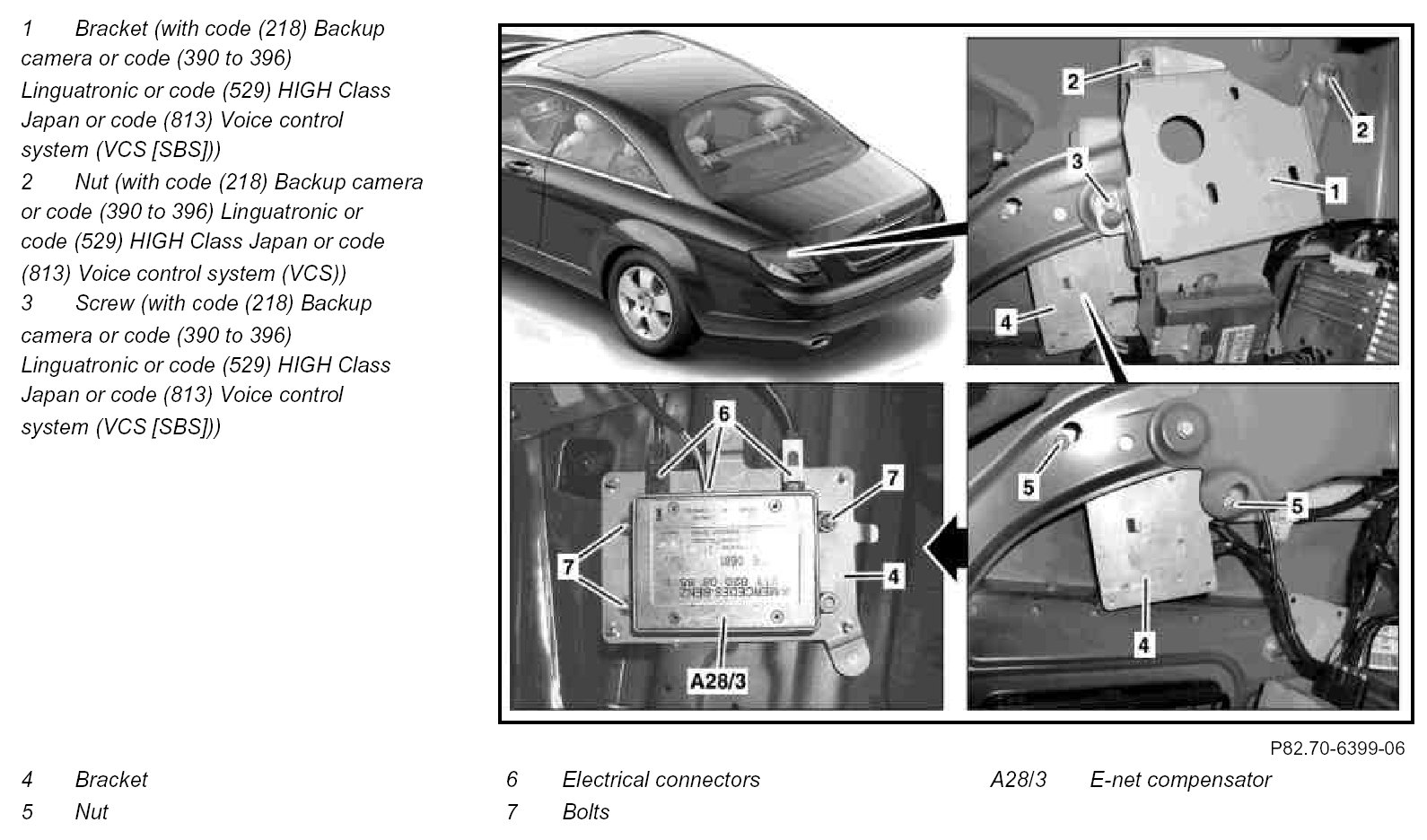

Component Identification:

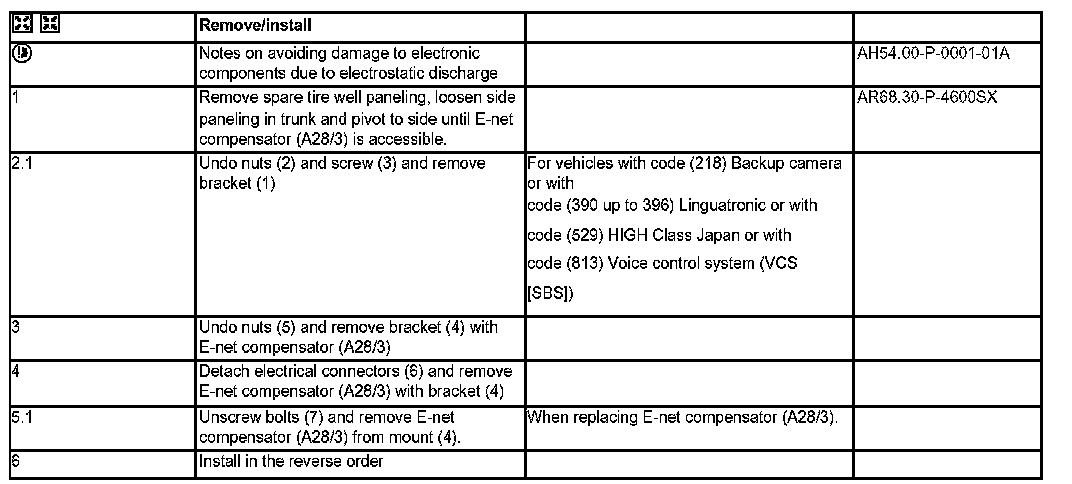

Steps 1 - 6:
