Home >> Mercedes Benz >> 2012 >> CL 550 4MATIC (216.394) V8-4.6L Turbo (278.920) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Cellular Phone >> Description and Operation >> GF82.70-P-0007-01LAJ Mobile Phone System, Location of Components

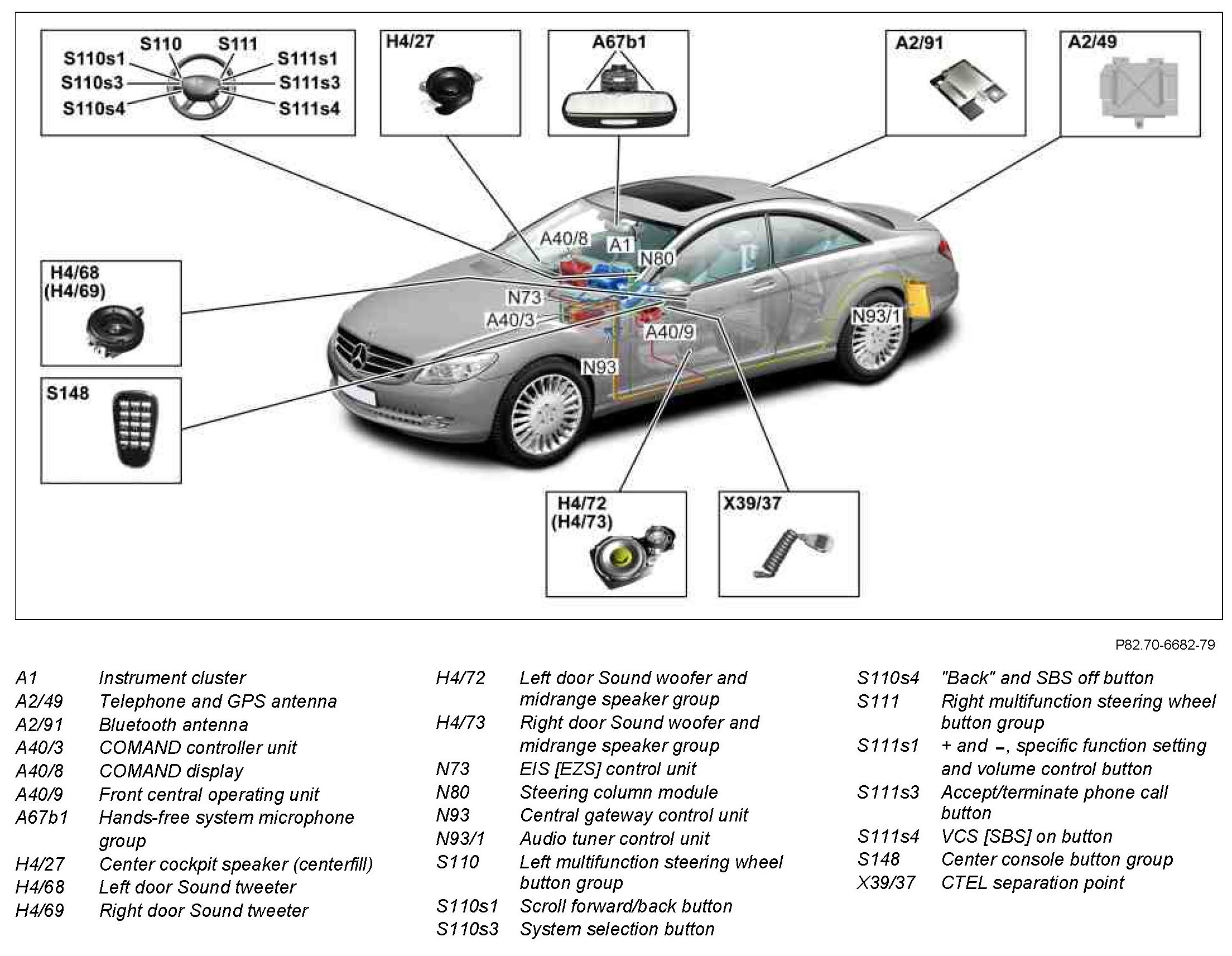

GF82.70-P-0007-01LAJ Mobile Phone System, Location of Components



GF82.70-P-0007-01LAJ Mobile Phone System, Location Of Components
- with CODE (529) HIGH Class Japan

Component Identification:
