Home >> Mercedes Benz >> 2012 >> CL 550 4MATIC (216.394) V8-4.6L Turbo (278.920) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antenna >> Service and Repair >> AR82.62-P-7200SX Remove/Install Blocking Circuit Of Rear Window Antenna

AR82.62-P-7200SX Remove/Install Blocking Circuit Of Rear Window Antenna



AR82.62-P-7200SX Remove/Install Blocking Circuit Of Rear Window Antenna

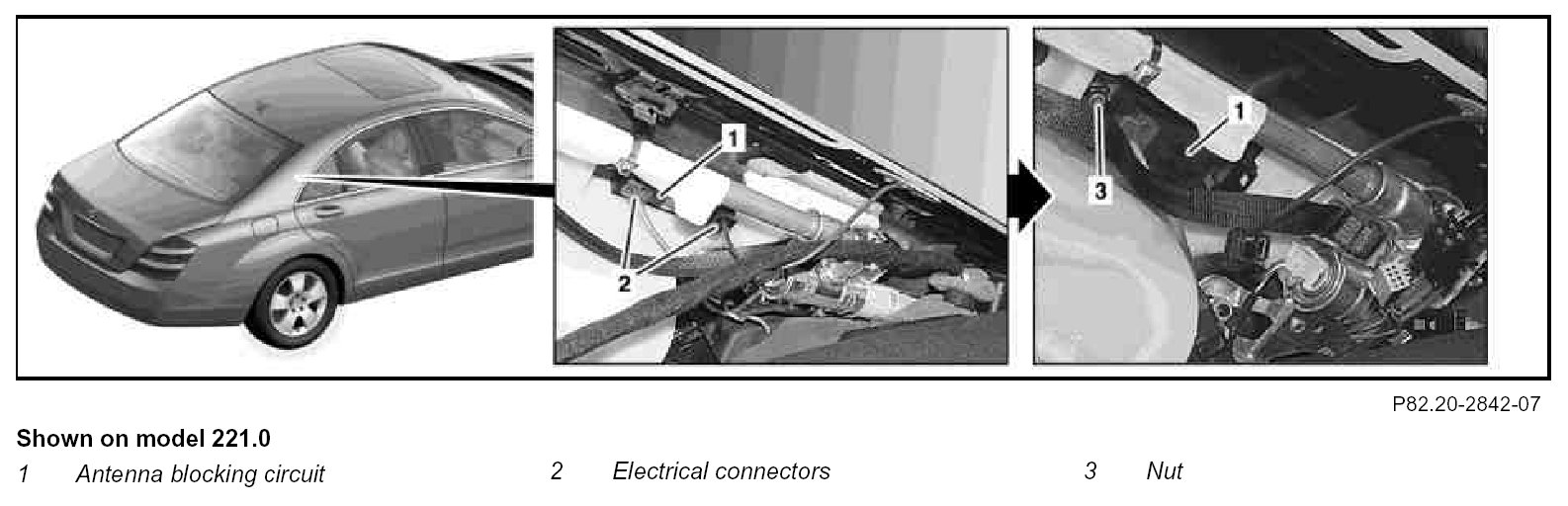

Component Identification:

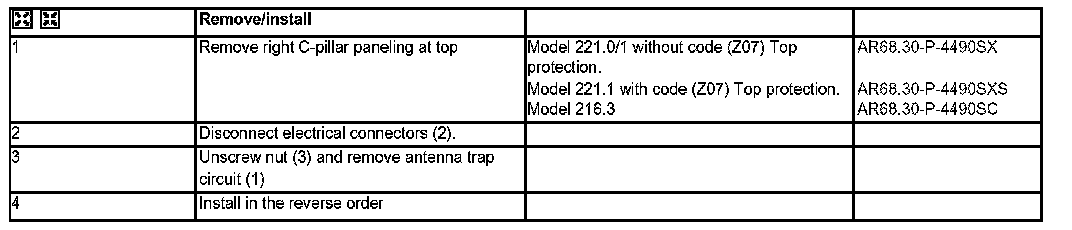

Steps 1 - 4:
