Antenna Amplifier: Service and Repair

AR82.62-P-8300SX Remove/Install Antenna Amplifier Module
- except CODE (Z07) Top protection [model 221]

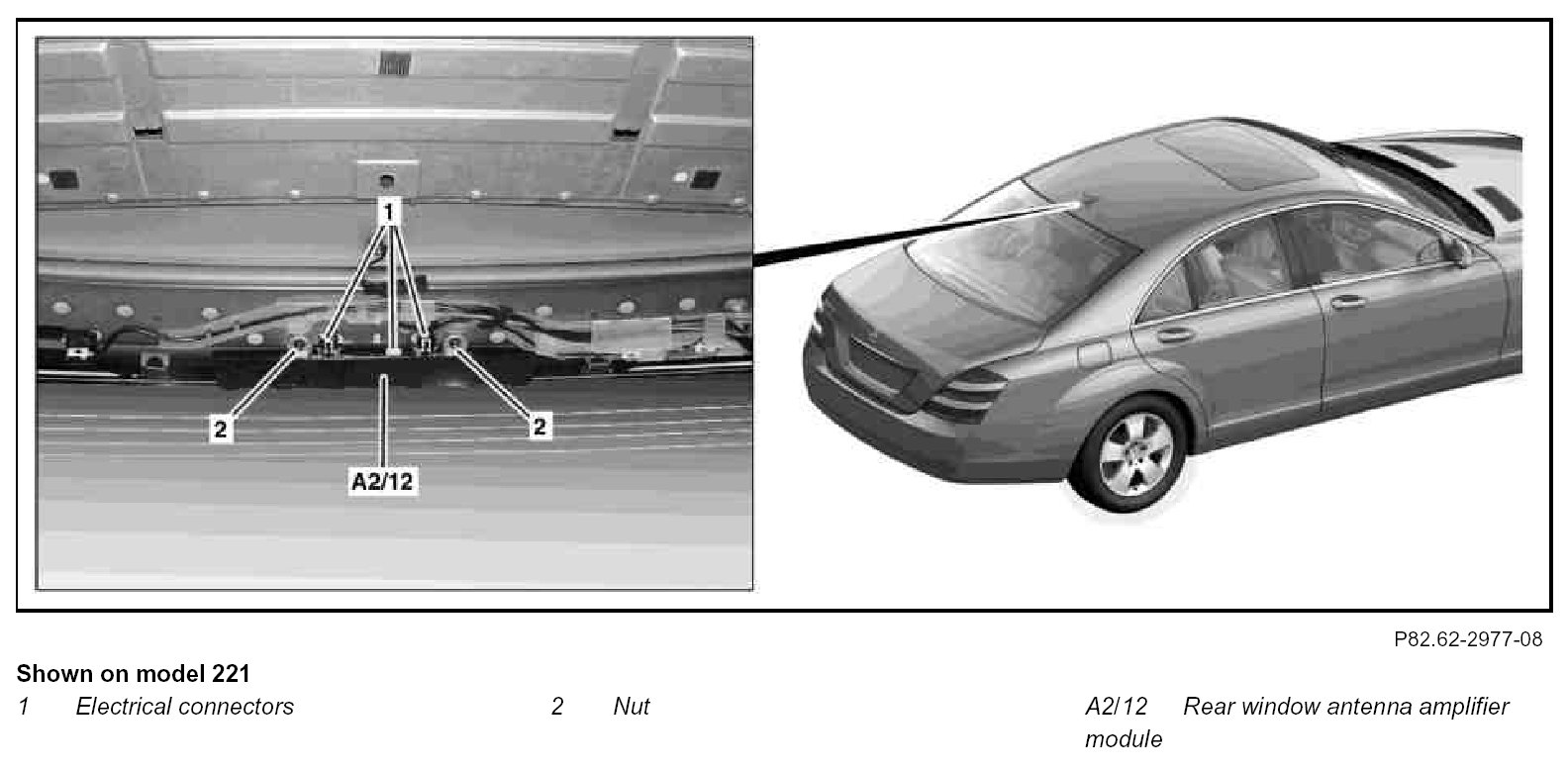

Component Identification:

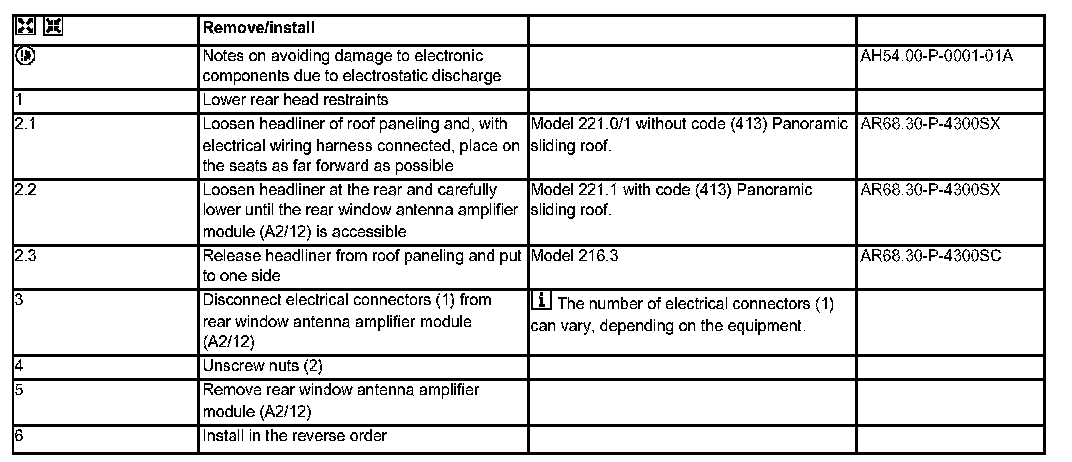

Steps 1 - 6:
