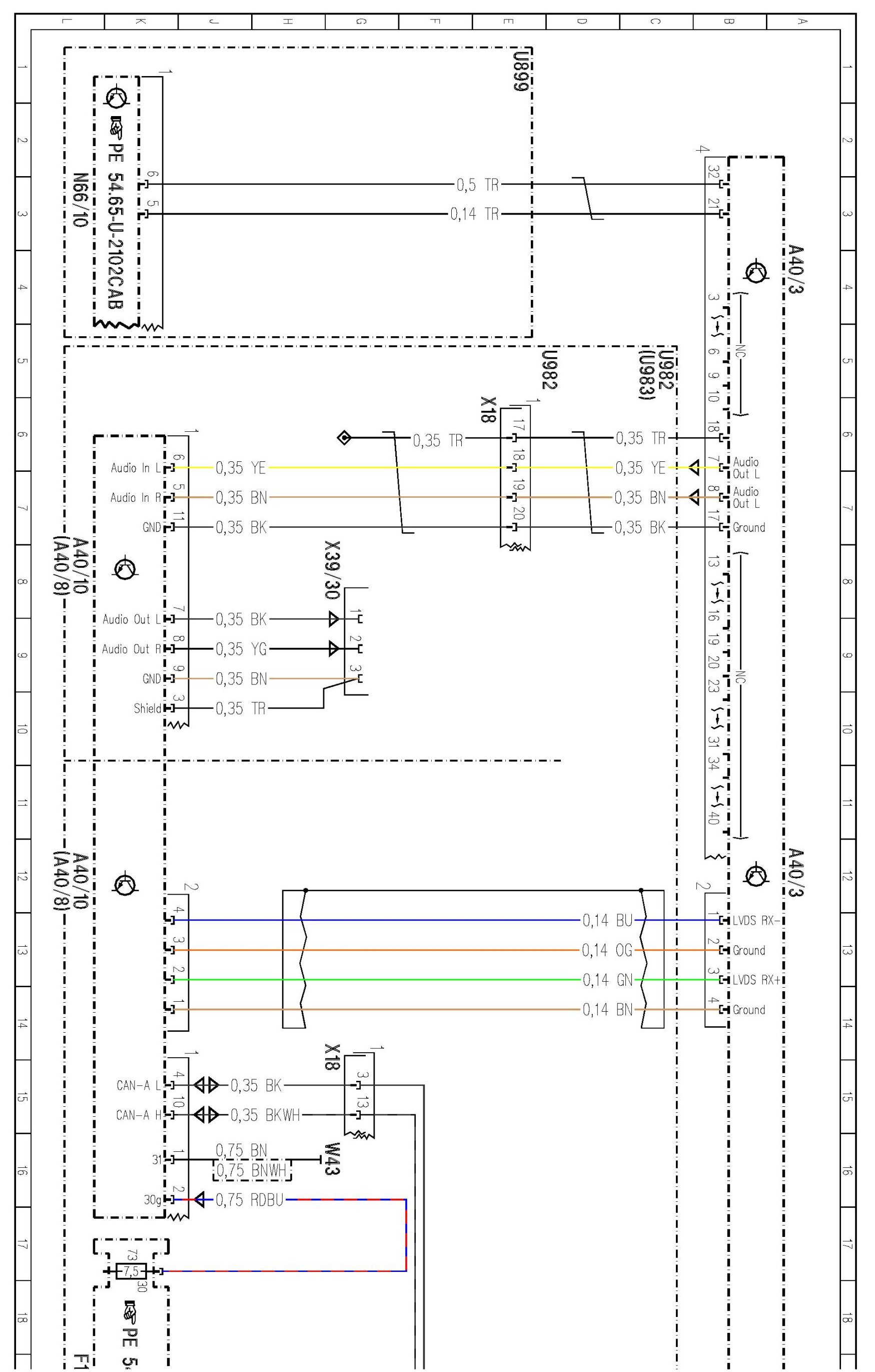

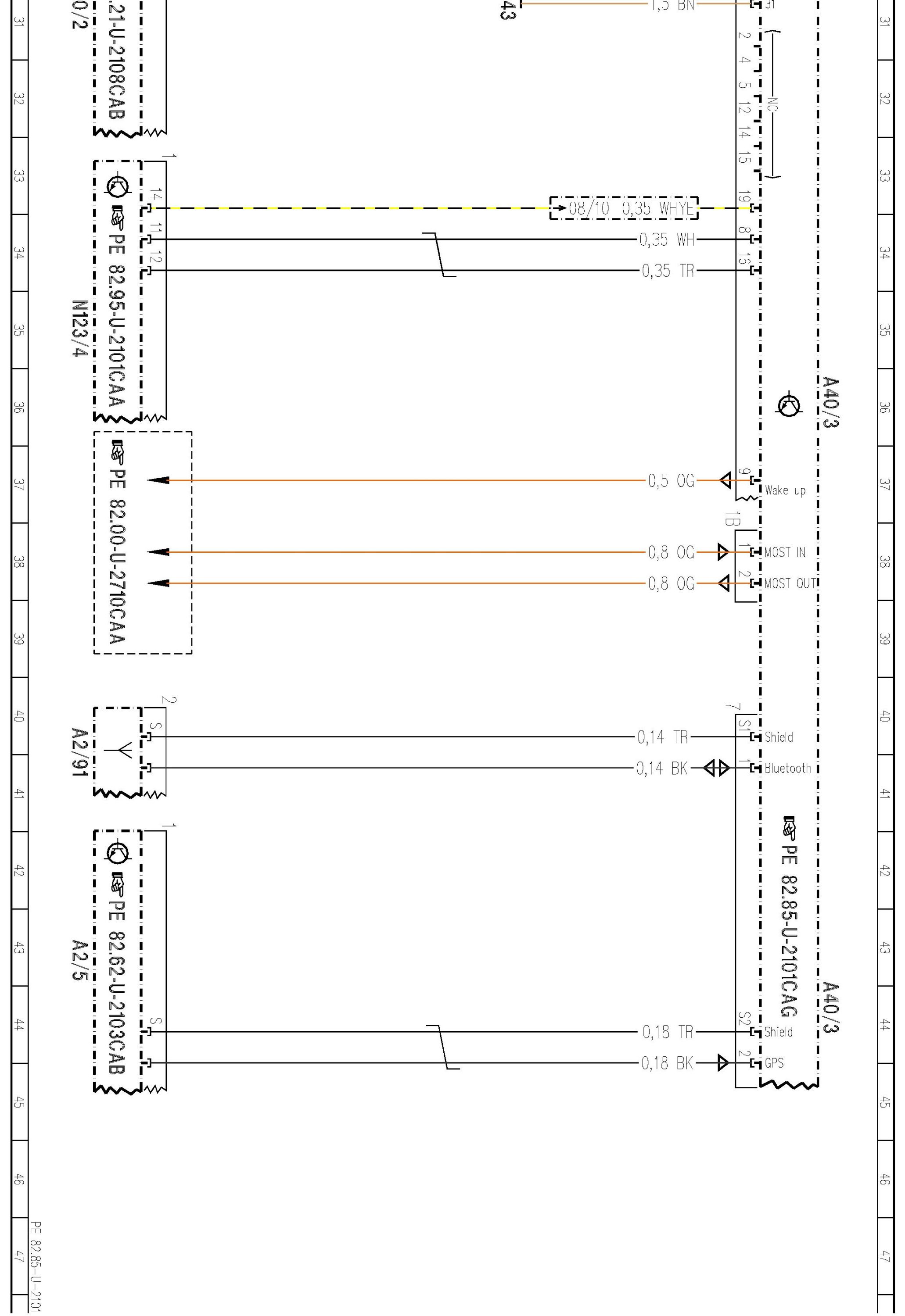

PE82.85-U-2101CAE Cockpit Management and Data System (COMAND) Control Module

PE82.85-U-2101CAE Cockpit Management and Data System (COMAND) Control Module

MODEL 216
- as of Model Year 2010
- HIGH Class,

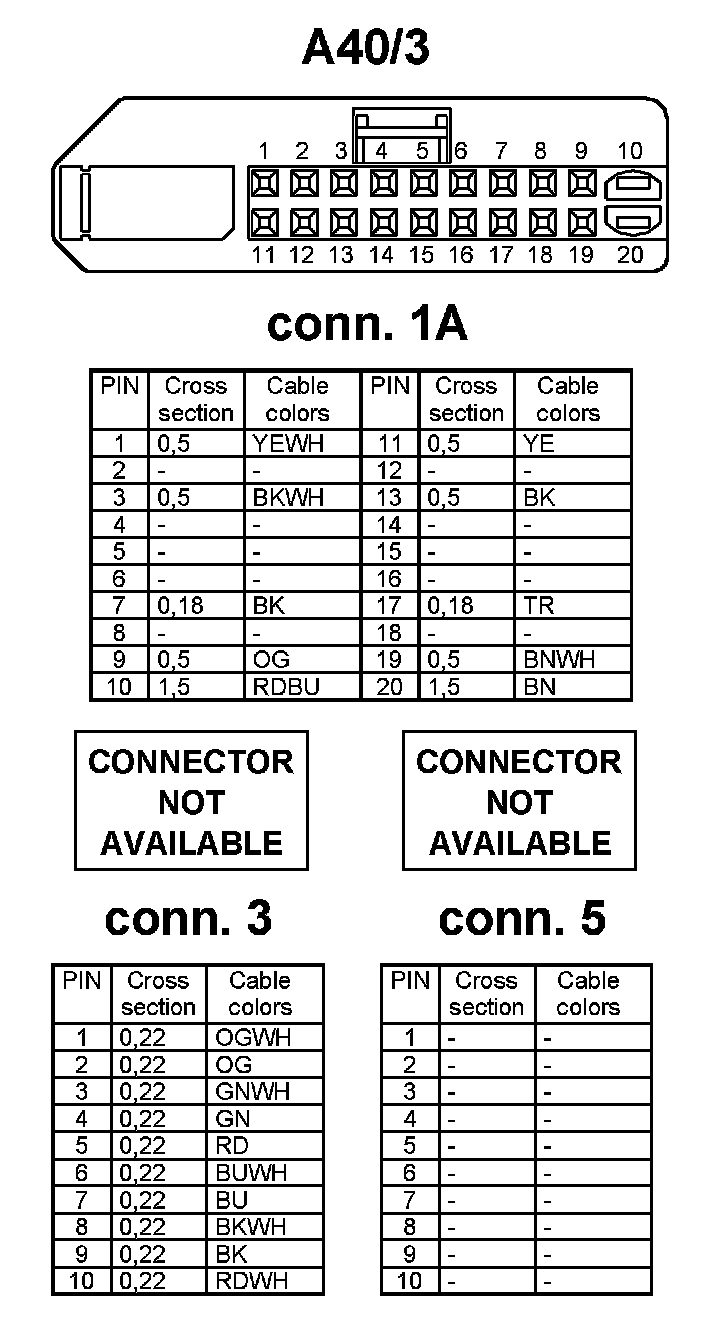

- Control unit A40/3,
- sheet 1























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
