P043627

Temperature sensor 1 'Catalytic converter' (cylinder bank 2) has a malfunction. The signal change rate is above the permissible limit value.
Check component 'B16/1 (Left temperature sensor upstream of NOx storage catalytic converter)'.


Test 1: Continue

1.
Connection of socket box
Legend

- A - Connection of test cable of socket box (35-pin)
- 001 - Plug-in connectors of component 'N3/9 (CDI control unit)'
- 003 Adapter cable (63-pin)
- 004 Adapter cable (58-pin)
- 005 Socket box (189-pin)
- 05 - Socket box (35-pin)
- 050 - Socket box (126-pin)
- 108 - Test cable 266 589 01 63 00
- N3/9 (CDI control unit)
- II 1-63 Connection of test cable
- III 64-126 Connection of test cable

Special tools

- Socket box 129 589 00 21 00 (126-pin)
- Socket box 124 589 00 21 00 (35-pin)
- Test cable 266 589 01 63 00
- Socket box 000 589 00 21 00 (189-pin)
- Adapter cable 000 589 00 21 03 (63-pin)
- Adapter cable 000 589 00 21 04 (58-pin)

Test procedure

- Switch off ignition.
- Buchsenkasten an das Steuergerät 'N3/9 (CDI control unit)' anschließen.
- Switch on ignition.

Caution!

- Connection A of test cable 108 must NOT be connected to connection B of the 126-pin socket box.











Test signal voltage of component 'B16/1 (Left temperature sensor upstream of NOx storage catalytic converter)'.
Legend
B16 (Right temperature sensor upstream of NOx storage catalytic converter)
B16/1 (Left temperature sensor upstream of NOx storage catalytic converter)
Test prerequisite
The actual value is not OK.
Test procedure
Ignition OFF
Measure direct voltage with multimeter between socket [F.23] 119 of the 126-pole socket box tester and socket [F.35] 5 of the 35-pole socket box tester.
Ignition ON
Status of associated actual value
Observation Exhaust temperature in right NOx storage catalytic converter: communication with ECU required.

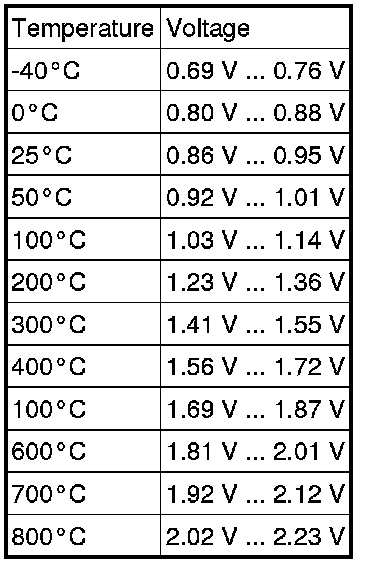

Specified values





Question
Are the measured values OK?







End of test
No successor specified
