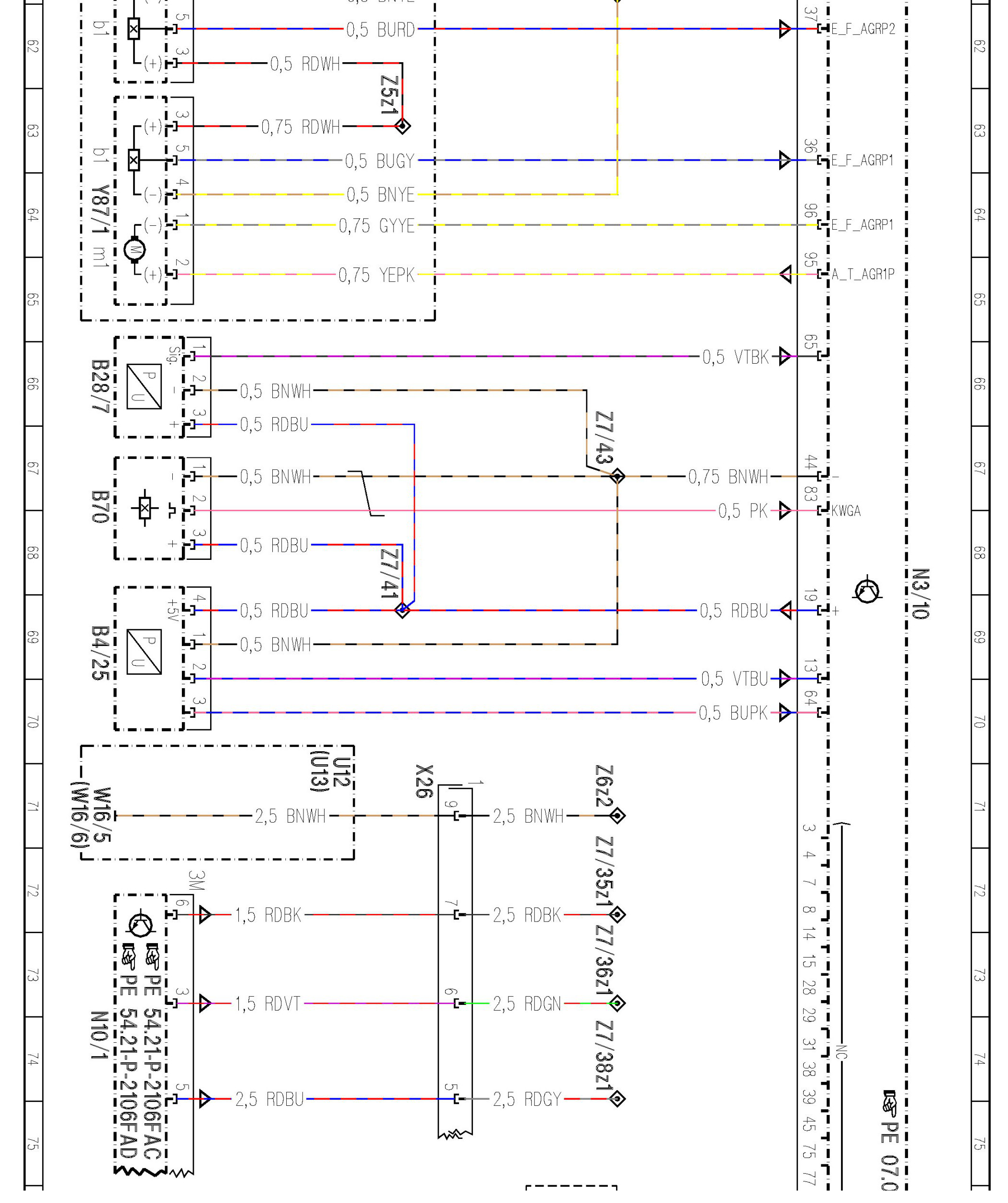

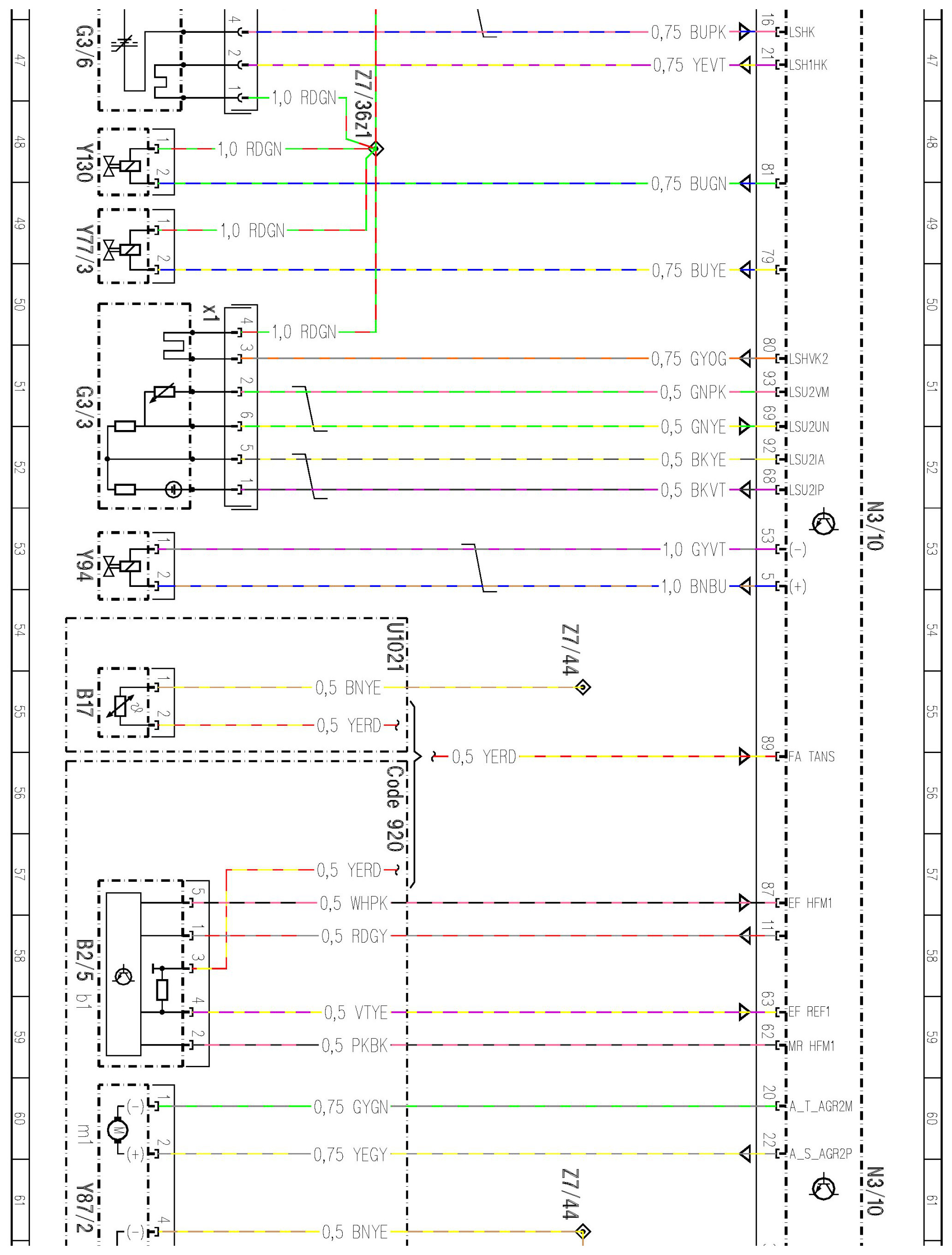

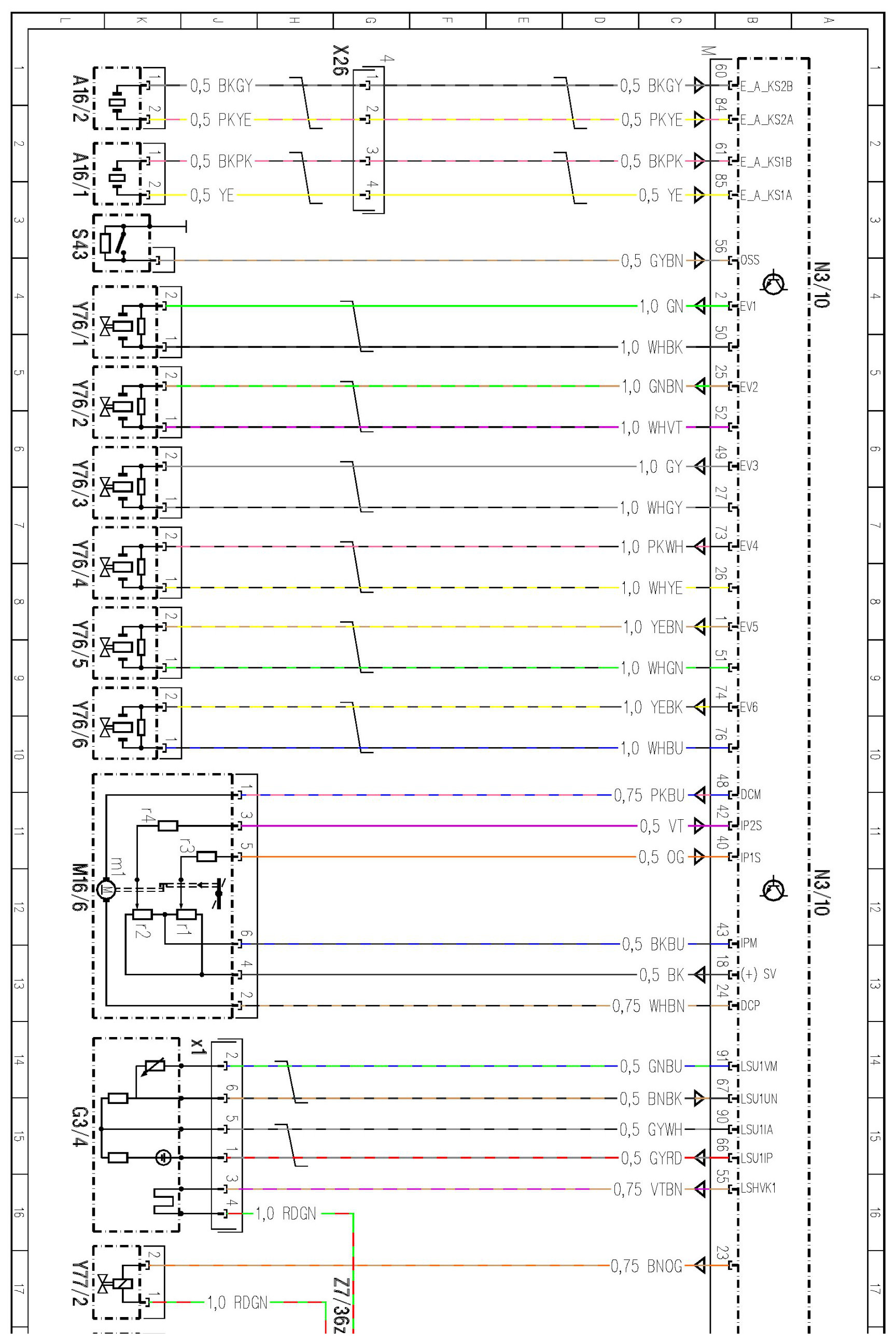

PE07.08-P-2101FAE Gasoline Direct Injection System Control Unit

PE07.08-P-2101FAE Gasoline Direct Injection System Control Unit

ENGINES 276 in MODEL 204

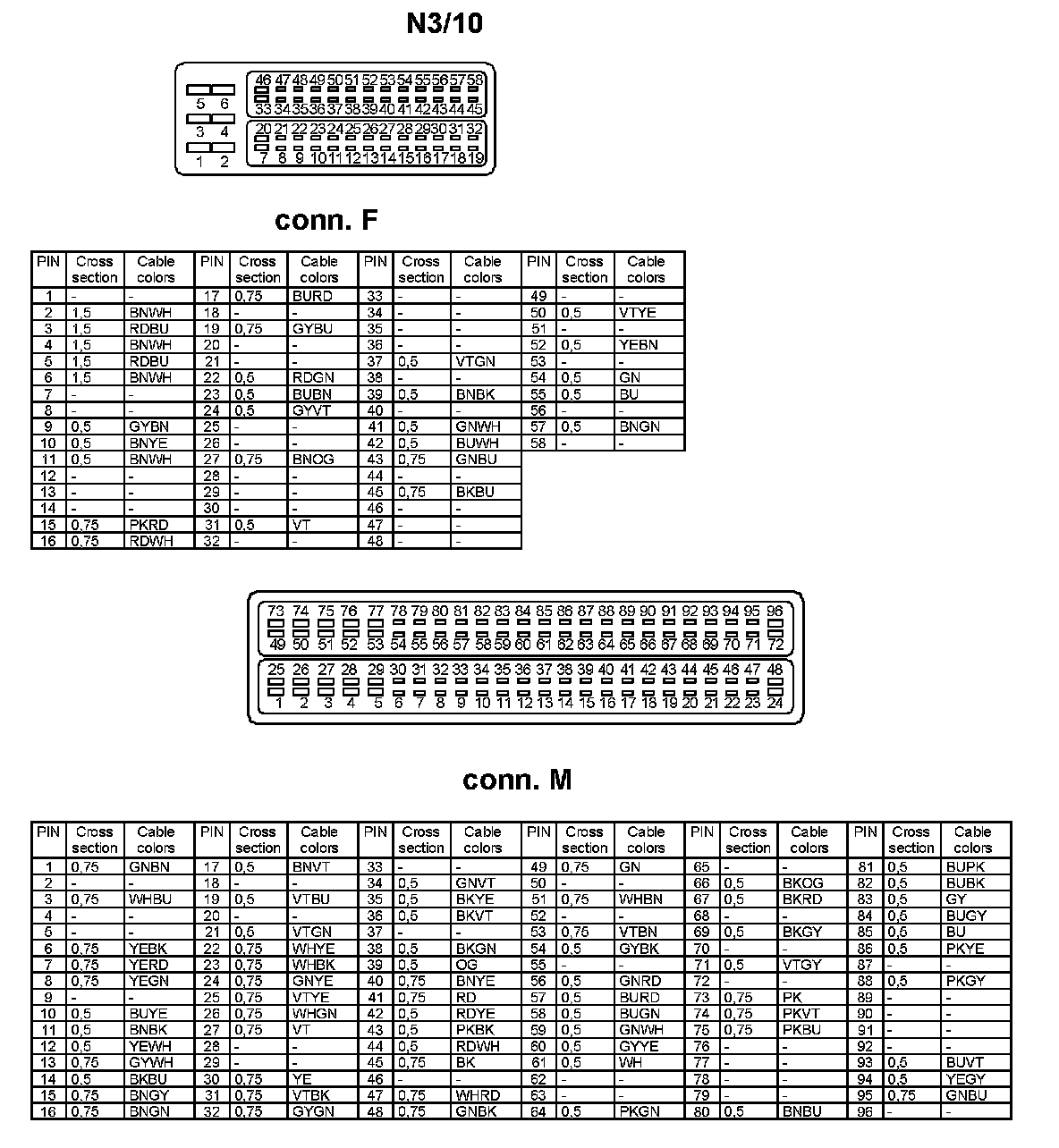

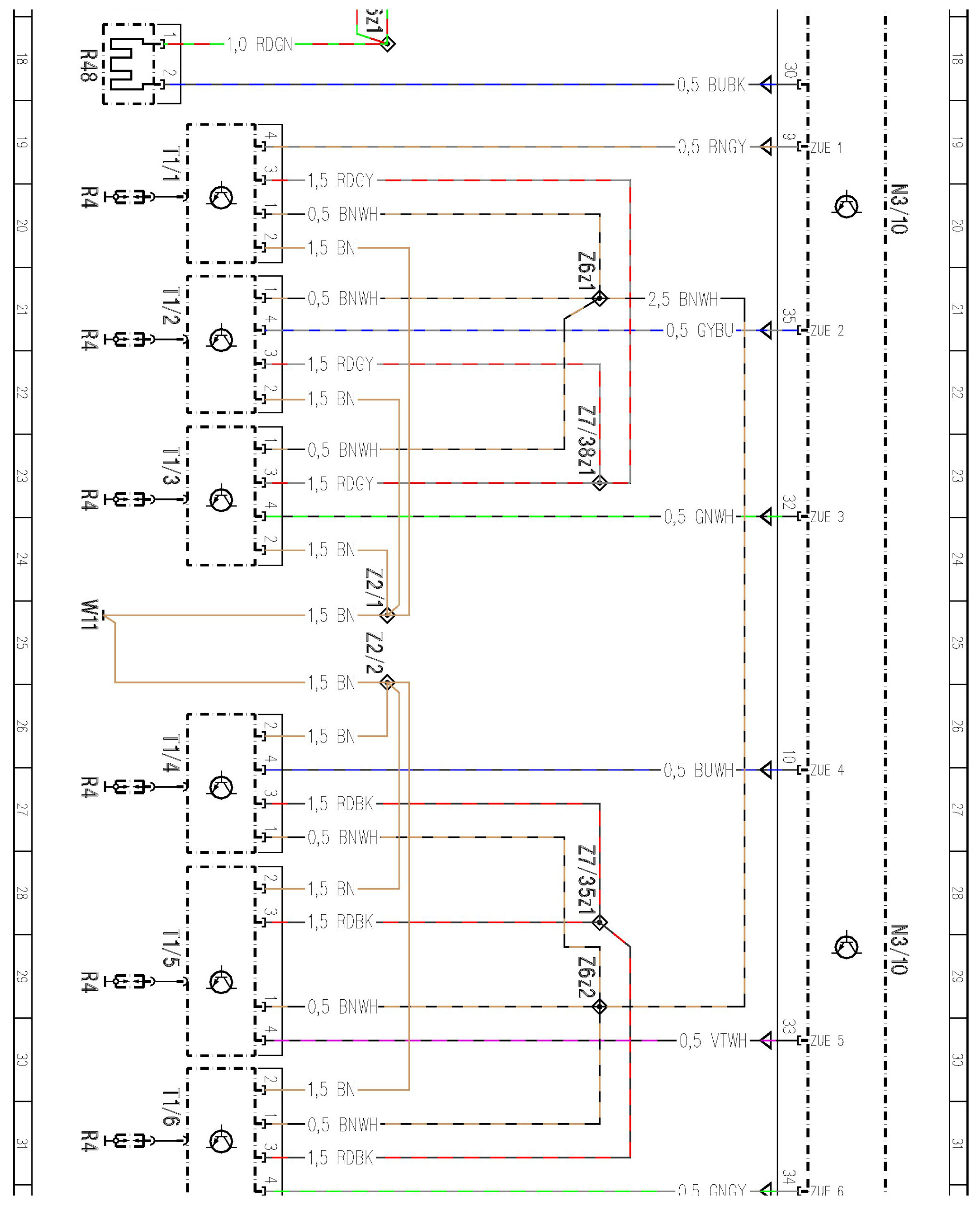

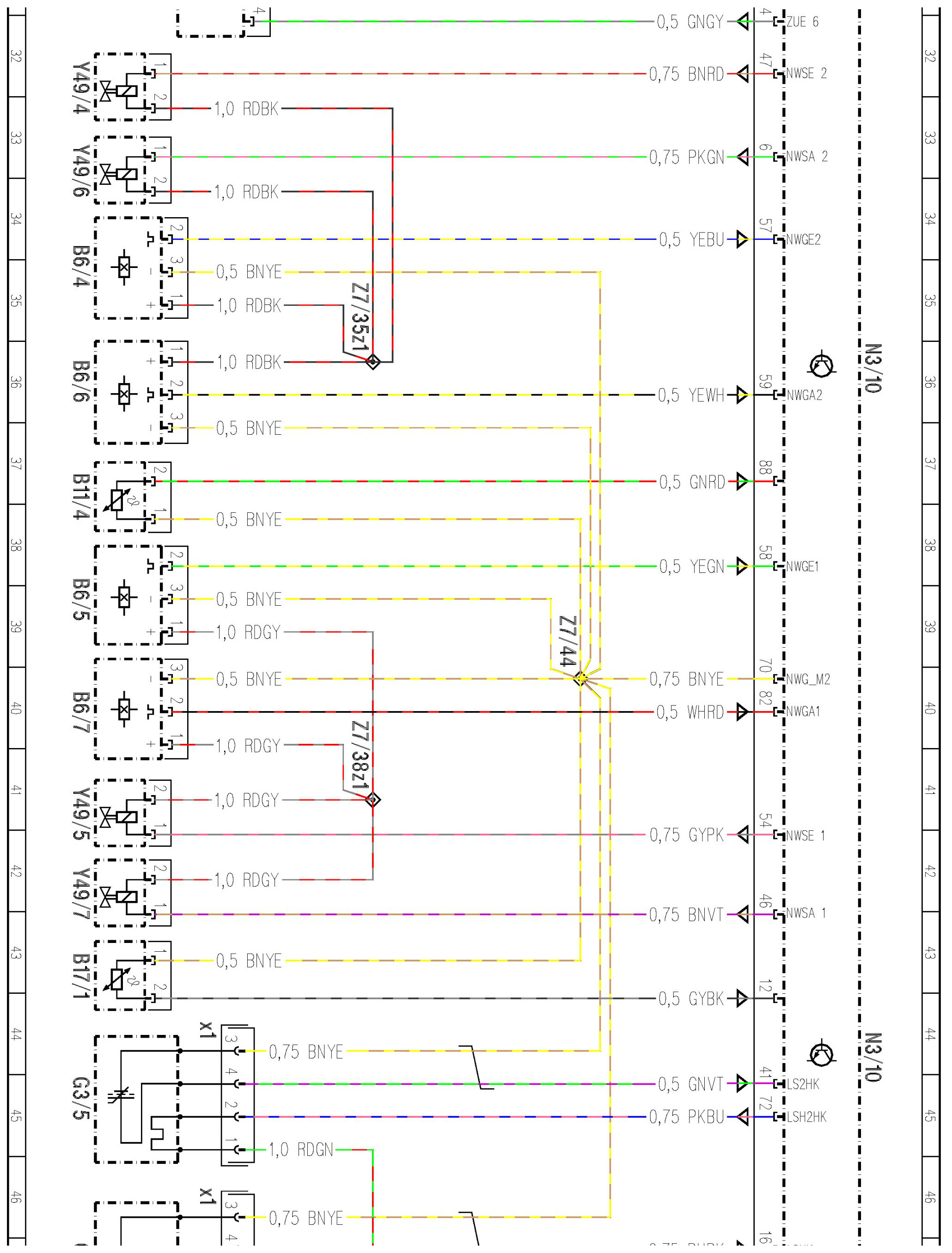

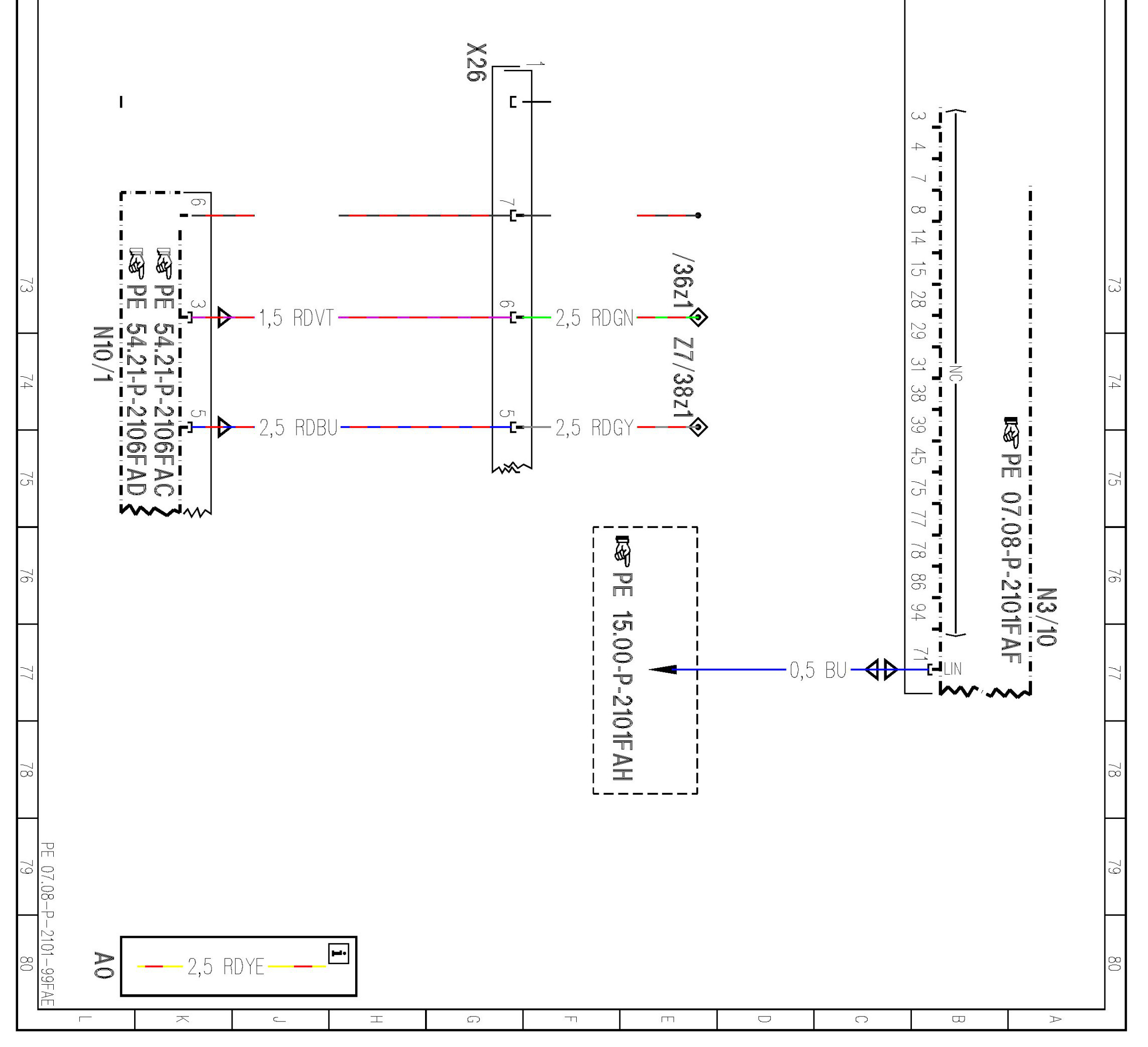

- Control unit N3/10 , engine side















































































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
