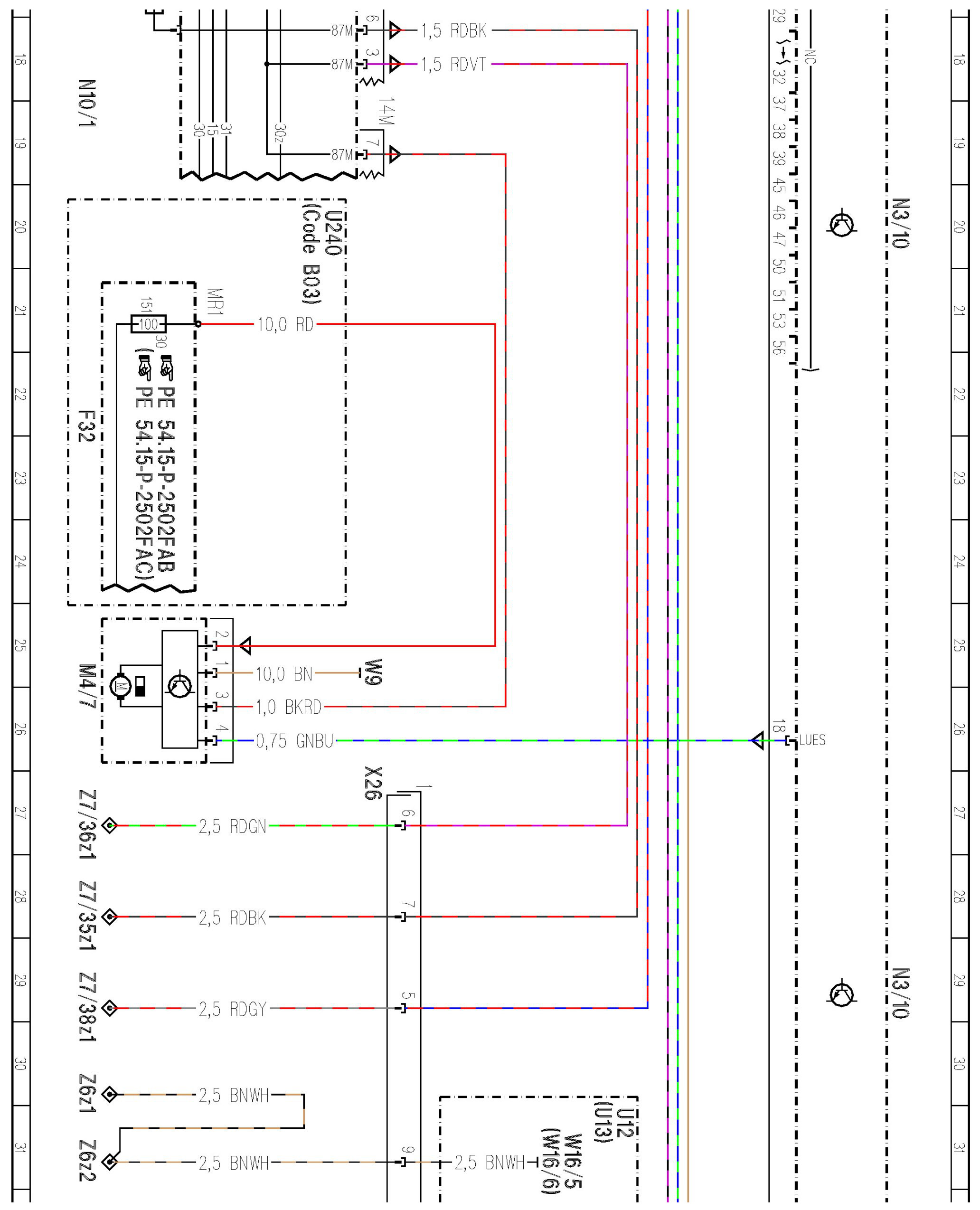

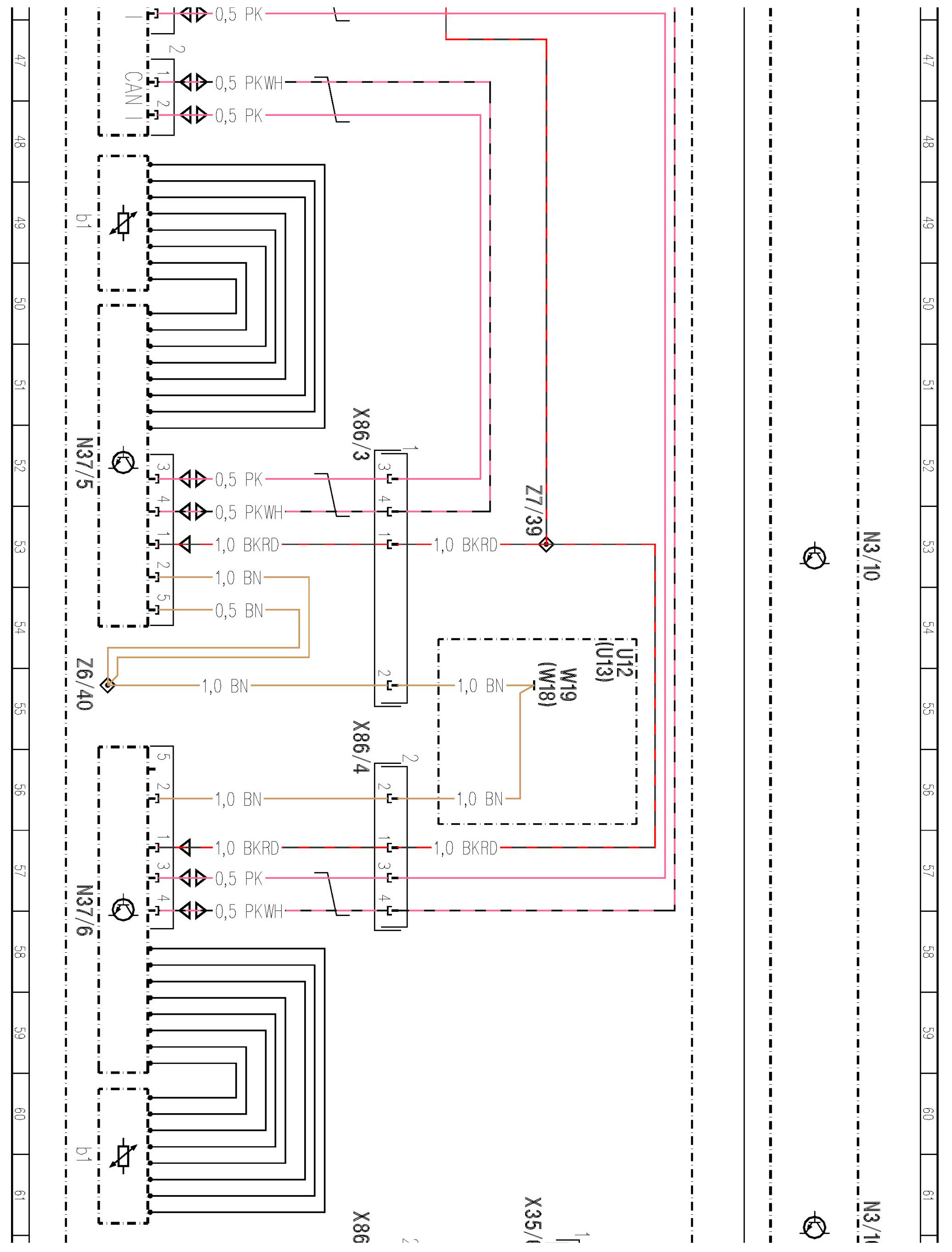

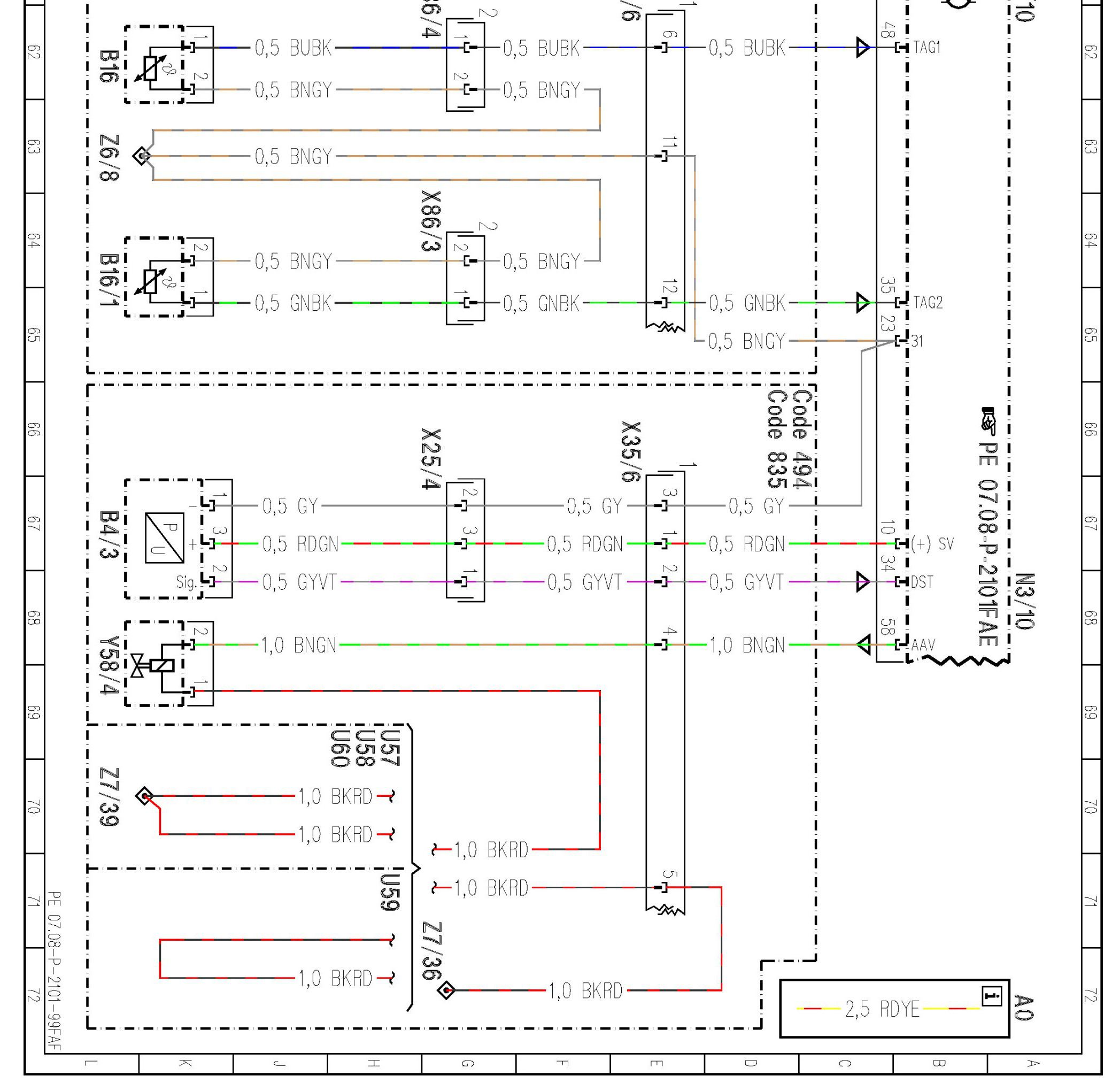

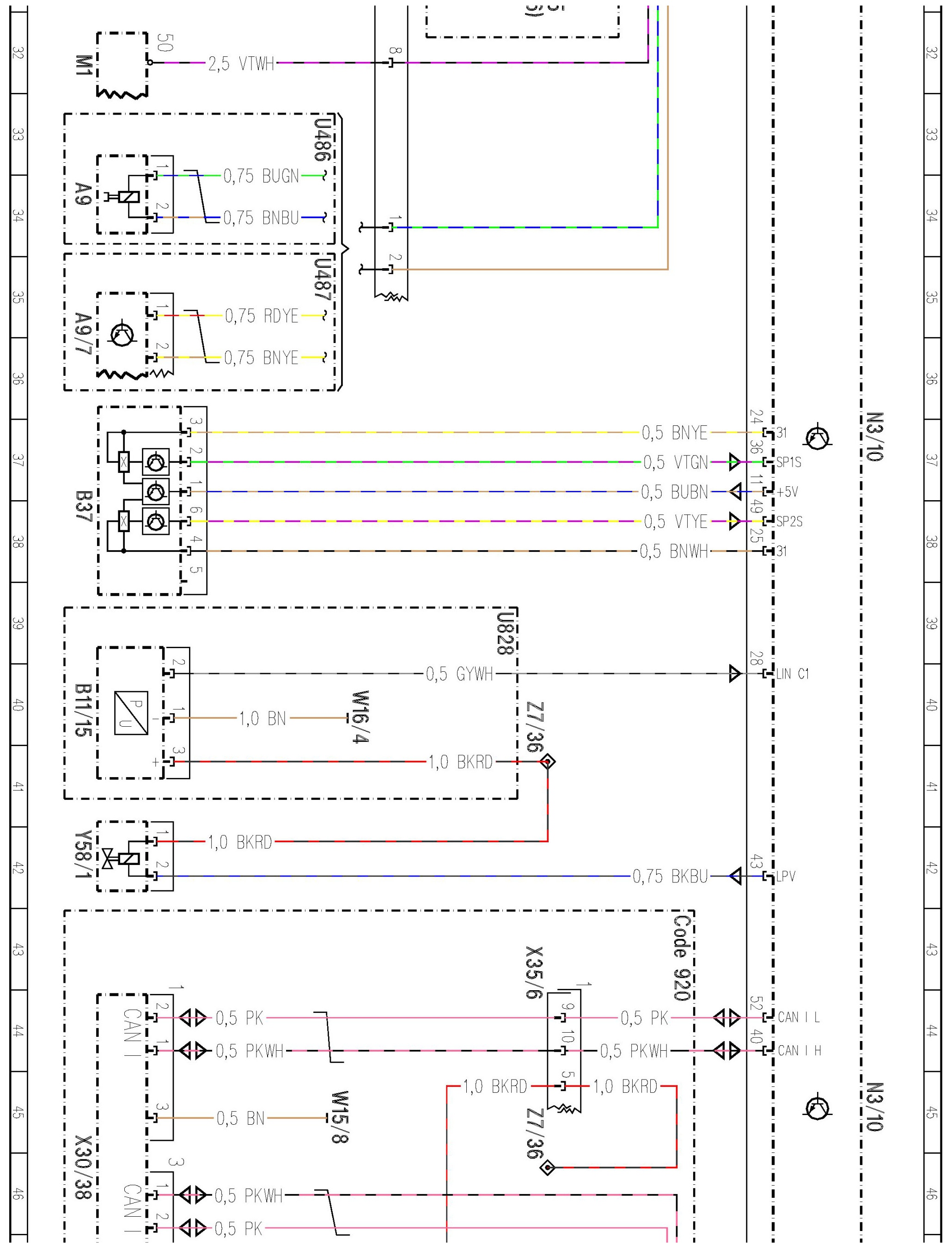

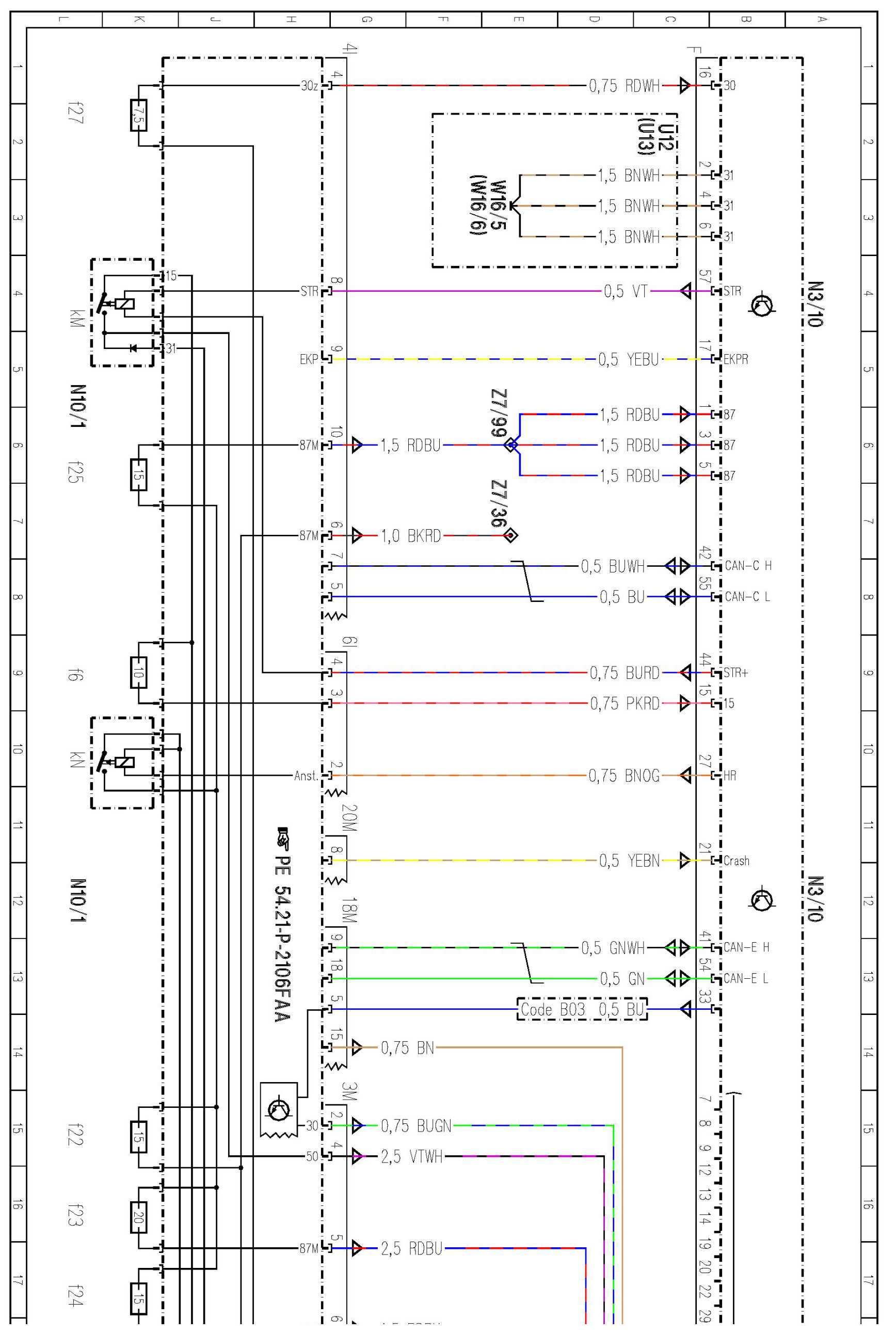

PE07.08-P-2101FAF Gasoline Direct Injection System Control Unit

PE07.08-P-2101FAF Gasoline Direct Injection System Control Unit

ENGINES 276 in MODEL 204

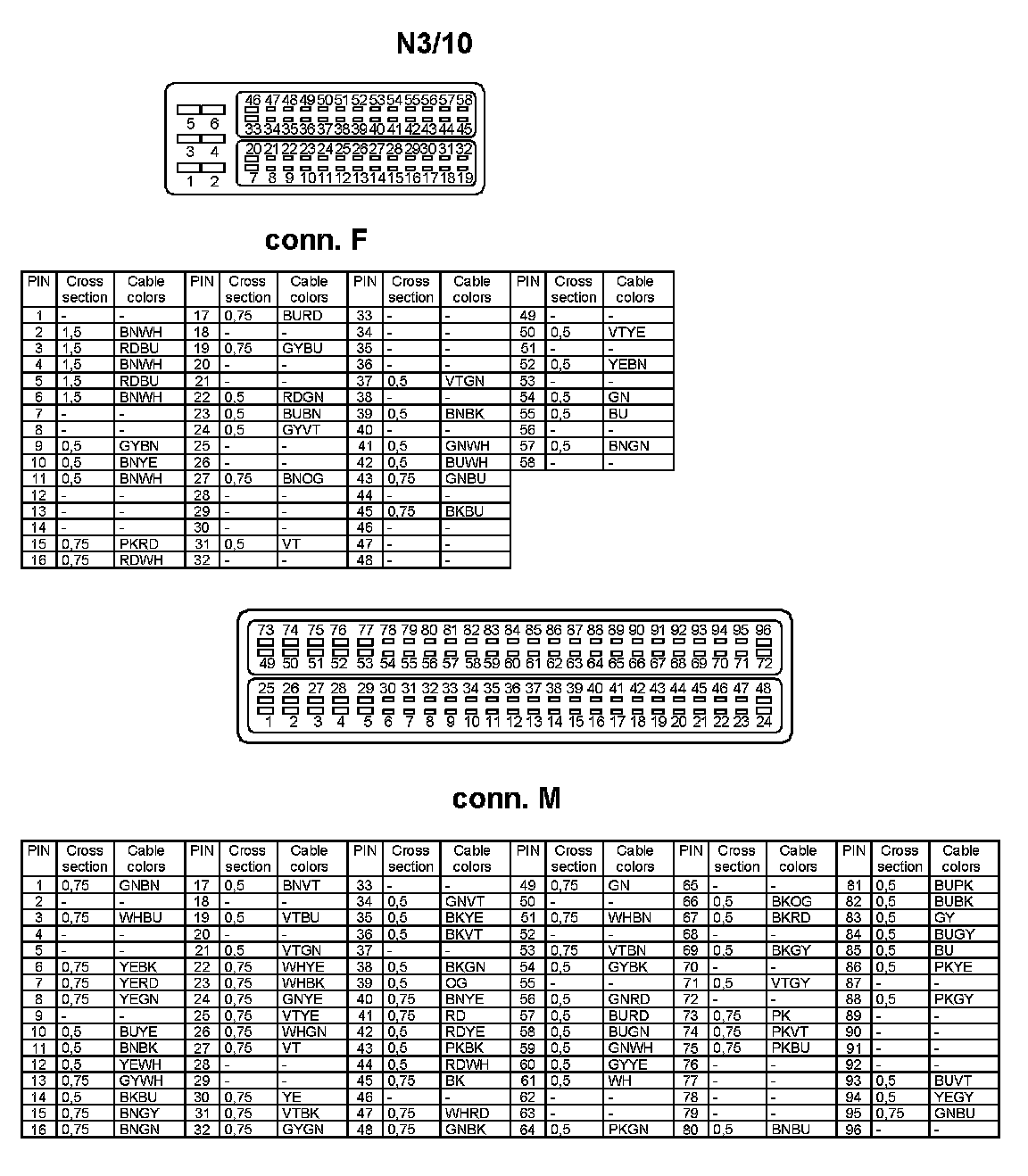

- Control unit N3/10 , body side



















































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
