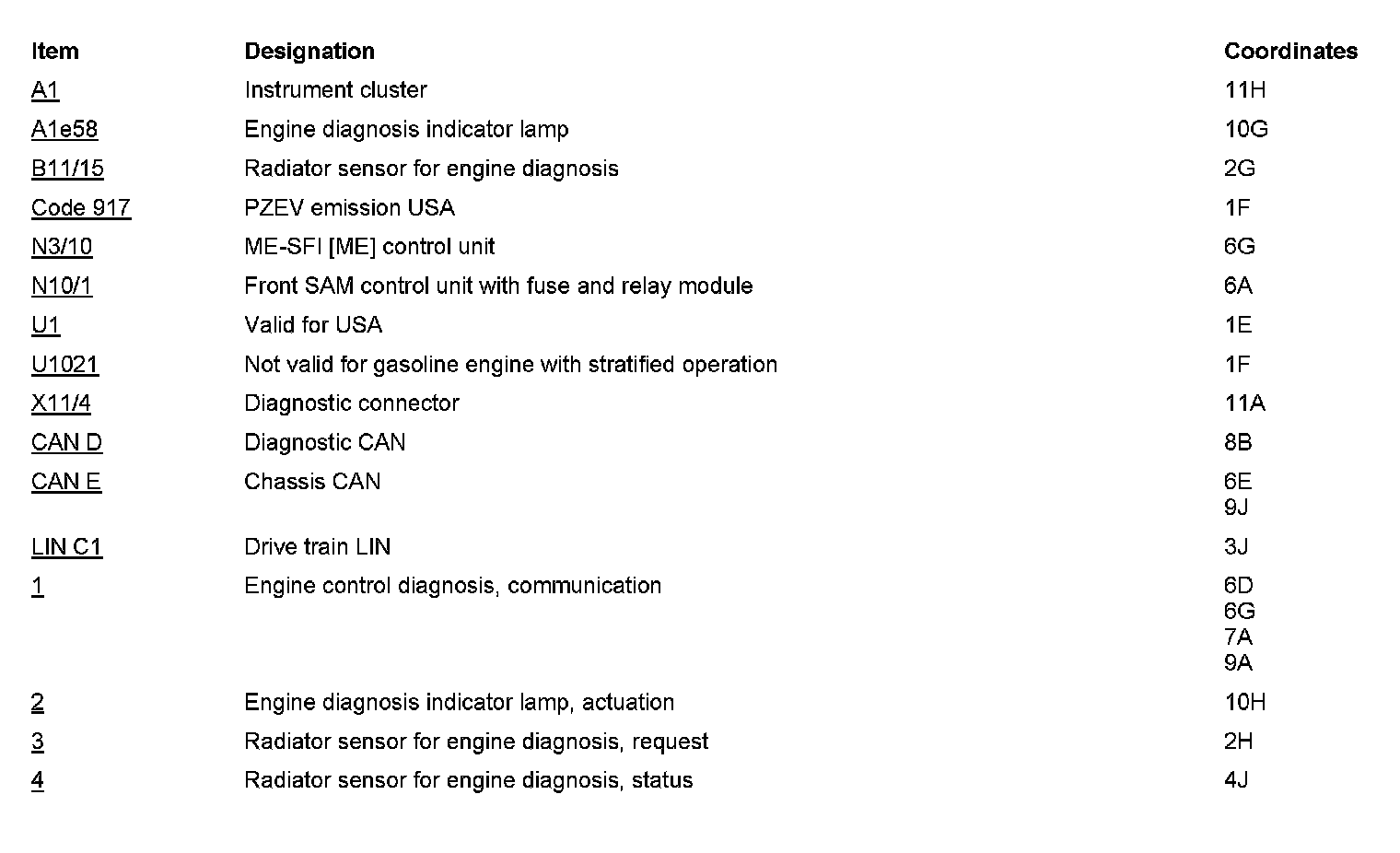

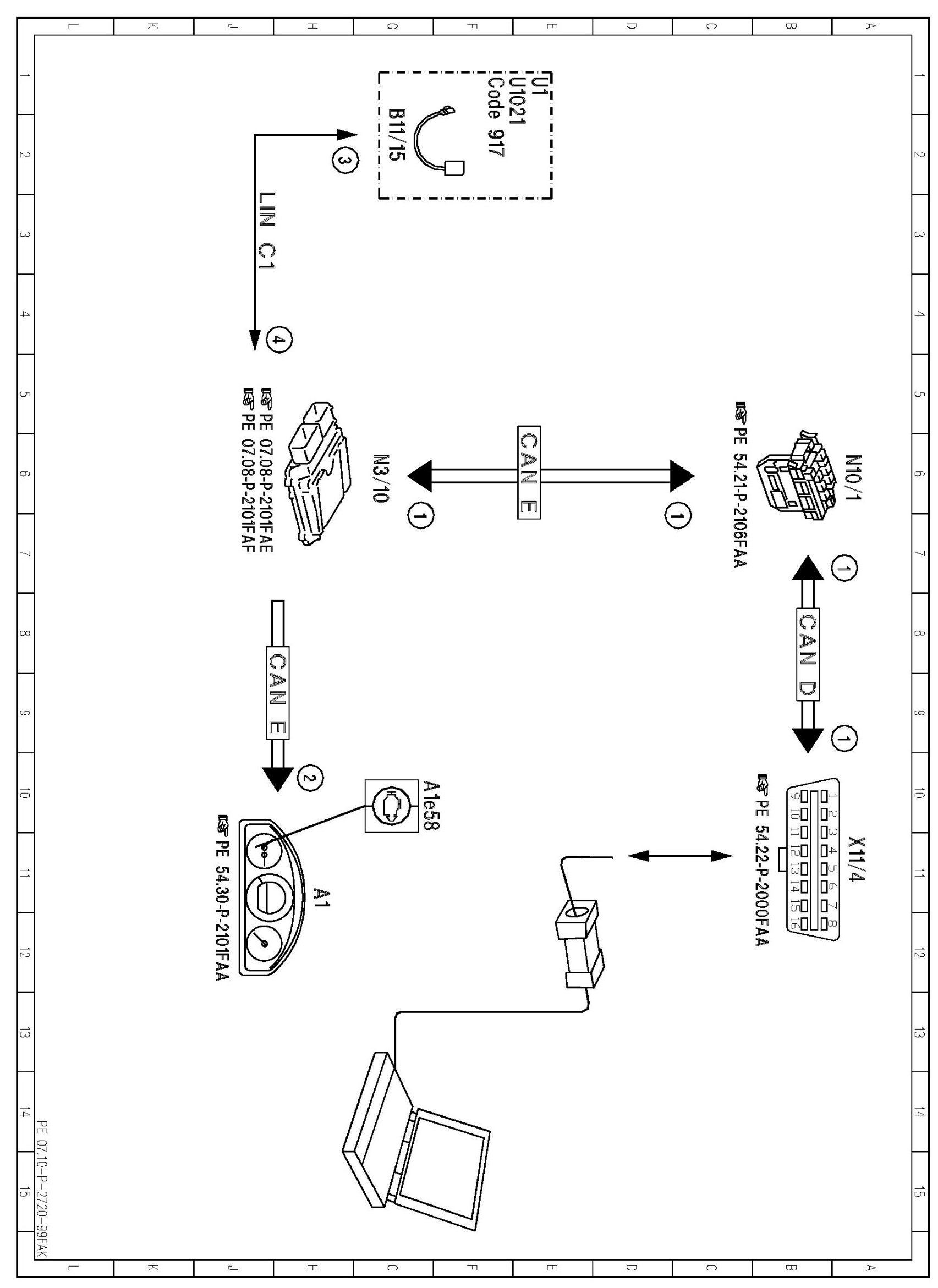

PE07.10-P-2720FAK Electrical Function Schematic For on-Board Diagnosis

PE07.10-P-2720FAK Electrical Function Schematic For On-Board Diagnosis

ENGINES 276 in MODEL 204

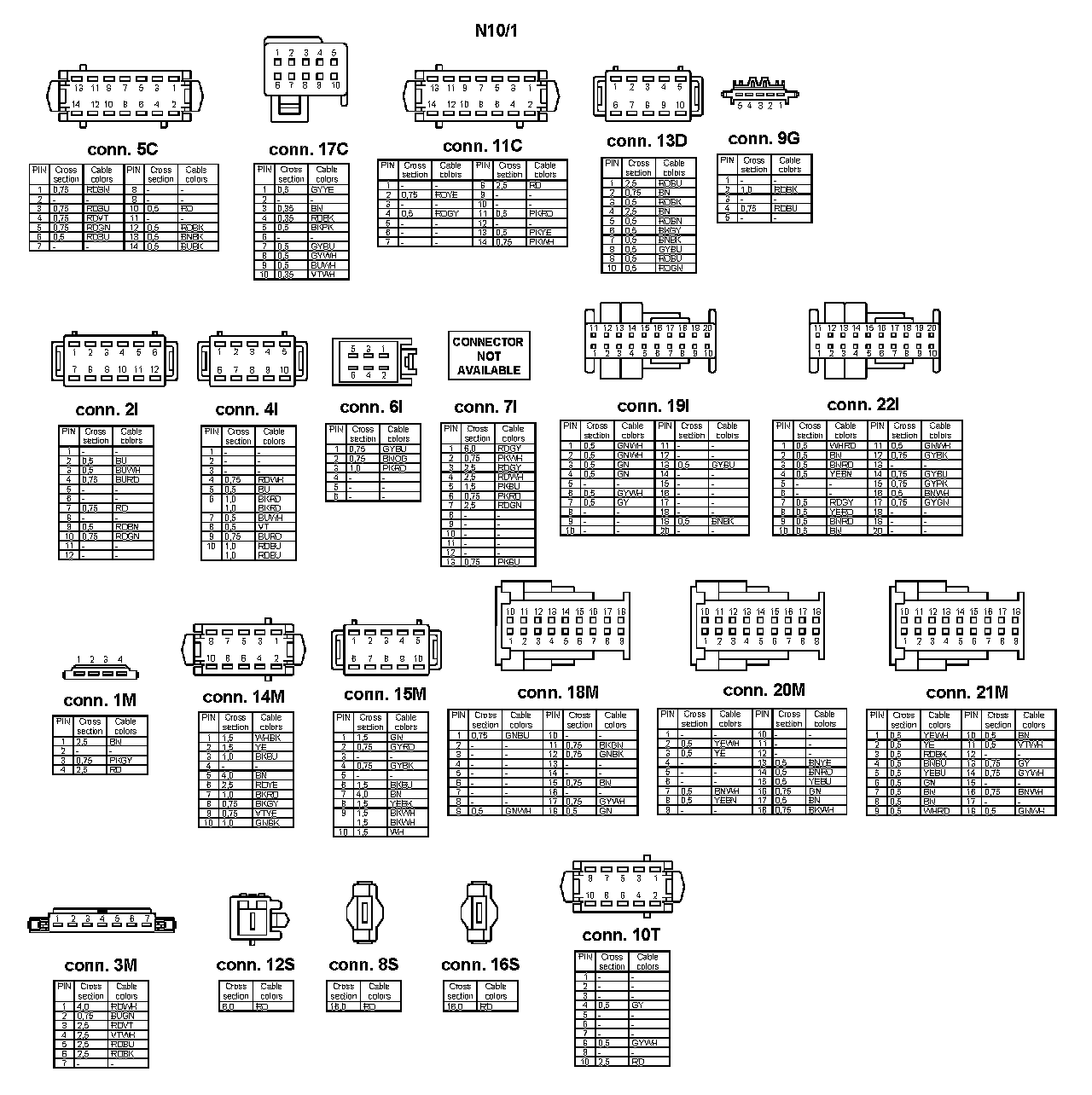

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
