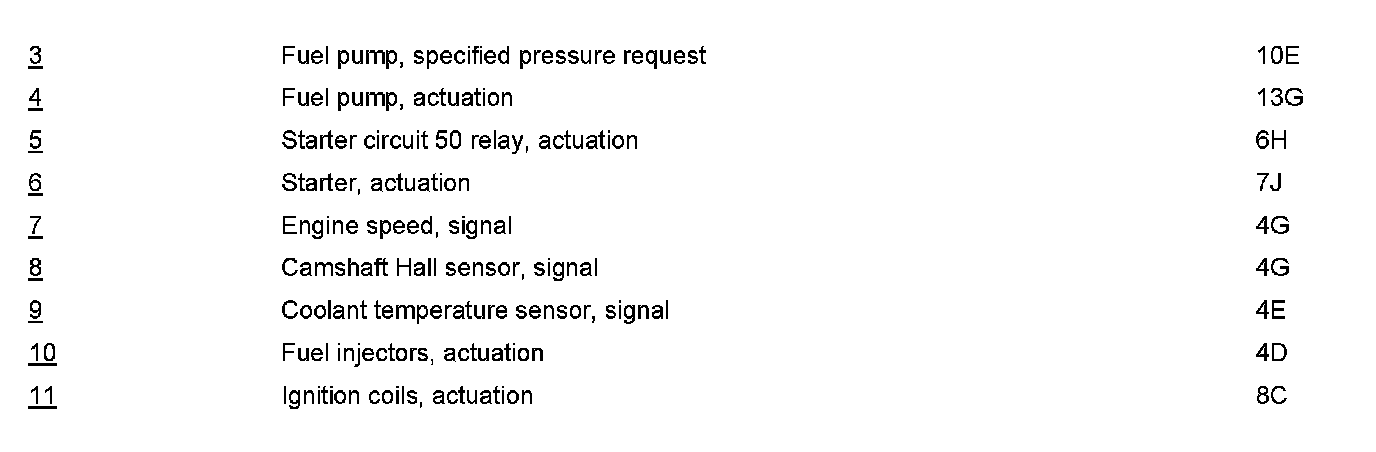

PE07.10-P-2701FAK Electrical Function Schematic For Starting

PE07.10-P-2701FAK Electrical Function Schematic For Starting

ENGINES 276 in MODEL 204







































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
