Home >> Mercedes Benz >> 2012 >> C 300 4MATIC (204.081) V6-3.0L (272.948) >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Blade >> Testing and Inspection

Wiper Blade: Testing and Inspection



AP82.30-P-8253CW Inspect Wiper Blade

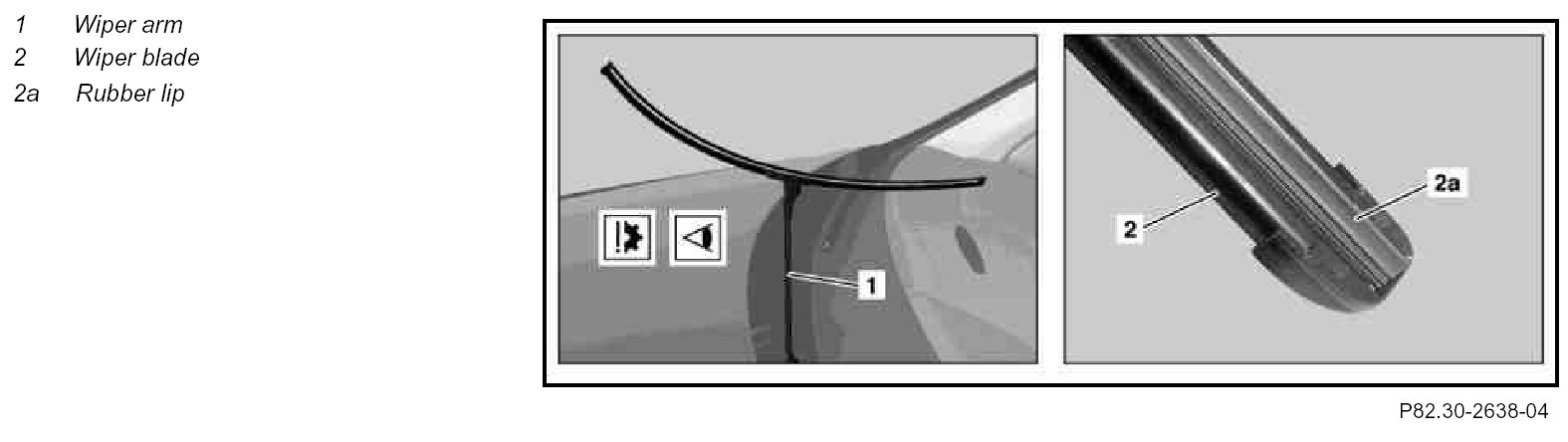

Component Identification:

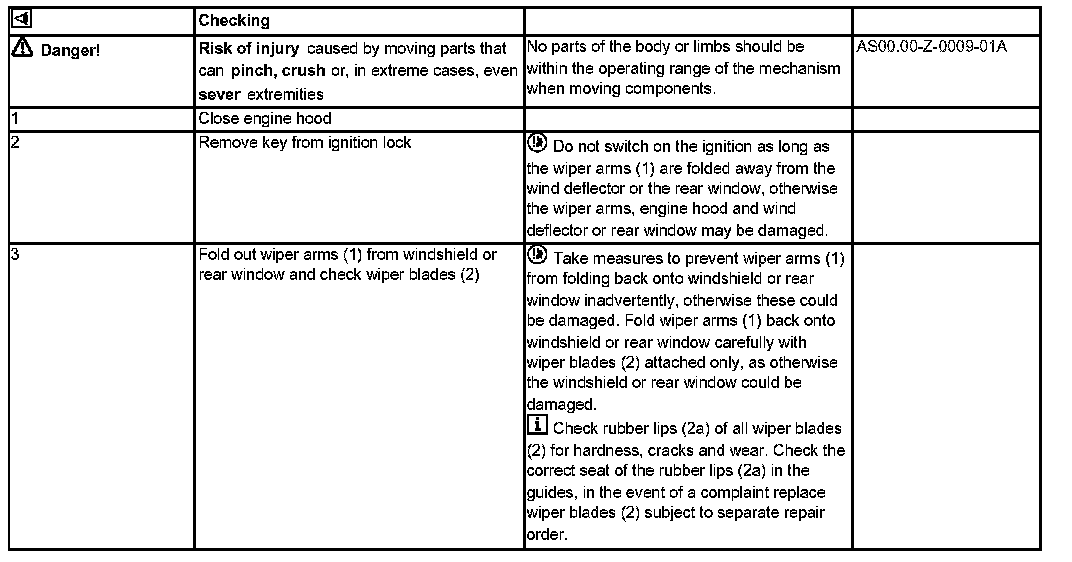

Steps 1 - 3:
