Home >> Mercedes Benz >> 2012 >> C 300 4MATIC (204.081) V6-3.0L (272.948) >> Repair and Diagnosis >> Windows and Glass >> Windshield >> Service and Repair >> AR67.10-P-1000CW Remove/Install Windshield

AR67.10-P-1000CW Remove/Install Windshield



AR67.10-P-1000CW Remove/install Windshield

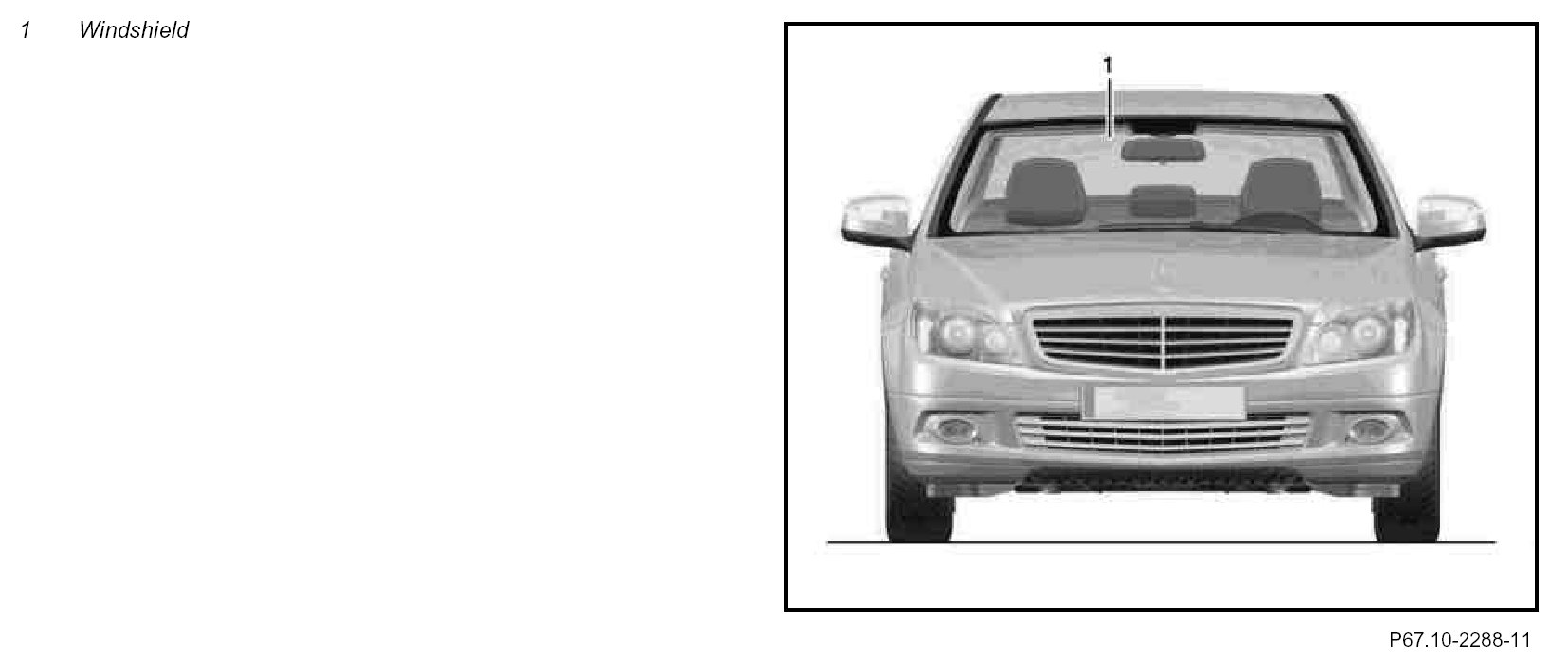

Component Identification:

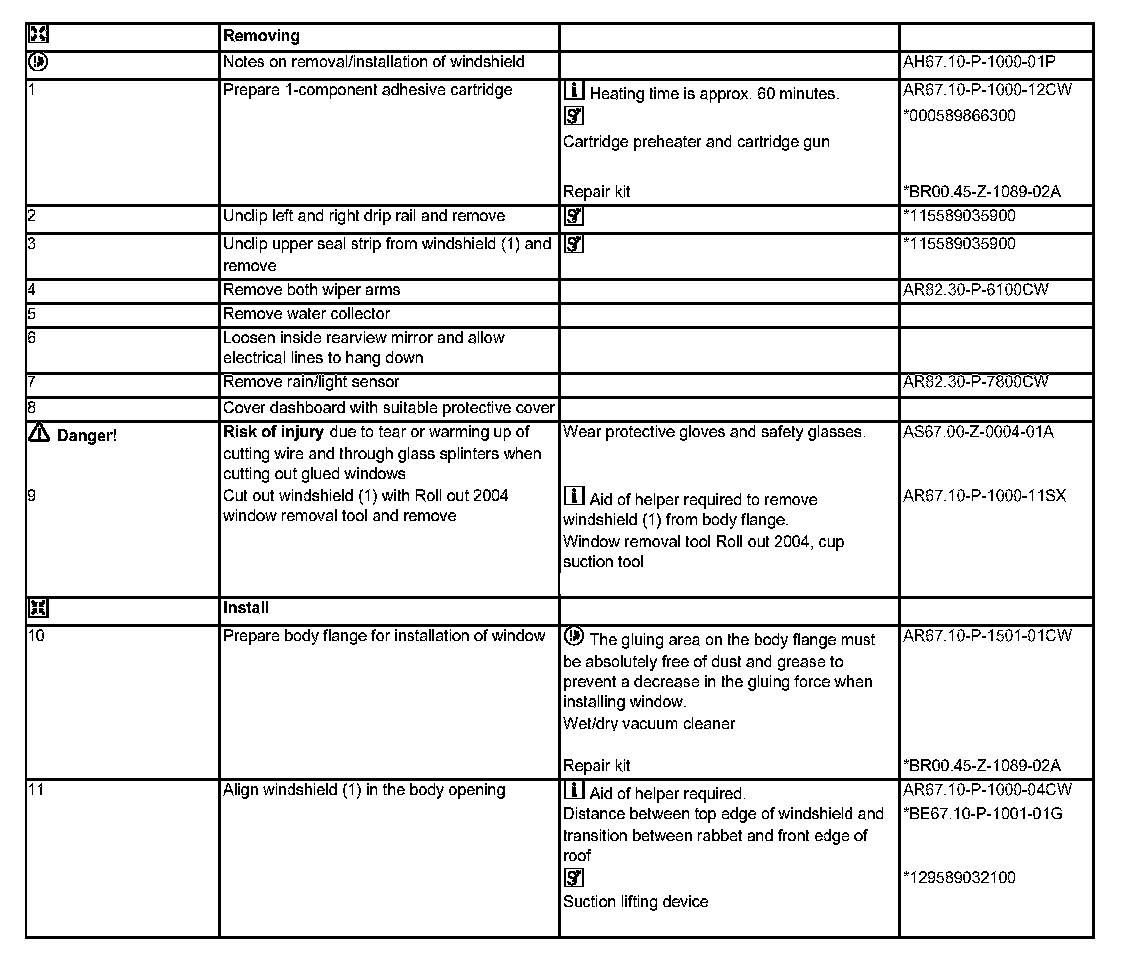

Steps 1 - 11:

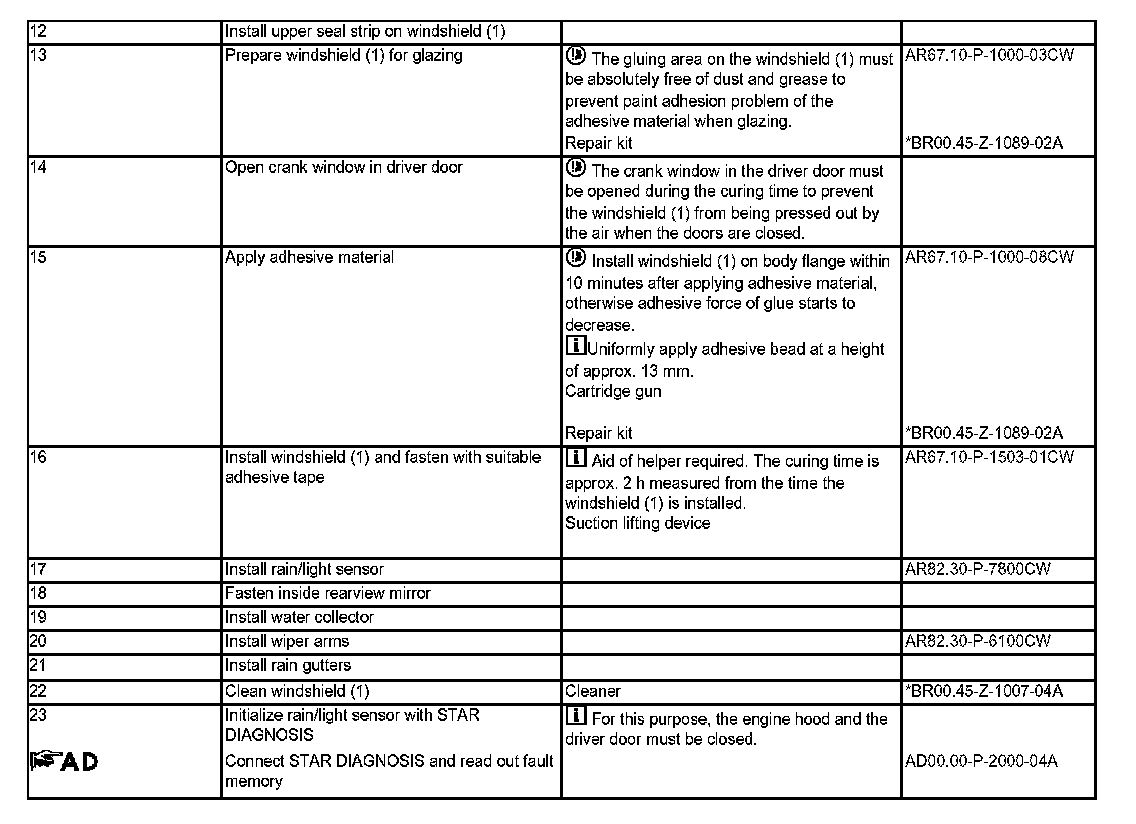

Steps 12 - 23:

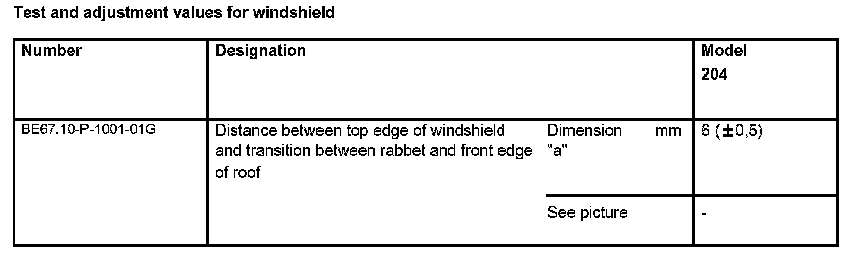

Test And Adjustment Values For Windshield:




Special Tools:




Special Tools:




Special Tools:

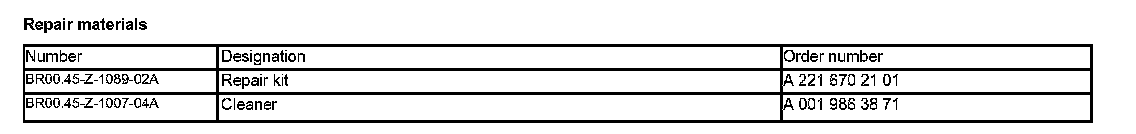

Repair Materials:
