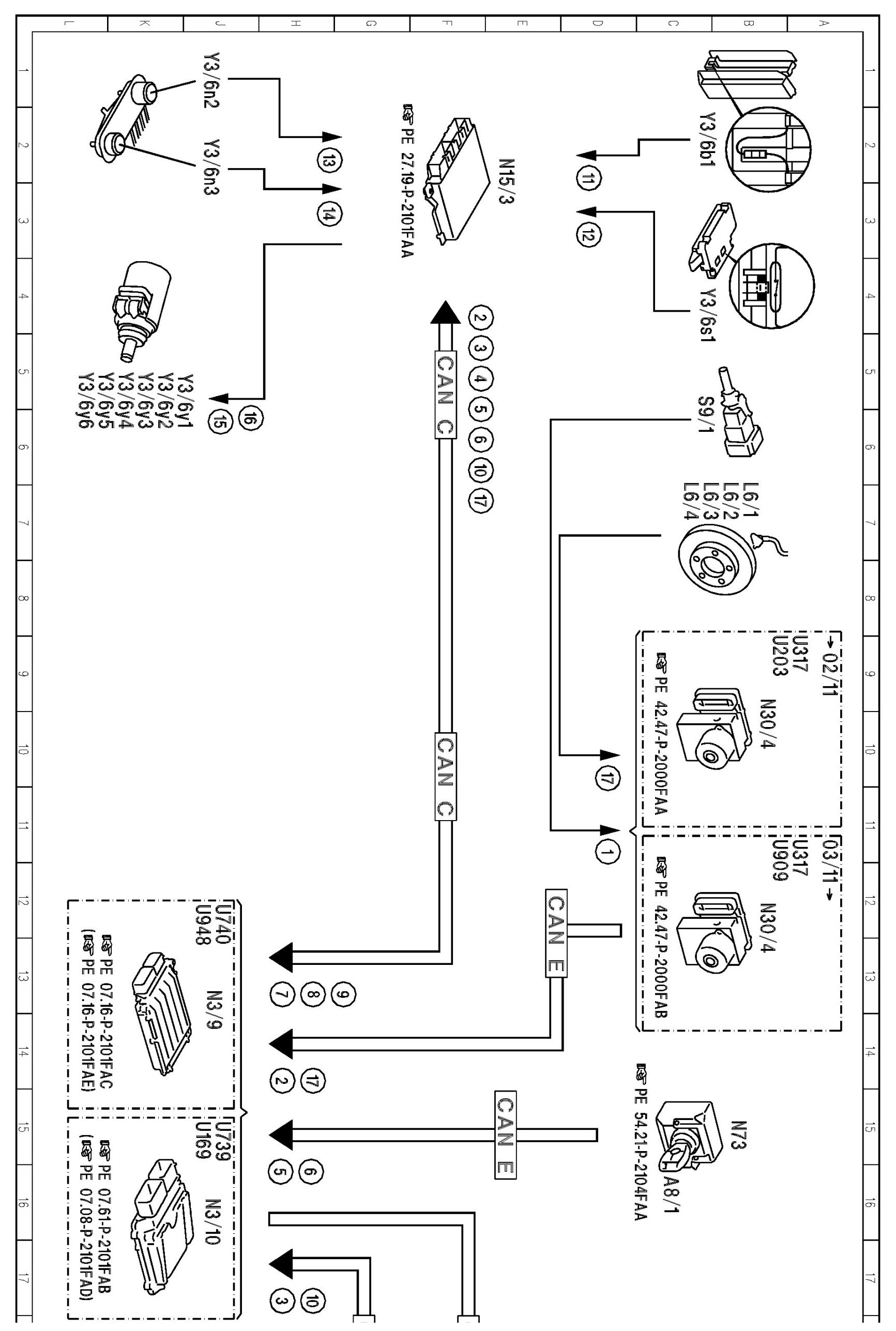

PE27.19-P-2050FAA Function Schematic of Electrical System of Electronic Transmission Control (ETC)

PE27.19-P-2050FAA Function Schematic Of Electrical System Of Electronic Transmission Control (ETC)

MODEL 204.0 /2 with TRANSMISSION 722.6
- as of model year 2009
- up to 2012 /YoM 11 model refinement package
- except model 204.049
MODEL 204.0 /2 with TRANSMISSION 722.6
- as of model year 2009
- up to 2012 /YoM 11 model refinement package
- except model 204.249























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
