GF28.00-P-0001-04AV Automatically Controlled All-Wheel Drive (4MATIC) Block Diagram



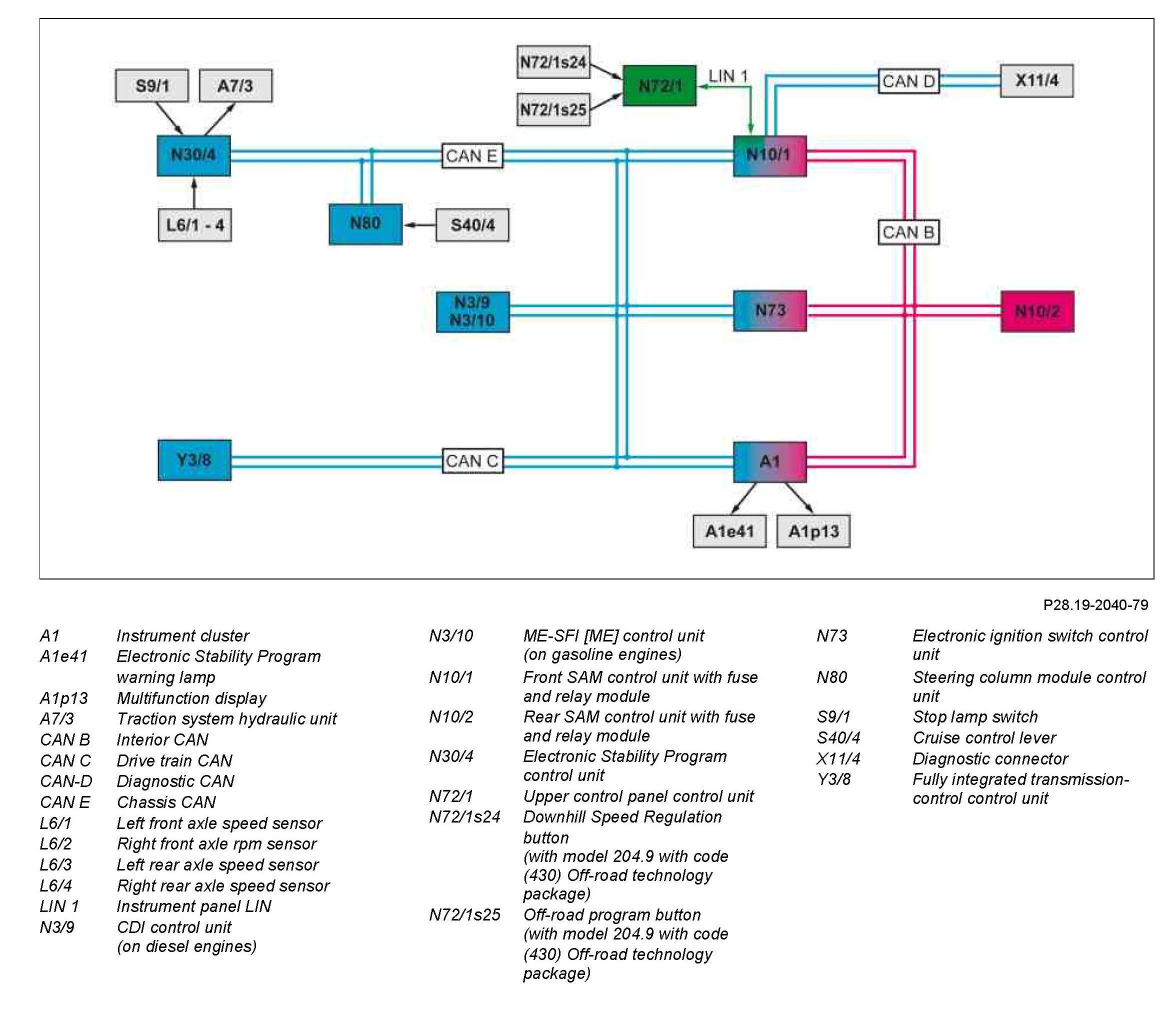

GF28.00-P-0001-04AV Automatically controlled all-wheel drive (4MATIC) block diagram
- TRANSMISSION 722.960/0962/963/964/965 in MODEL 204.0
- TRANSMISSION 722.960/0962/964/965 in MODEL 204.9
