AR35.10-P-0042CW Rear Rubber Bushing, Rear Axle Mount - Removal and Installation



AR35.10-P-0042CW Rear rubber bushing, rear axle mount - Removal and installation

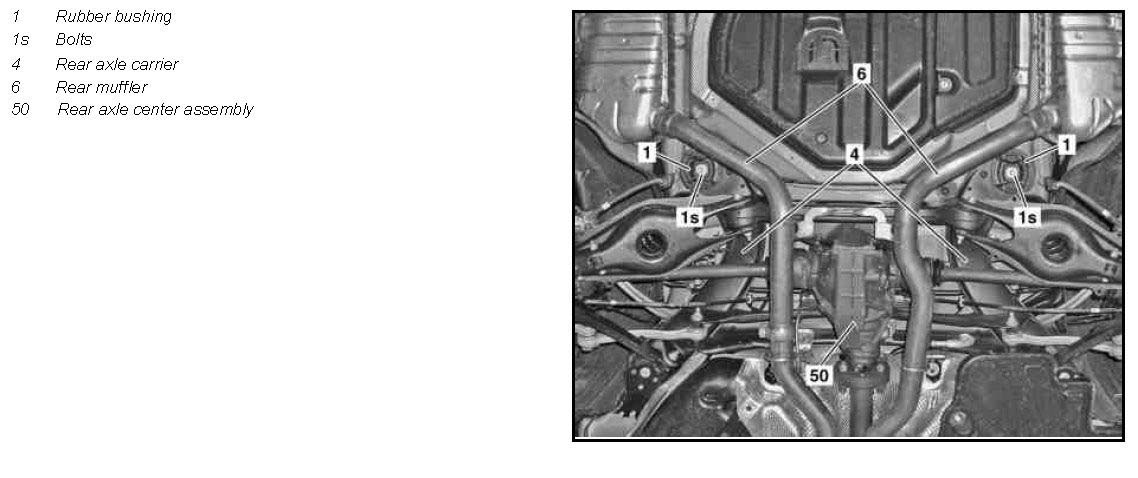

Component Identification:

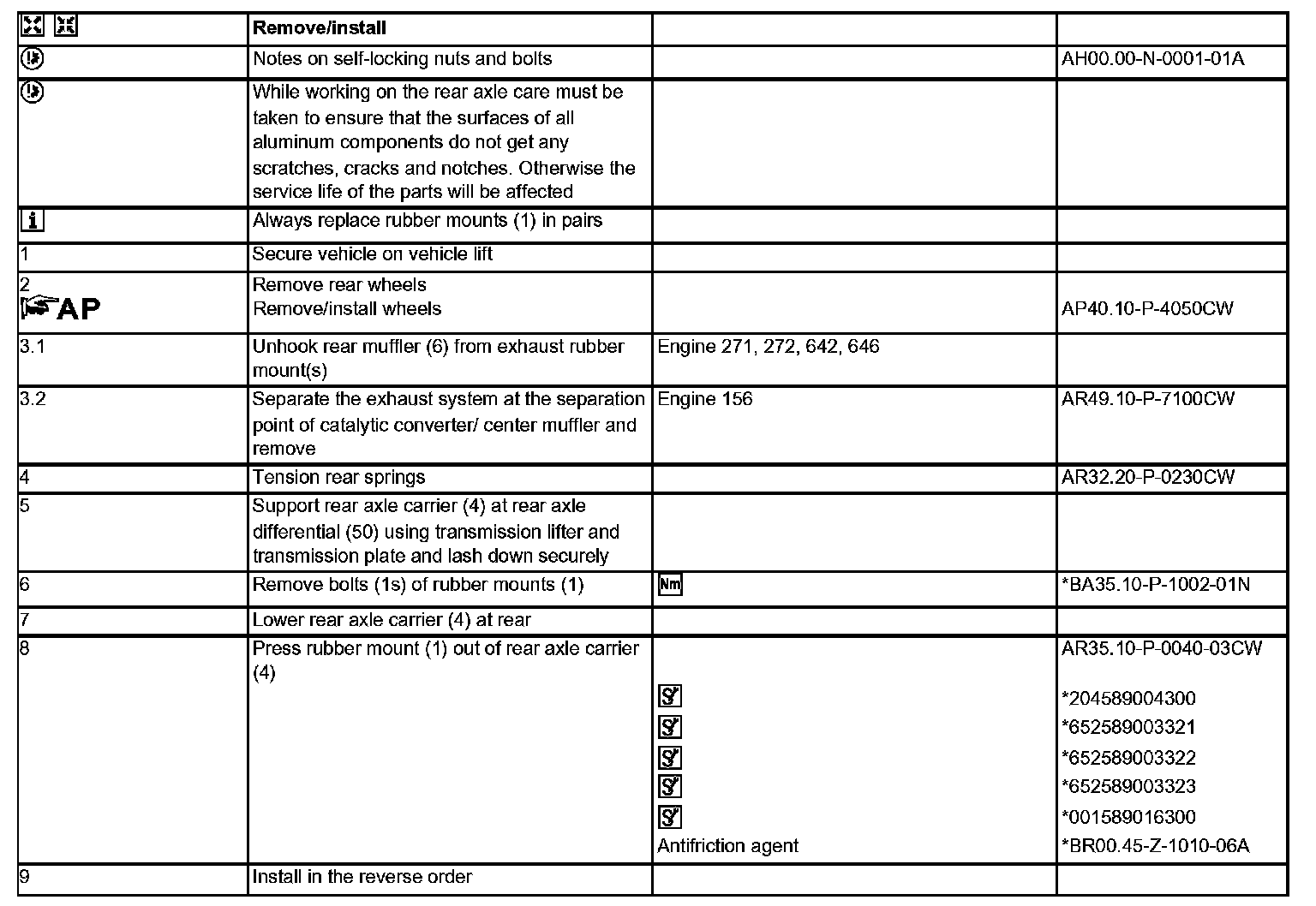

Remove/install Steps 1-9:

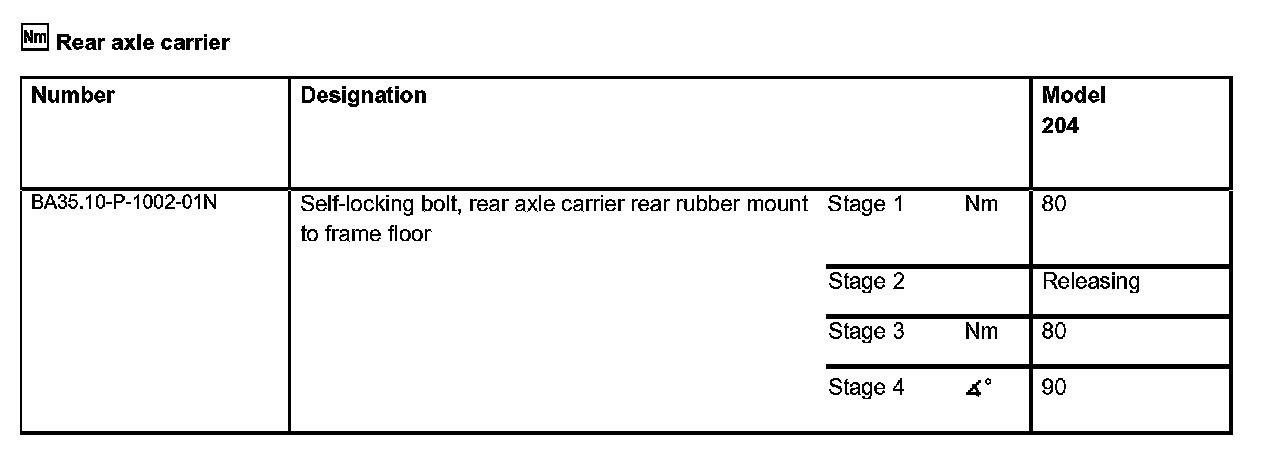

Rear axle carrier:

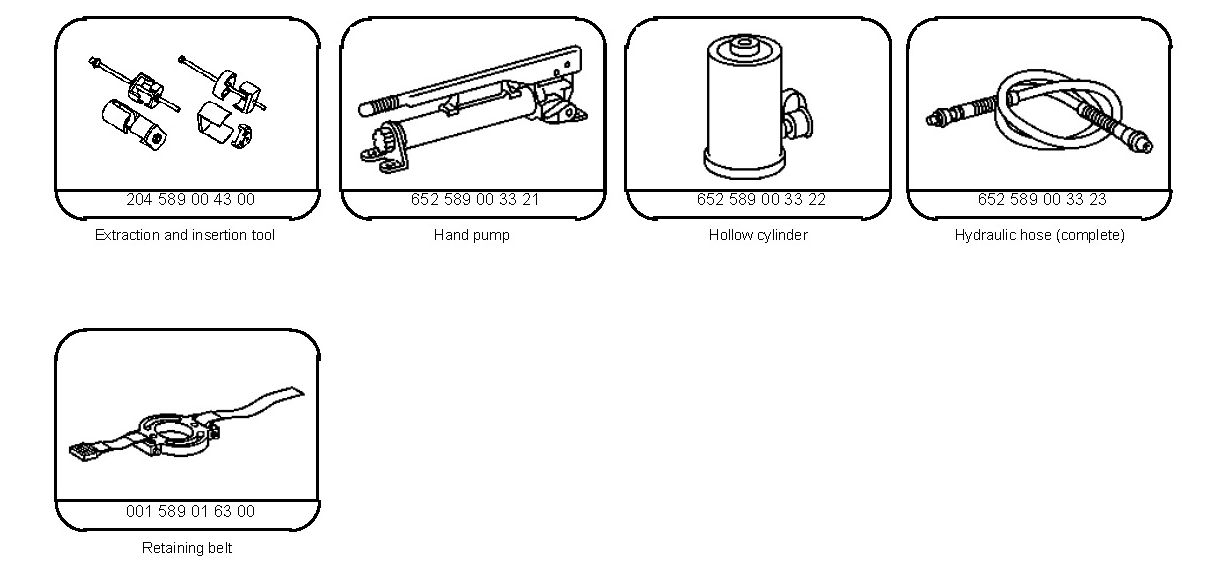

Special Tools:

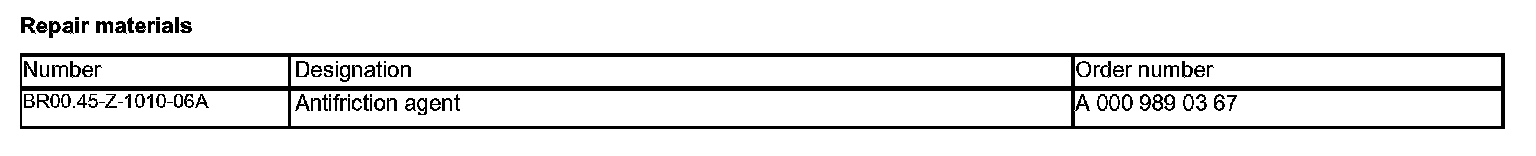

Repair materials:
