Home >> Mercedes Benz >> 2012 >> C 300 4MATIC (204.081) V6-3.0L (272.948) >> Repair and Diagnosis >> Transmission and Drivetrain >> Clutch >> Service and Repair >> Procedures

Procedures



AR25.20-P-0070CW Bleed clutch operating system
- with TRANSMISSION 711.6/716.6

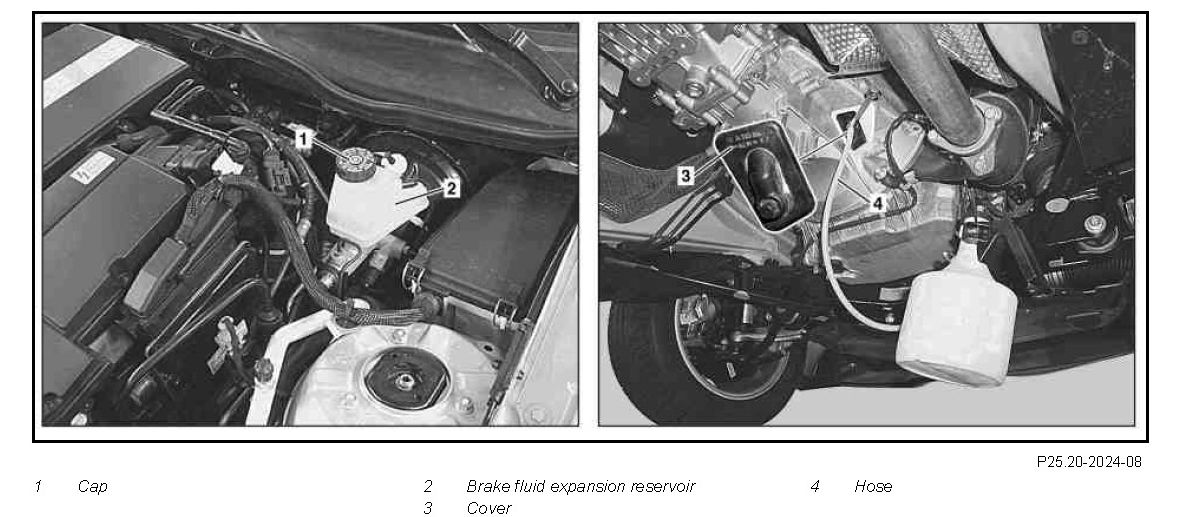

Component Identification:

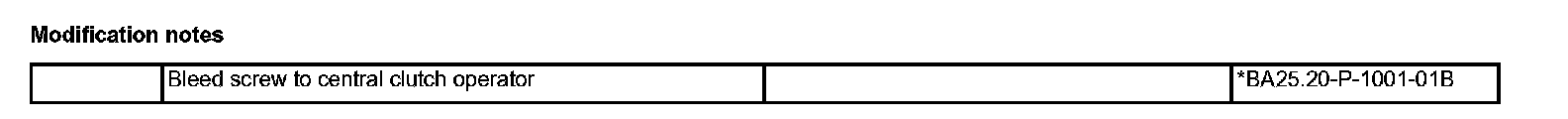

Modification notes:

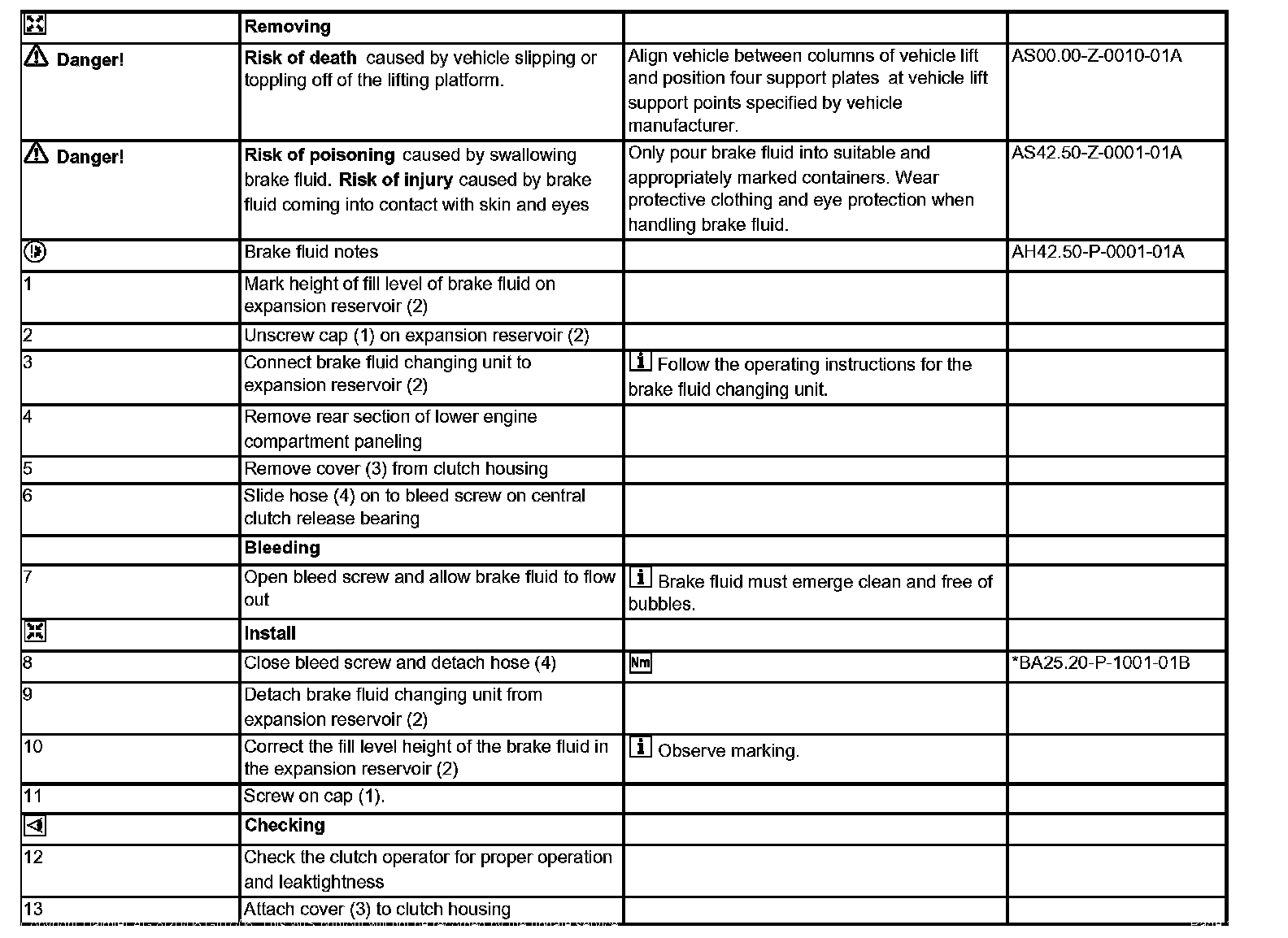

Steps 1-13:




Step 14:

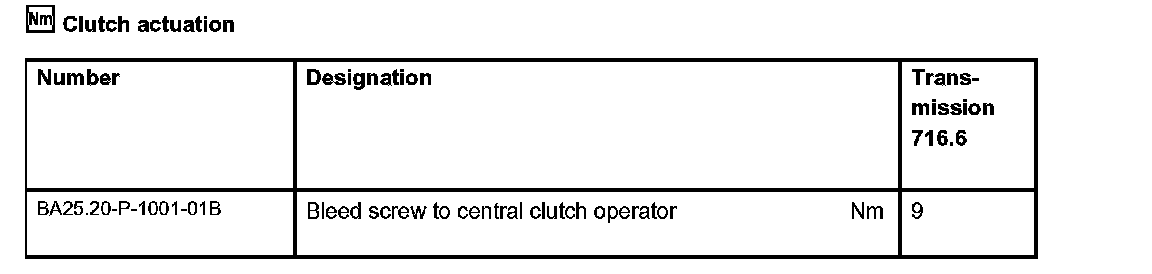

Clutch actuation:
