AR26.40-P-0345CW Remove/Install Central Clutch Operator



AR26.40-P-0345CW Remove/install central clutch operator
- with TRANSMISSION 716.6/711.6

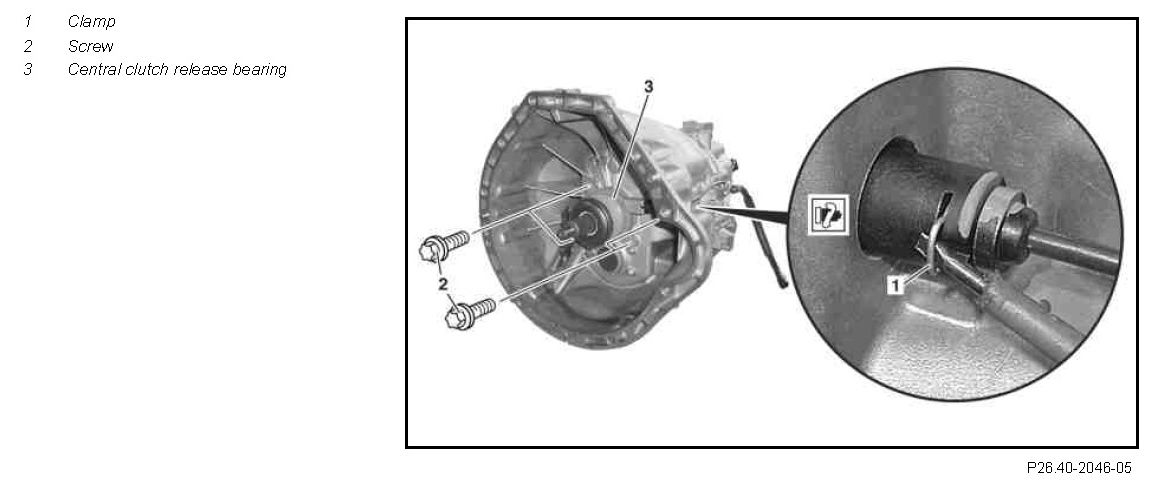

Component Identification:

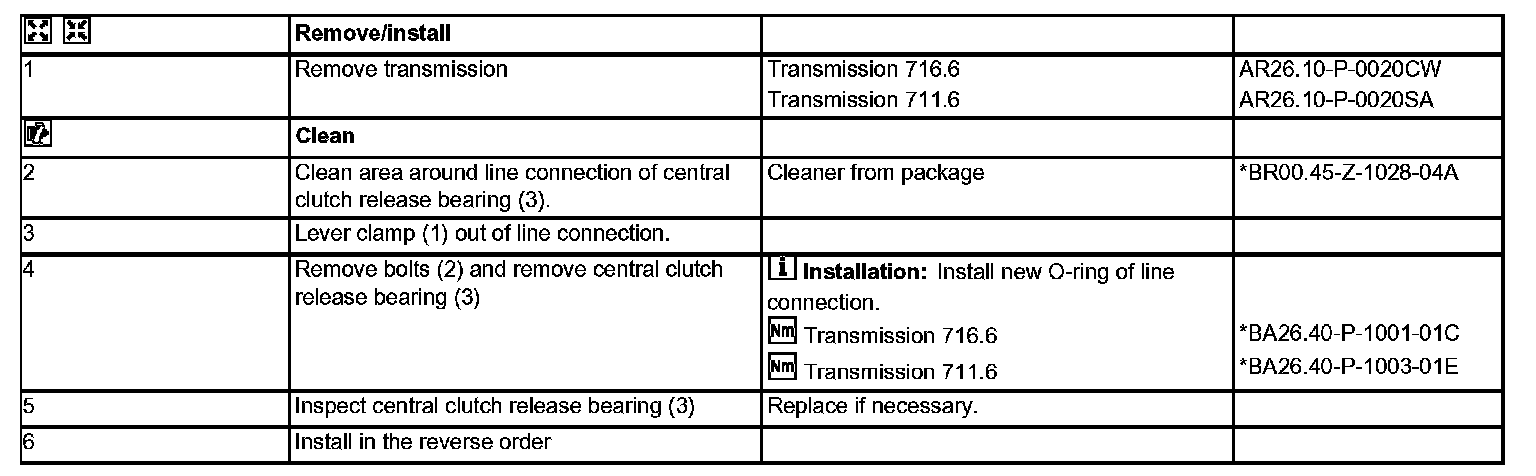

Remove/install Steps 1-6:

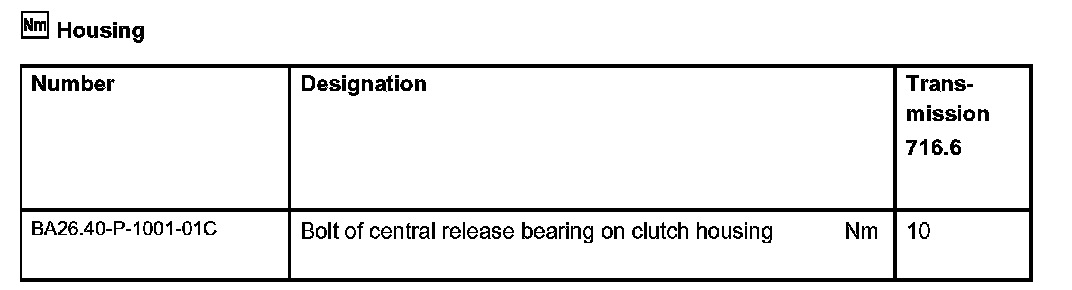

Housing:

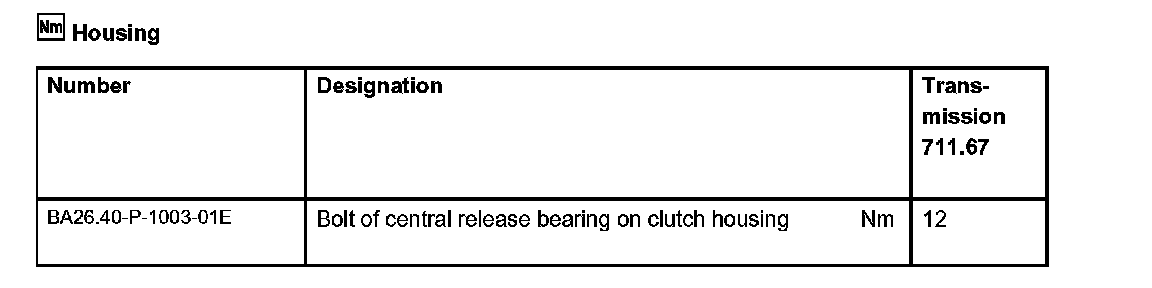

Housing:

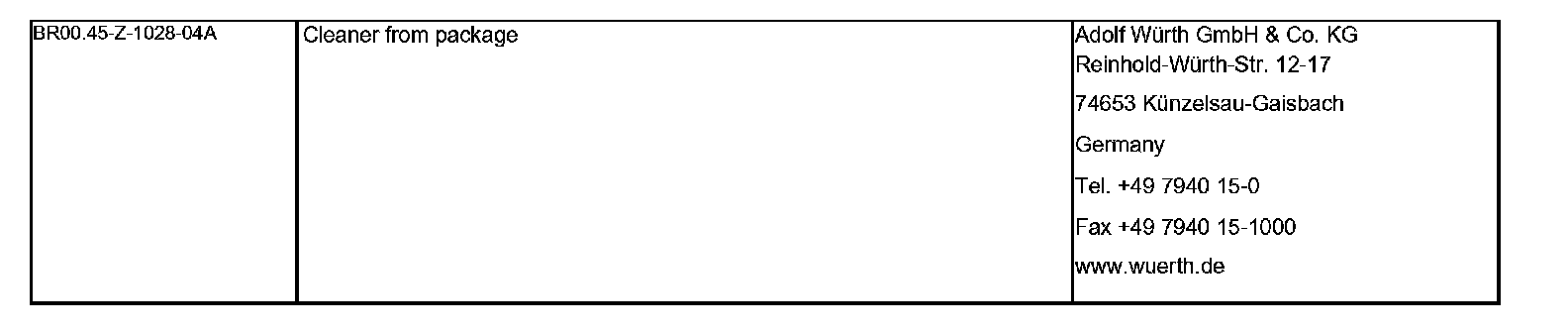

Repair materials:




Repair materials:
