Clutch Master Cylinder: Service and Repair



AR25.20-P-0100CW Remove/install master cylinder
- with TRANSMISSION 711.6/716.6

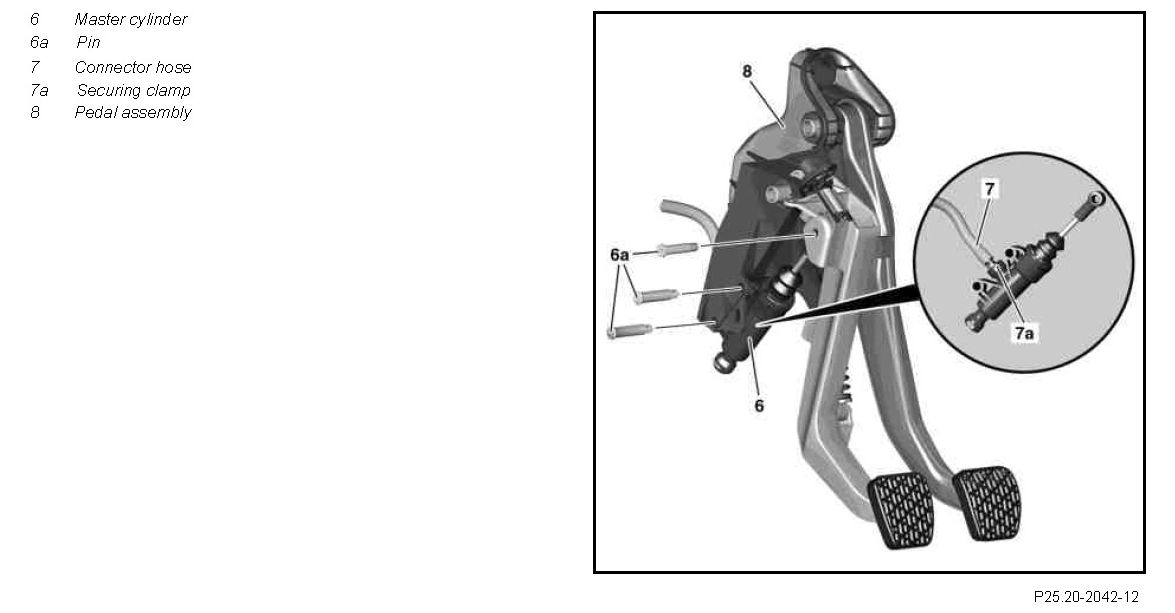

Component Identification:

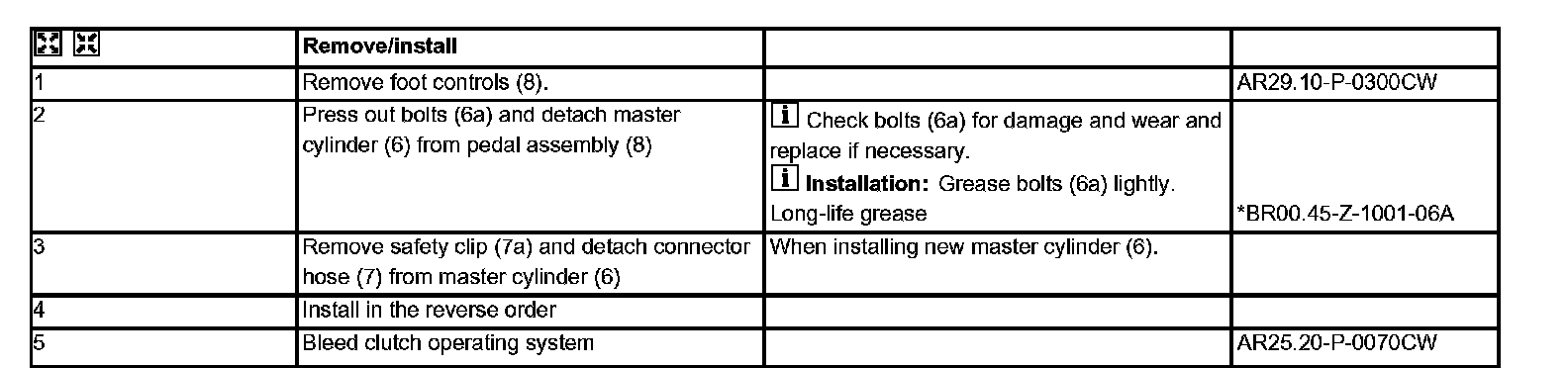

Remove/install Steps 1-5:

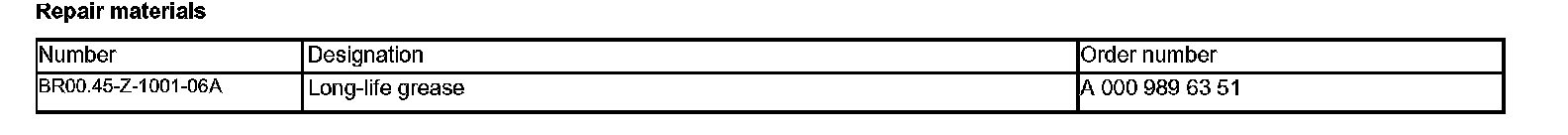

Repair materials:
