AR27.55-P-0001CW Flushing Out Oil Cooler Lines and Oil Cooler

AR27.55-P-0001CW Flushing out oil cooler lines and oil cooler
- with TRANSMISSION 722.6/9 (except 722.960/962/963/964)

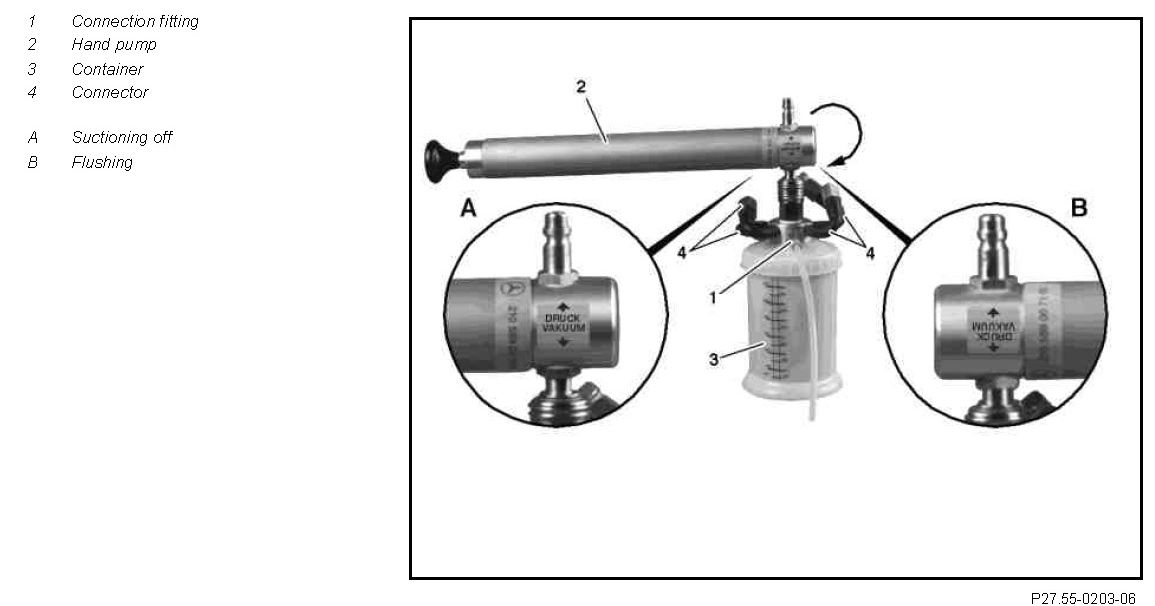

Component Identification:

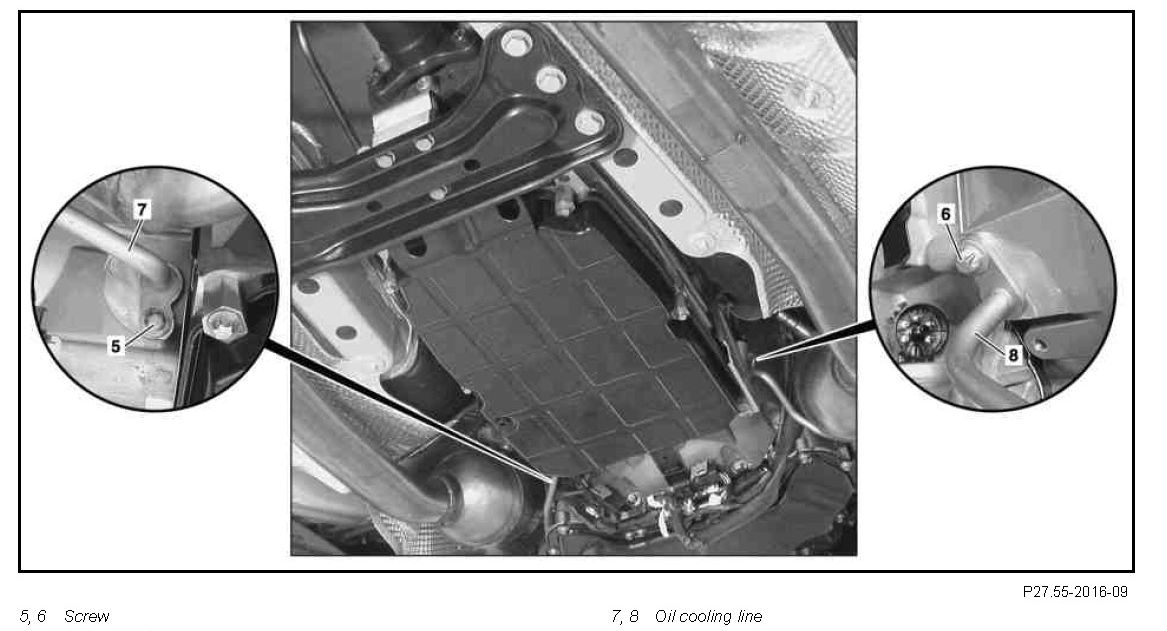

Component Identification:

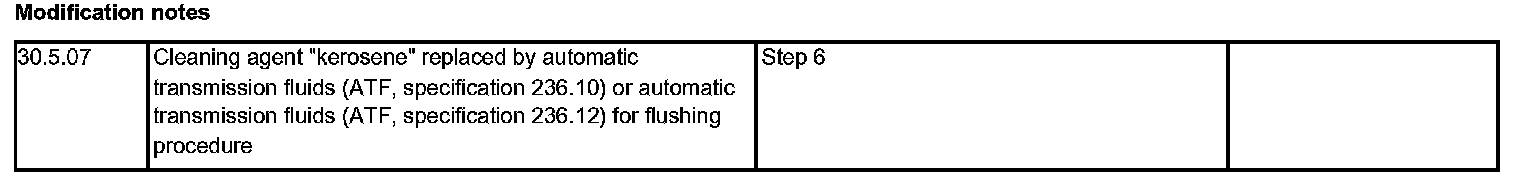

Modification notes:

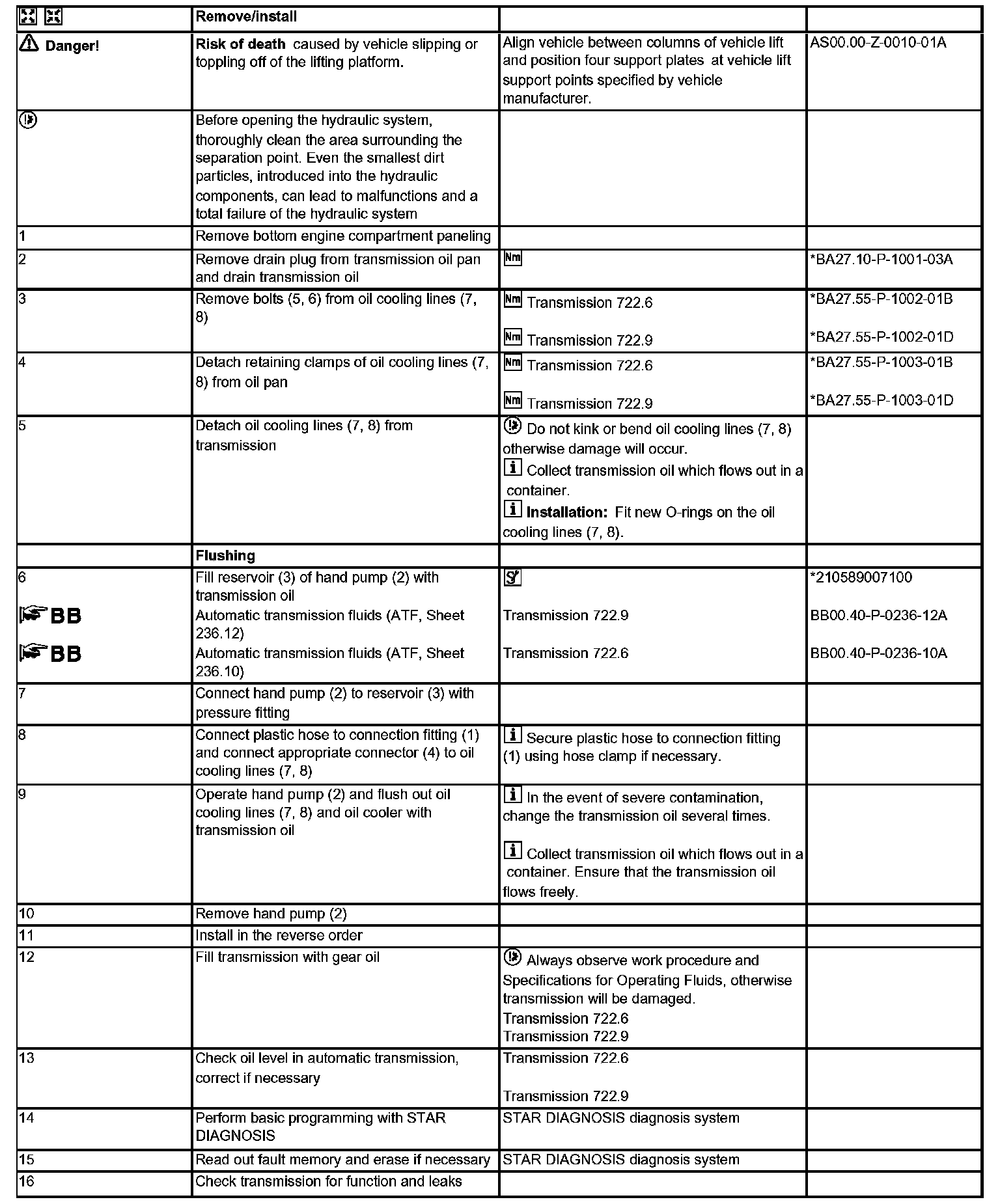

Remove/install Steps 1-16:

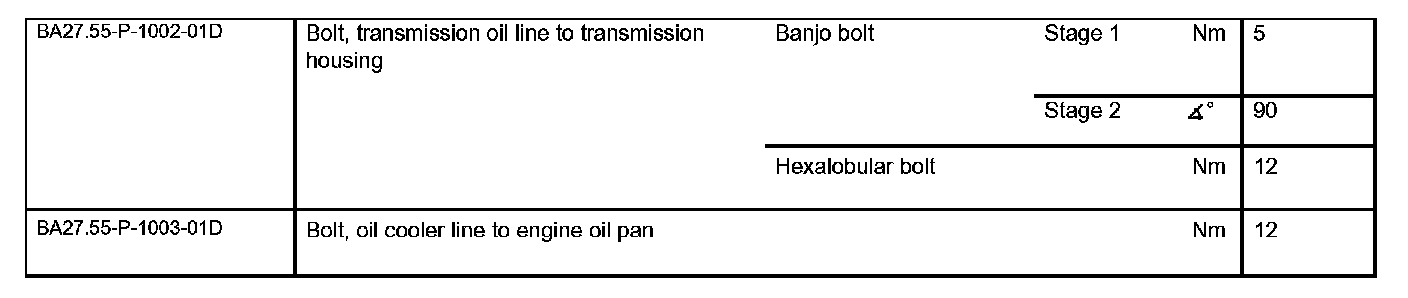

Transmission oil cooling system:

Transmission oil cooling system:

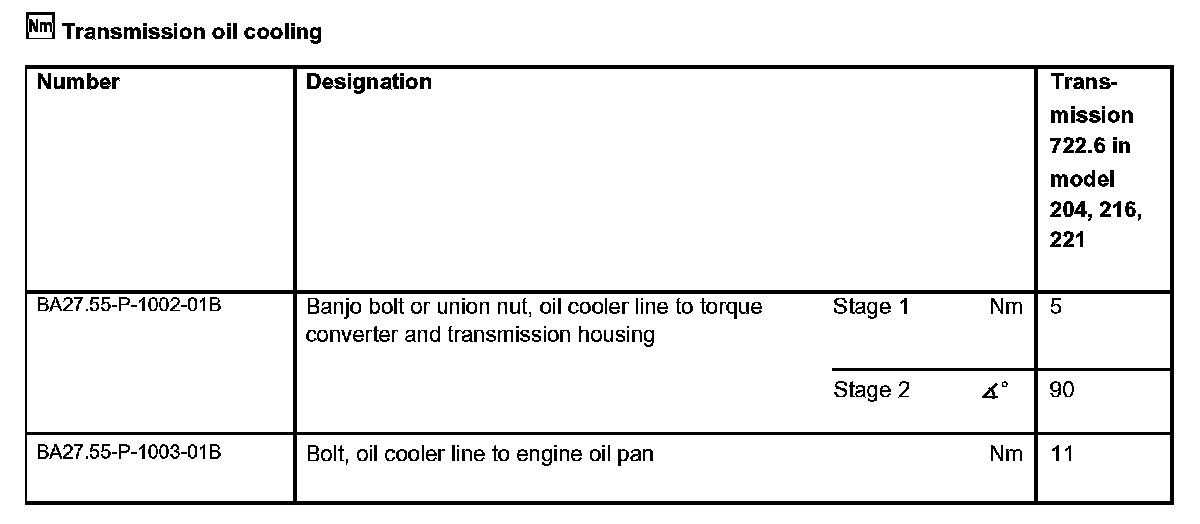

Transmission oil cooling:

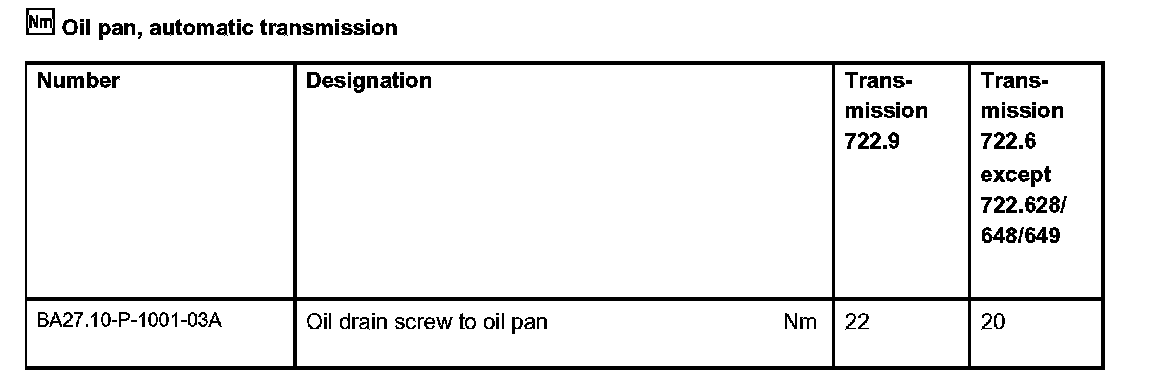

Oil pan, automatic transmission:

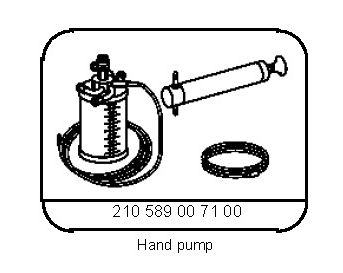

Special Tools:
