Shift Linkage: Adjustments
AR27.60-P-0980CW Adjusting shift rod
-
with TRANSMISSION 722.6/9

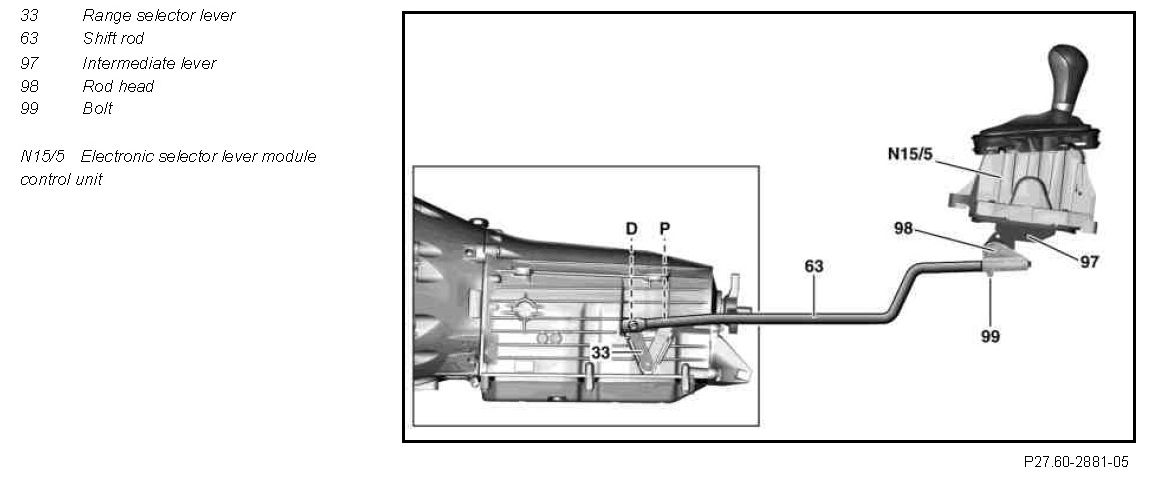

Component Identification:

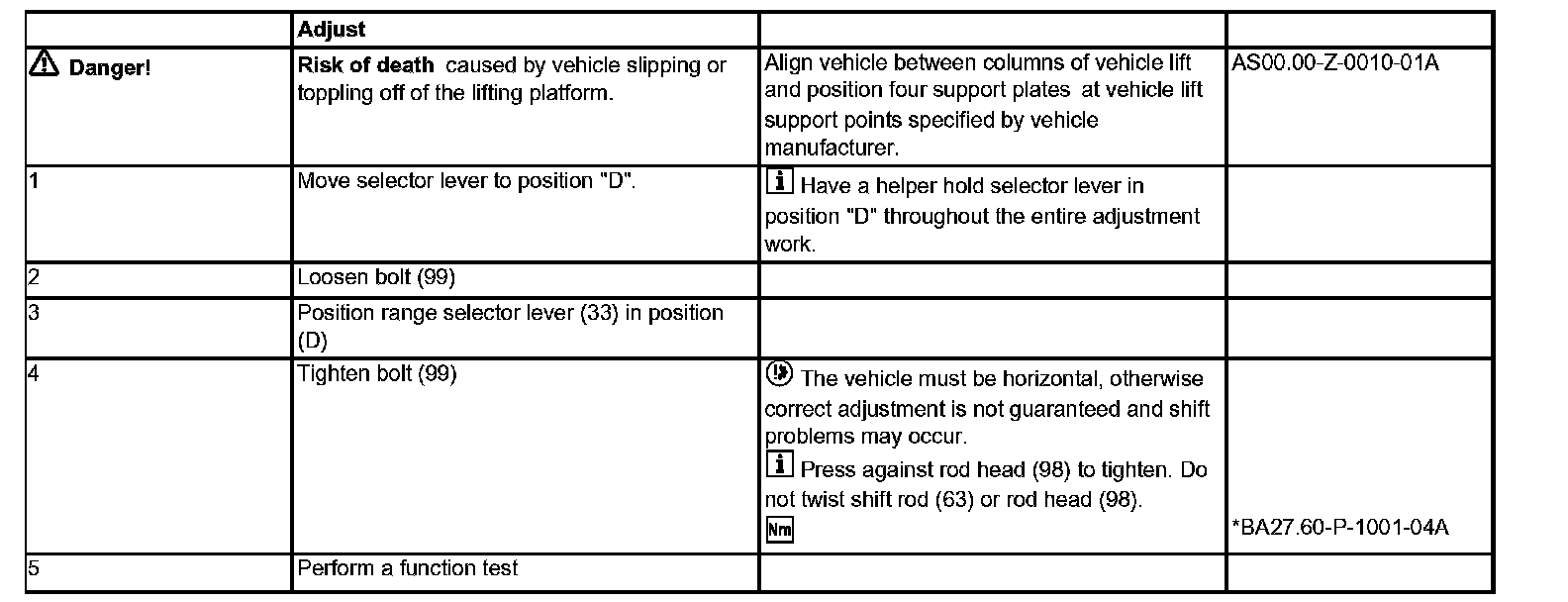

Steps 1-5:

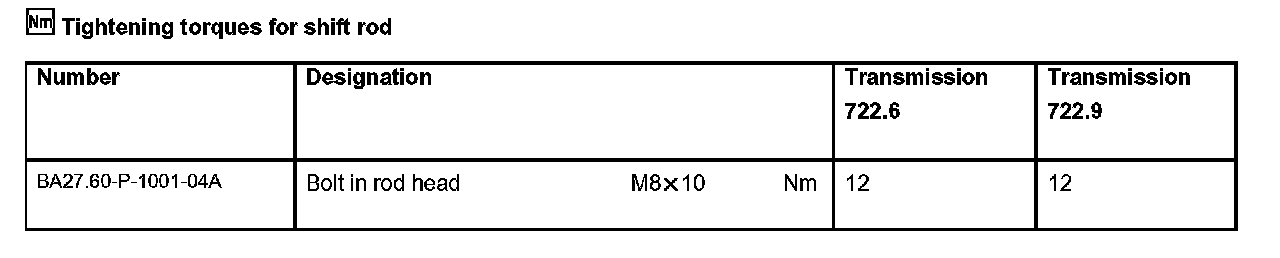

Tightening torques for shift rod:
