AR27.55-P-0600CW Remove/Install Oil Lines of Oil Cooling For Automatic Transmission

AR27.55-P-0600CW Remove/Install Oil Lines of Oil Cooling For Automatic Transmission
TRANSMISSION 722.6 /9 in MODEL 204.0 /2 /3

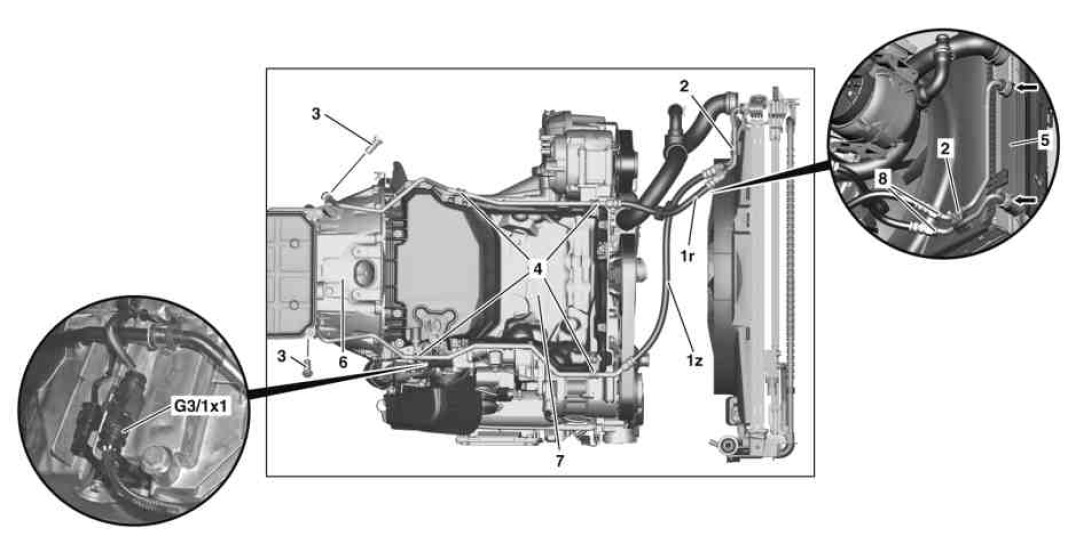

Shown on transmission 722.6

1r Right oil cooling line (return)
1z Left oil cooling line (supply)
2 Double clamp
3 Banjo bolts
4 Retaining clamps
5 Radiator
6 Transmission
7 Engine oil pan
8 Front separation point

G3/1x1 Electrical connector for oxygen sensor downstream of catalytic converter

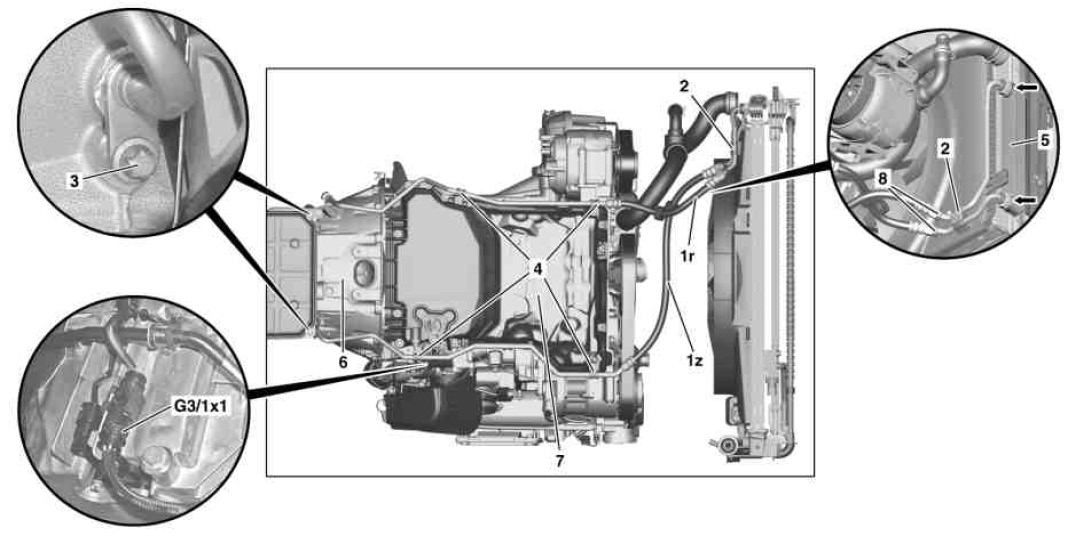

Shown on transmission 722.9

1r Right oil cooling line (return)
1z Left oil cooling line (supply)
2 Double clamp
3 Hexalobular bolt
4 Retaining clamps
5 Radiator
6 Transmission
7 Engine oil pan
8 Front separation point

G3/1x1 Electrical connector for oxygen sensor downstream of catalytic converter














129 589 00 91 00
Set of stop plugs
