AR27.55-P-0600CV Remove/Install Oil Lines of Oil Cooling For Automatic Transmission



AR27.55-P-0600CV Remove/install oil lines of oil cooling for automatic transmission
- with TRANSMISSION 722.902/906/998/999

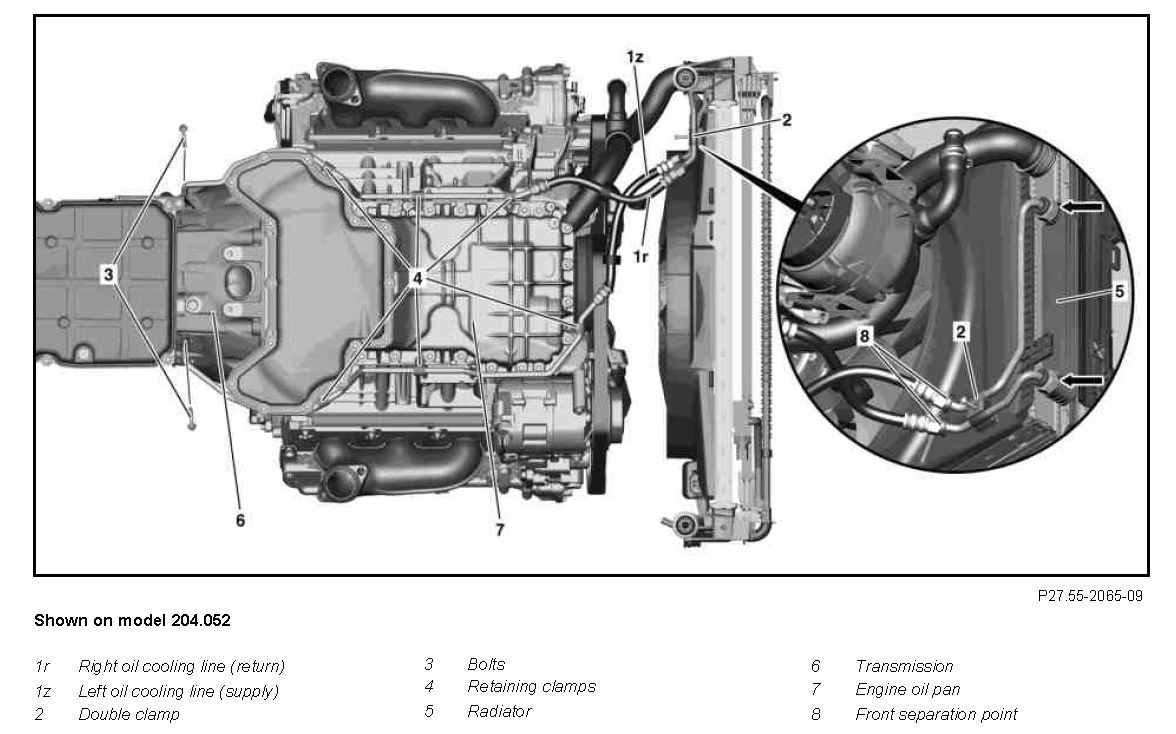

Component Identification:

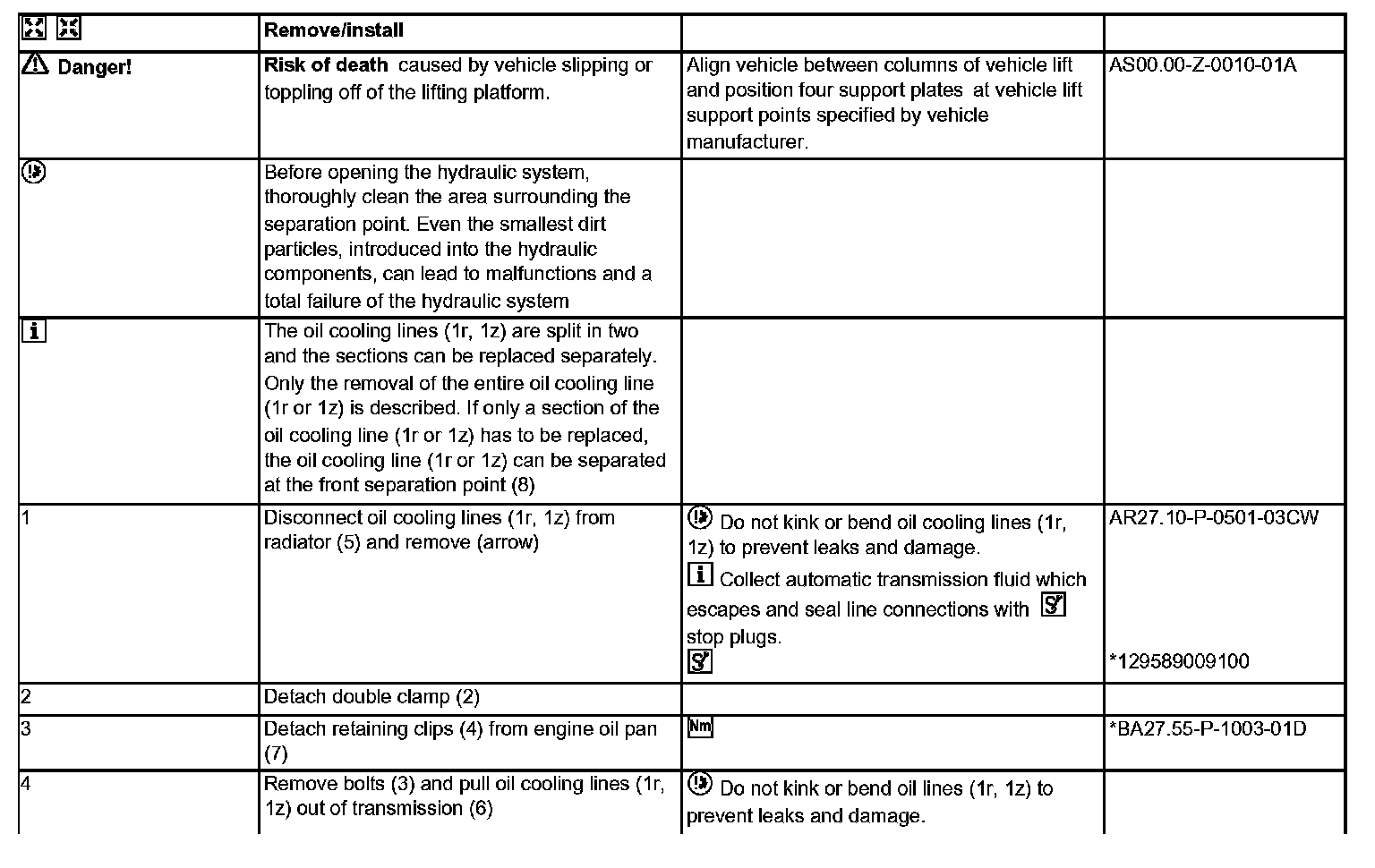

Remove/install Steps 1-4:

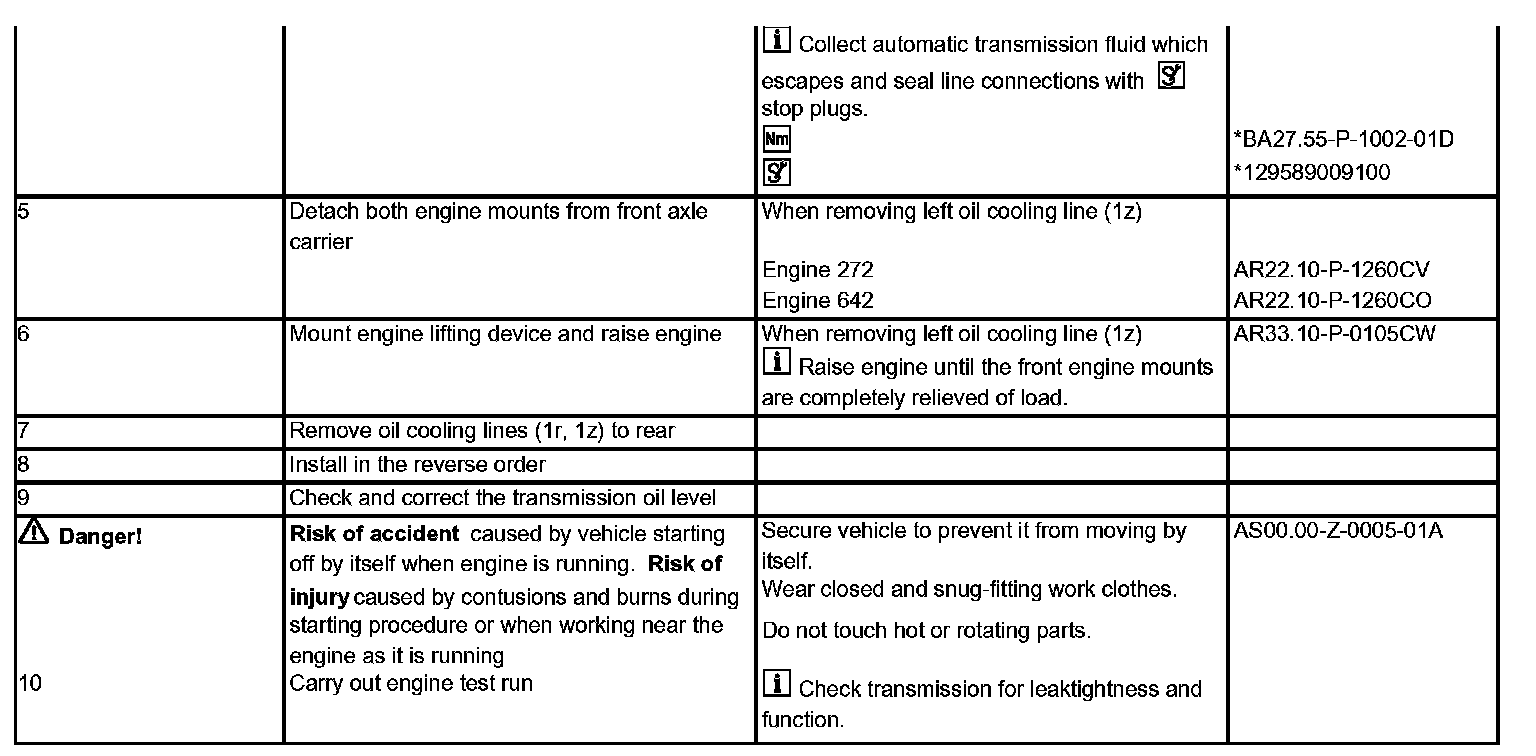

Remove/install Steps 4 (Continued)-10:

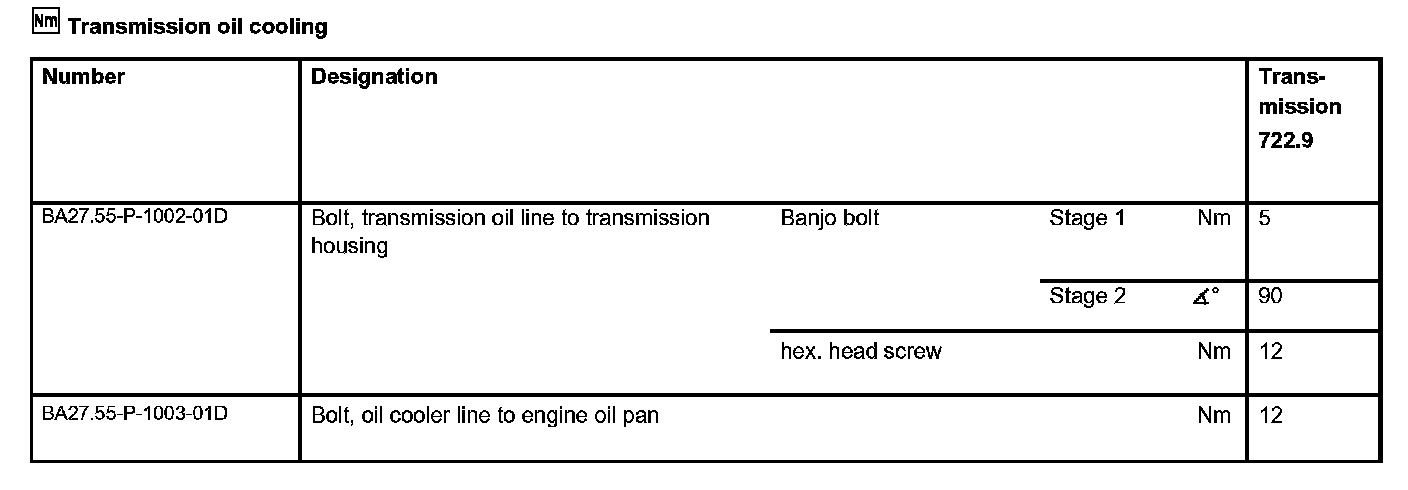

Transmission oil cooling:

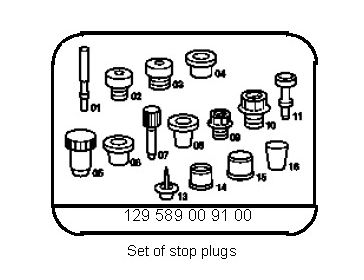

Special Tools:
