GF27.60-P-5216ACW Working Pressure Regulating Valve Component Description

GF27.60-P-5220ACW Working pressure regulating valve component description
- TRANSMISSION 722.618/640/646/695/699

Component Identification:

Location

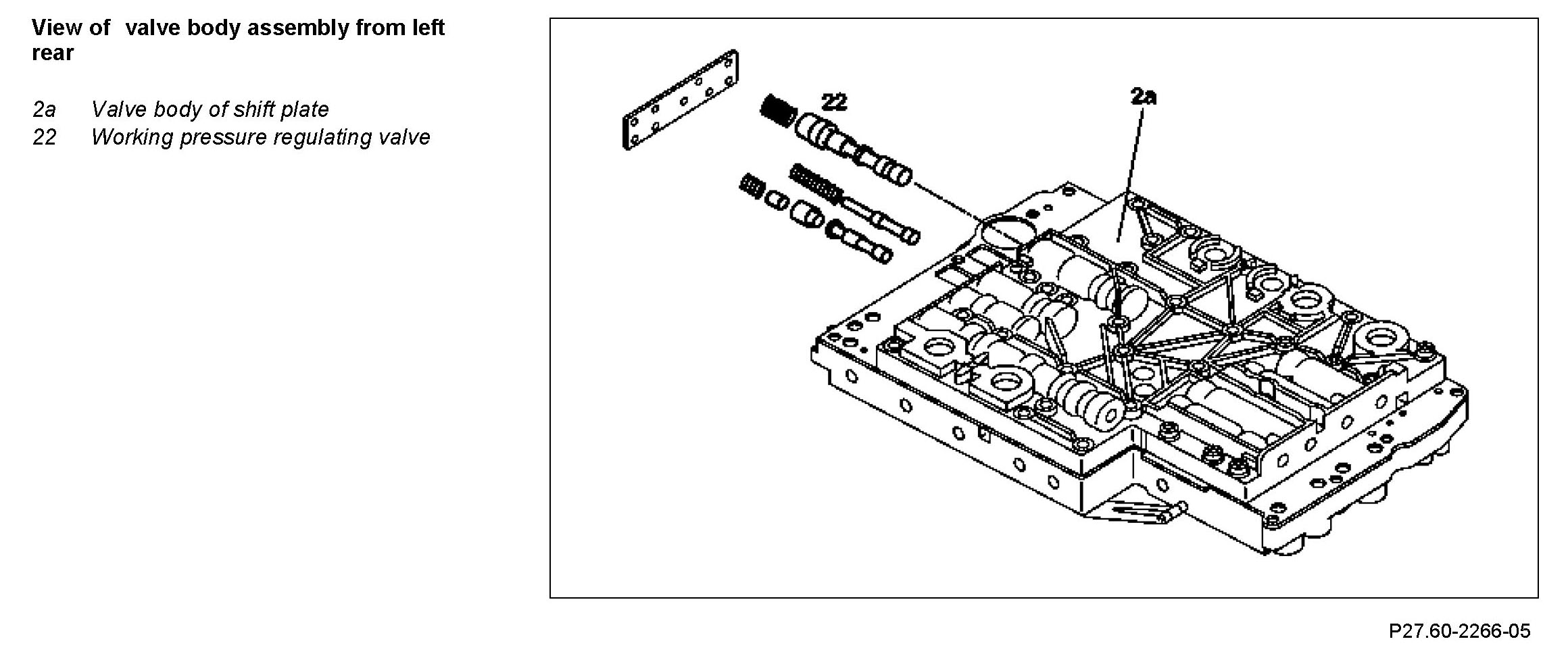

The working pressure regulating valve (22) is located in the valve housing of the valve body assembly (2a).

Task
The working pressure regulating valve (22) controls the main pressure of the hydraulic system.

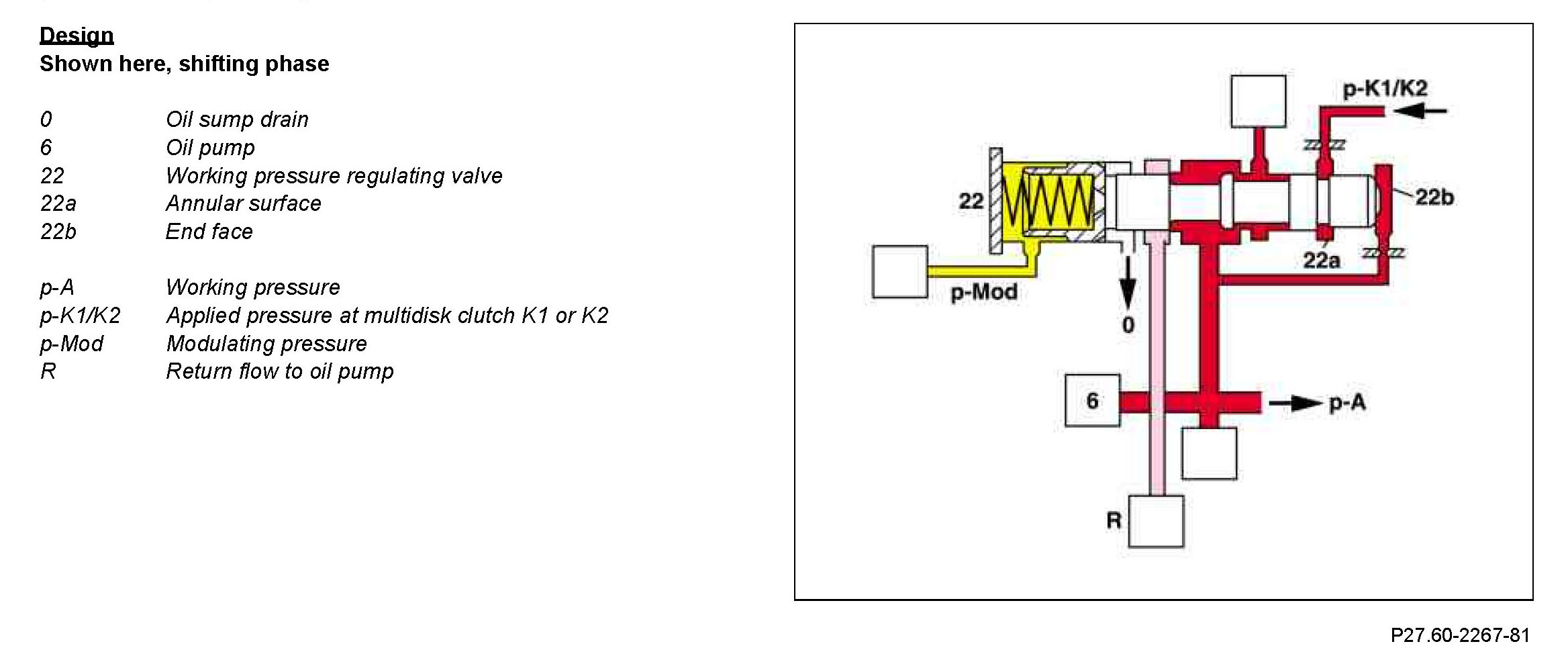

Component Identification:

Design
Shown here, shifting phase

Function
The level of the working pressure (p-A) is regulated on the working pressure regulating valve (22) to match the load and gear. A minimum level (basic pressure) is adjusted by the spring in the working pressure regulating valve (22).
