GF27.60-P-5212ACW Regulating Valve Control Valve Pressure Component Description

GF27.60-P-5212ACW Regulating valve control valve pressure component description
- TRANSMISSION 722.618/640/646/695/699

Component Identification:

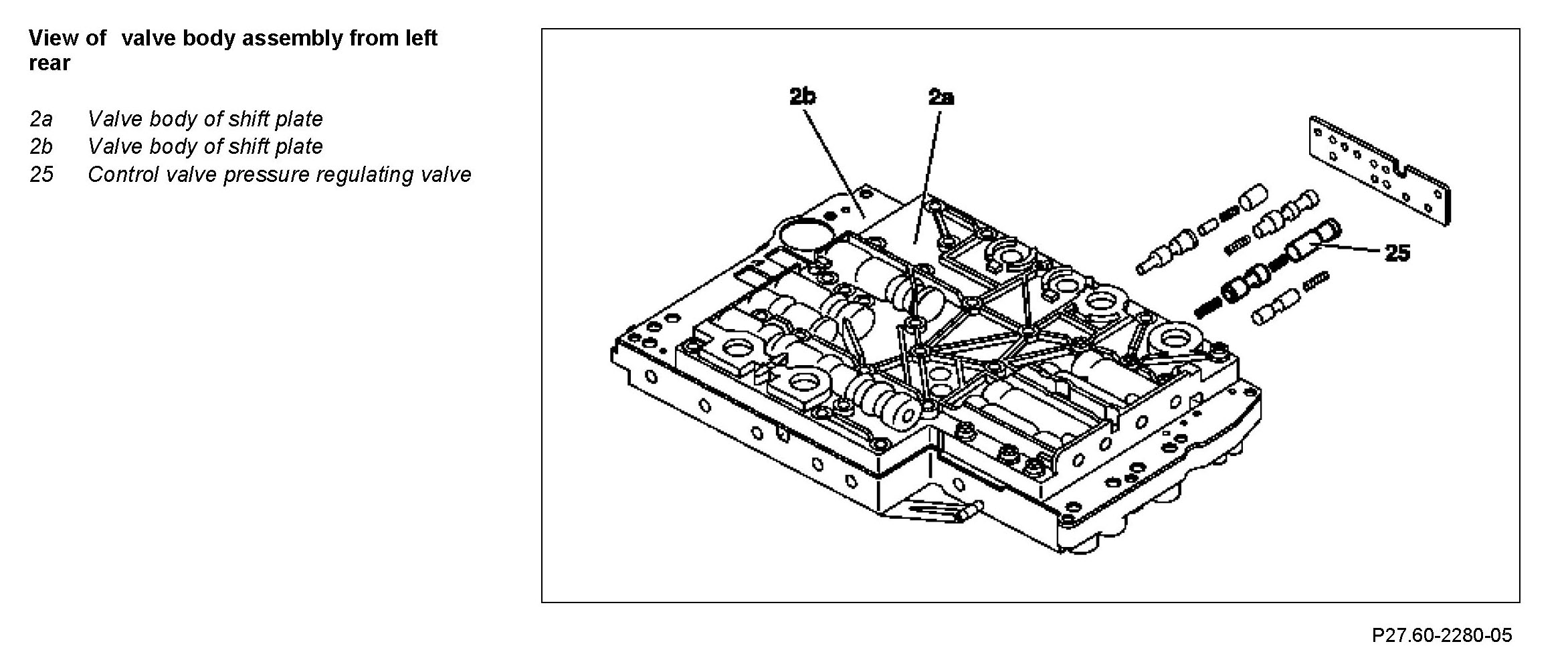

Location
The control valve pressure regulating valve (25) is located in the valve body of the valve body assembly (2b).

Task
The regulating valve controls the control valve pressure.

Component Identification:

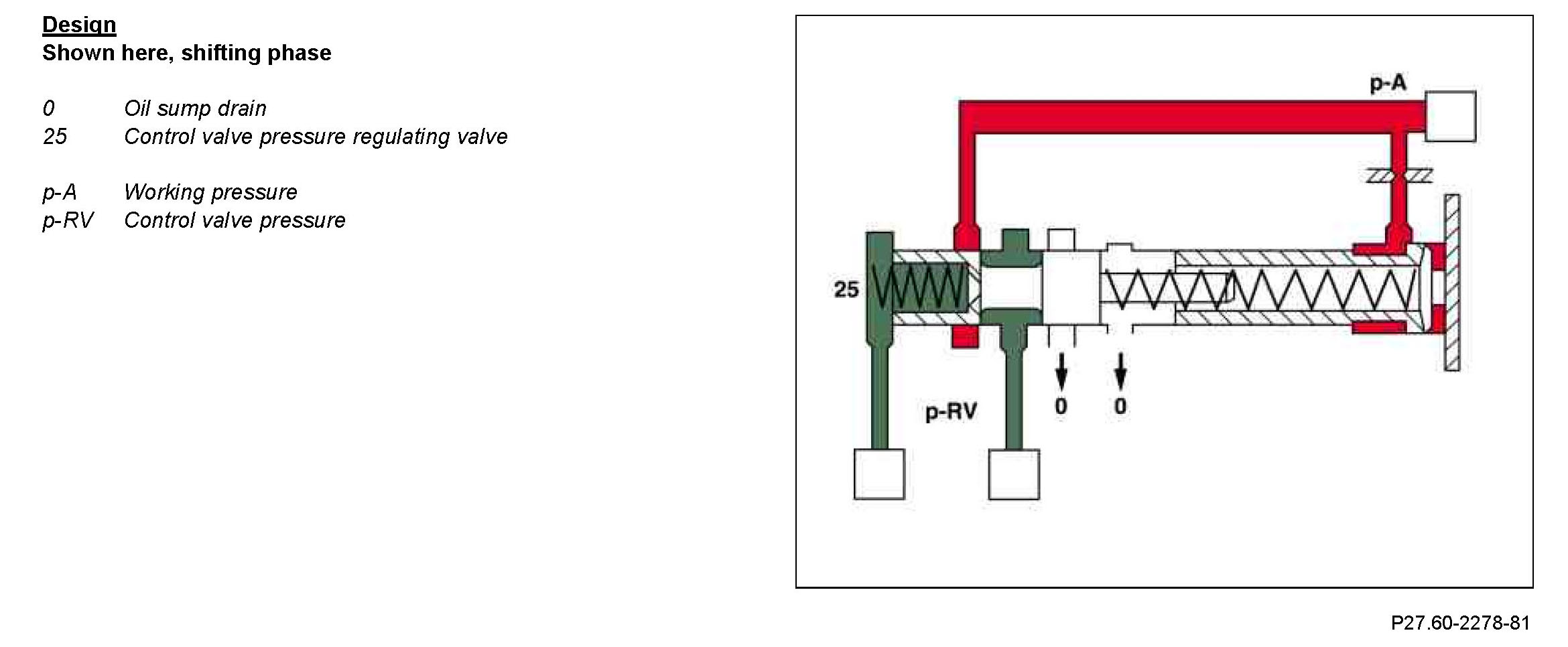

Design
Shown here, shifting phase

Function
The control valve pressure is regulated up to maximum pressure at the control valve pressure regulating valve (25) depending on the working pressure (p-A).
