GF27.60-P-5210ACW Regulating Valve Shift Valve Pressure Component Description

GF27.60-P-5210ACW Regulating valve shift valve pressure component description
- TRANSMISSION 722.618/640/646/695/699

Component Identification:

Location

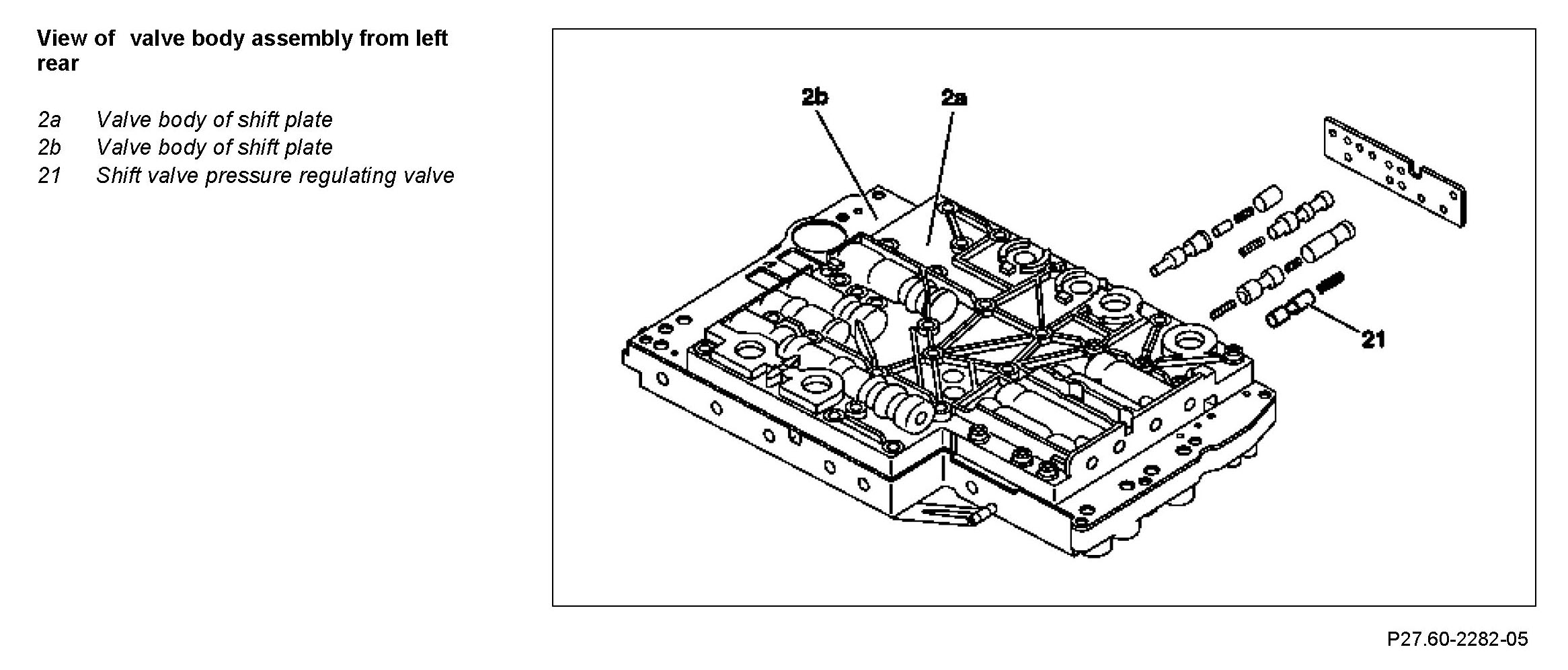

The shift valve pressure regulating valve (21) is located in the valve body of the valve body assembly (2b).

Task
The regulating valve controls the shift valve pressure.

Component Identification:

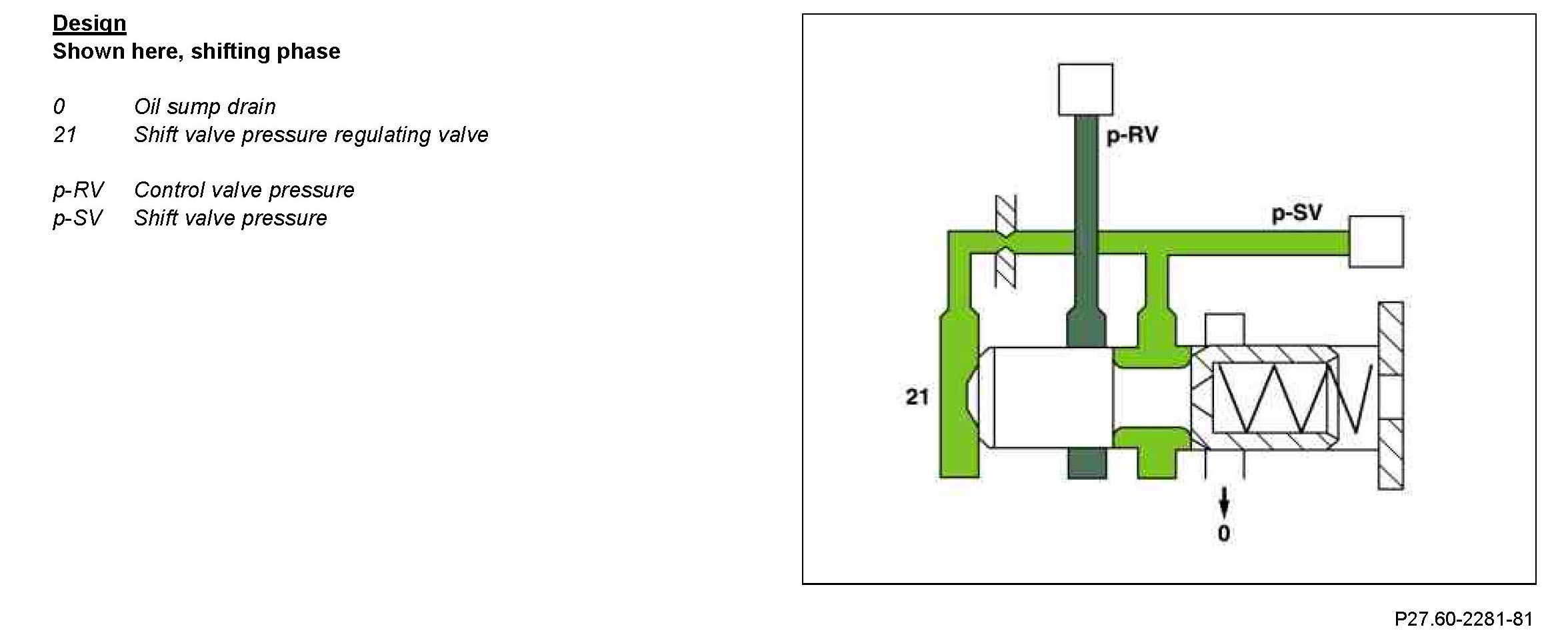

Design
Shown here, shifting phase

Function
The inconstant control valve pressure is set using the shift valve pressure regulating valve (21) to a constant shift valve pressure (p-SV) and used to supply the following solenoid valves:
- 1-2 and 4-5 gearshift solenoid valve (Y3/6y3)
- 3-4 gearshift solenoid valve (Y3/6y4)
- 2-3 gearshift solenoid valve (Y3/6y5)
- Torque converter lockup clutch control solenoid valve (Y3/6y6)
