GF27.60-P-3019ACW Torque Converter Lockup Clutch Control Pressure, Function

GF27.60-P-3019ACW Torque converter lockup clutch control pressure, function
- TRANSMISSION 722.618/640/646/695/699

Function requirements for torque converter lockup clutch control pressure, general
^ Circuit 87 ON
^ Circuit 61 (engine running)

Torque converter lock-up clutch control pressure in general
Apart from the extreme states of open or closed, it is possible to operate the torque converter lockup clutch with preset slip speeds.

To enable this, the torque converter lockup clutch regulating valve has to have variable control pressure applied to it.

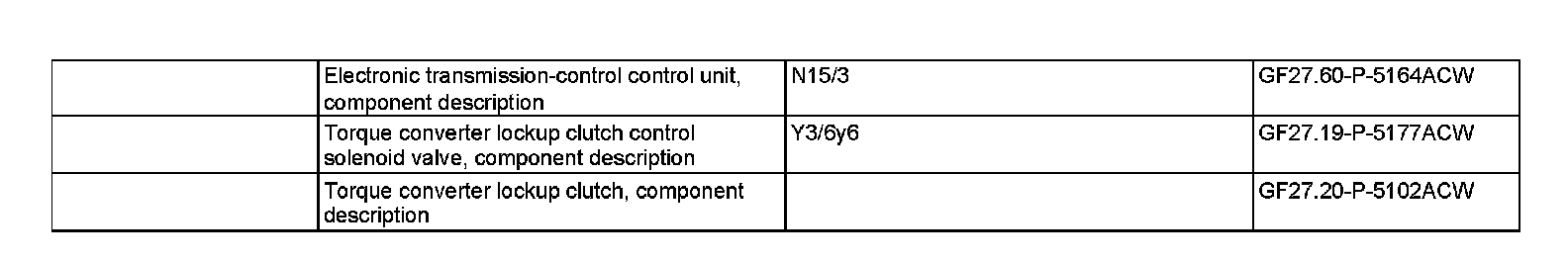

The torque converter lockup clutch control pressure is actuated via the torque converter lockup clutch control solenoid valve (Y3/6y6), which is actuated by the electronic transmission-control control unit (N15/3) and adapted to the respective operating condition.
