GF27.40-P-2008ACW Transmission Housing Ventilation Component Description

GF27.40-P-2008ACW Transmission housing ventilation component description
- TRANSMISSION 722.618/640/646/695/699

Component Identification:

Location

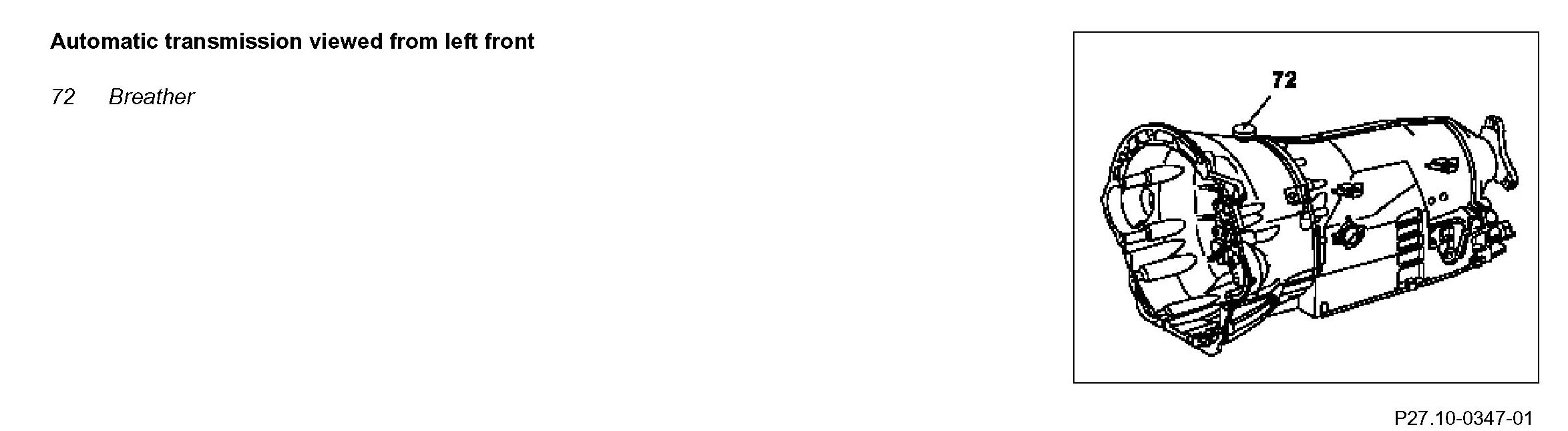

The inside of the transmission and the breather (72) are connected by a channel which is cast into the torque converter housing.

Task
The transmission housing vent in the transmission housing compensates the pressure if temperature-related volume changes in the transmission oil and air occur.
