GF27.10-P-0001-07ACW Automatic Transmission (AT), Location of Mechanical Parts



GF27.10-P-0001-07ACW Automatic transmission (AT), location of mechanical parts
- Transmission 722.618/640/646/695/699 in MODEL 204.0 as of Model Year 2009

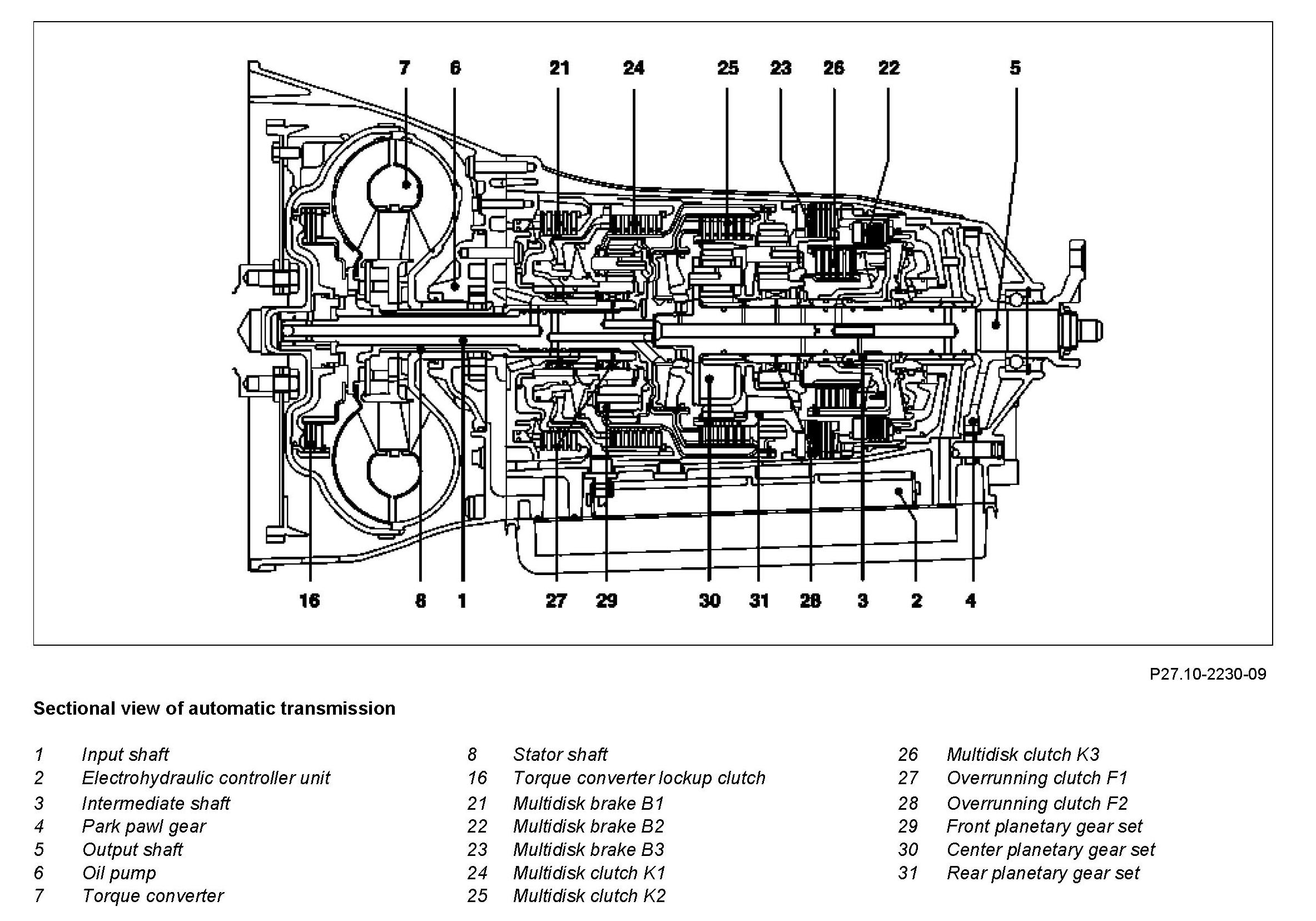

Component Identification:

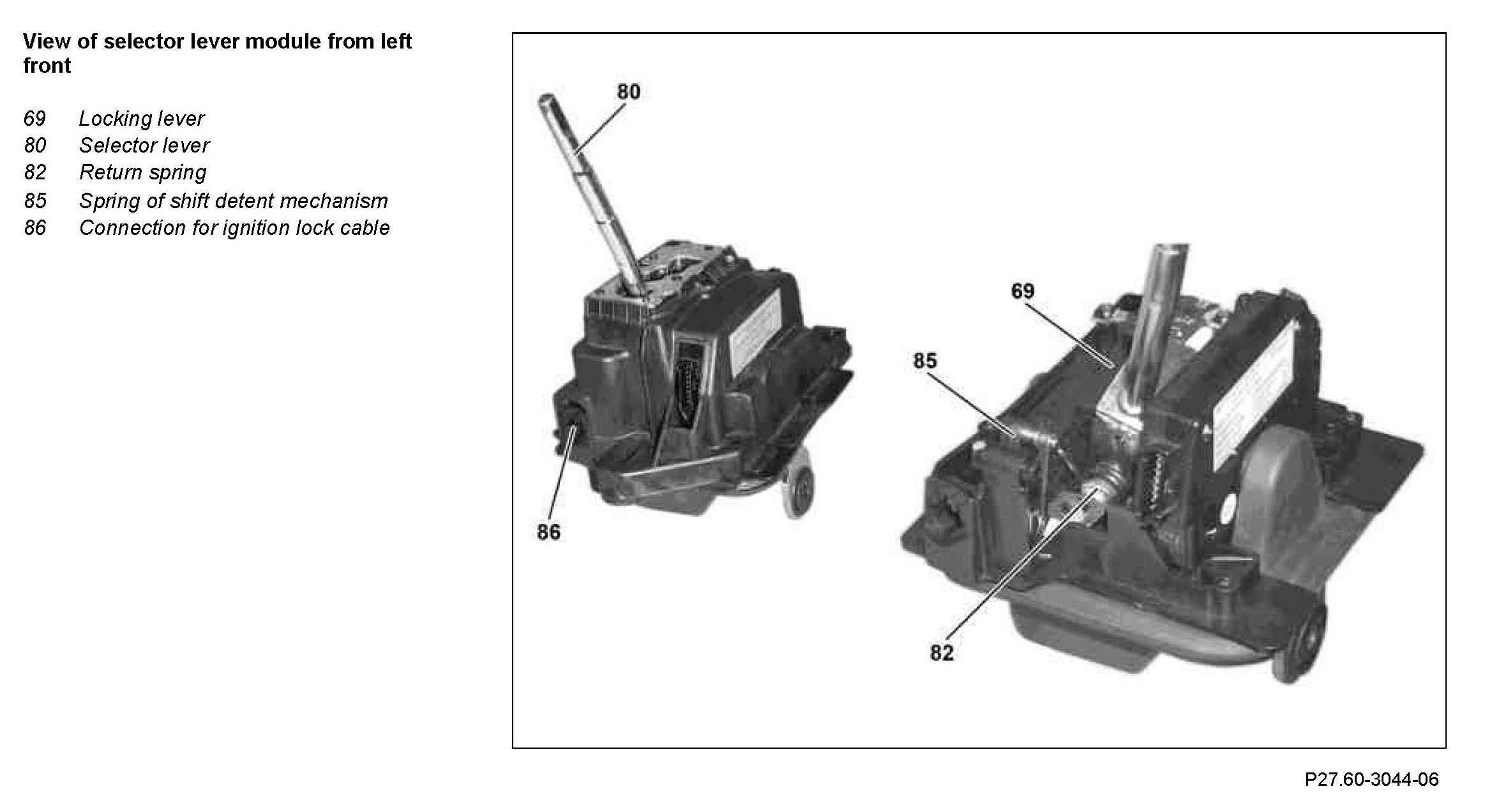

Component Identification:
