Function Diagrams

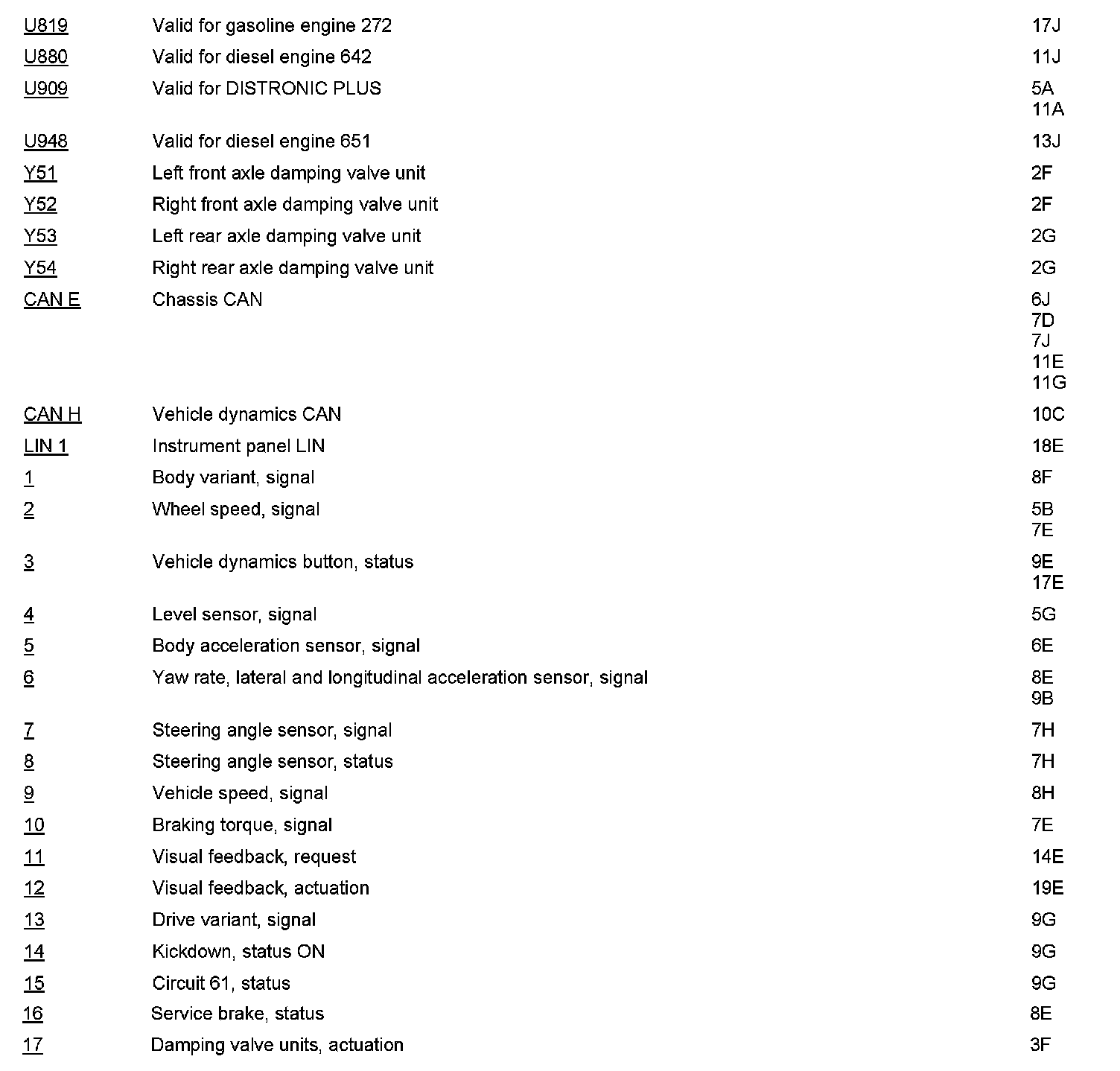

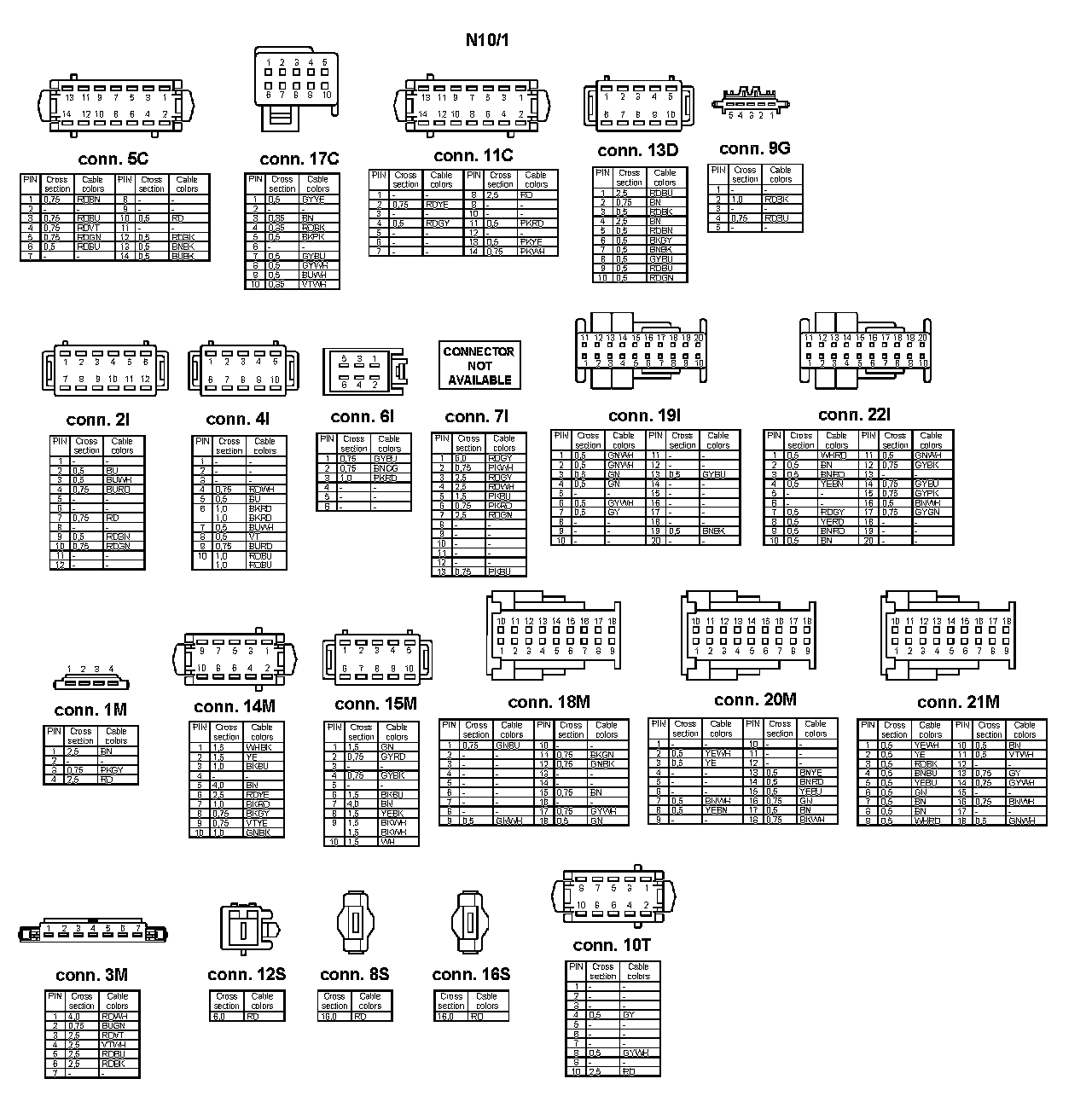

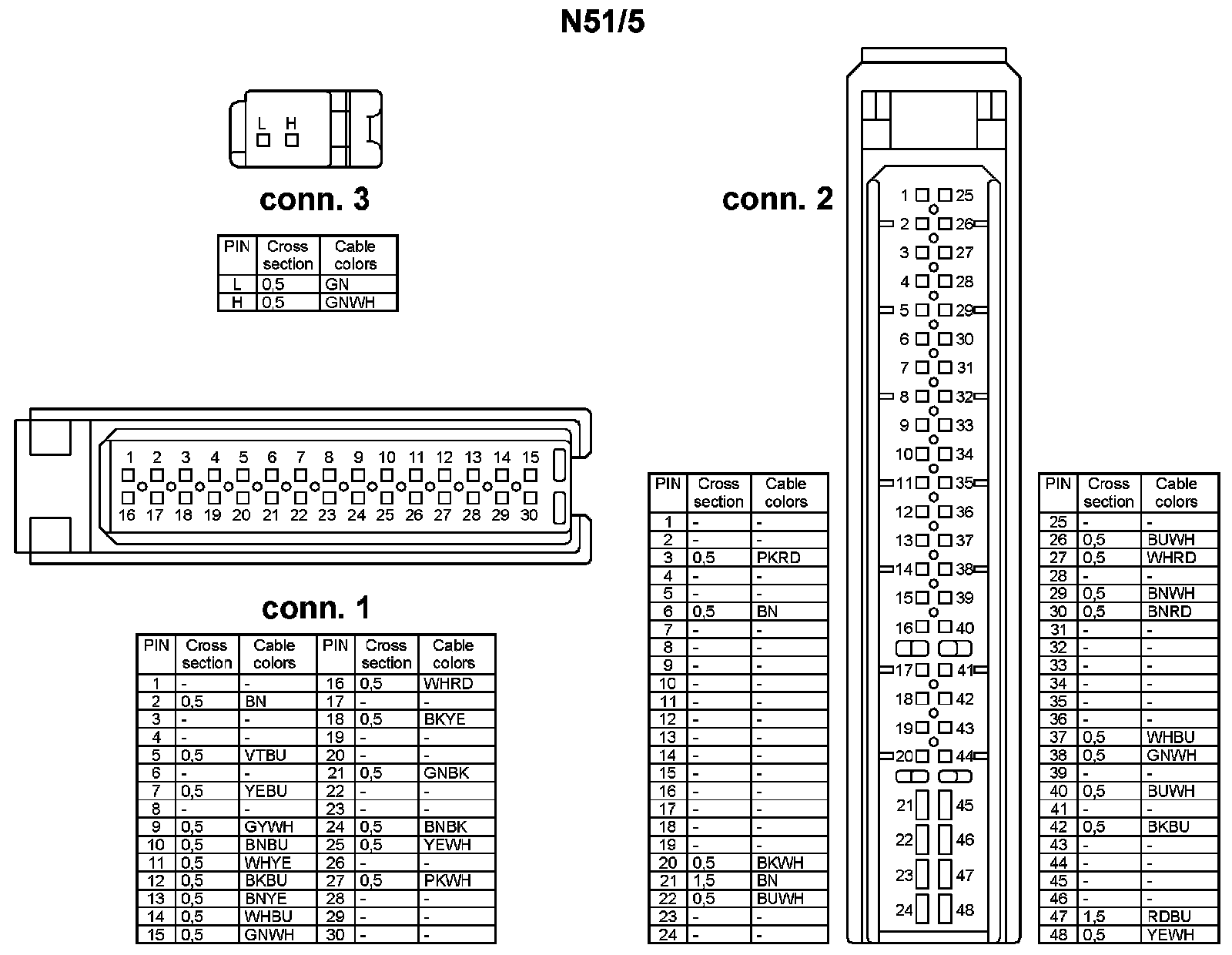

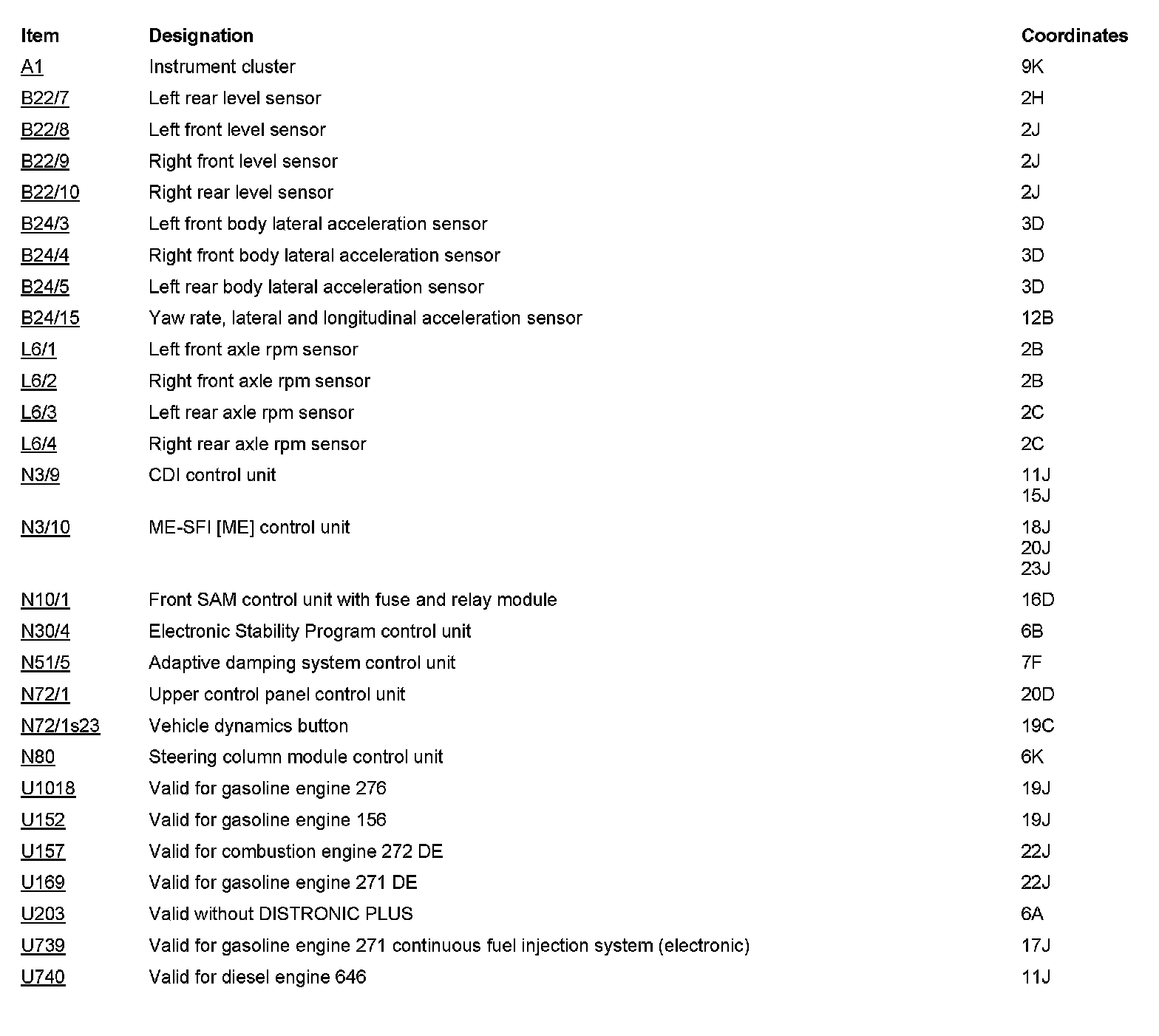

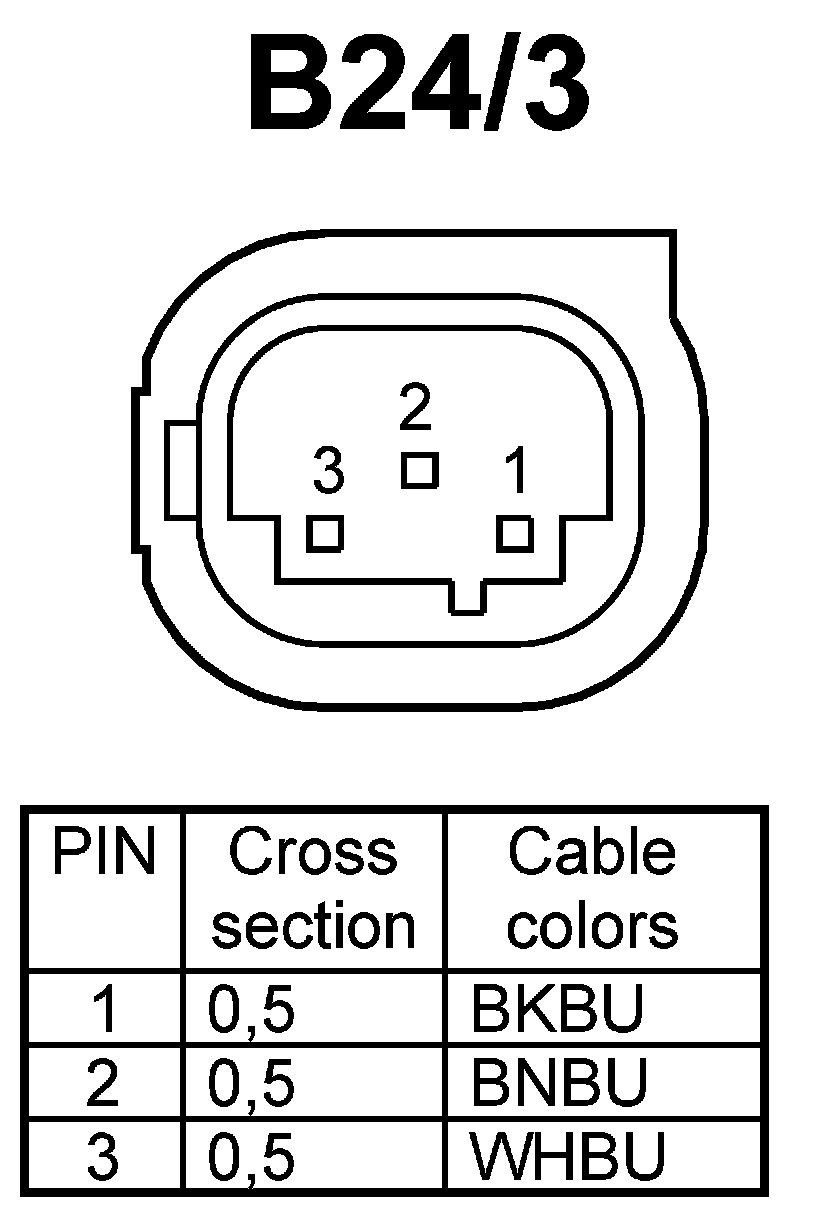

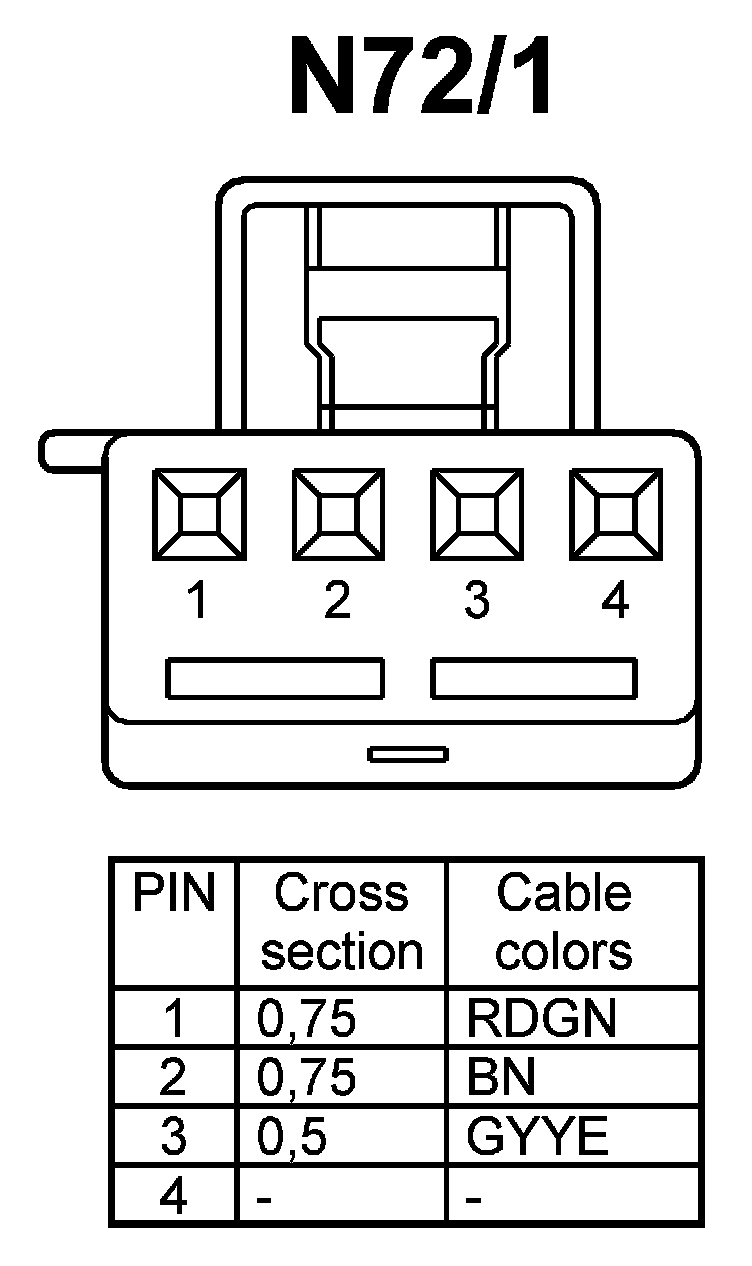

PE32.32-P-2051FAB Electrical Function Schematic For Adaptive Damping System (ADS)

MODEL 204.0 /2
- with CODE (483) ADVANCED AGILITY package
- as of Model Year 2009 /modification year 08

MODEL 204.3
- with CODE (483) ADVANCED AGILITY package







































































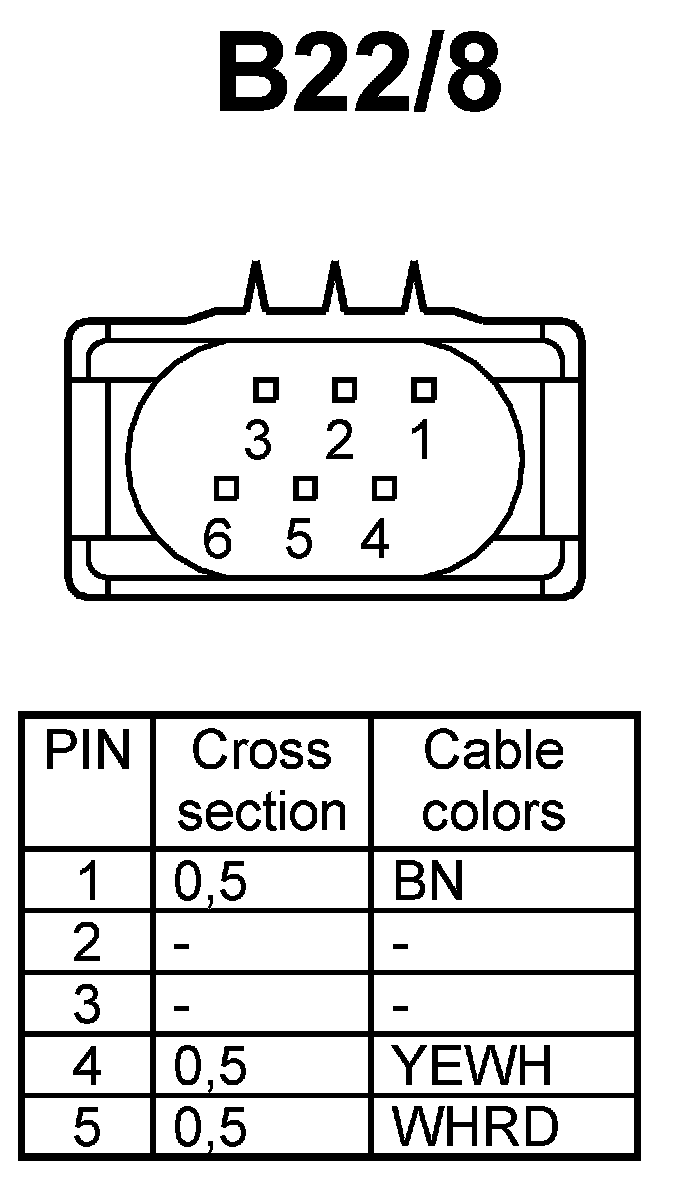

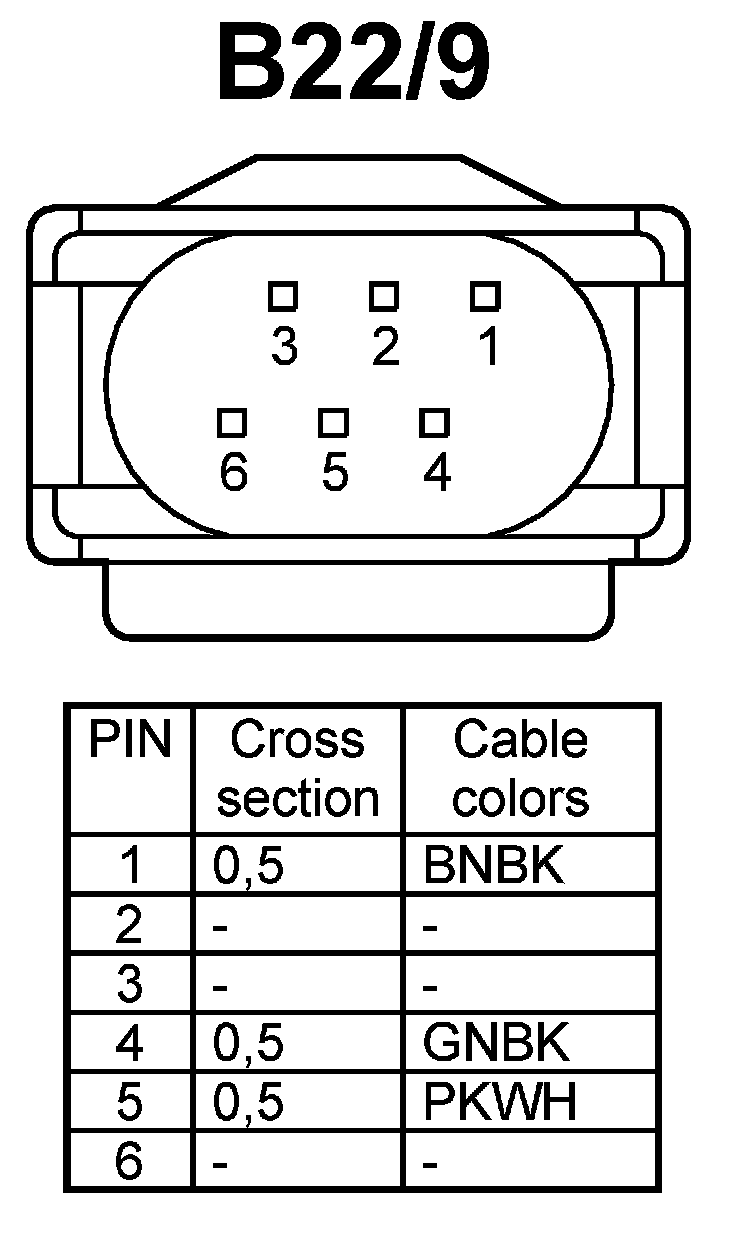

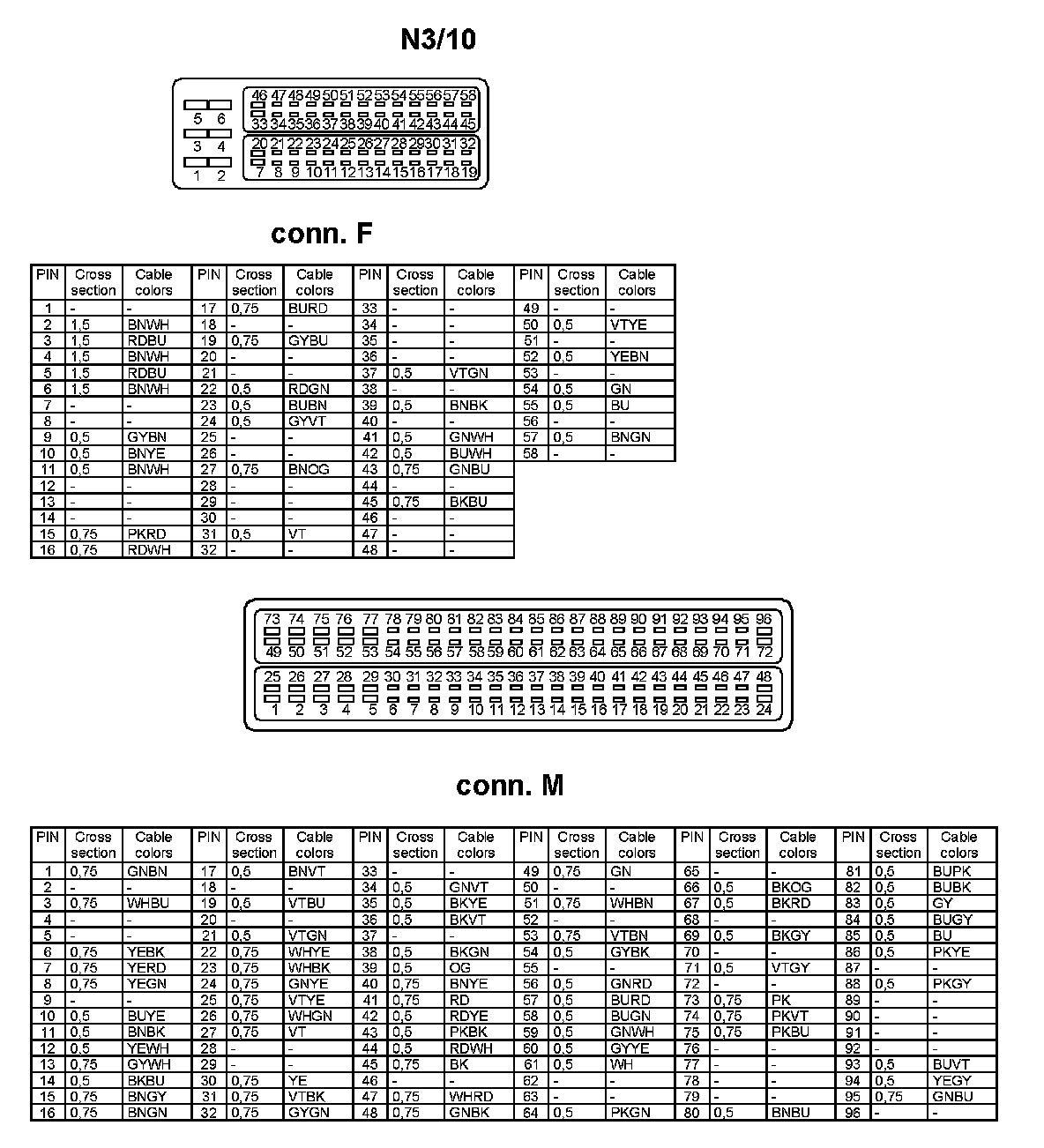

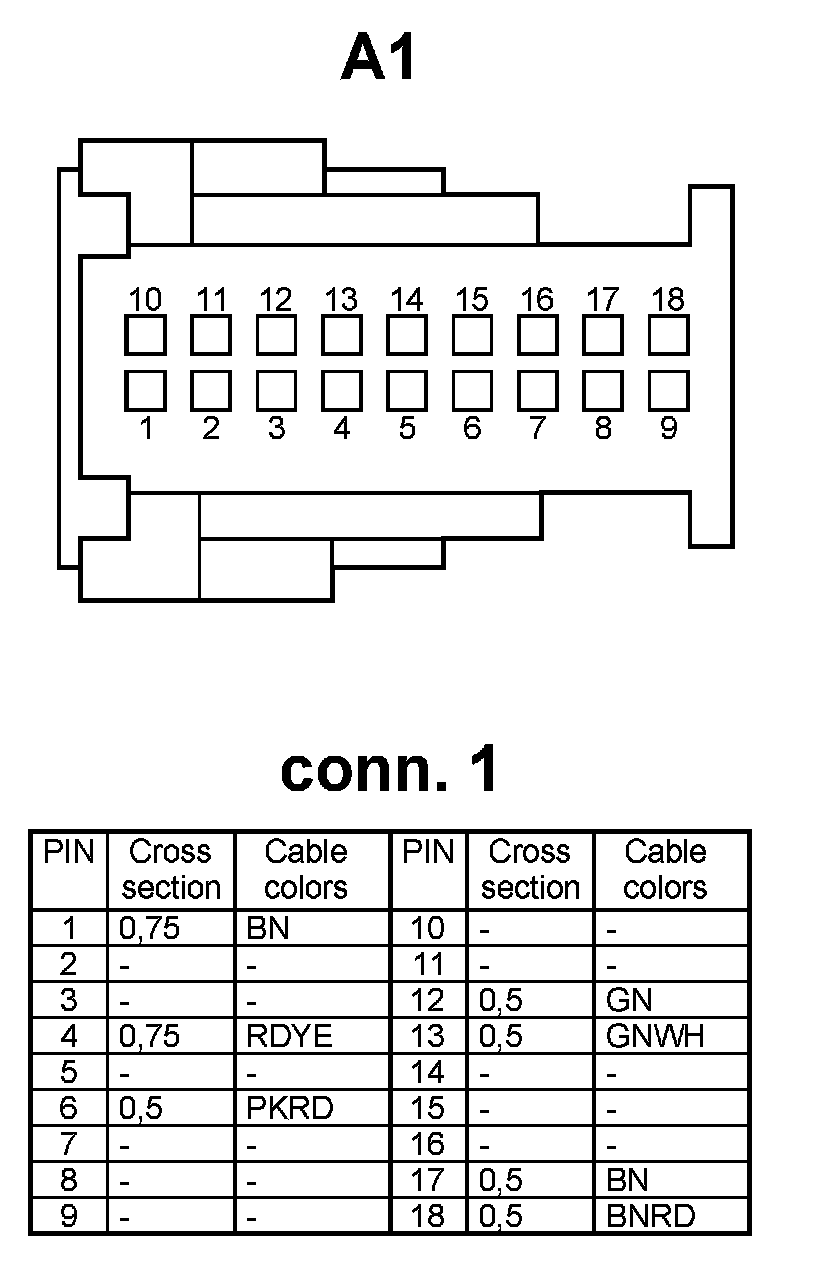

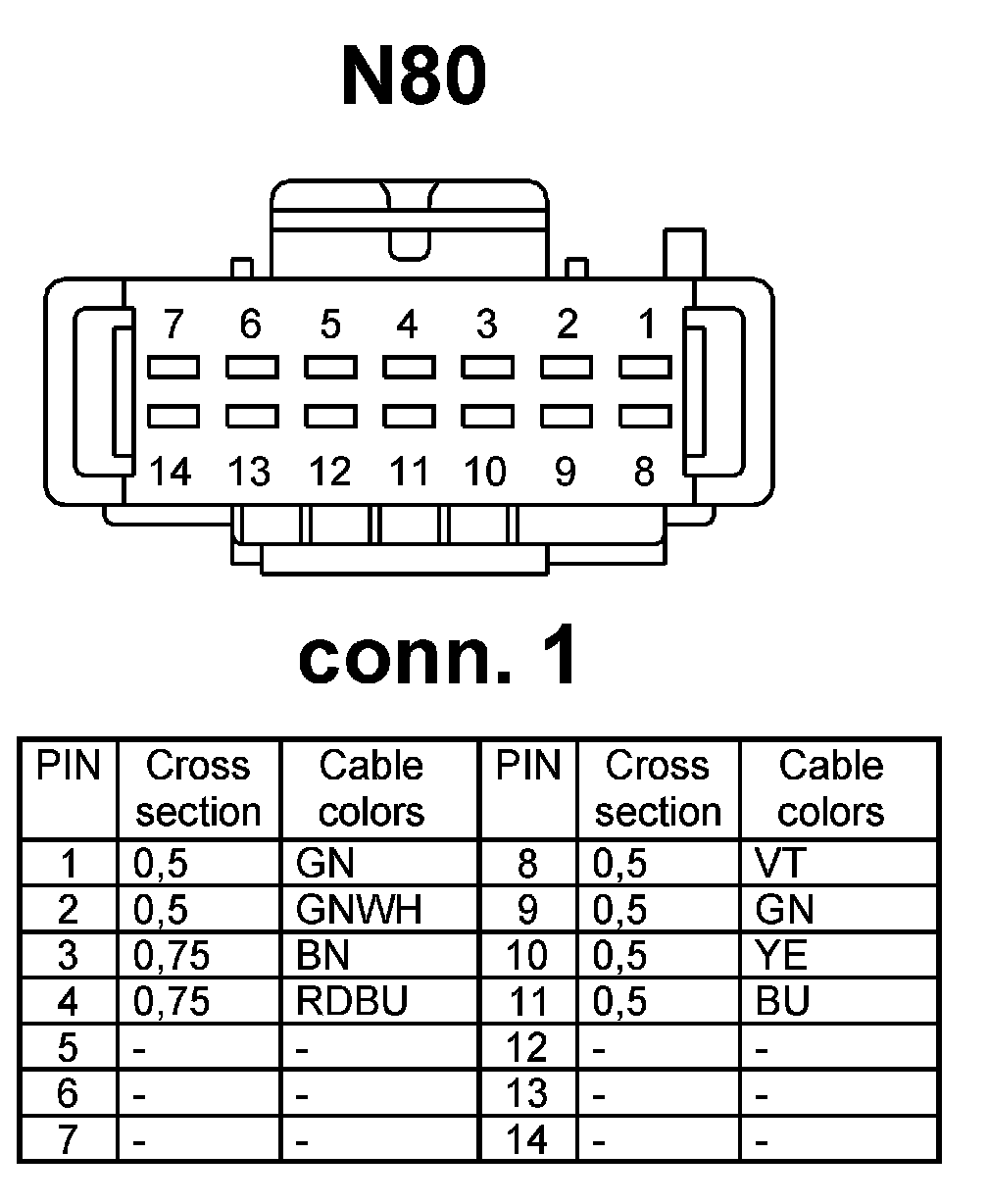

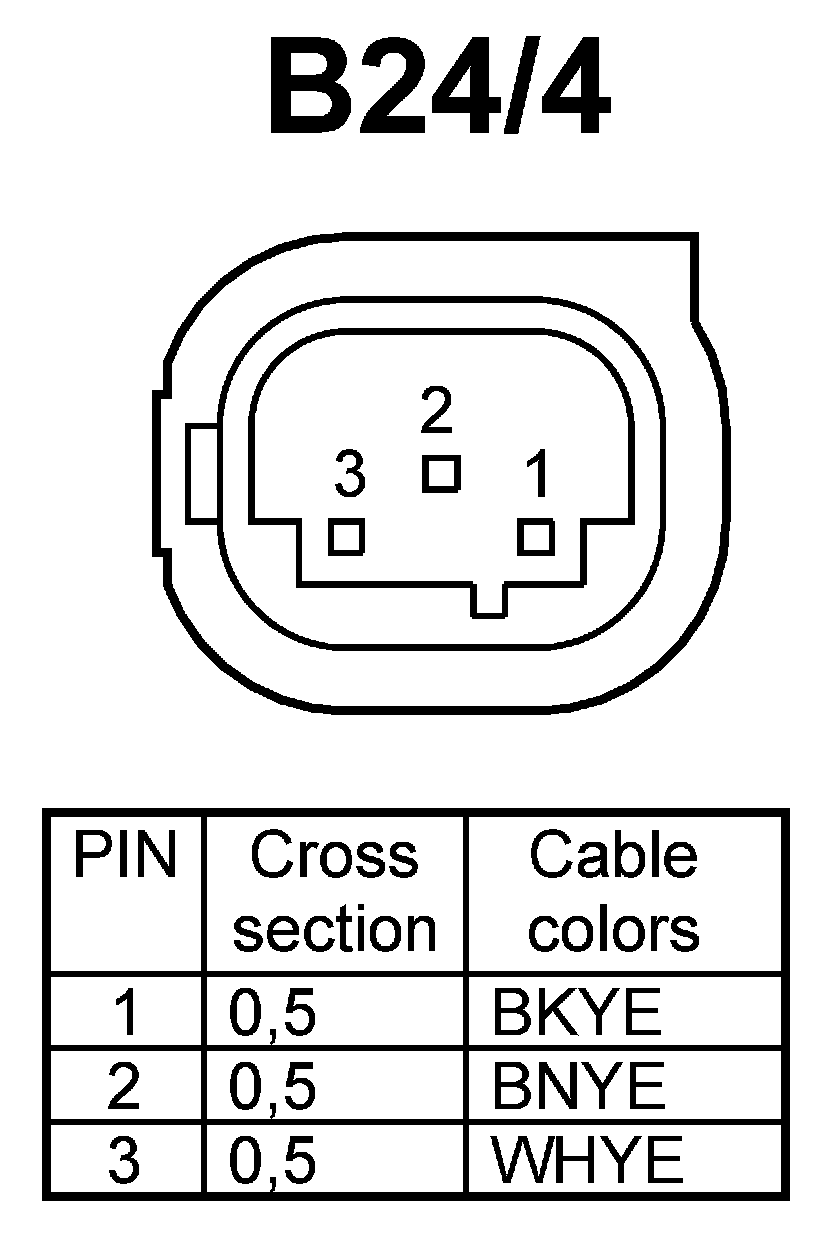

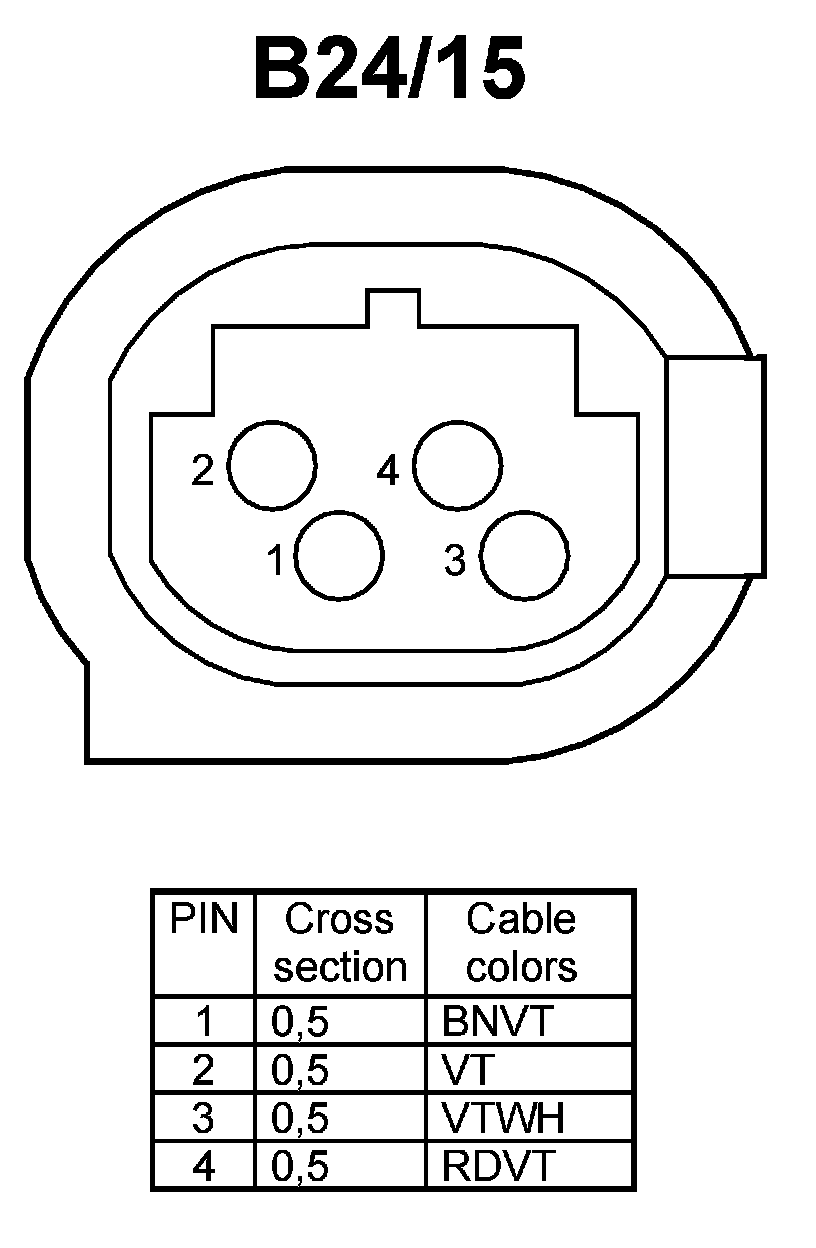

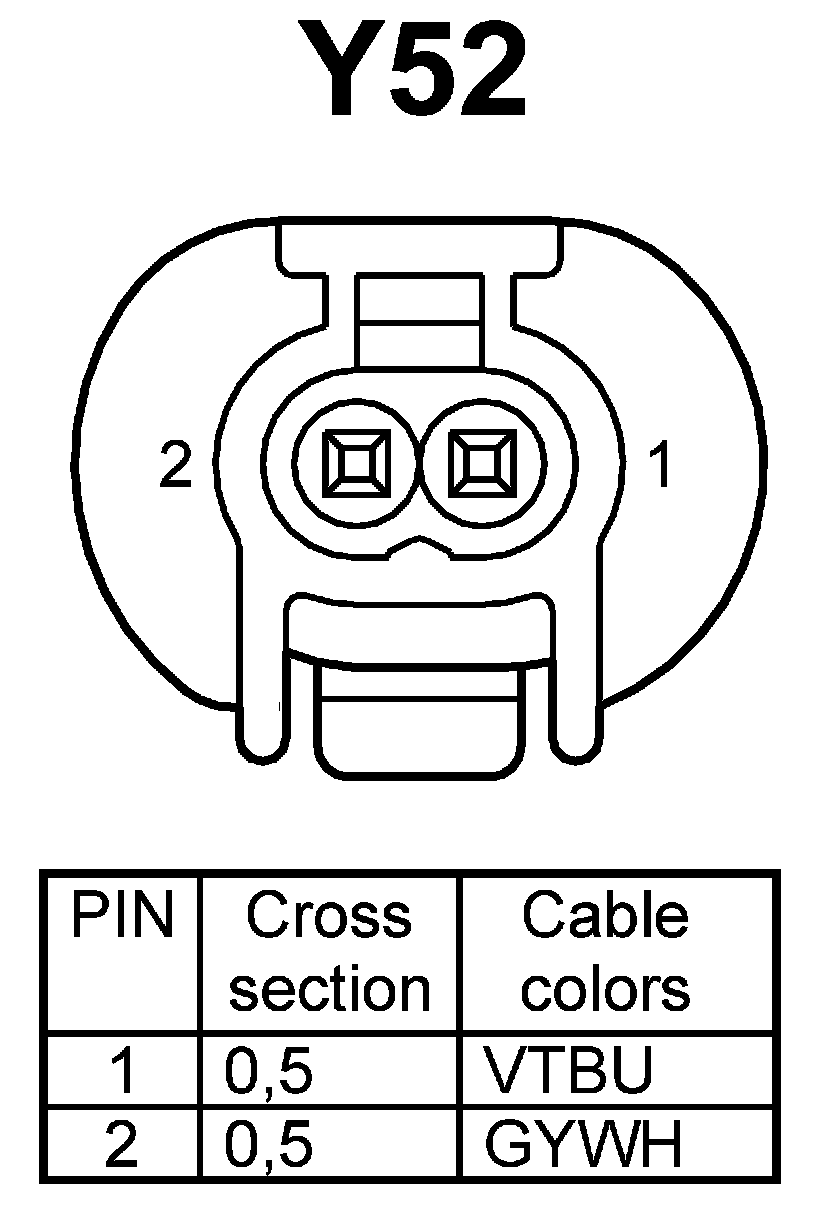

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
