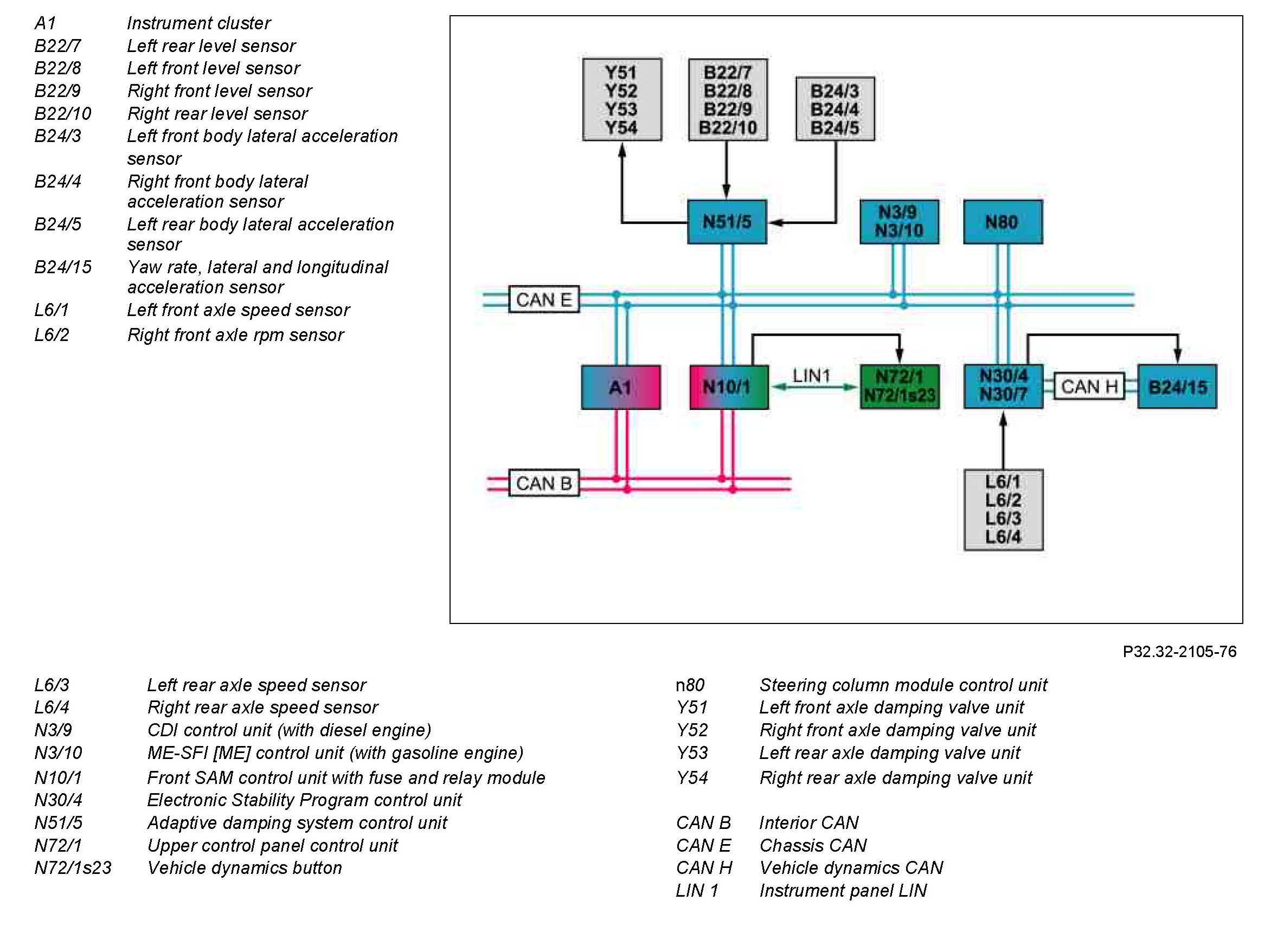

GF32.32-P-0002-02CE Adaptive Damping System (ADS), Block Diagram



GF32.32-P-0002-02CE Adaptive damping system (ADS), block diagram
- with CODE (483) ADVANCED AGILITY package
