Ball Joint: Testing and Inspection
AP33.20-P-3353CW Inspect front axle joint for play, inspect rubber boots

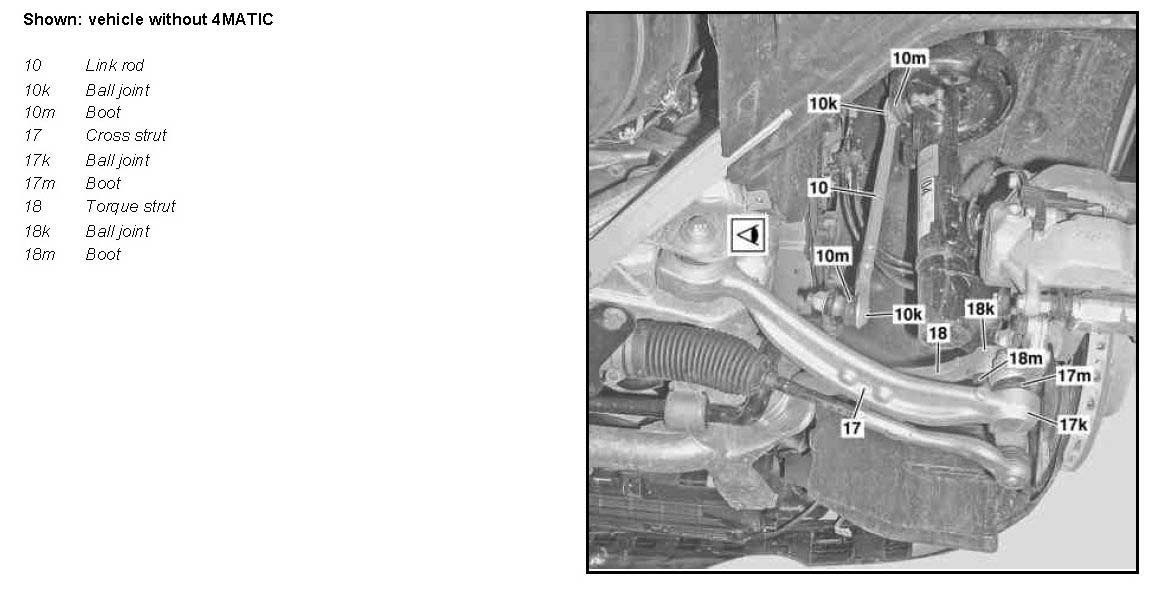

Component Identification:

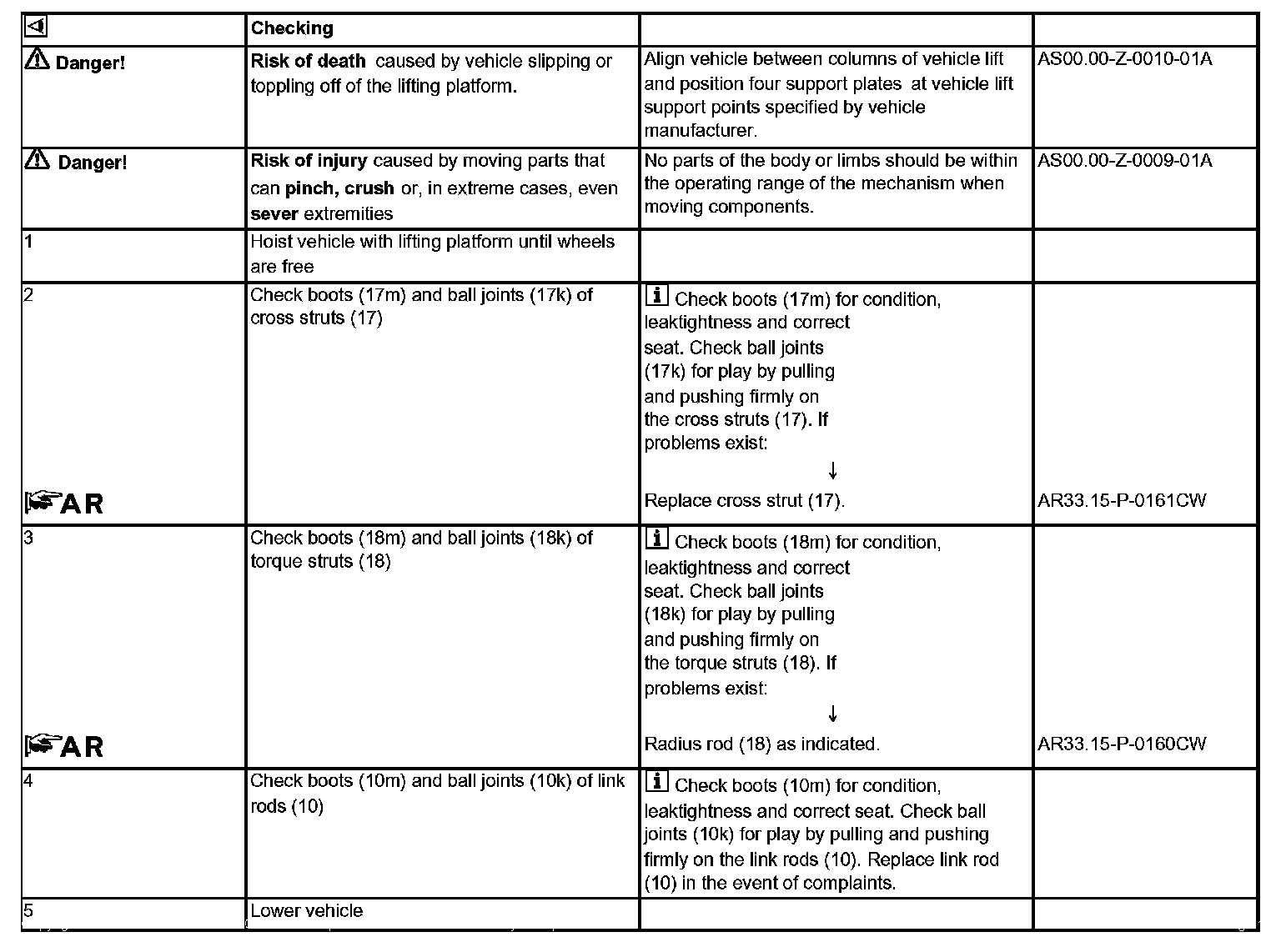

Steps 1-5:
