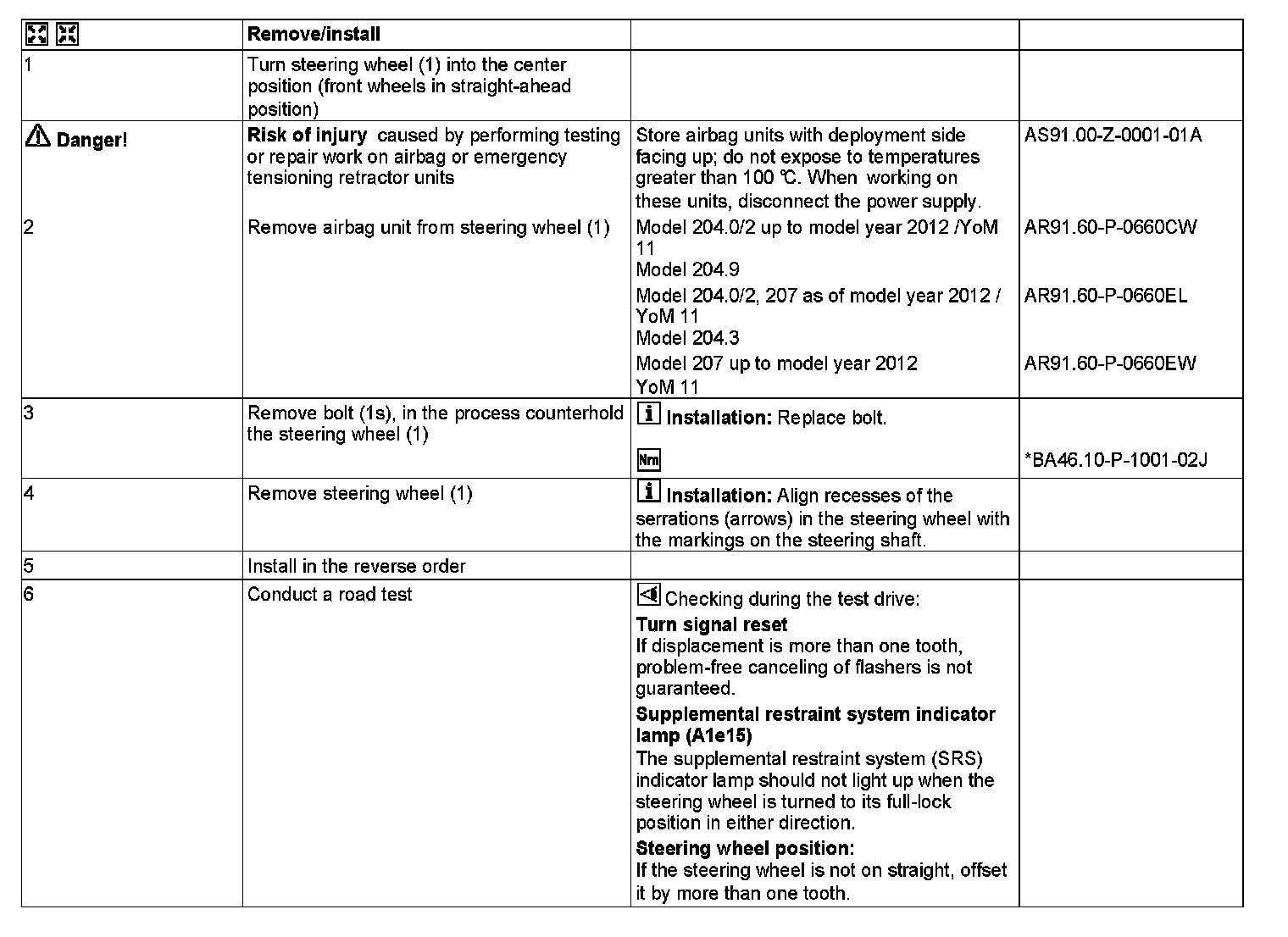

AR46.10-P-0100CW Remove/Install Steering Wheel




AR46.10-P-0100CW Remove/Install Steering Wheel
MODEL 204, 207

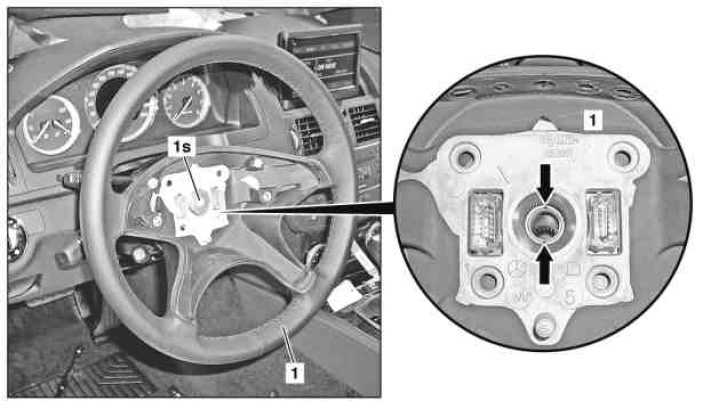

1 Steering wheel
1s Screw
