C 300 4MATIC (204.081) V6-3.0L (272.948)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Steering
>>
Steering Shaft Coupler
>>
Service and Repair
Steering Shaft Coupler: Service and Repair
AR46.10-P-8000CW Remove/install
steering
coupling

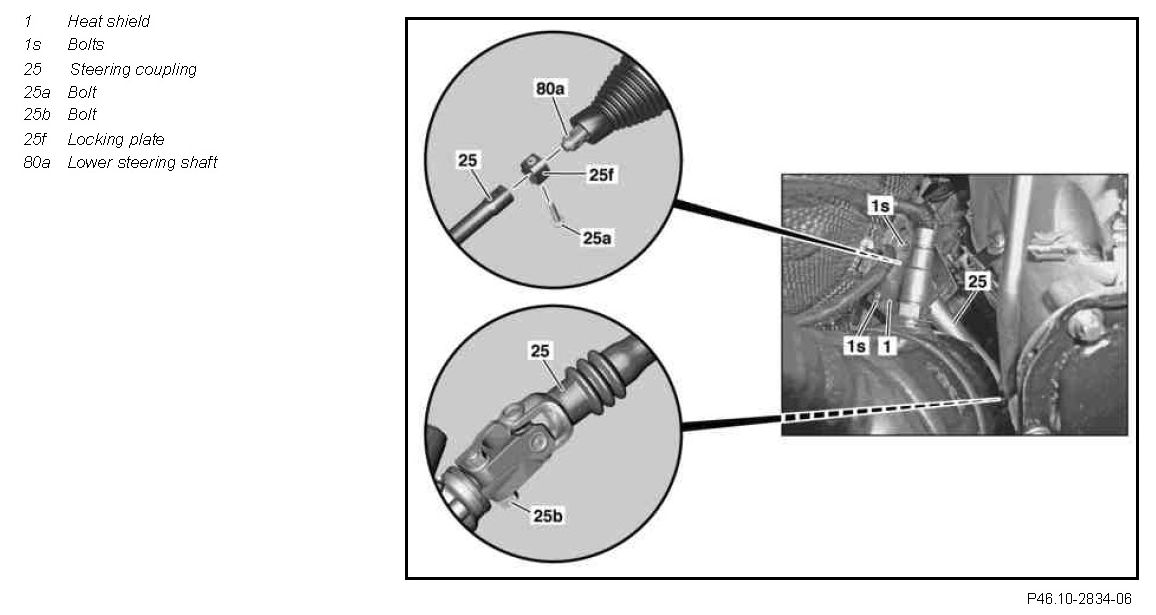

Component Identification:

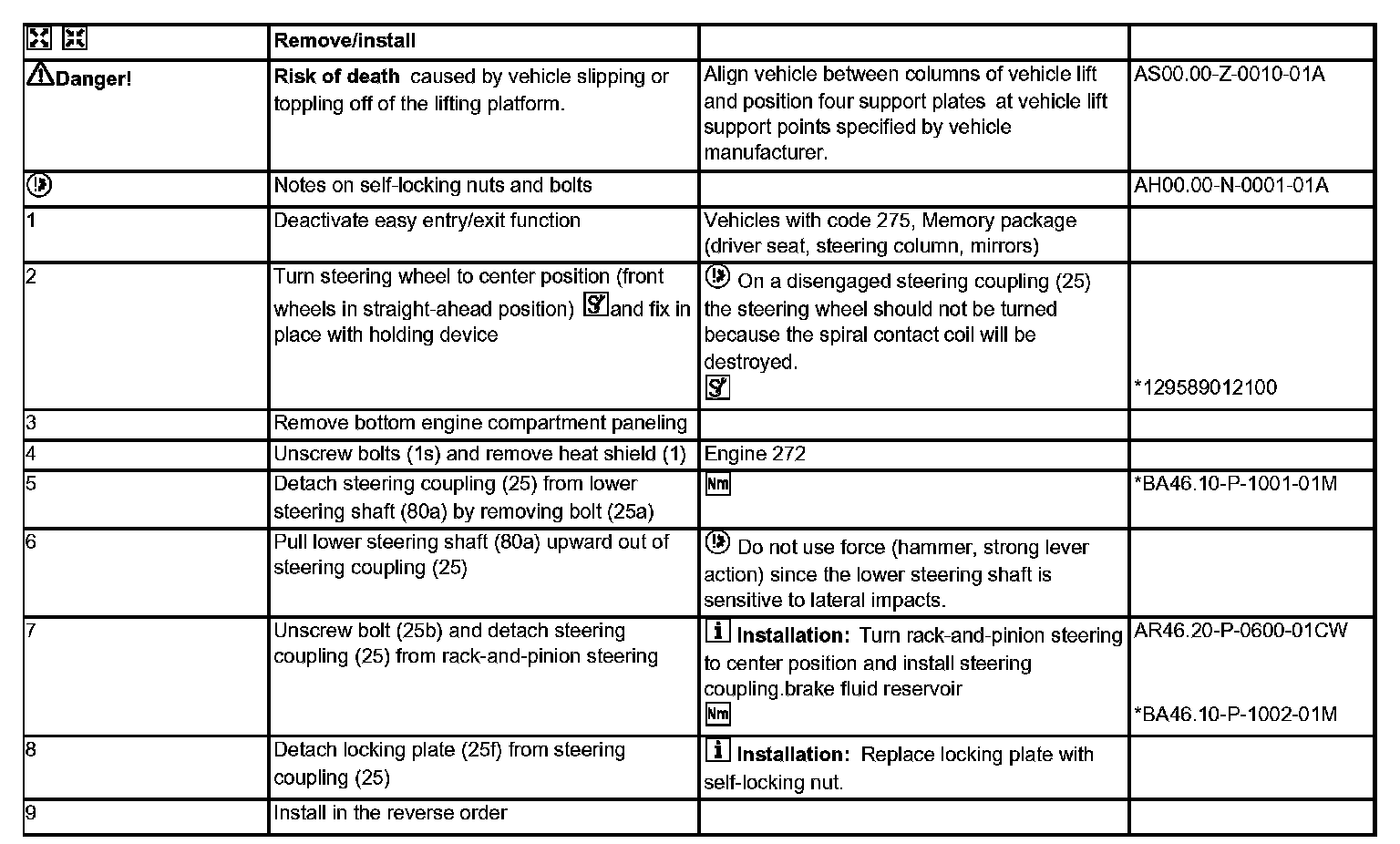

Remove/install Steps 1-9:

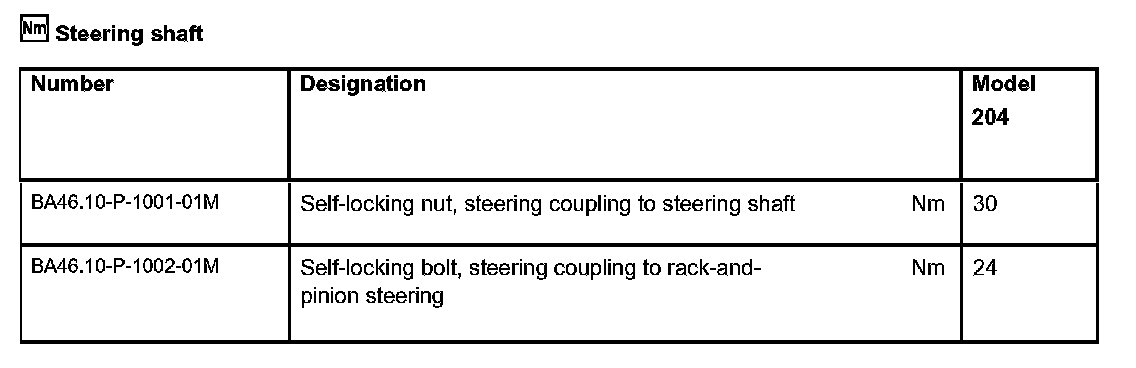

Steering shaft:

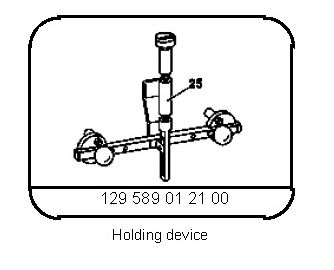

Special Tools:
