GF46.15-P-0003-03CW Electrically Adjustable Steering Column (ESC), Location of Components

GF46.15-P-0003-03CW Electrically Adjustable Steering Column (ESC), Location of Components
- with CODE (275) Memory package (driver seat, steering column, mirrors)

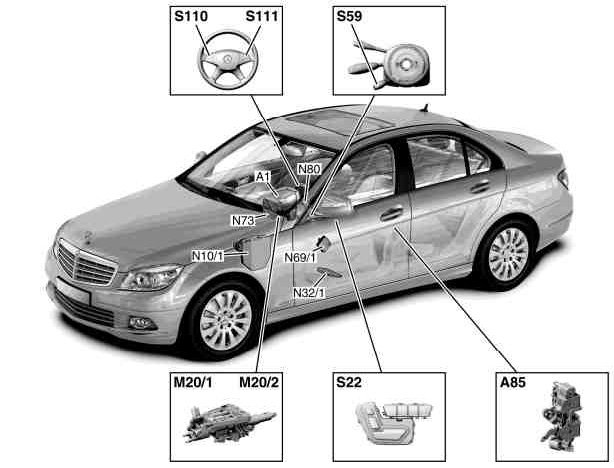

Illustrated on model 204.0

A1 Instrument cluster
A85 Left front door lock
M20/1 Steering column in/out adjustment motor
M20/2 Steering column up/down adjustment motor
N10/1 Front SAM control unit with fuse and relay module
N32/1 Driver seat control unit
N69/1 Left front door control unit
N73 Electronic ignition switch control unit
N80 Steering column module control unit
S22 Left front seat adjustment switch group
S59 Steering column adjustment switch
S110 Left multifunction steering wheel button group
S111 Right multifunction steering wheel button group
