Power Steering Pump: Testing and Inspection
AR46.30-P-0100CW Checking oil pressure of power steering pump

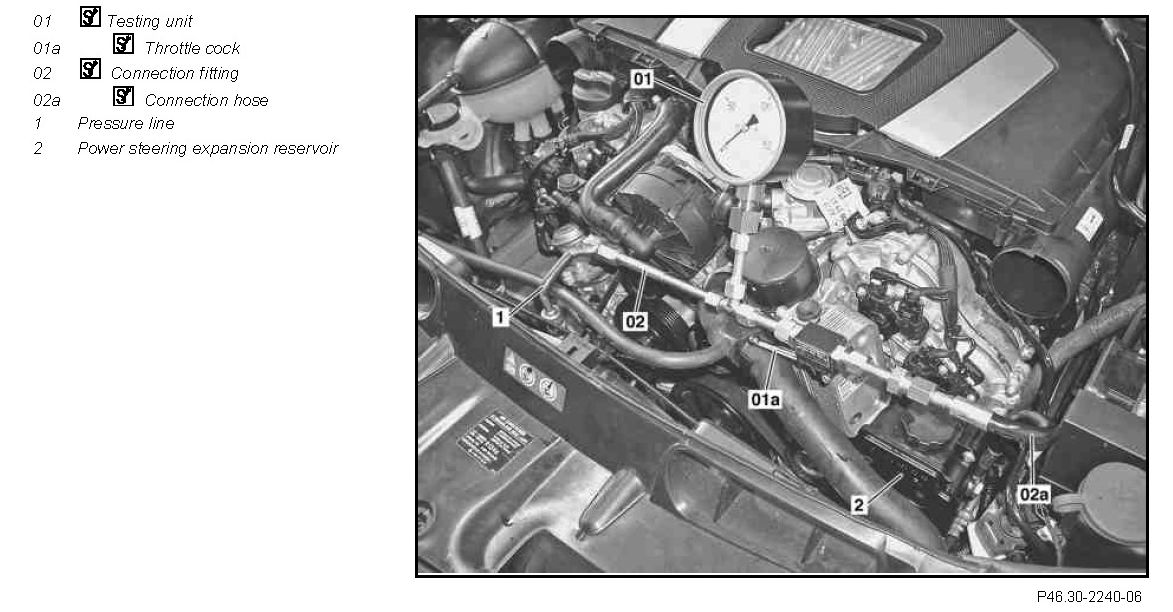

Component Identification:

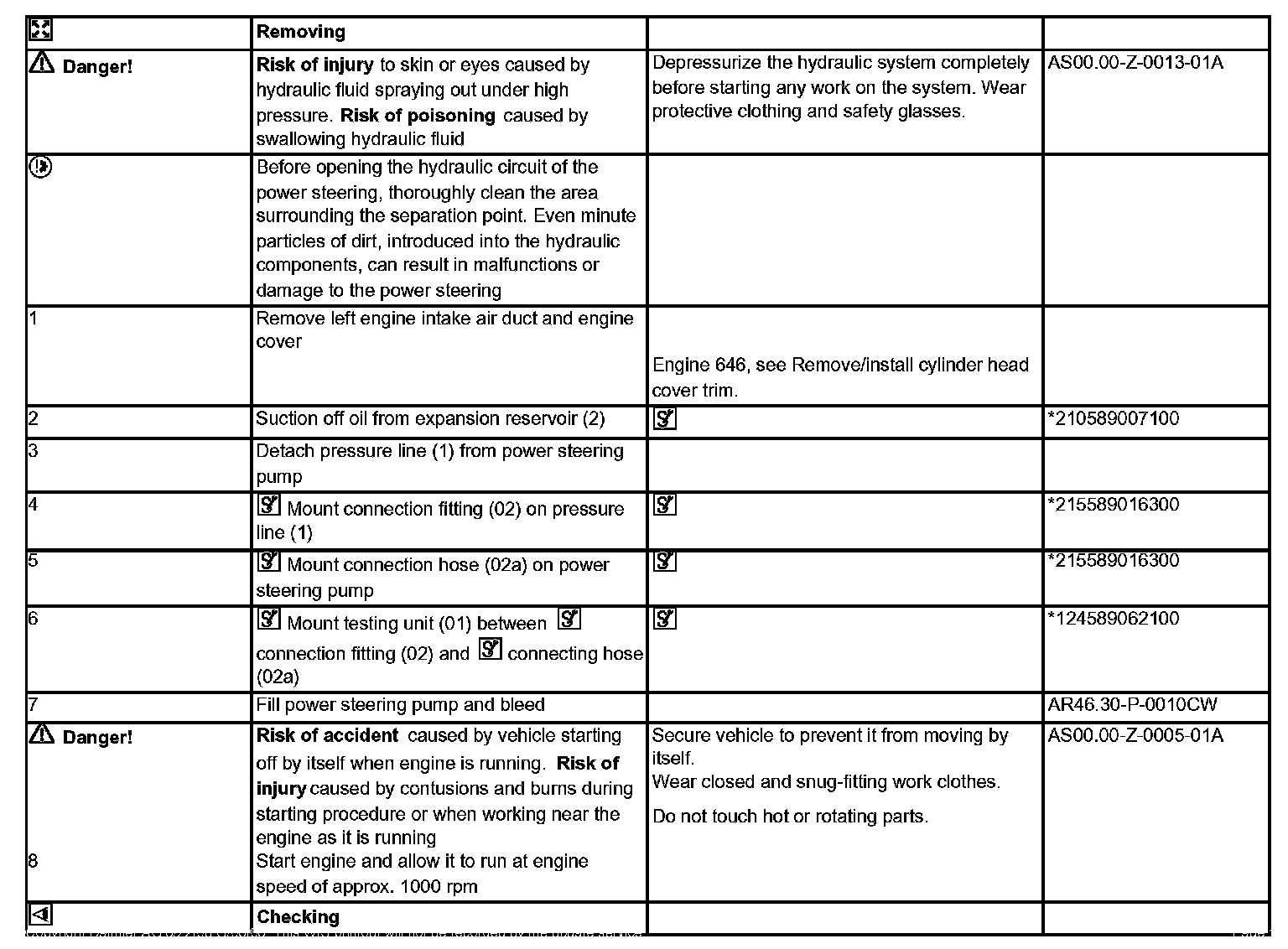

Steps 1-8:

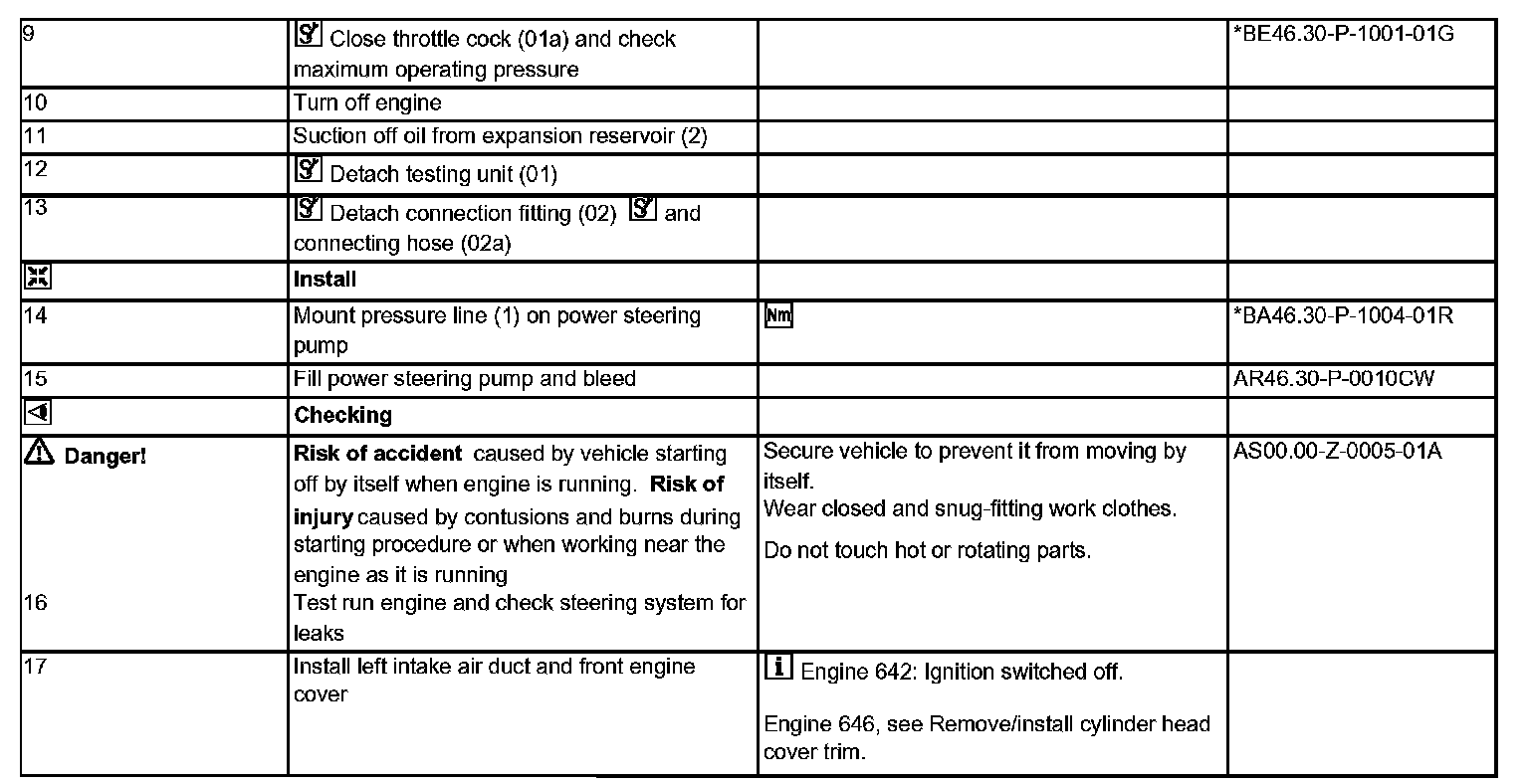

Steps 9-17:
Power steering pump test specifications:

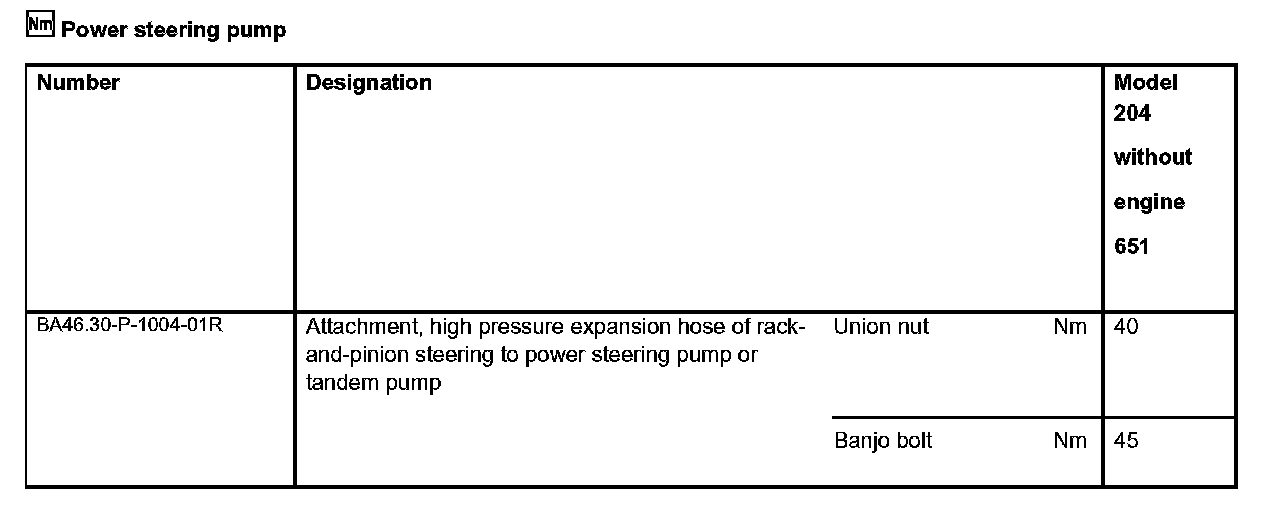

Power steering pump:

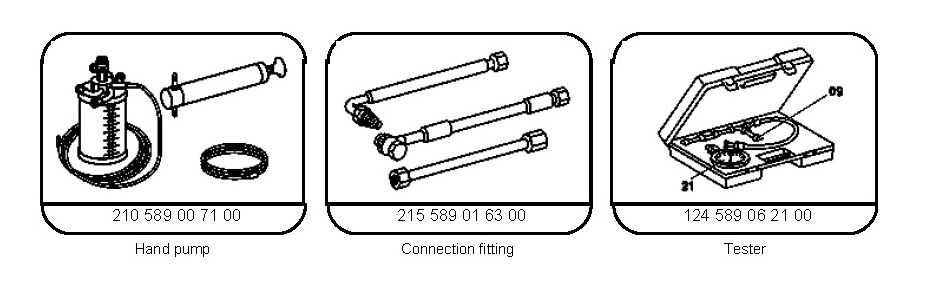

Special Tools:
AR46.30-P-0100CW Checking oil pressure of power steering pump
