Removal and Replacement



AR46.30-P-0500CV Remove/install power steering pump

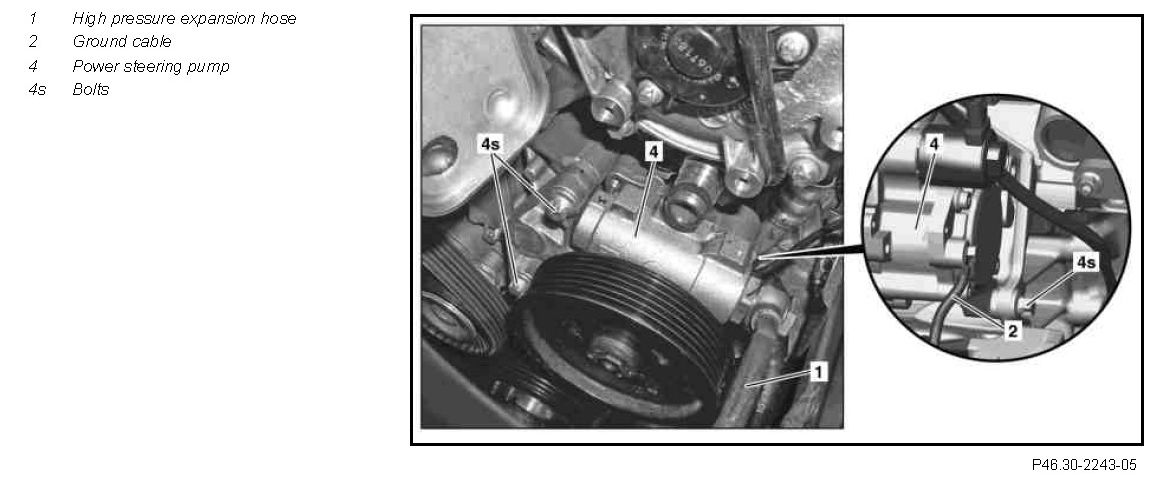

Component Identification:

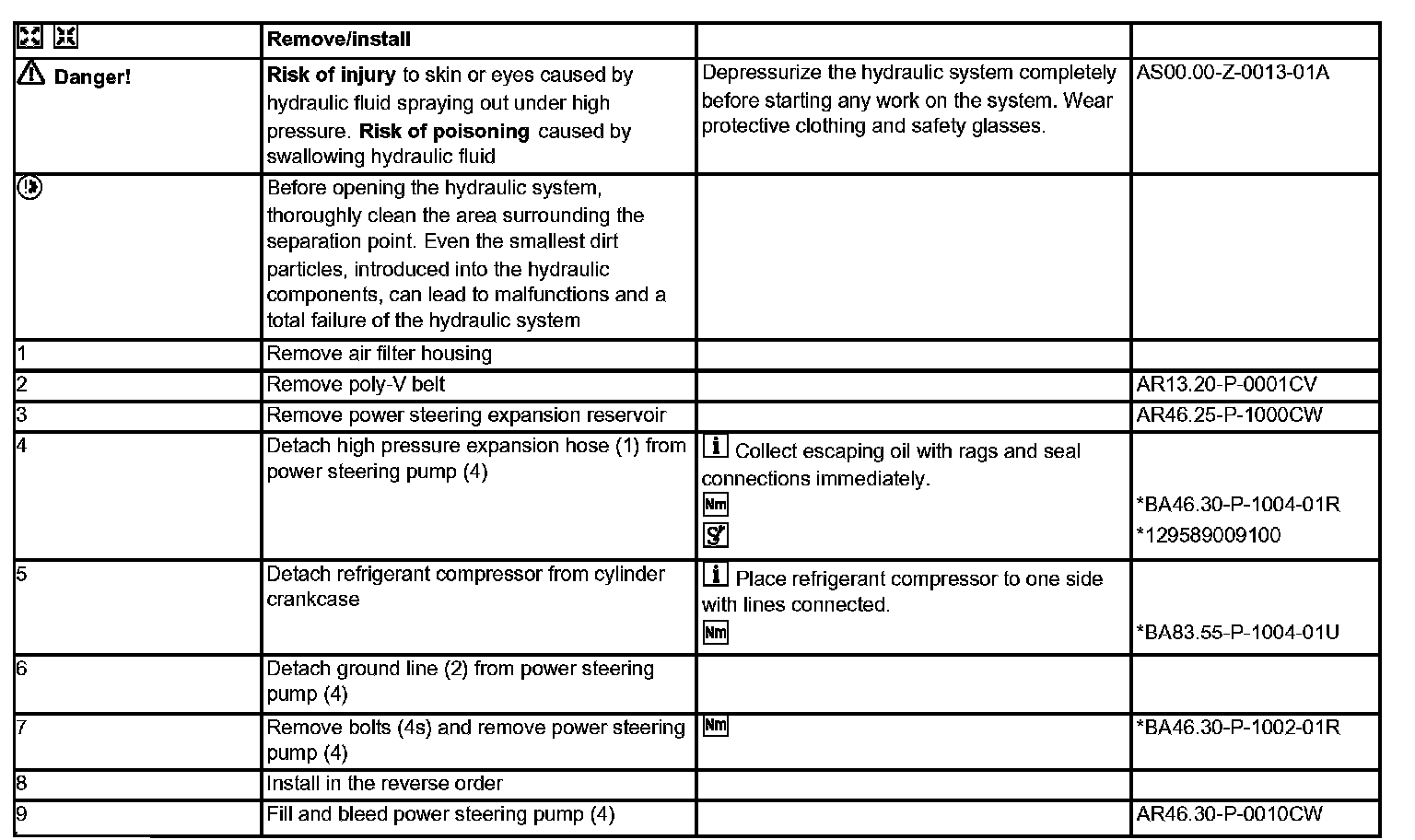

Remove/install Steps 1-9:

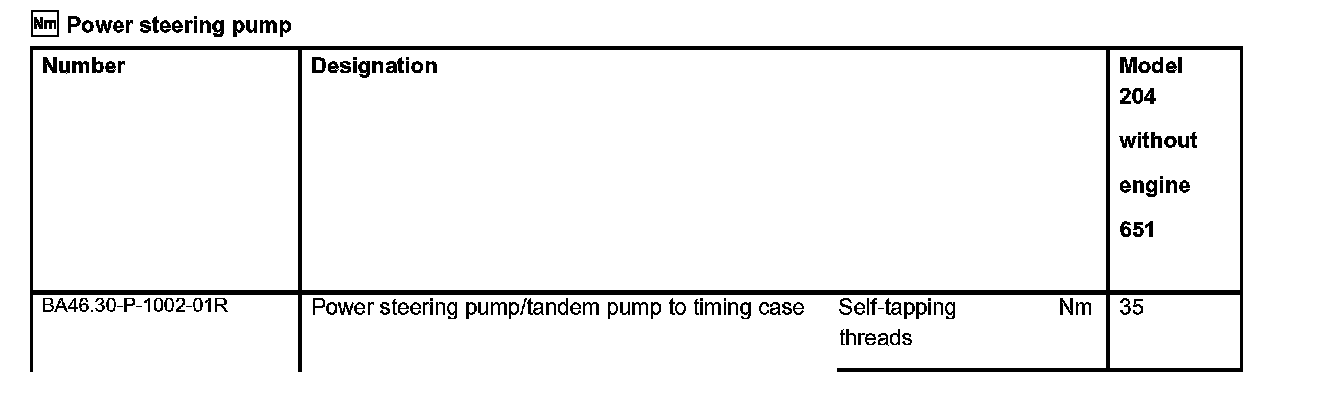

Power steering pump:

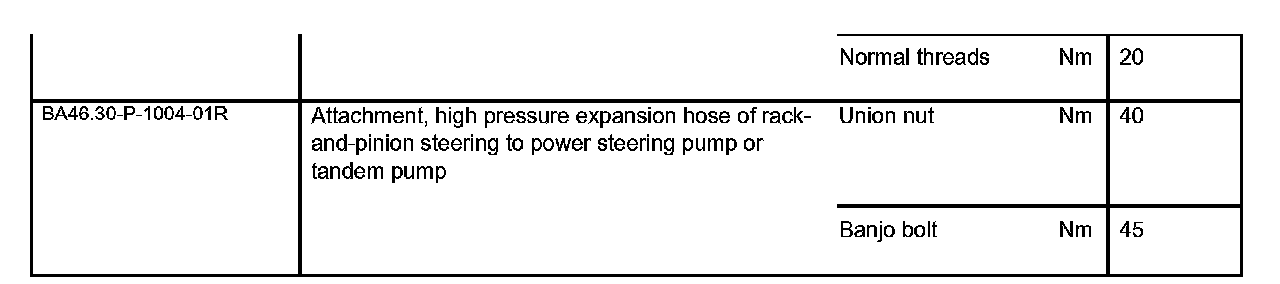

Power steering pump:

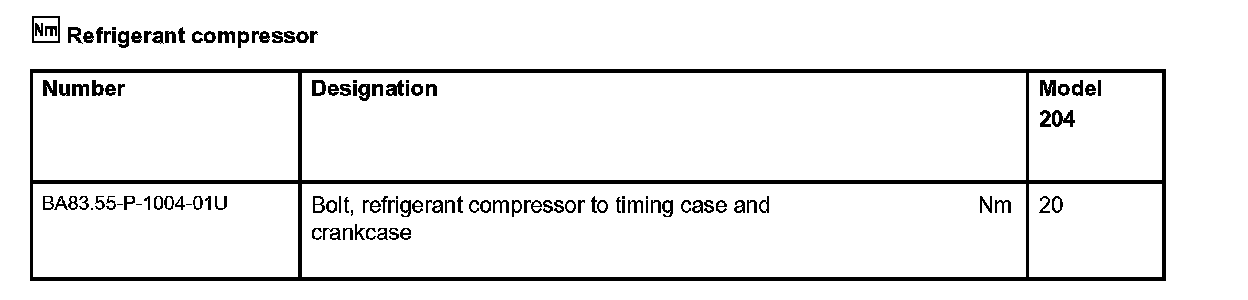

Refrigerant compressor:

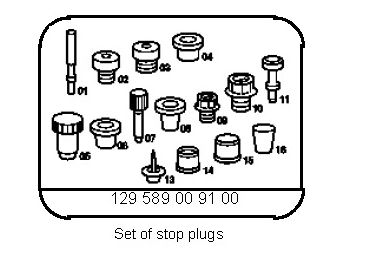

Special Tools:
