Power Steering Fluid Cooler: Service and Repair



AR46.25-P-3020CW Remove/install power steering radiator

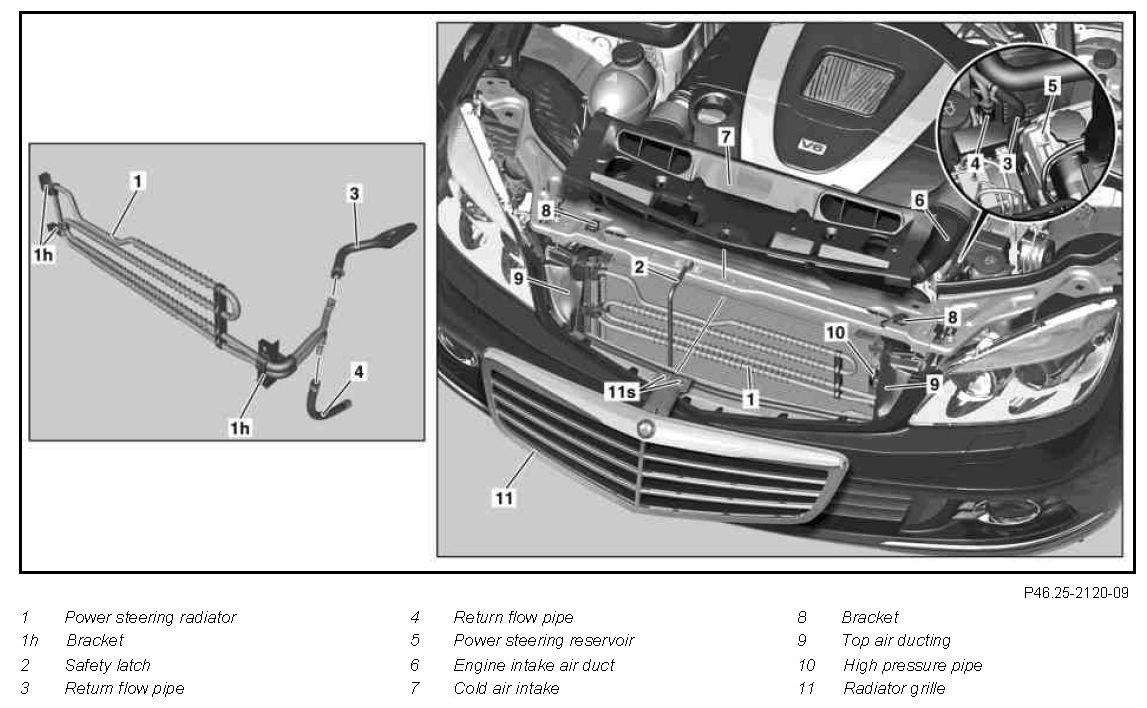

Component Identification:

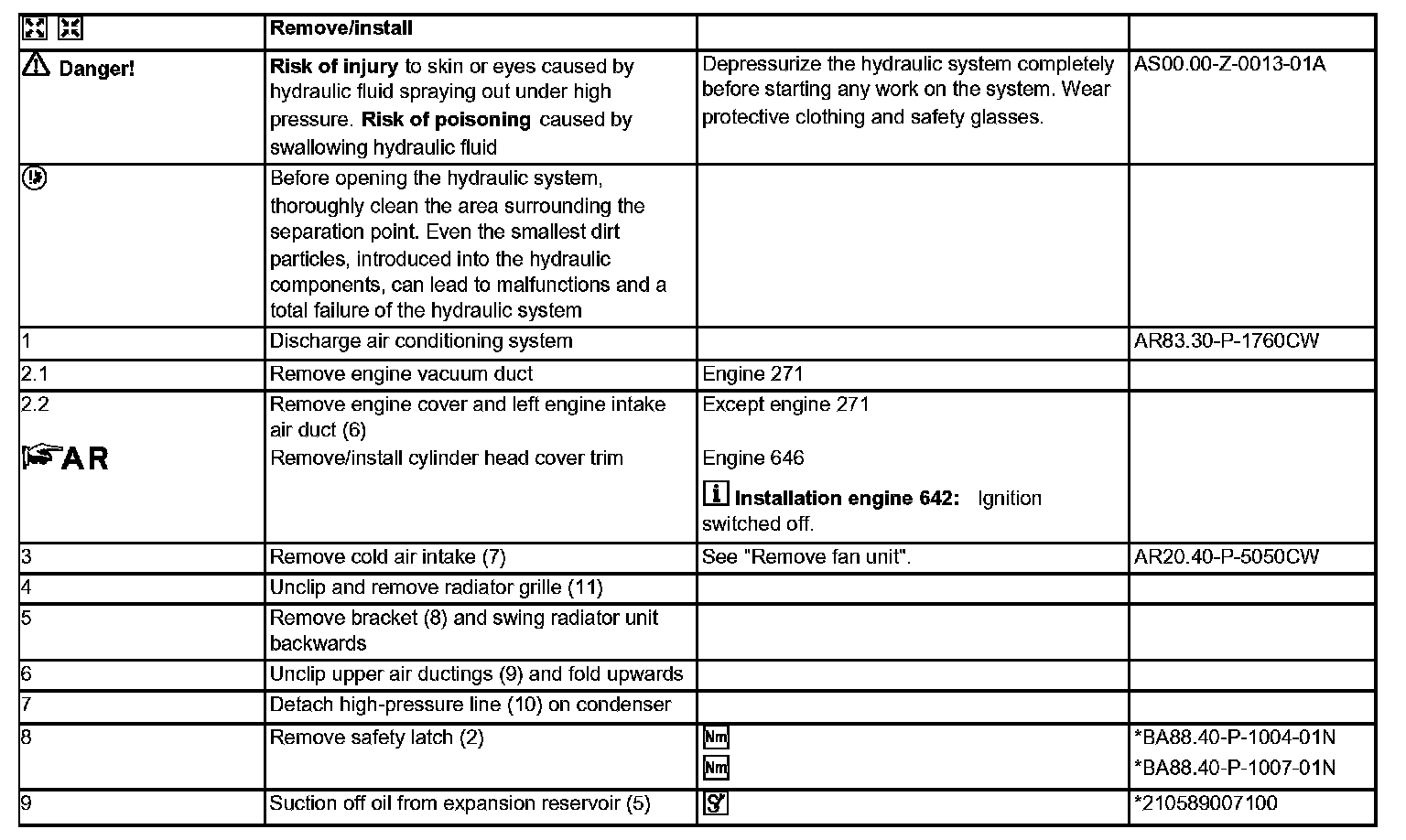

Remove/install Steps 1-9:

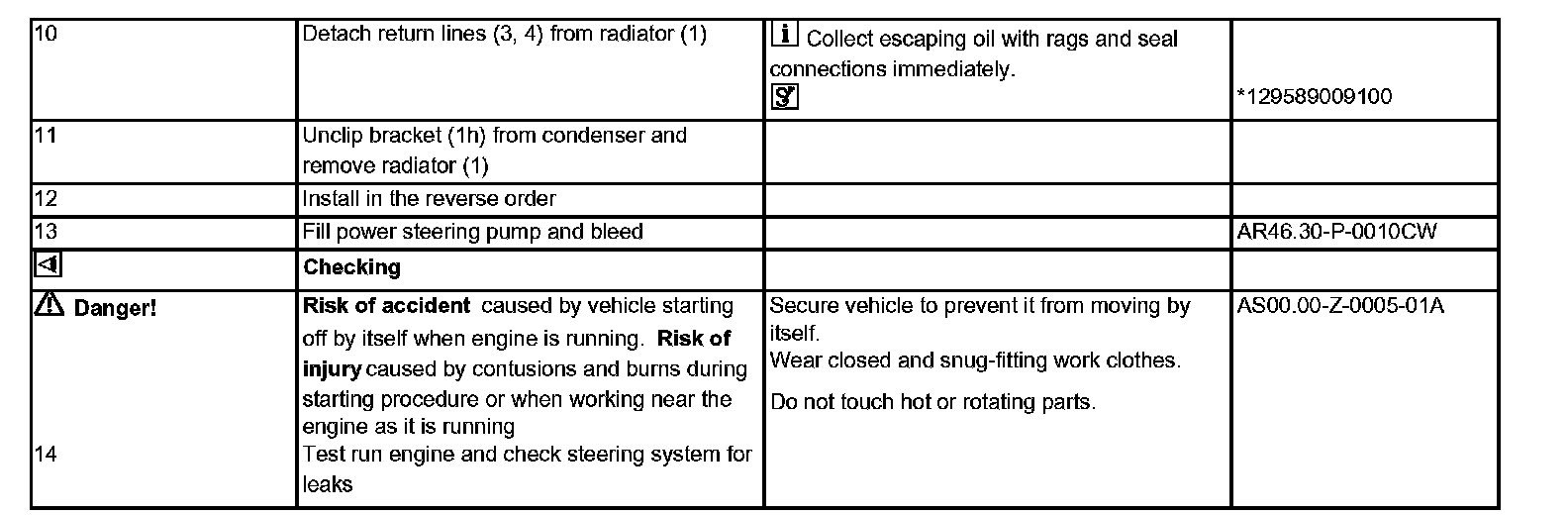

Remove/install Steps 10-14:

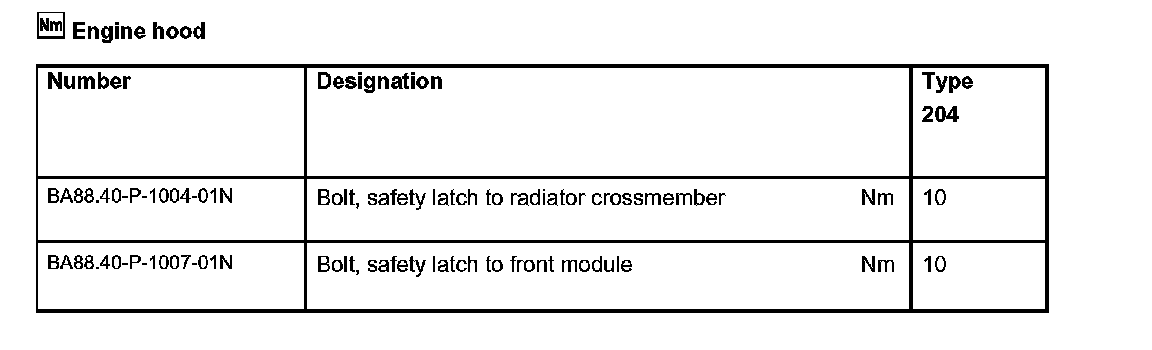

Engine hood:

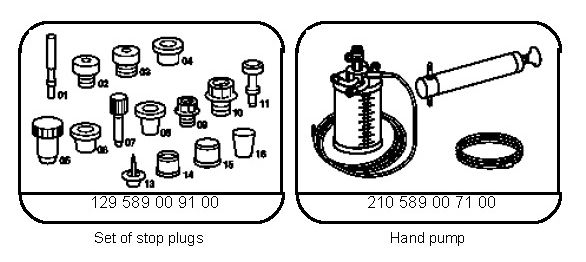

Special Tools:
