Home >> Mercedes Benz >> 2012 >> C 300 4MATIC (204.081) V6-3.0L (272.948) >> Repair and Diagnosis >> Starting and Charging >> Battery >> Testing and Inspection >> AP54.10-P-5410CW Batteries - Checking And Correcting Fluid Level

AP54.10-P-5410CW Batteries - Checking And Correcting Fluid Level



AP54.10-P-5410CW Batteries - Checking And Correcting Fluid Level
- with liquid battery

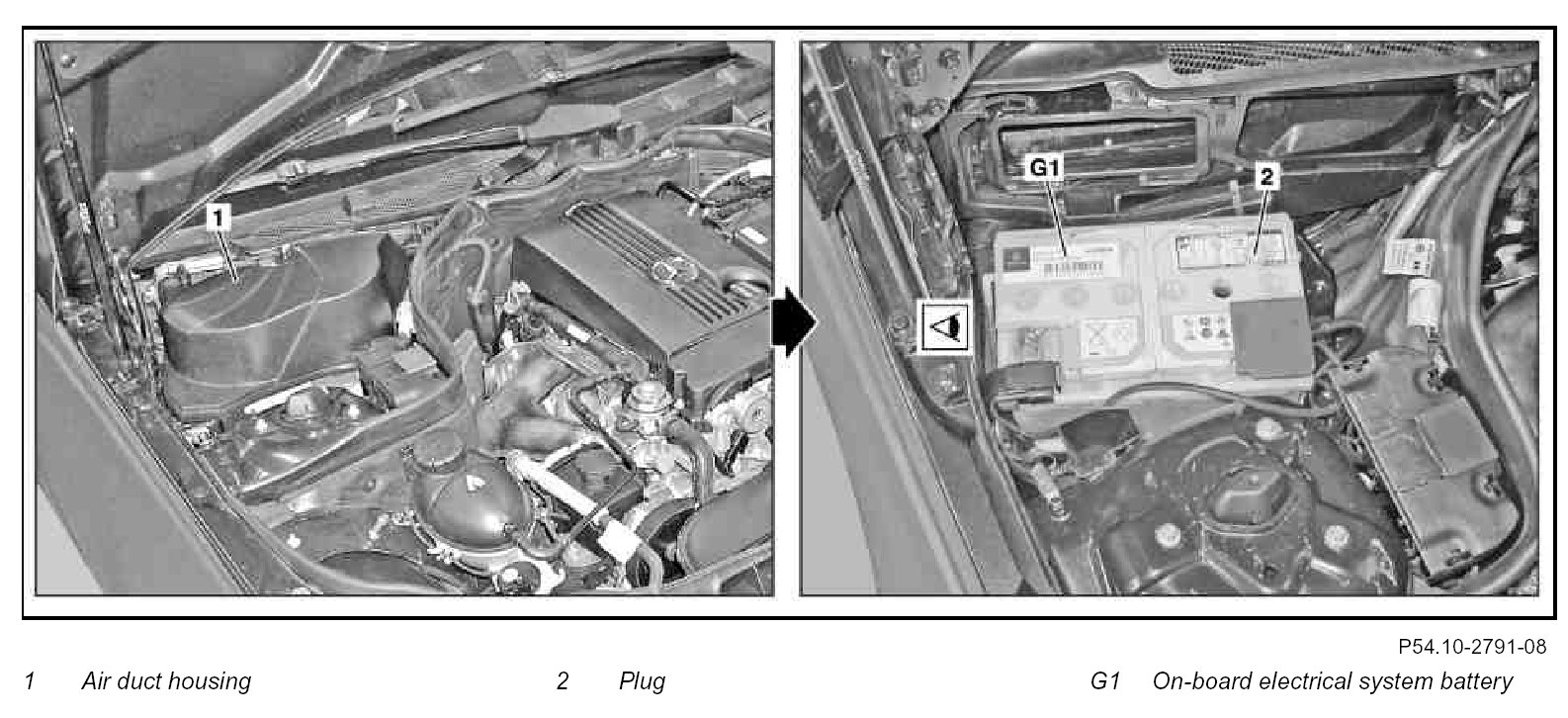

Component Identification:

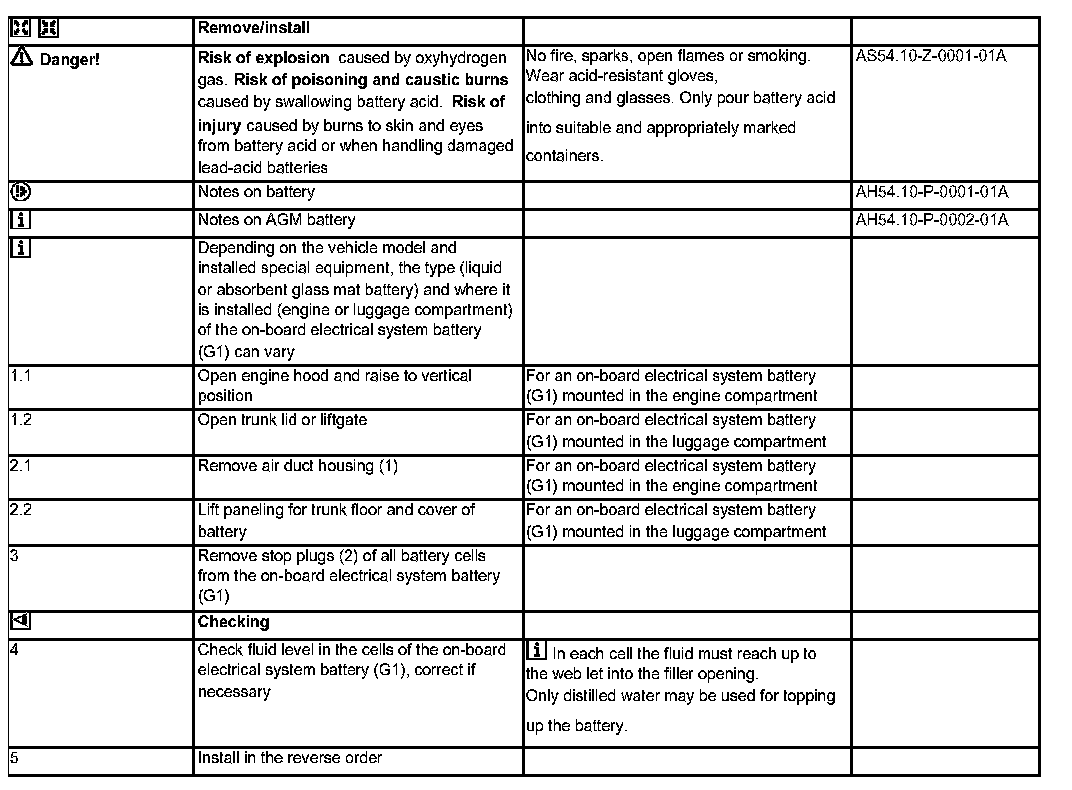

Steps 1.1 - 5:
