C 300 4MATIC (204.081) V6-3.0L (272.948)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Battery
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AR54.10-P-0005CW Remove/Install Battery

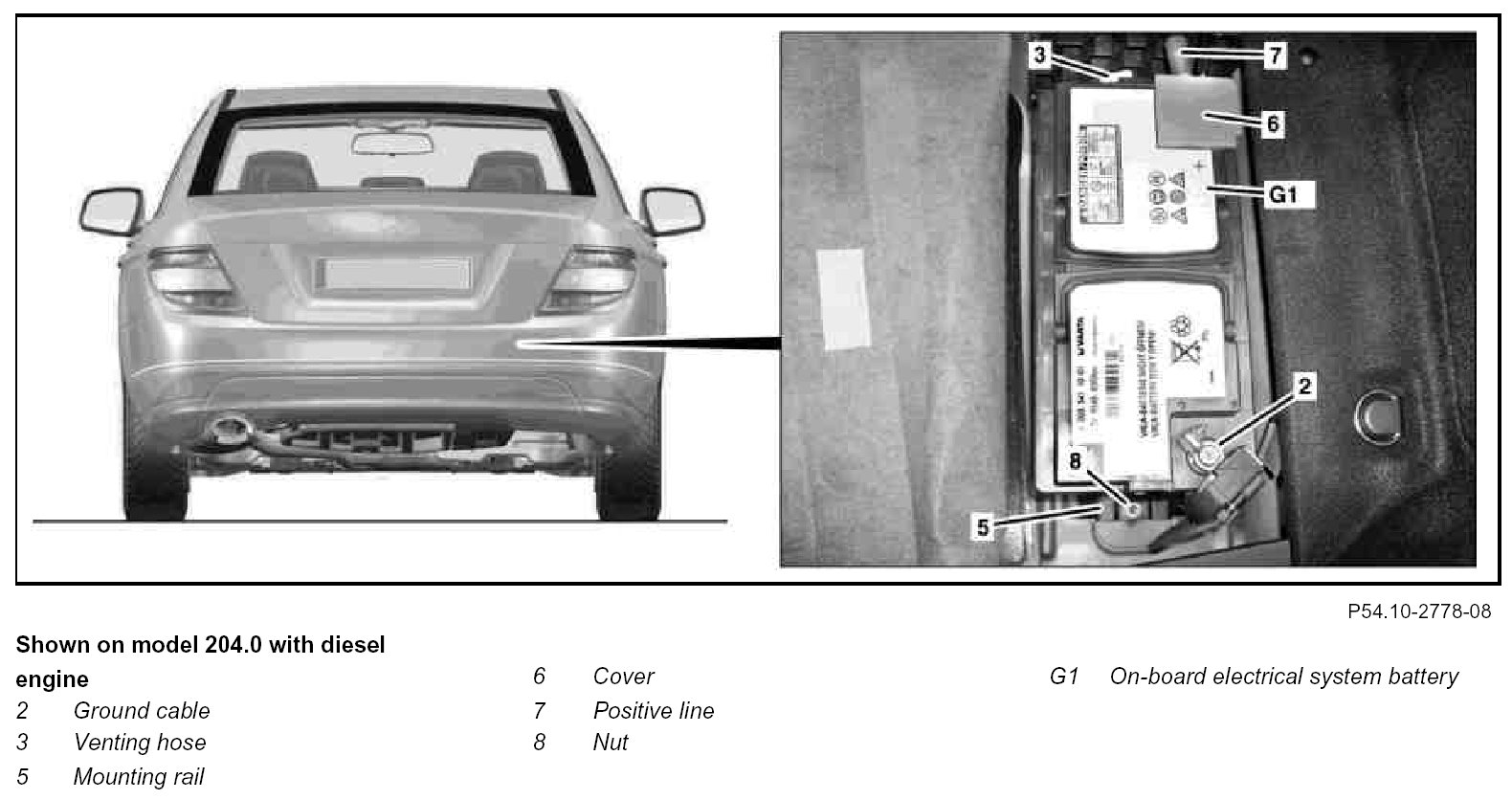

Component Identification:

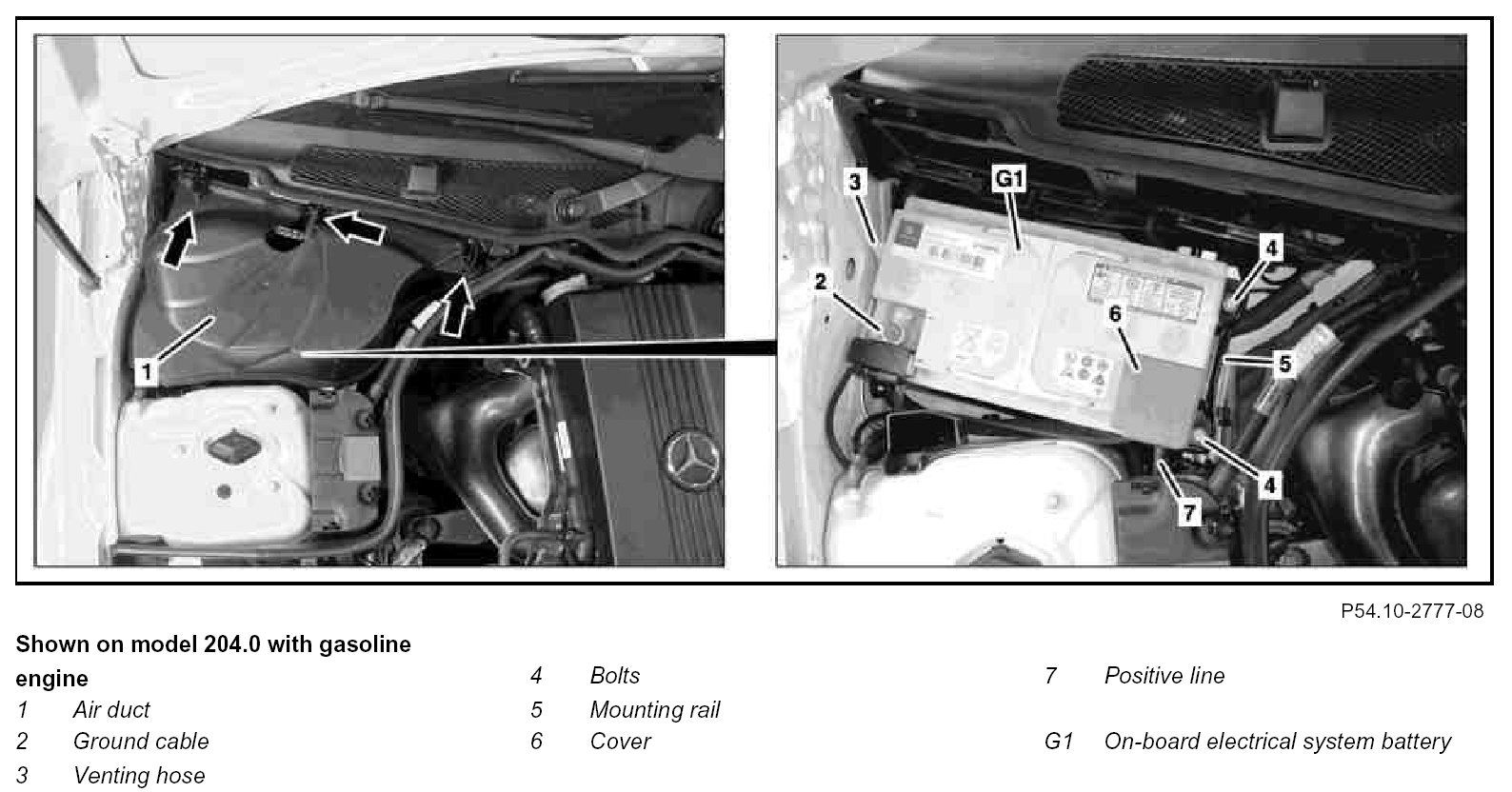

Component Identification:

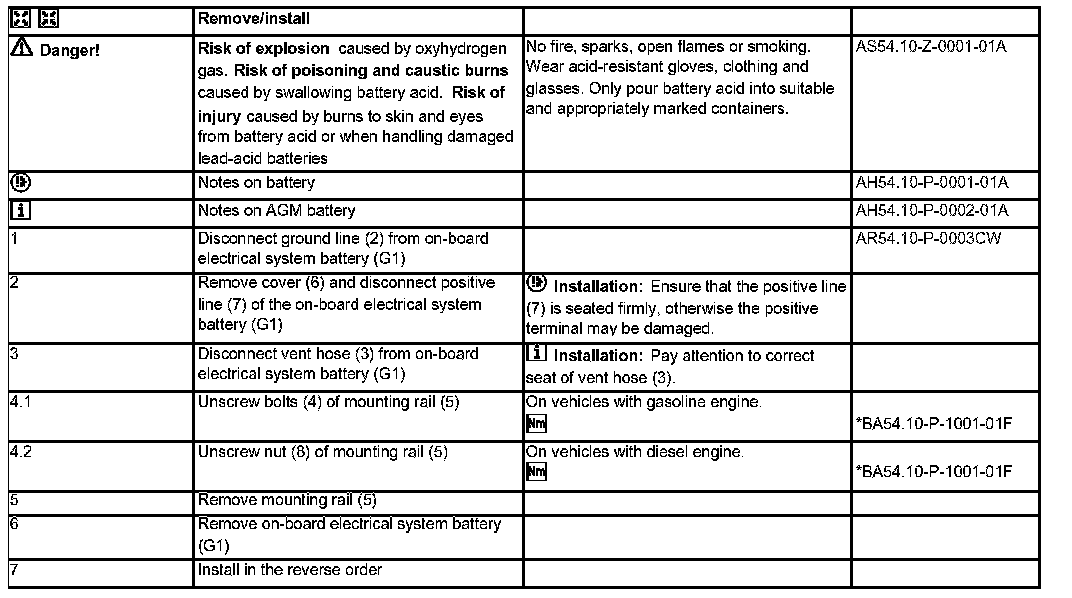

Steps 1 - 7:

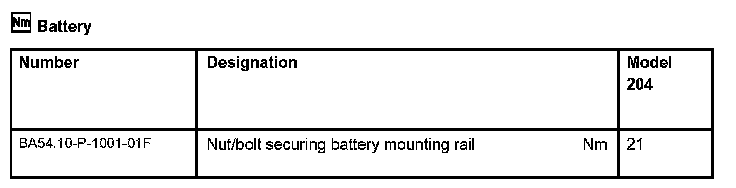

Battery:
