Negative: Service and Repair
AR54.10-P-0003CW Disconnect/Connect Battery Ground Line

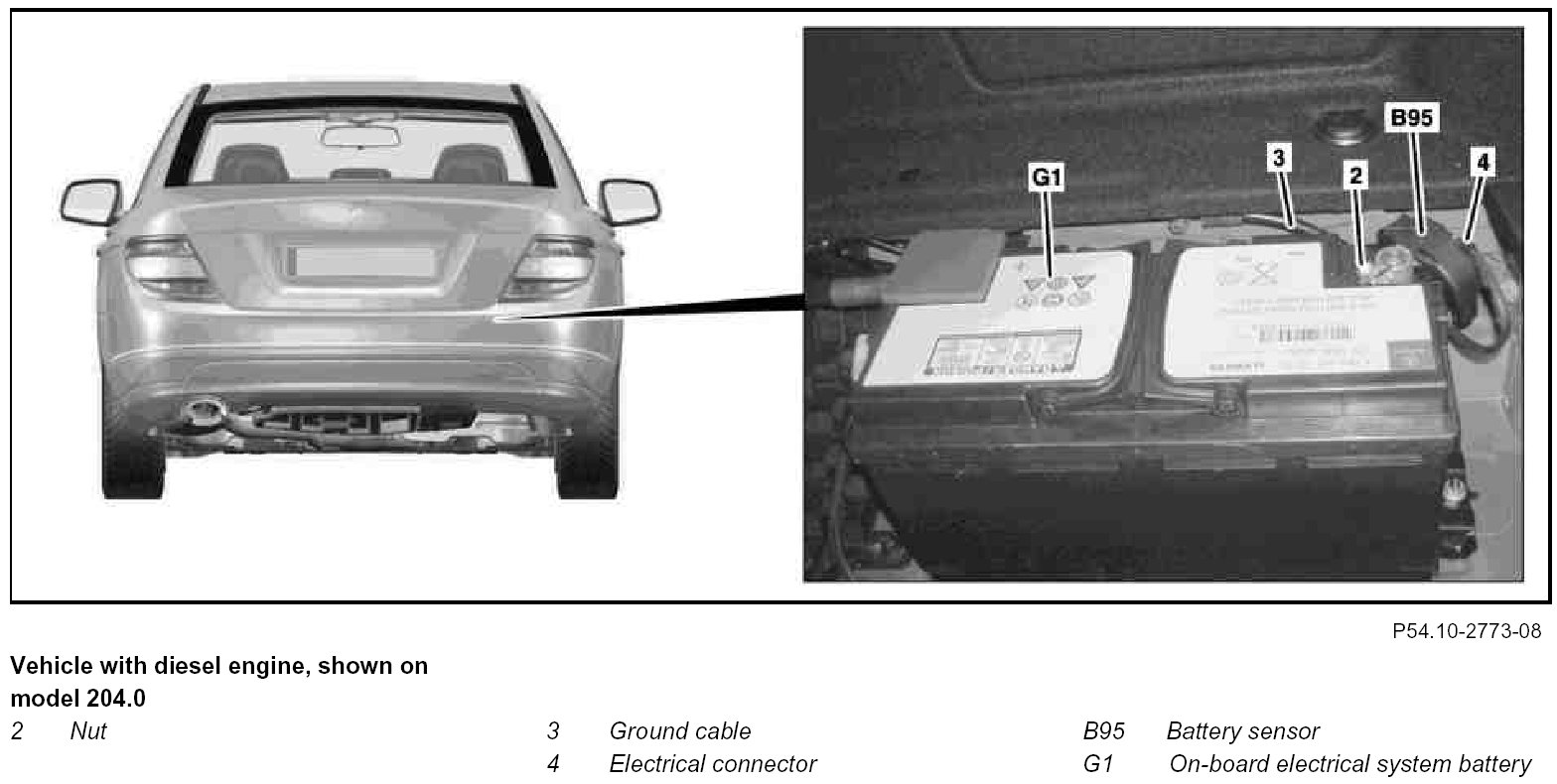

Component Identification:

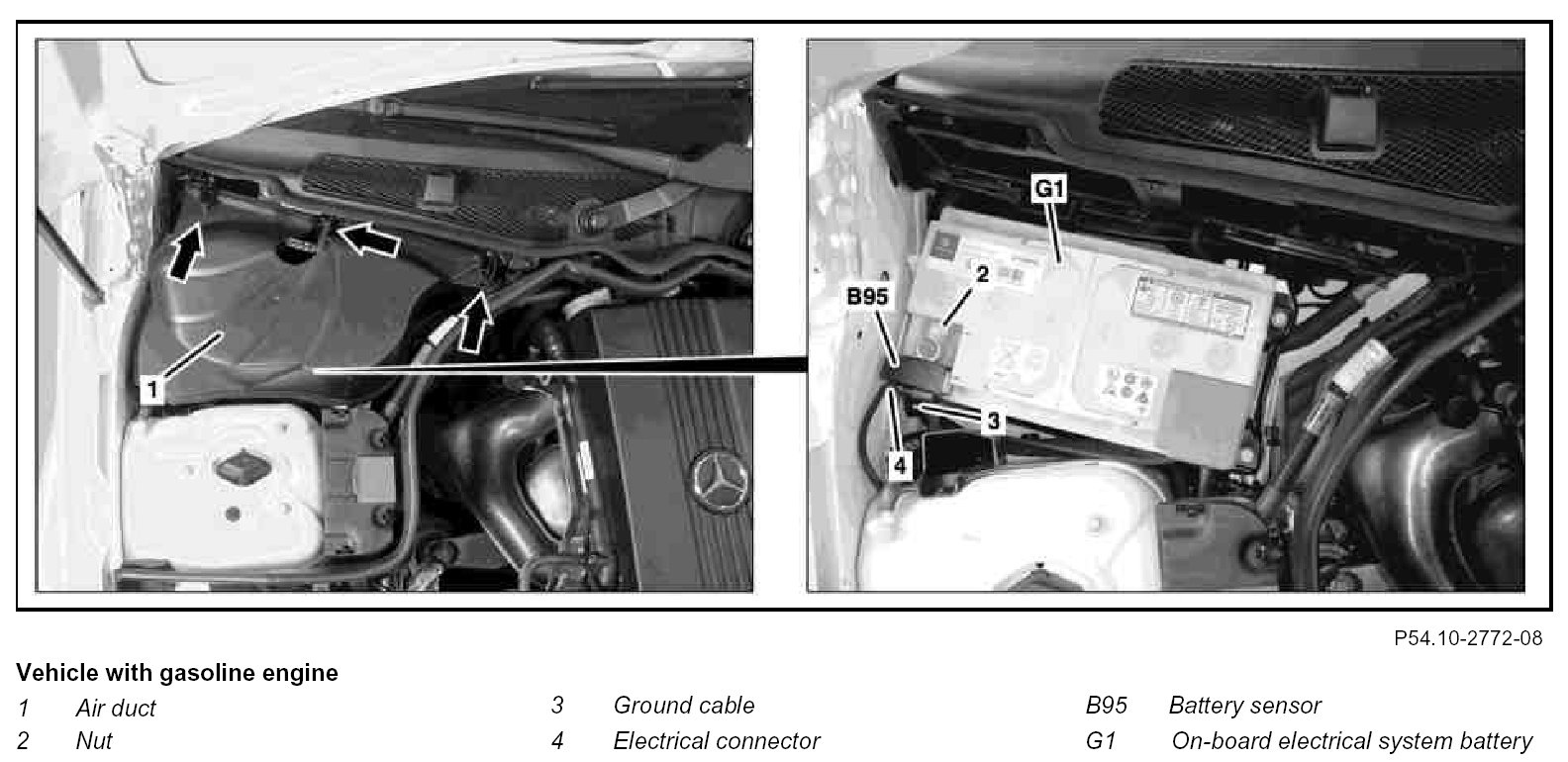

Component Identification:

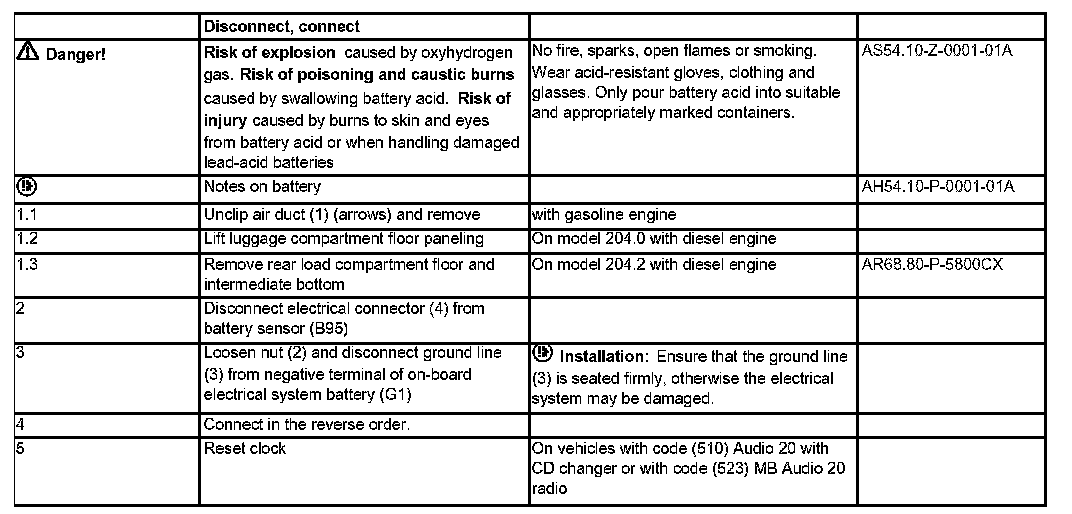

Steps 1.1 - 5:
