AR91.40-P-0683CWA Remove, Replace and Install Rear Center Seat Belt



AR91.40-P-0683CWA Remove, Replace And Install Rear Center Seat Belt
- except CODE (287) Through-loading feature
- except CODE (224) Rear individual seat design [models 212]

Component Identification:

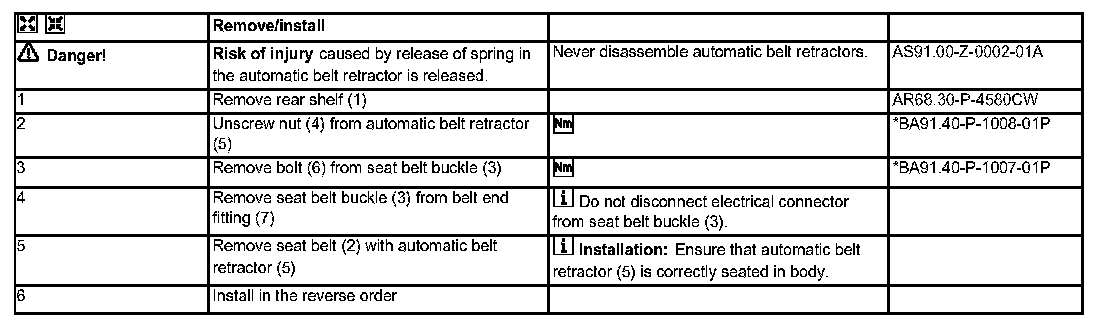

Steps 1 - 6:

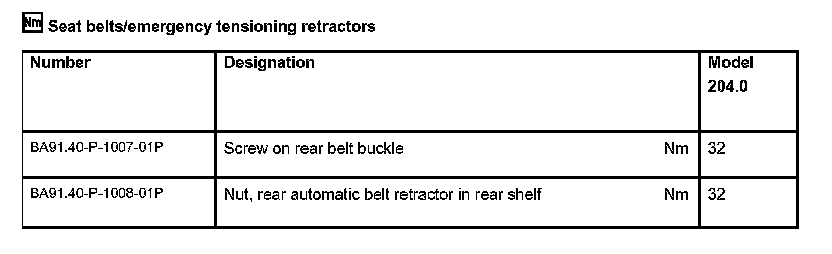

Seat Belts/Emergency Tensioning Retractors:
