AR91.40-P-0681CW Remove/Install Rear Seat Belts
AR91.40-P-0681CW Remove/Install Rear Seat Belts
AR91.40-P-0681CW Remove/Install Rear
Seat Belts
Component Identification:

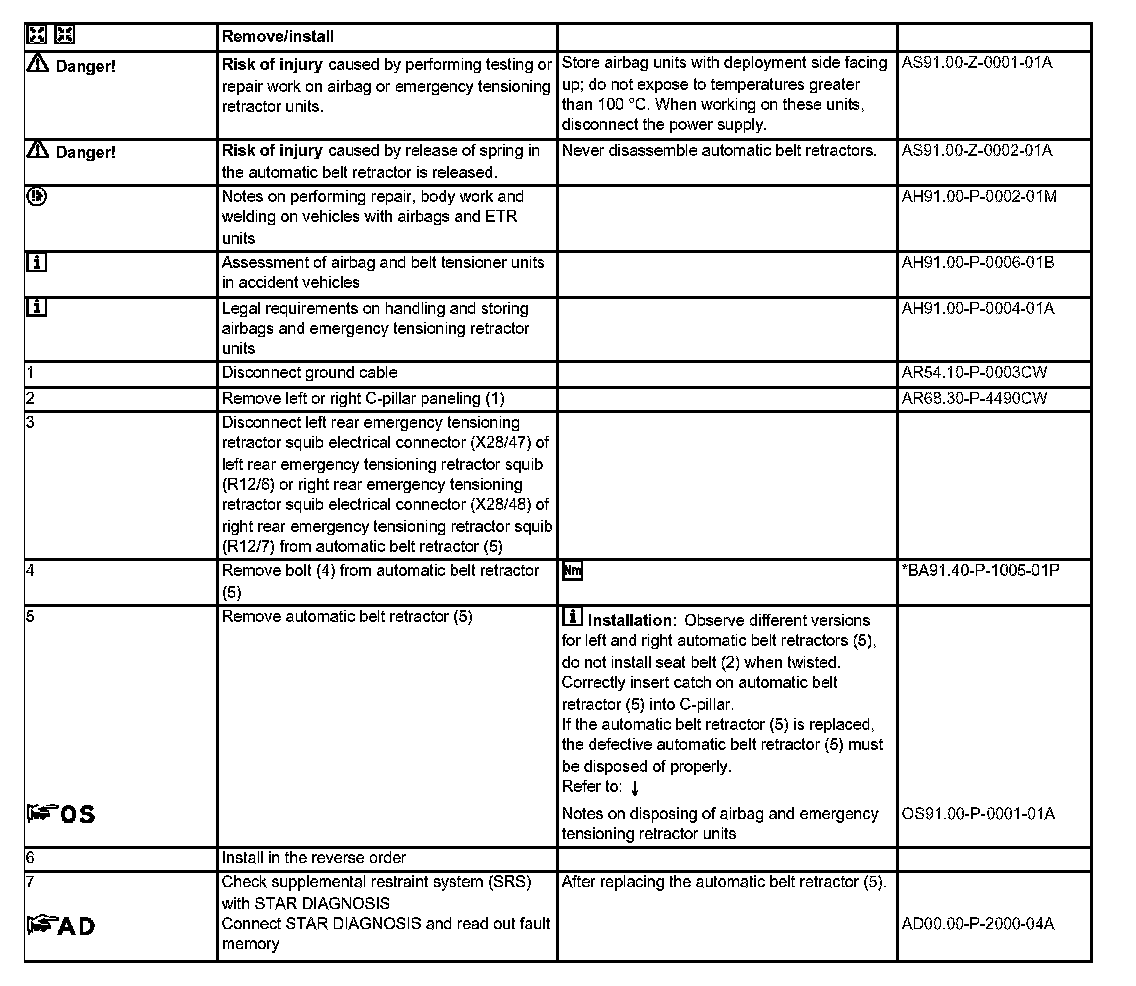

Steps 1 - 7:

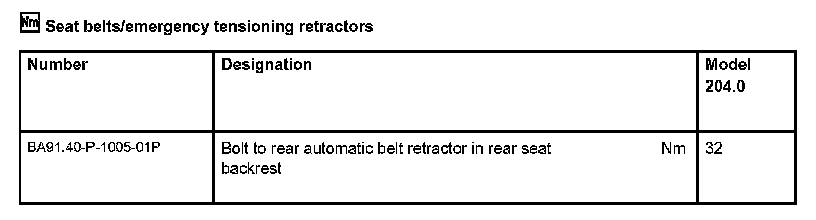

Seat Belts/Emergency Tensioning Retractors:
