PE91.60-P-2105FAA Airbag Control Unit

PE91.60-P-2105FAA Airbag Control Unit

MODEL 204

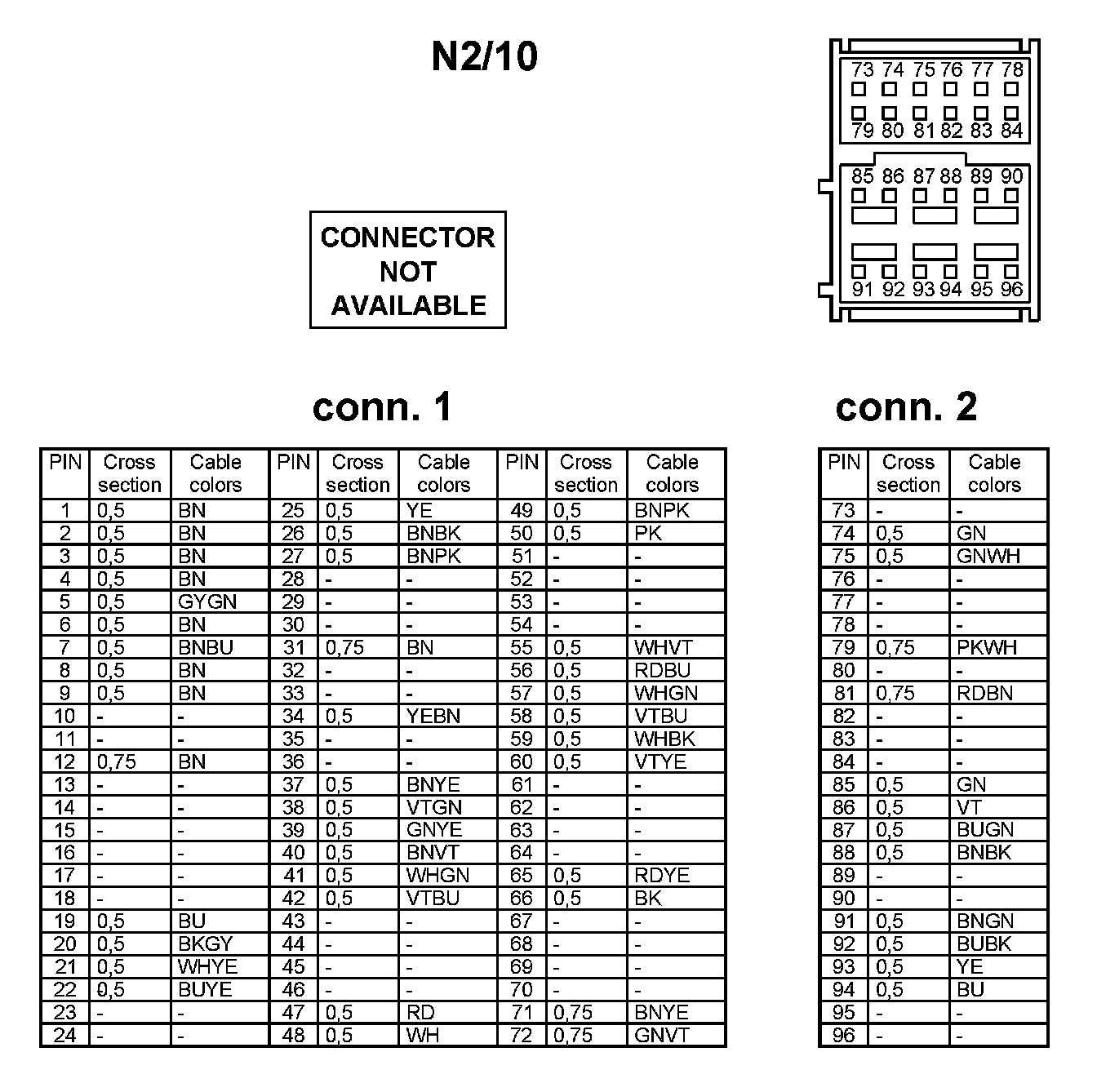

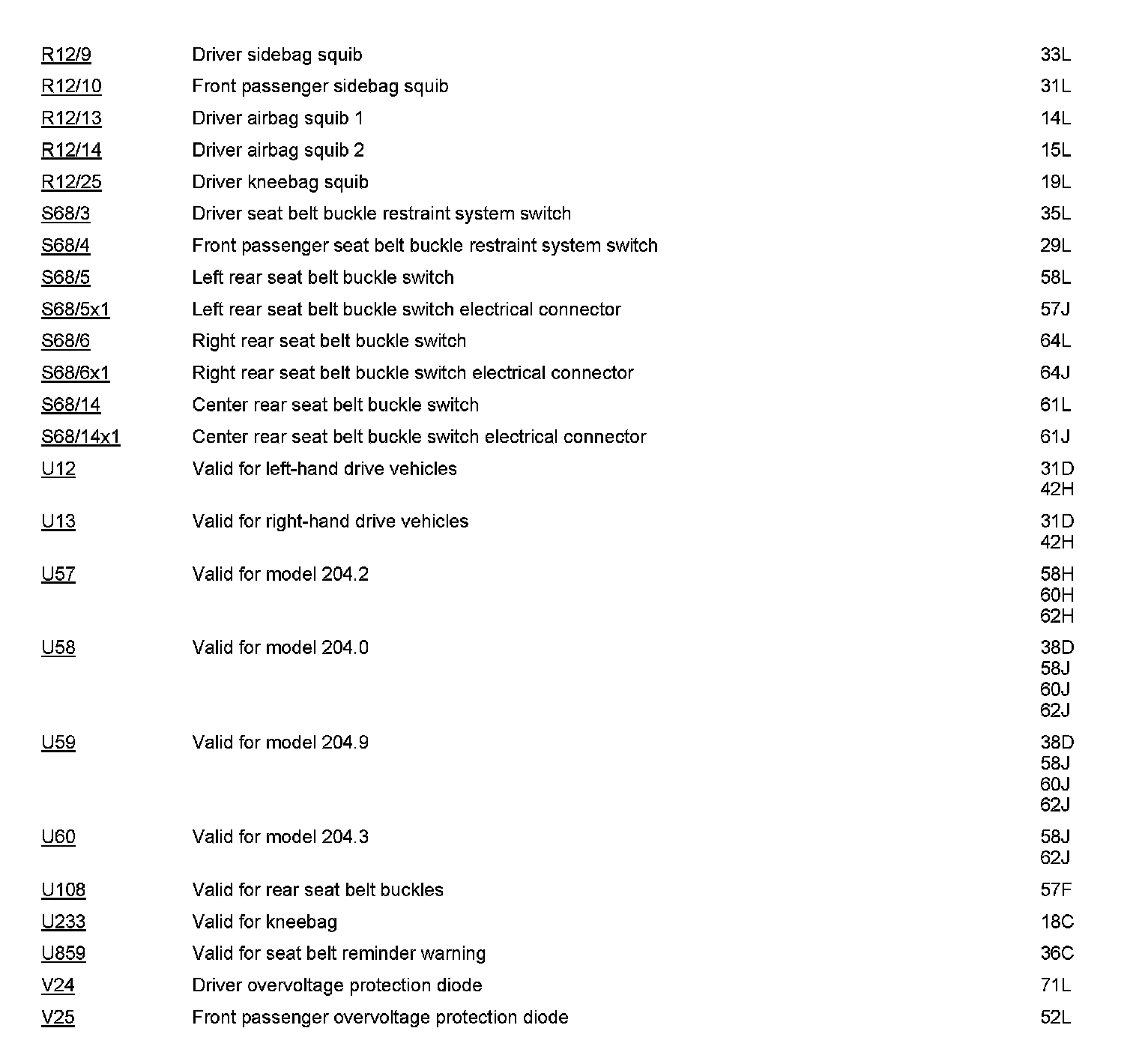

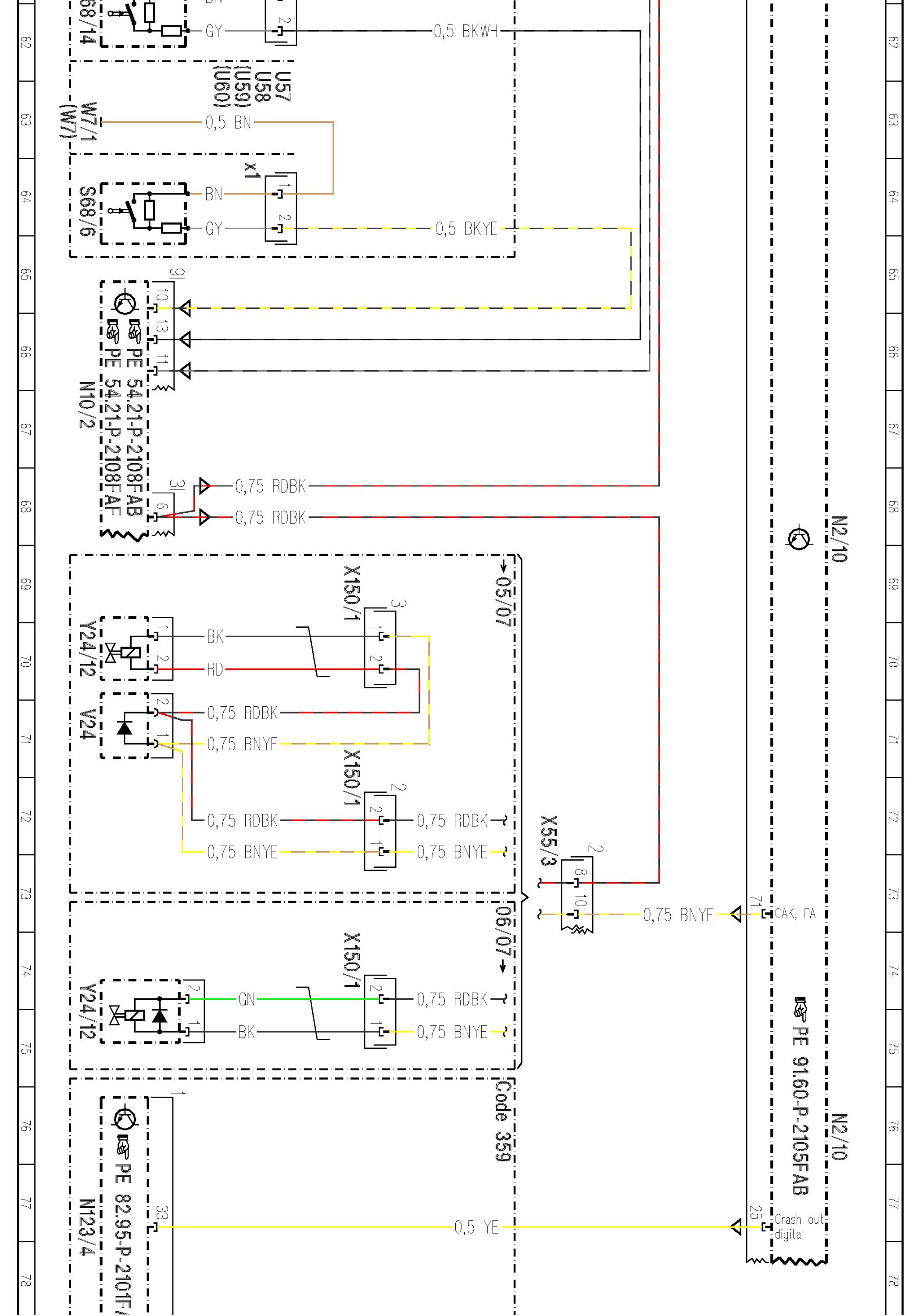

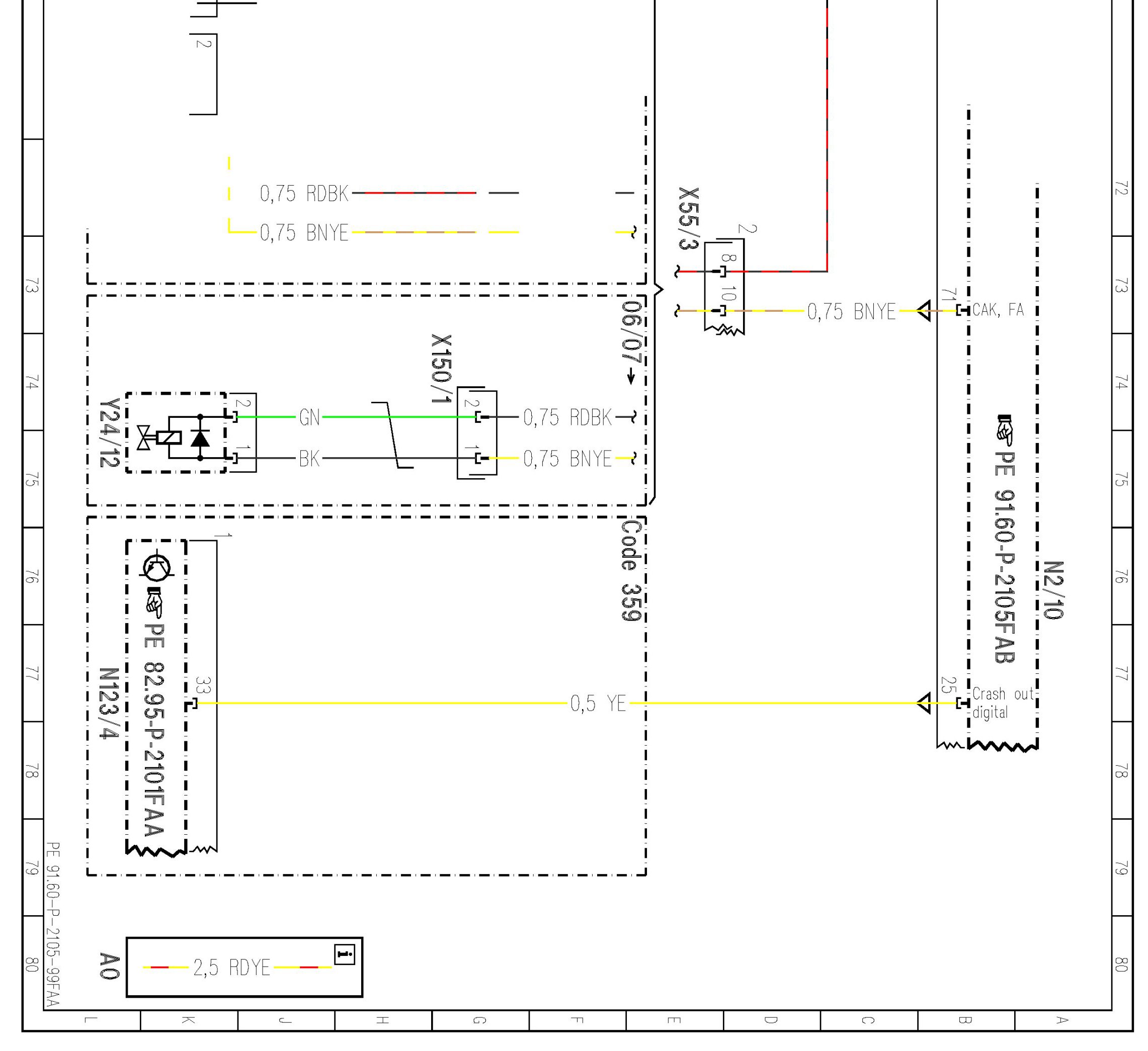

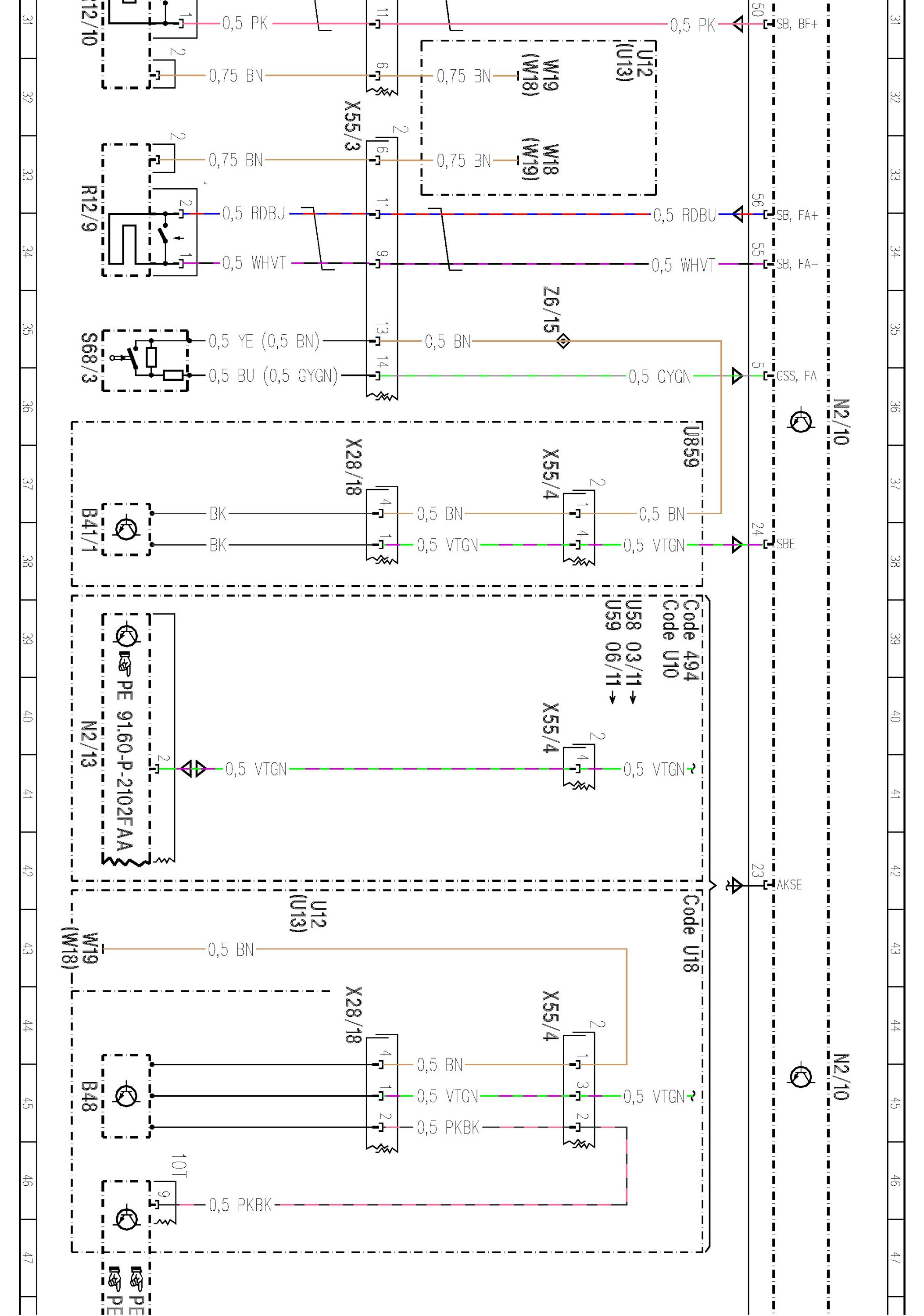

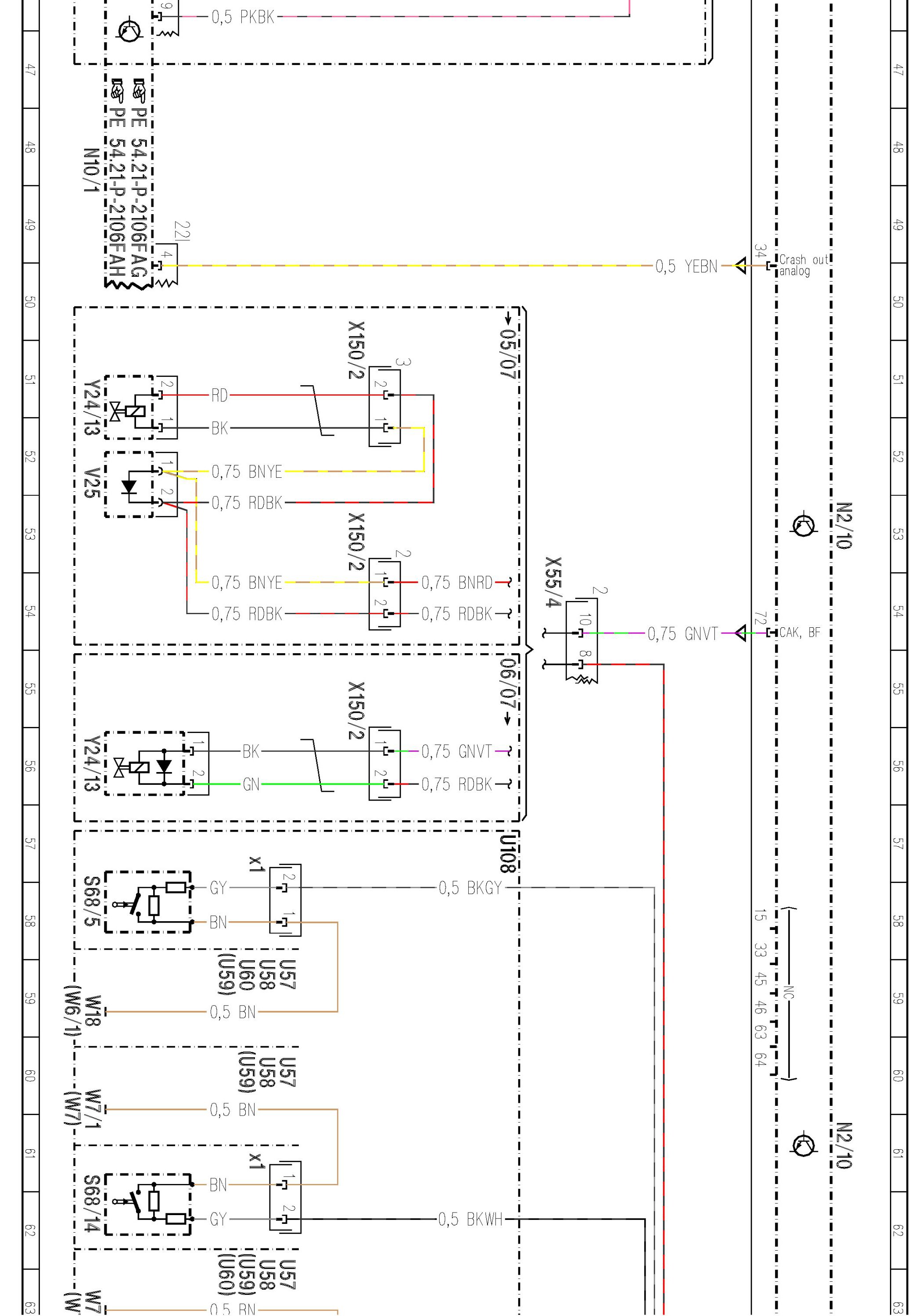

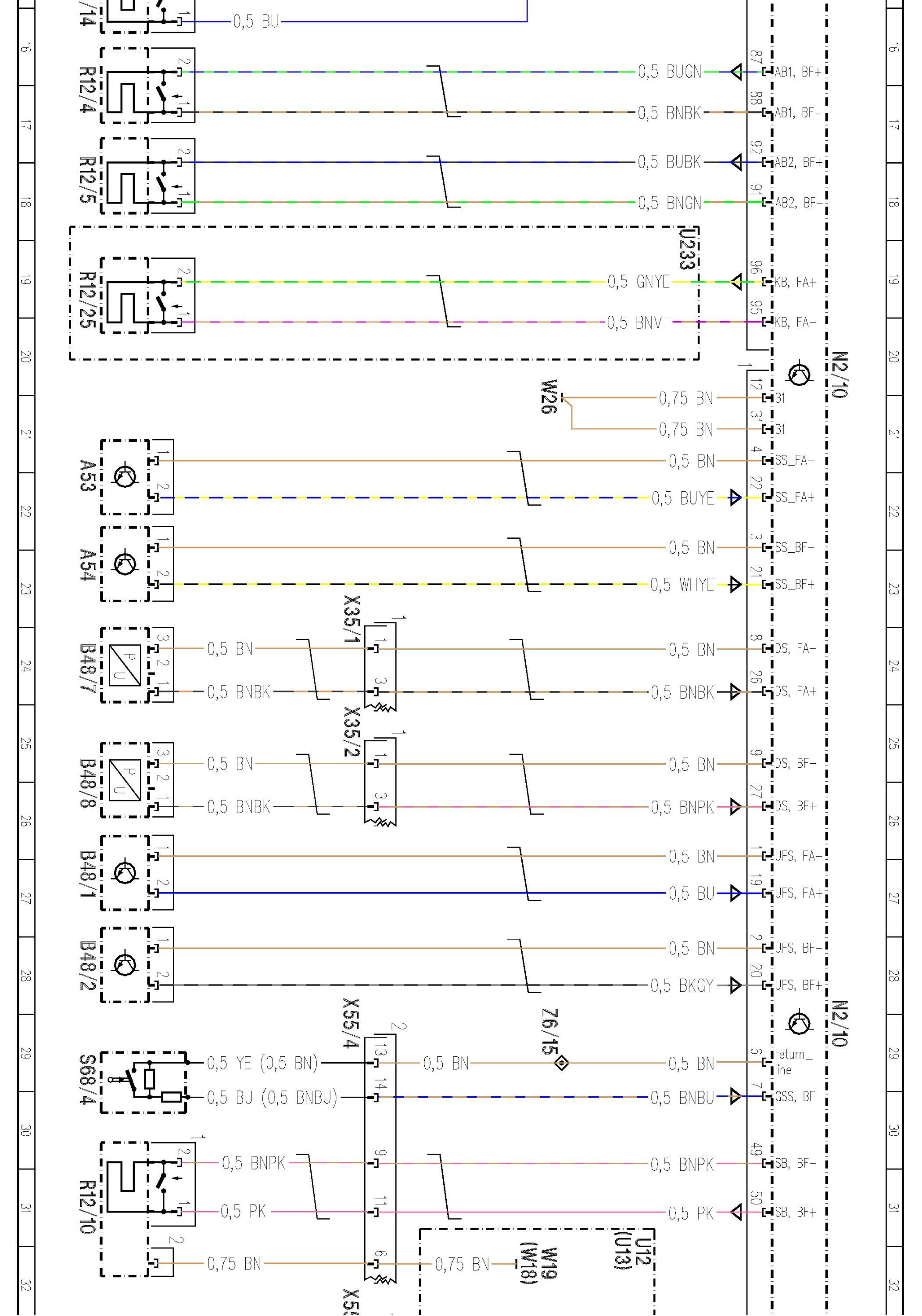

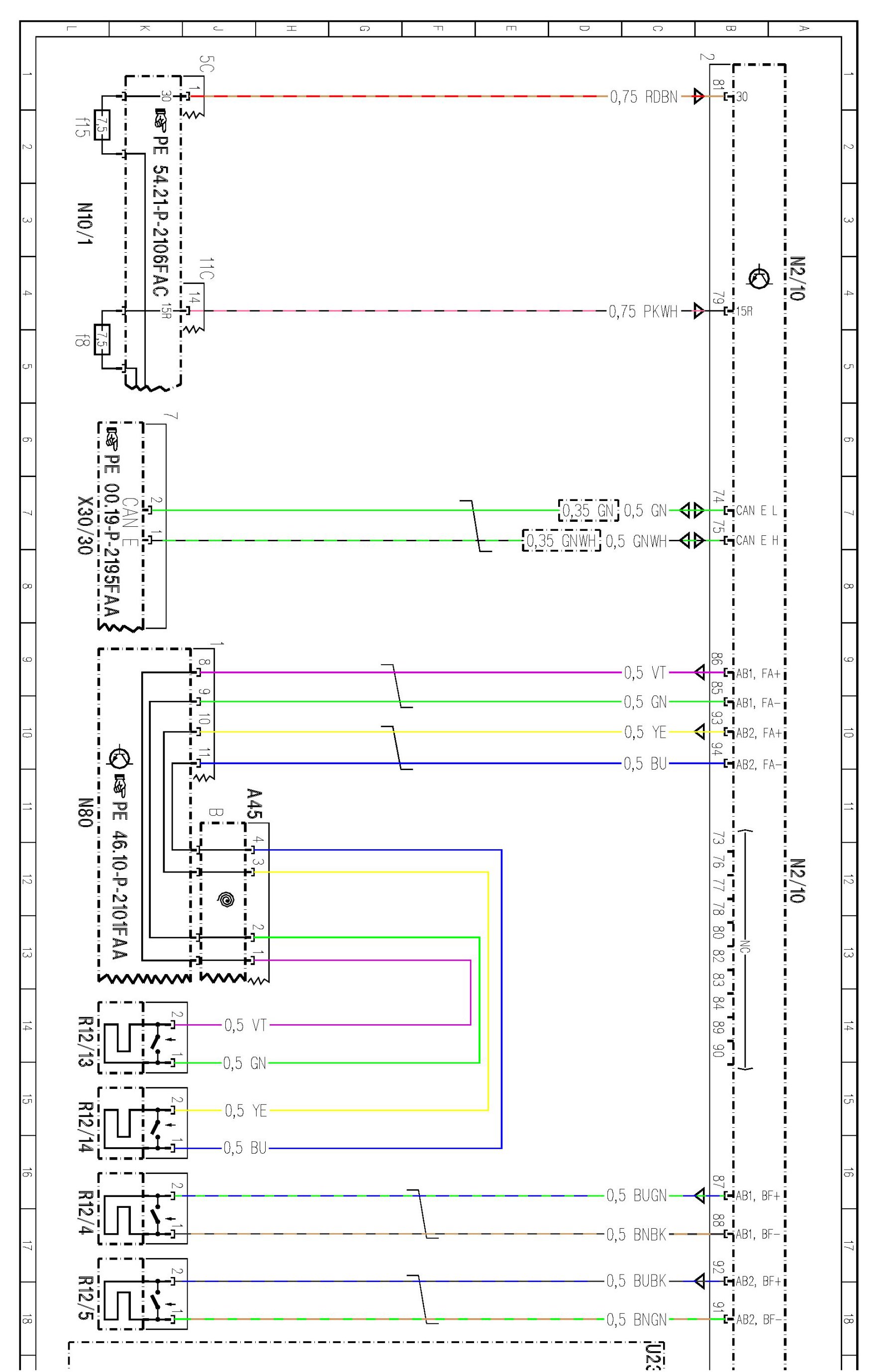

- control unit N2/10, Sheet 1































































































































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
