Home >> Mercedes Benz >> 2012 >> C 300 4MATIC (204.081) V6-3.0L (272.948) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Air Bag >> Service and Repair >> AR91.60-P-0660CW Remove/Install Airbag Unit on the Steering Wheel

AR91.60-P-0660CW Remove/Install Airbag Unit on the Steering Wheel



AR91.60-P-0660CW Remove/Install Airbag Unit On The Steering Wheel

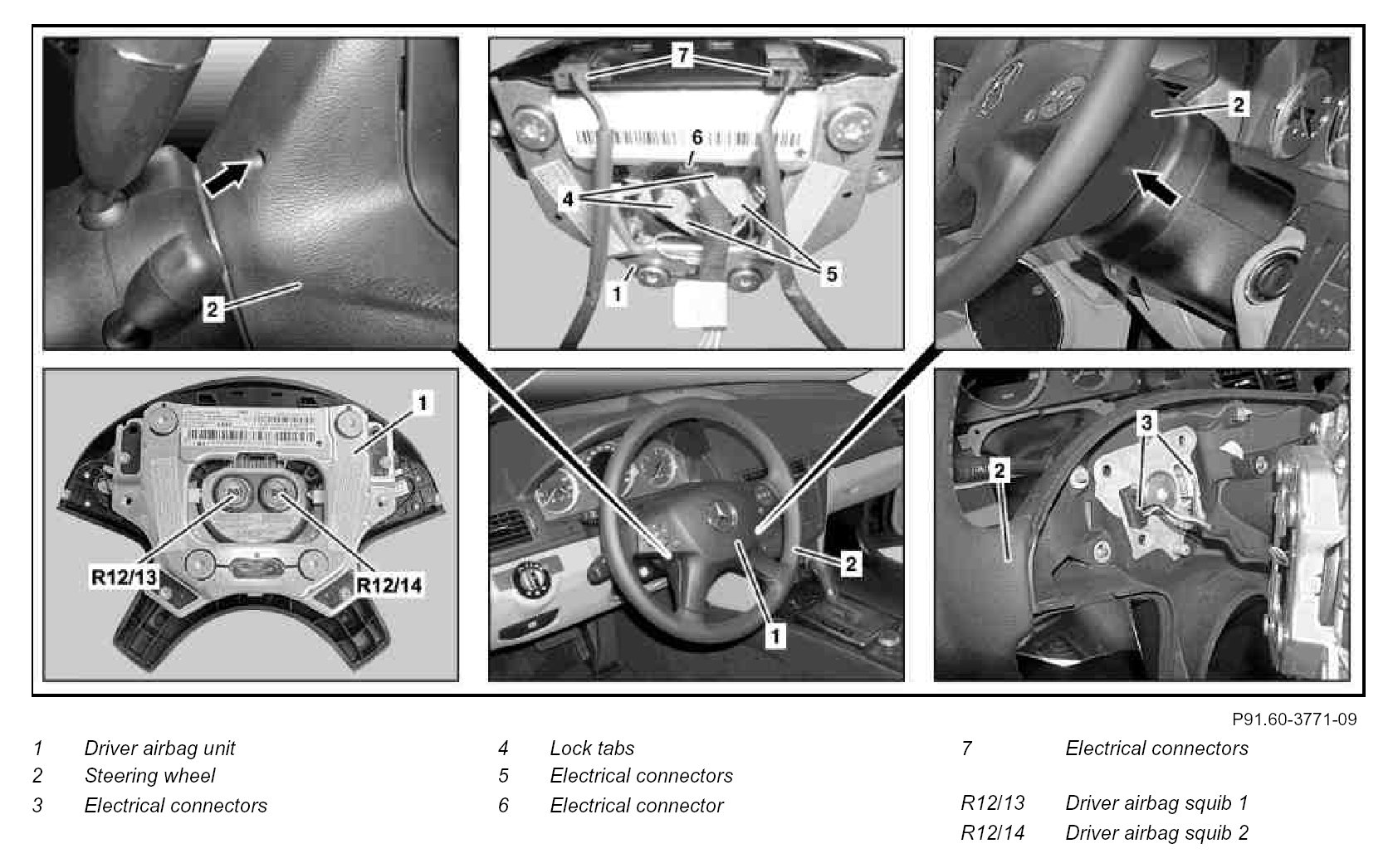

Component Identification:




Modification Notes:

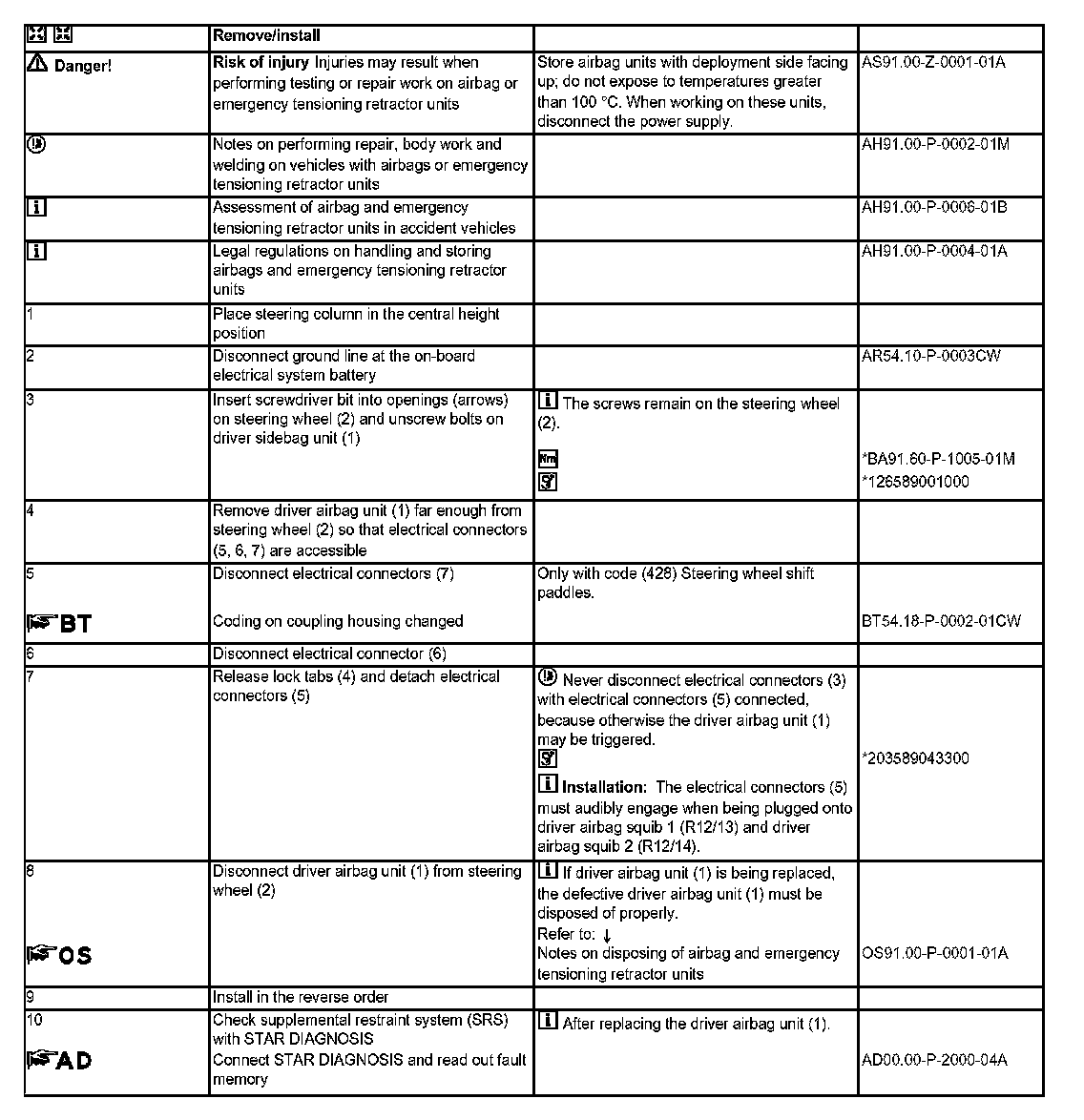

Steps 1 - 10:

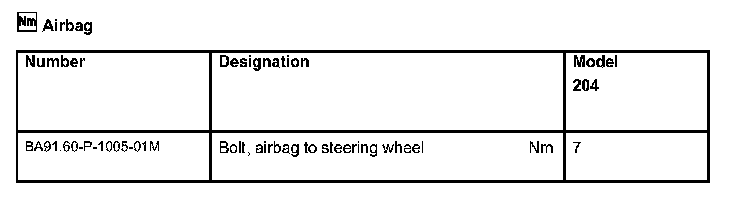

Airbag:




Special Tools:




Special Tools:
