AR54.21-P-1258CW Remove/Install SAM Control Unit With Fuse And Relay Box In Trunk



AR54.21-P-1258CW Remove/Install SAM Control Unit With Fuse And Relay Box In Trunk

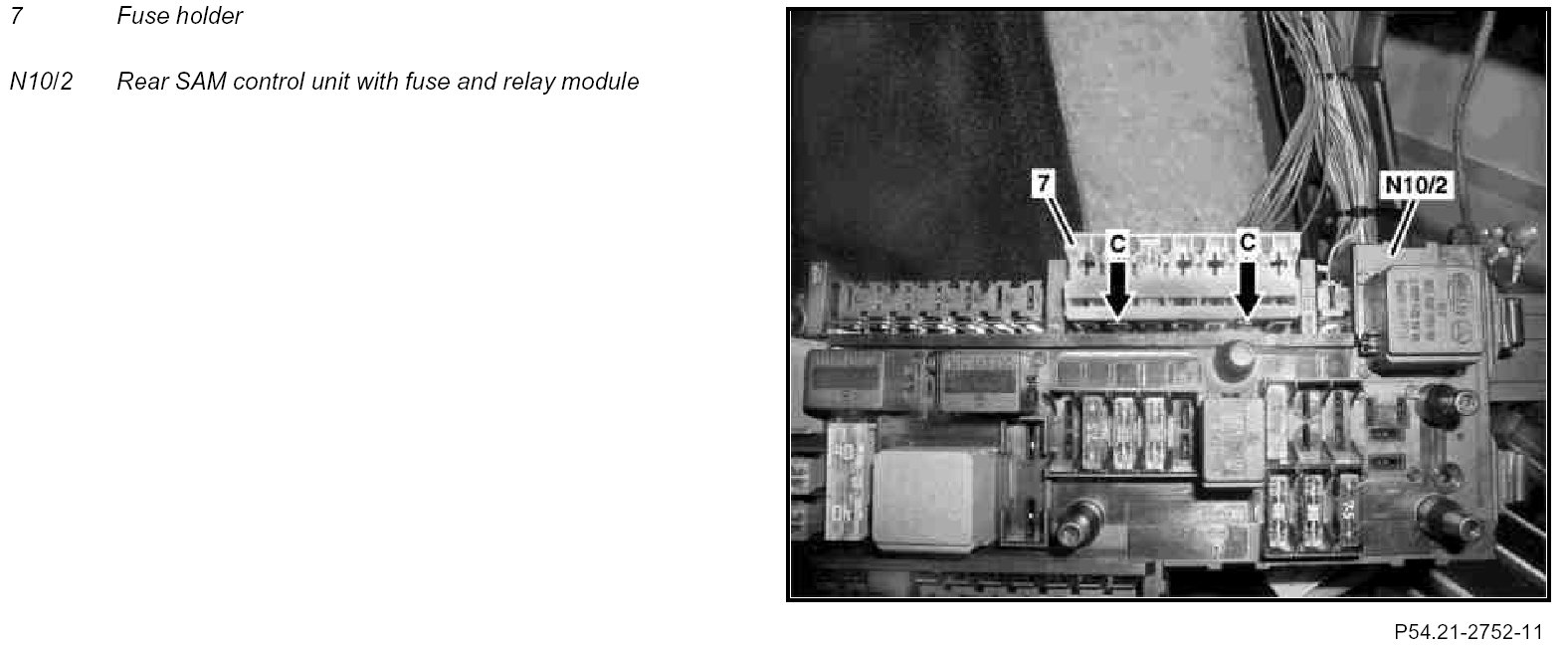

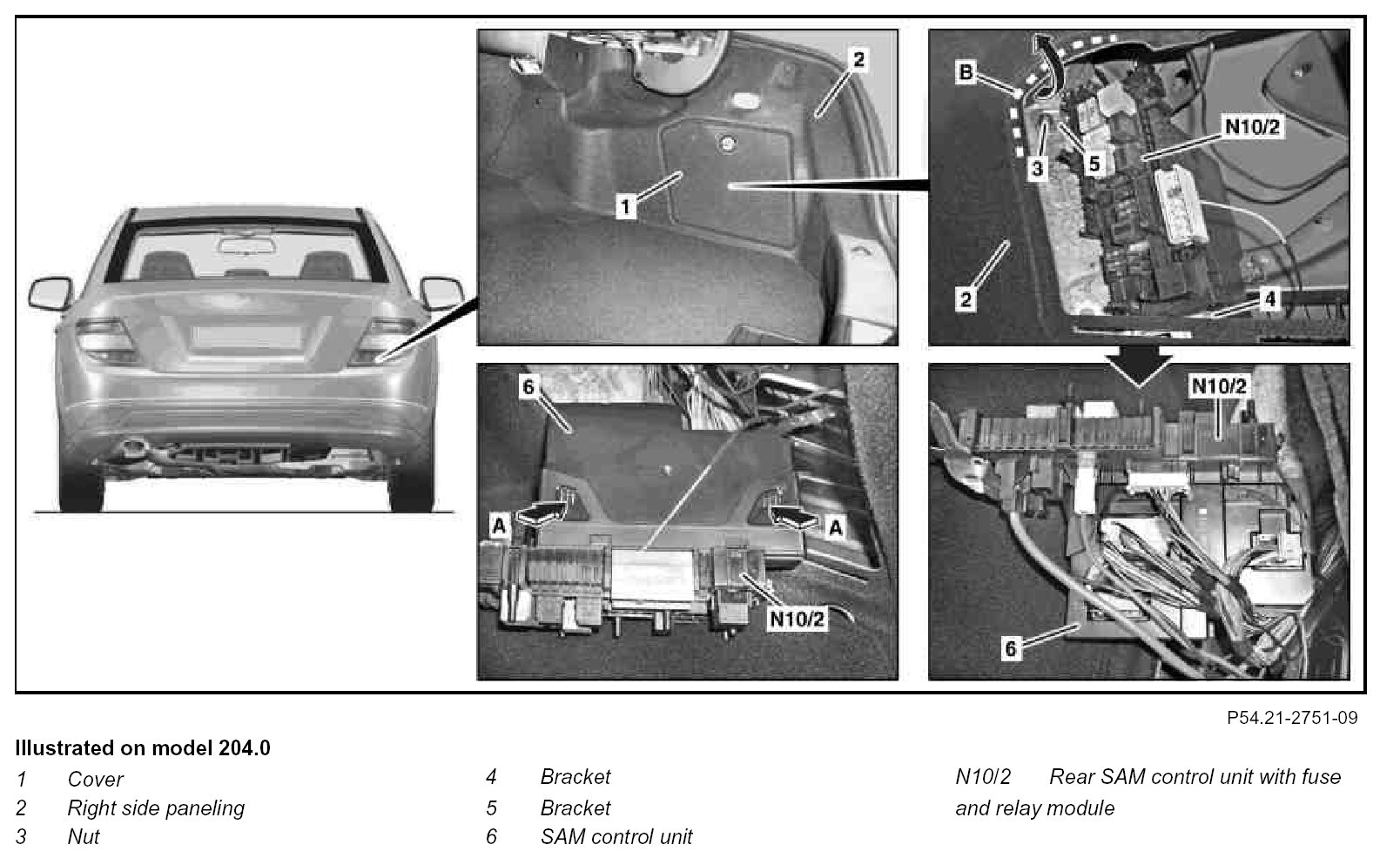

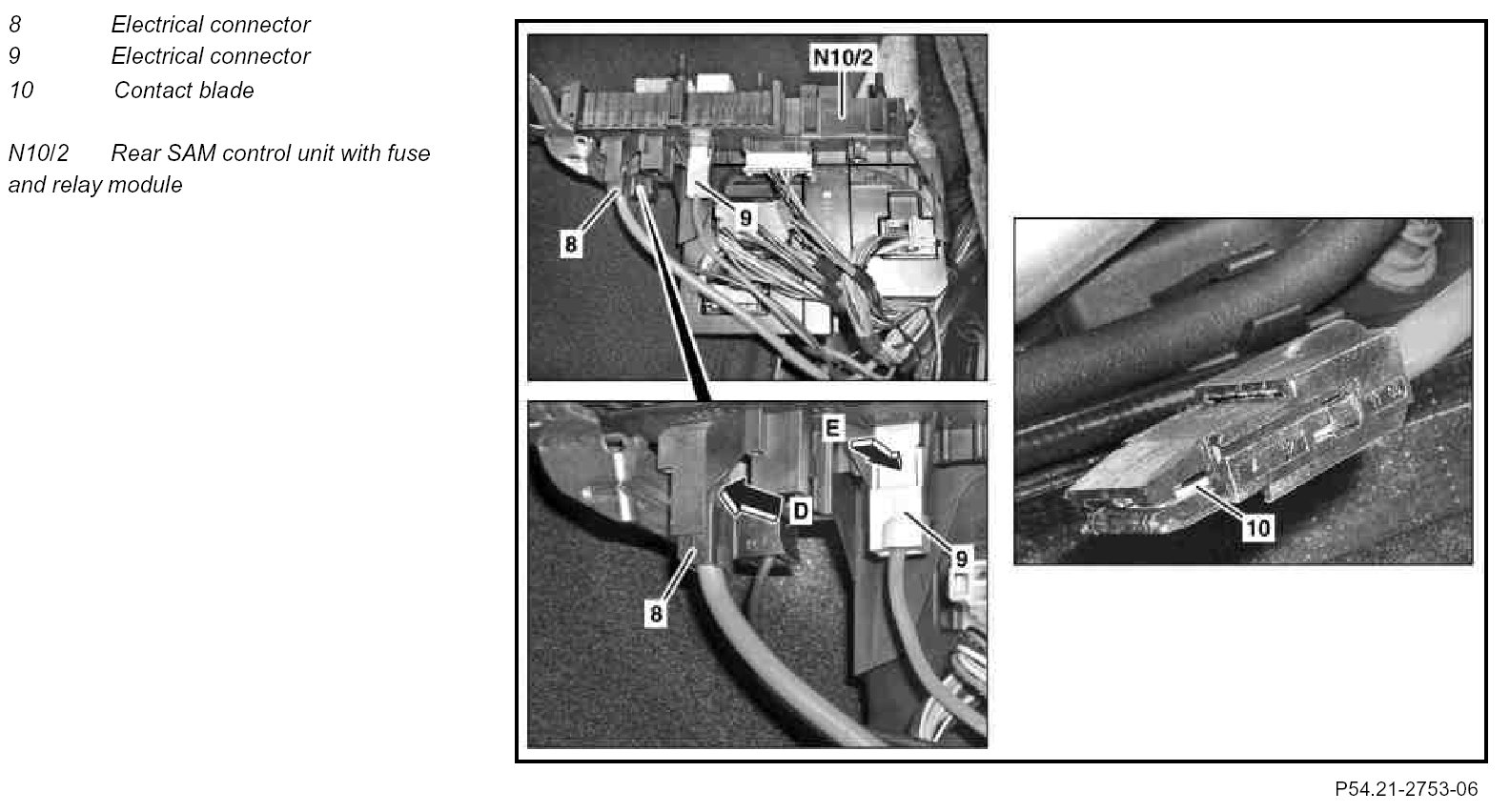

Component Identification:




Component Identification:




Component Identification:

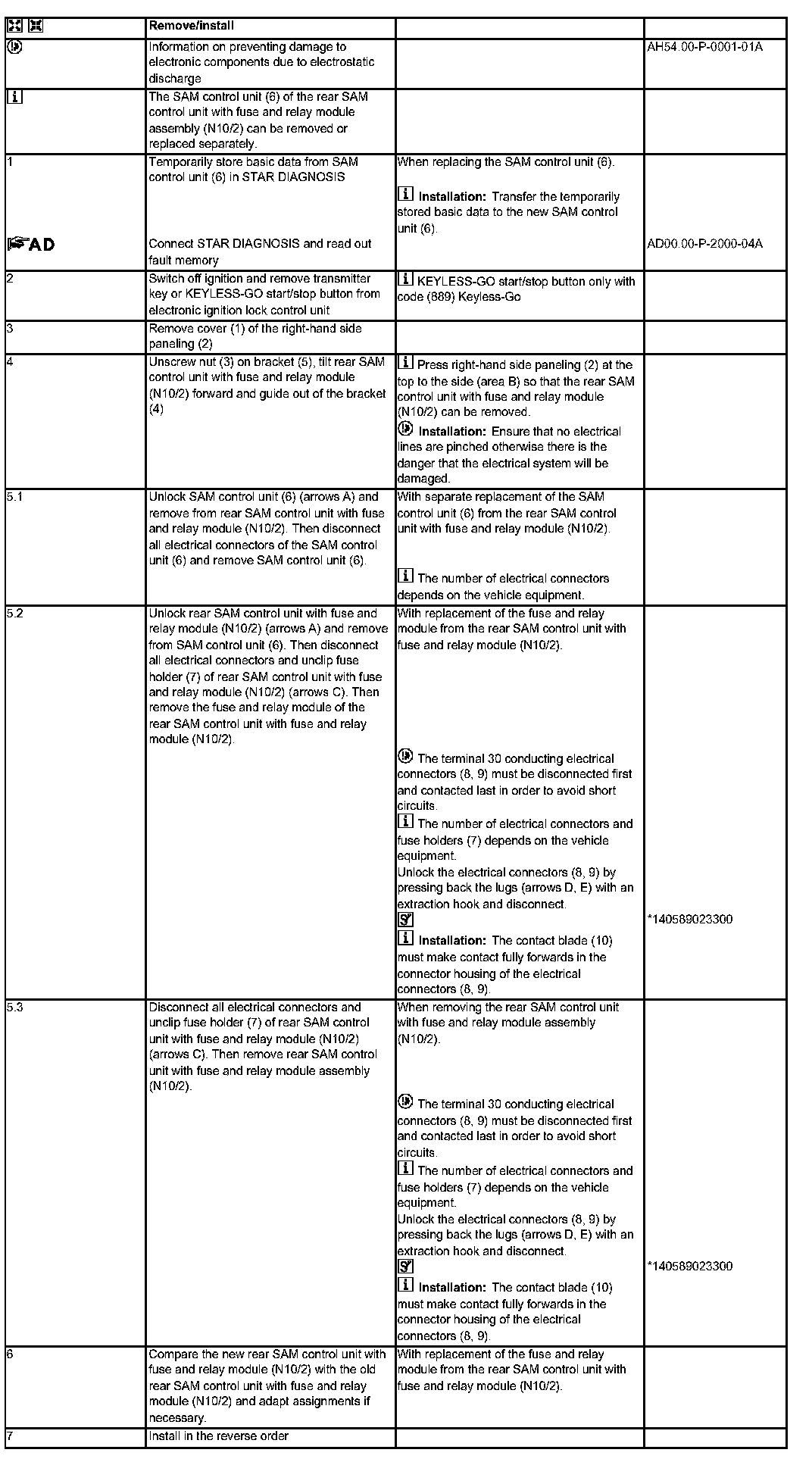

Steps 1 - 7:

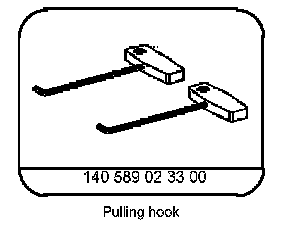

Special Tools:
