GF07.61-P-0001-14MI (ME-SFI) Motor Electronics Gasoline Injection and Ignition System, Location of Components on Engine



GF07.61-P-0001-14MI (ME-SFI) Motor Electronics Gasoline Injection And Ignition System, Location Of Components On Engine

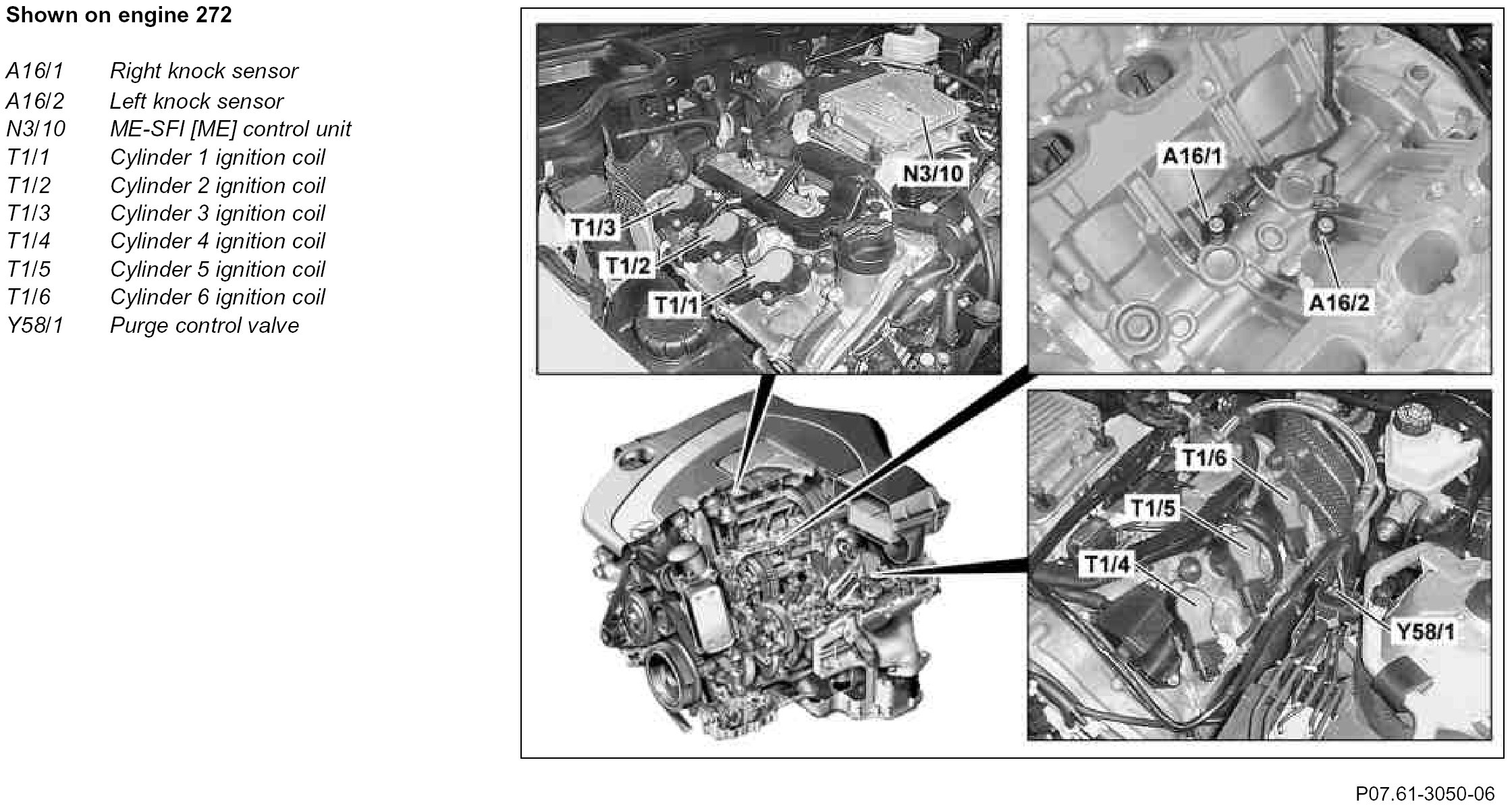

Component Identification:

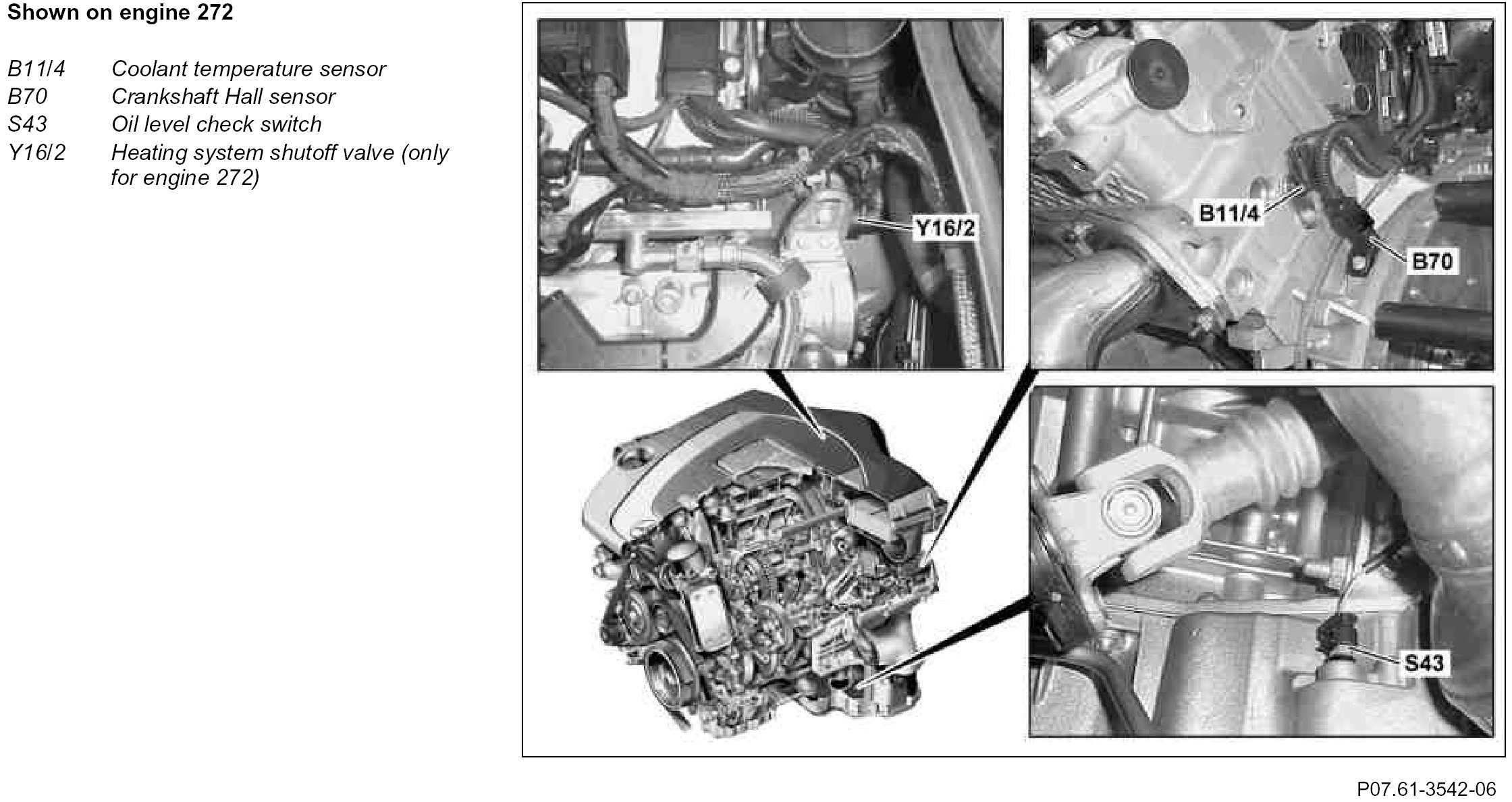

Component Identification:

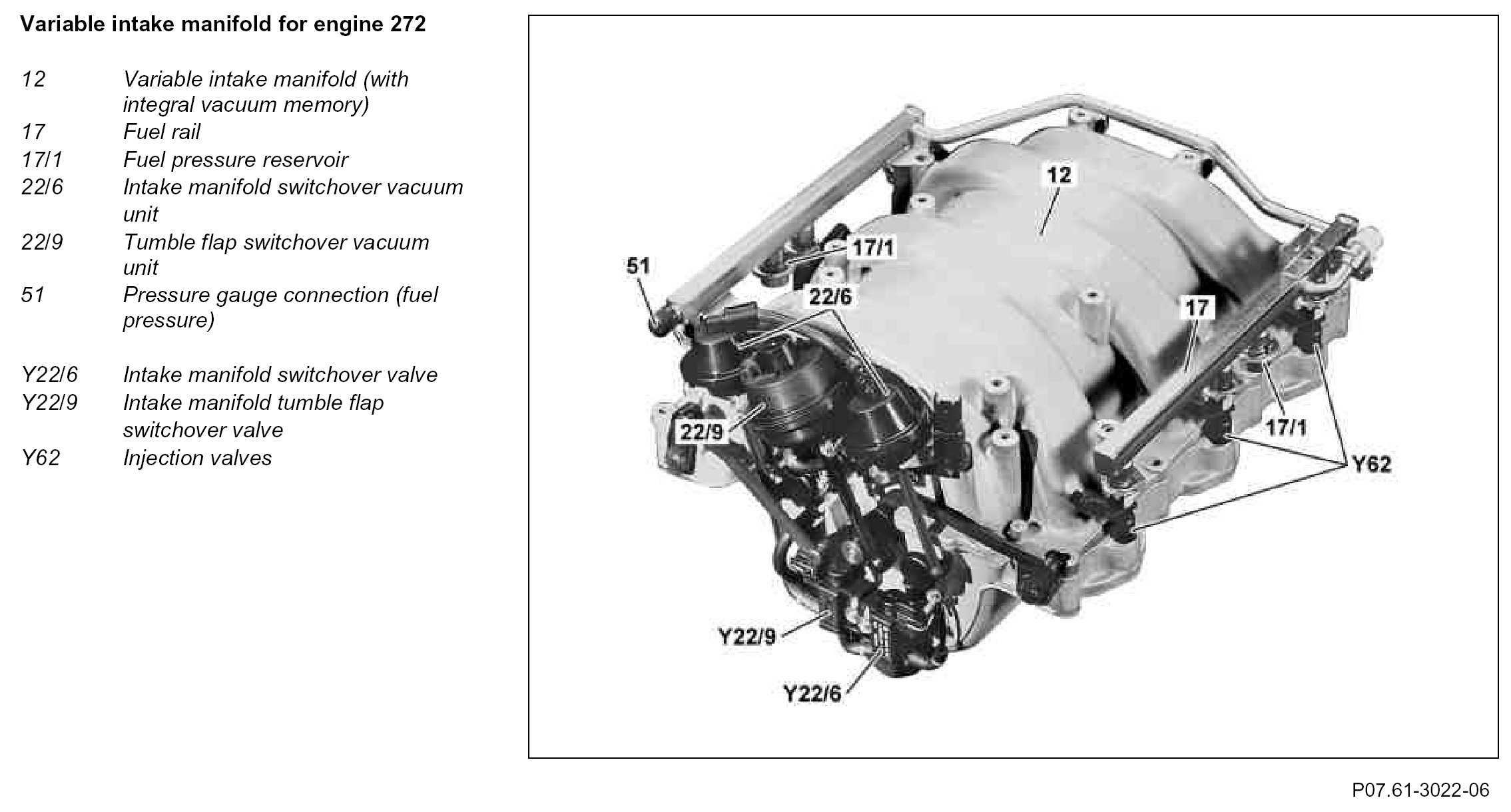

Component Identification:

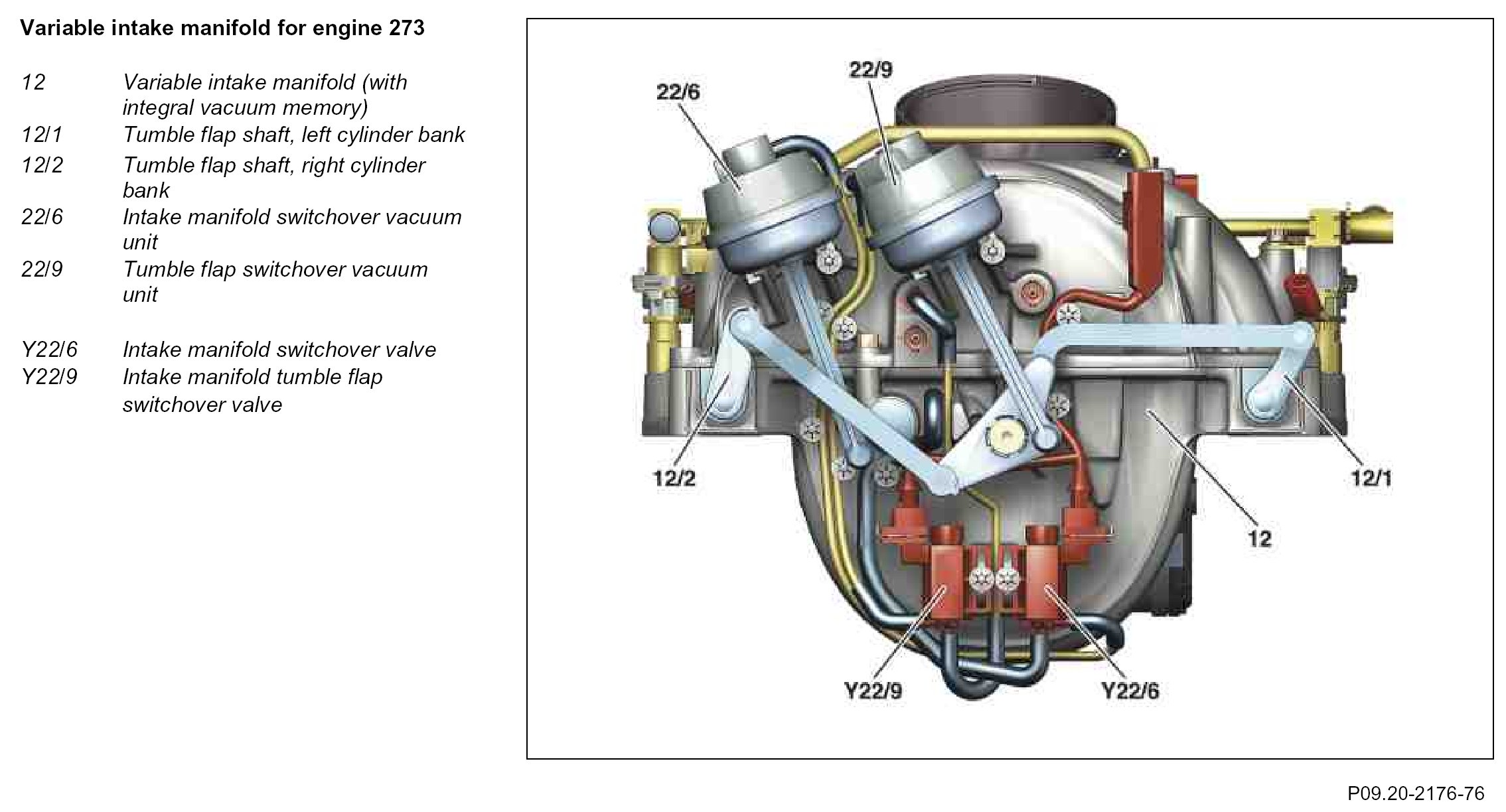

Component Identification:

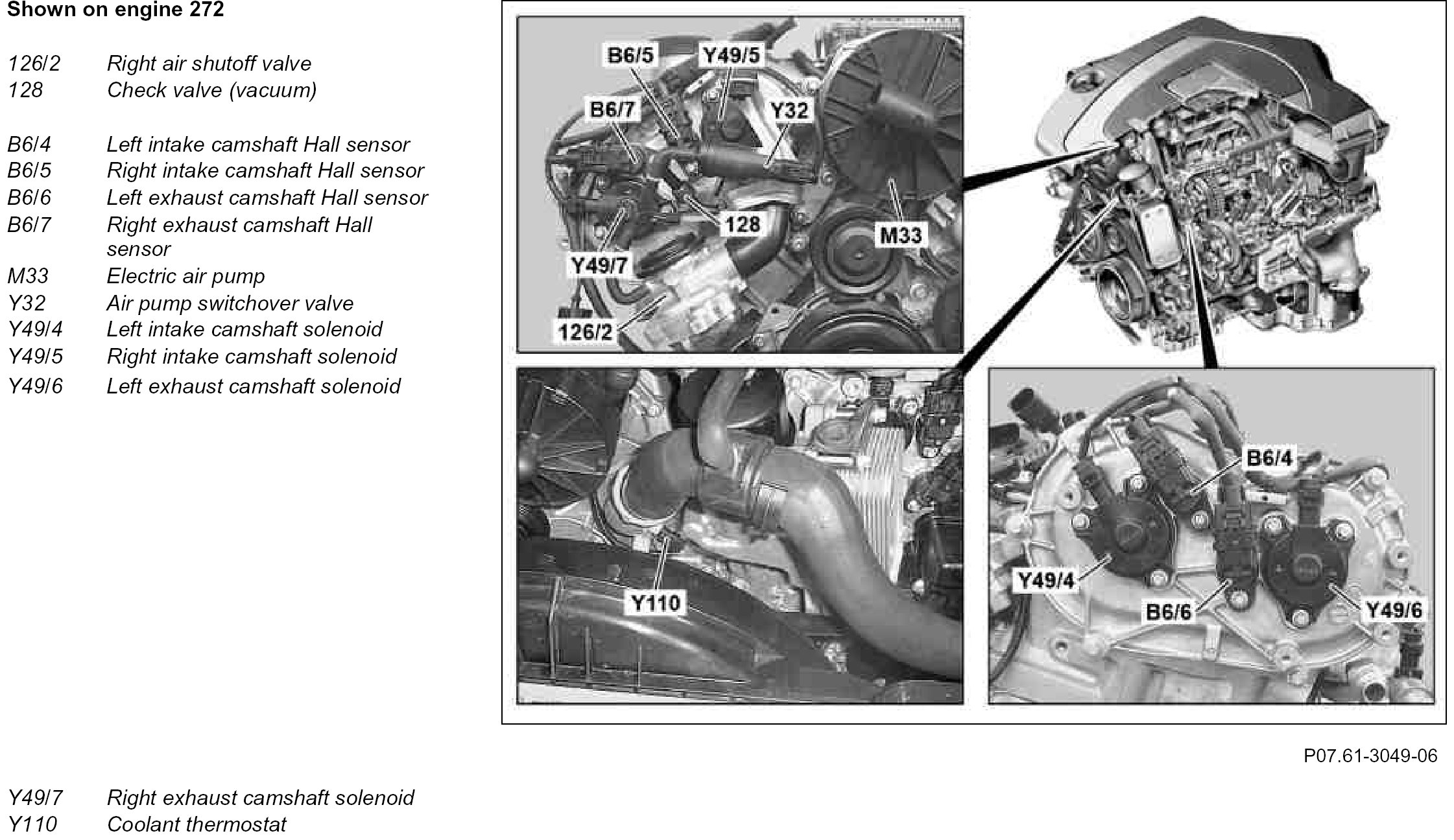

Component Identification:





Component Identification:
