Ignition Coil: Service and Repair



AR15.12-P-2003CV Remove/install ignition coils

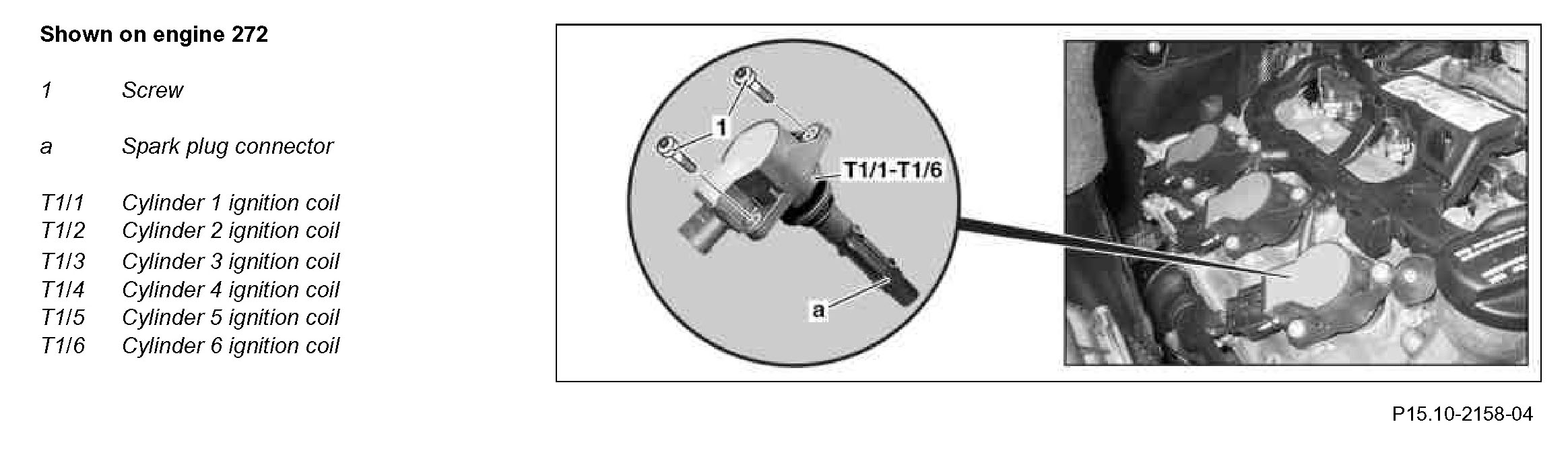

Component Identification:

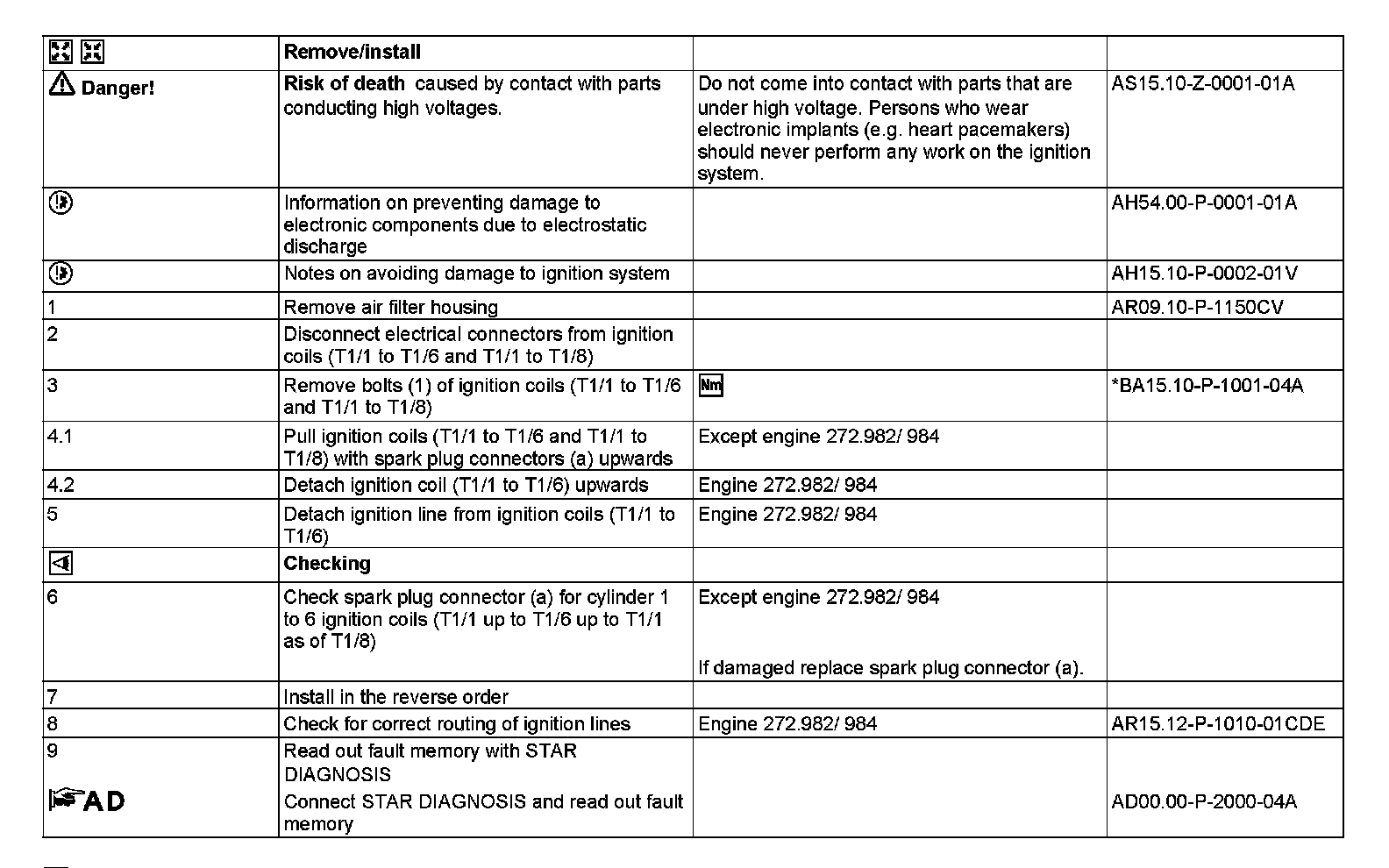

Steps 1-9:

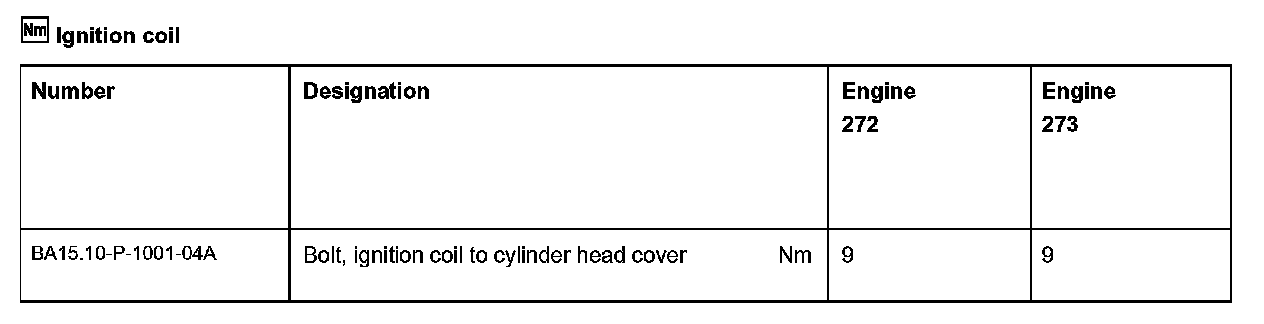

Ignition coil:
