AR47.10-P-4001CW Empty/Fill Fuel Tank



AR47.10-P-4001CW Empty / Fill Fuel Tank

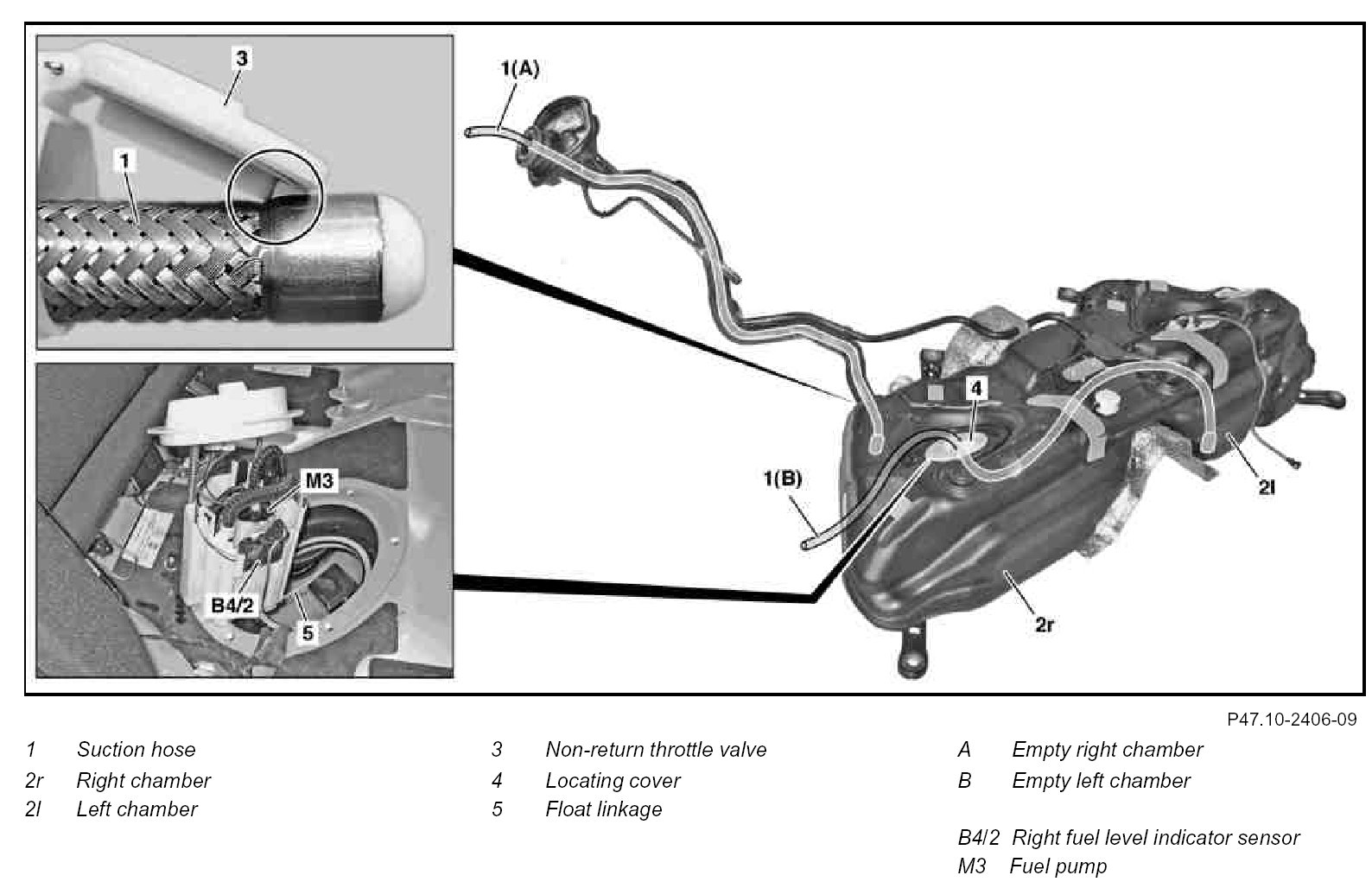

Component Identification:

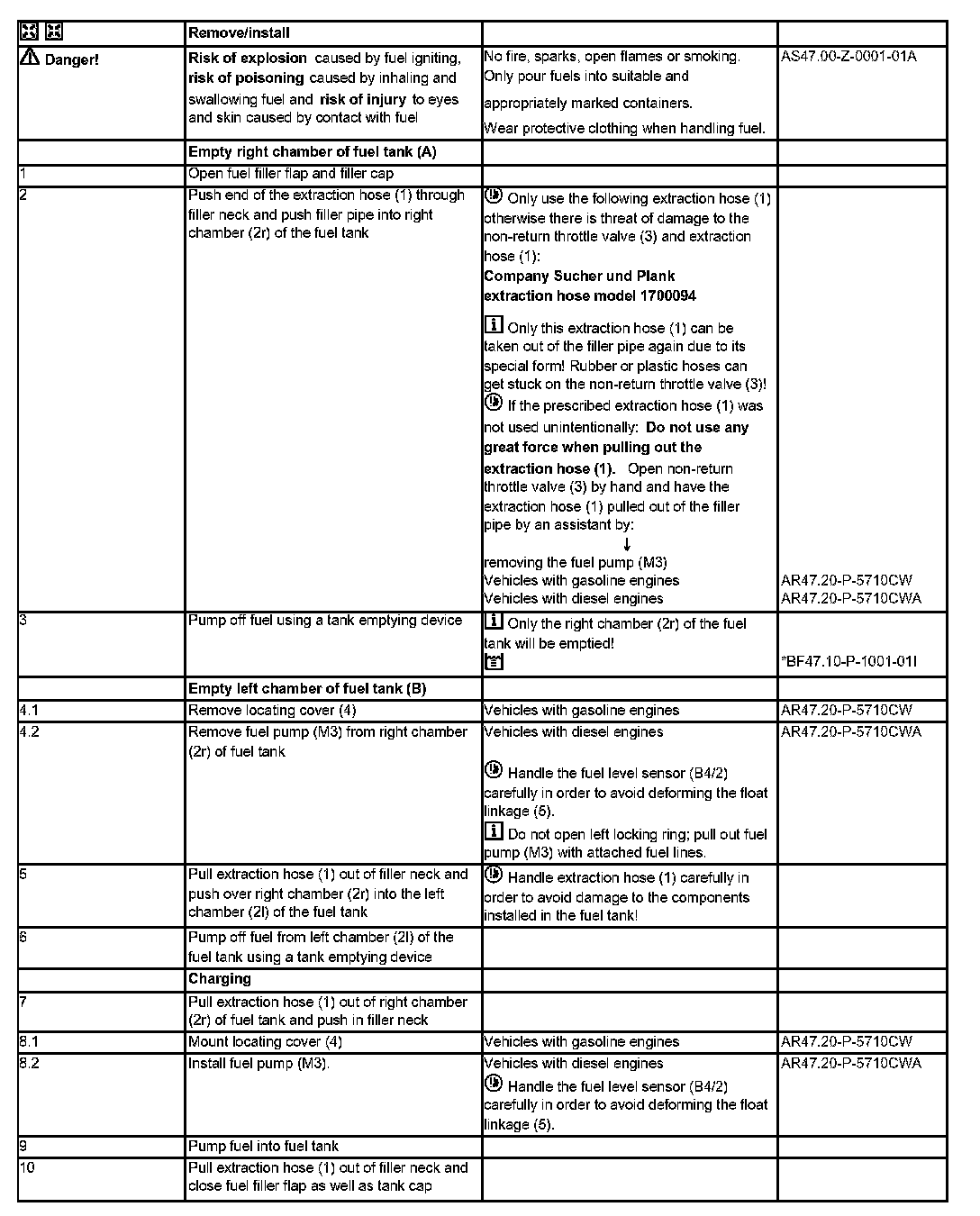

Steps 1 - 10:

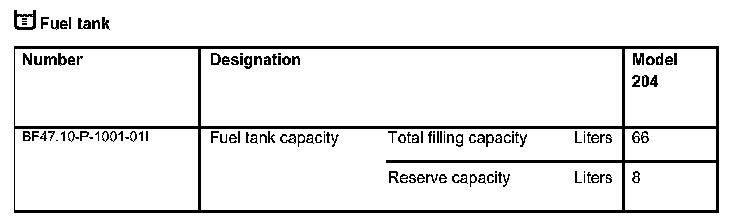

Fuel Tank:
